C_RTK centimeter positioning system

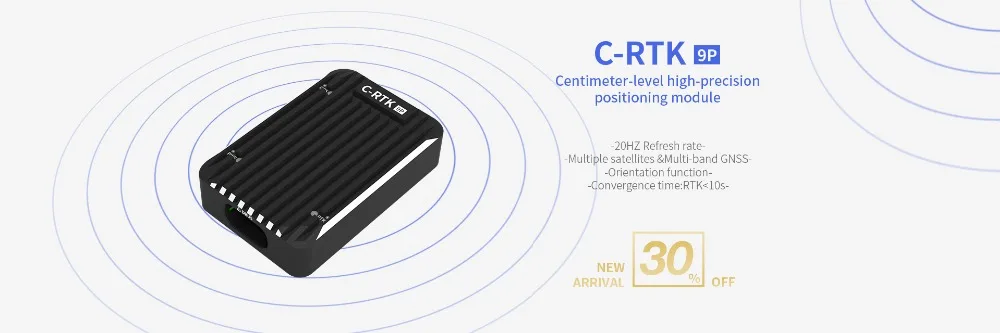

The CUAV C-RTK 9P GPS Receiver is an RTK GPS module designed by CUAV for the professional market. It uses Ublox's F9P module, supports multi-satellite multi-frequency, and uses advanced RTK algorithms. It can build an RTK system with two identical C-RTK 9P modules. Using it, the PX4 can achieve centimeter-accurate position in seconds, which is much more accurate than the average GPS, and faster and more convenient than the previous generation M8P module.

rtk

Key Features

  • Receiver type
    • RTK Receiver: Ublox F9P
  • GNSS
    • GPS / QZSS,Beidou,Galileo, GLONASS
  • GNSS Bands
    • GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, BDS B1I B2I, QZSS L1C/A L2C
  • Nav. update rate
    • RTK Up to 20HZ
  • Position accuracy
    • RTK 0.01 m + 1 ppm CEP
  • Convergence time
    • RTK < 10 sec
  • Acquisition
    • Cold starts 24 s
    • Aided starts 2 s
    • Reacquisition 2 s
  • Sensitivity
    • Tracking & Nav –167 dBm
    • Cold starts –148 dBm
    • Hot starts –157 dBm
    • Reacquisition –160 dBm
  • Anti-jamming
    • Active CW detection and removal Onboard band pass flter
  • Anti-spoofng
    • Advanced anti-spoofng algorithms
  • Interfaces
    • 2 UART
    • 1 USB
    • 1 I2C
    • 1 Antenna interface(MMCX)
  • Protocols
    • NMEA
    • UBX binary
    • RTCM version 3.x
  • Supply voltage
    • –40 °C to +85 °C
  • Size
    • 31.5*48*12MM
  • weight:21g



More information: http://doc.cuav.net/gps/c-rtk/en/c-rtk-9p.html

Hardware connection

User guide(for PX4)

User guide(for Ardupilot)
