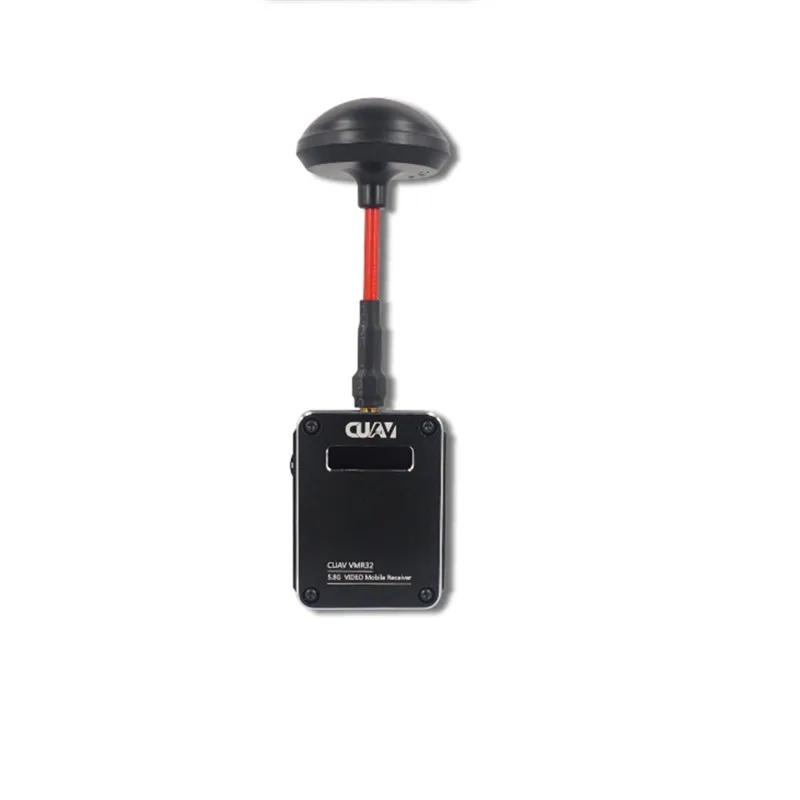

CUAV VMR32 5.8G Wirless Video Mobile Receiver


CUAV VMR32 5.8G Wirless Video Mobile Receiver Image Transmission for Phone Tablet PC AV Display

In Stock

CUAV VMR32 5.8G Wireless Transmitter and Receiver Image transmission for FPV Multicopter Drone free shipping


VMR 32 instructions and APP software download and information: Click here

- CNC aluminum alloy case, strong structure
- Channel search via one botton
- Built-in 32bit MCU
- With LED screen to display channel, strength and voltage
- Working frequency 5.8Ghz ,32 channels
- Can connect to Android phone,tablet PC directly to display audio/video
Wirless Video Mobile Receiver
- Modulation: FM
- Resolution: 640*480 30fps
- Temperature: -10~60 deg C
- Working voltag: USB 5V or external 9-35V
- Working current: USB 5V 250mA
- Color: Gold/Gray
- Dimension: 43*56*11mm
- Antenna length: 80mm
- Weight: 56g

- Support phones (have been tested): for Hua wei Mate 8,Samsung Galaxy3/Note3/note4 ,ZTE Grand Memo U5(32G),Nubian Z9,Motoorola XT1080,Nexus 7,for Xiaomi 3/4/4c,V version moto xt1254,LG G2 G3,GOOGLE nexus7 nuxes6.
- We are not sure whether the receiver is ok for the other systems that haven't been tested.
- We will not take responsibility if this product doesn't work for your phone system that not mentioned above.


Package included:

- 1* VMR32 receiver
- 1* Mushroom antenna
- 1* Data cable
- 1* OTG


Size (mm):43*56*11

 weight: 25g
