CUAV New Pixhack V5 NANO with NEO GPS Small Flight Controller For Ardupilot PX4 Drone Parts free shipping whole sale

$250.00
Delivered within 2-4 days

CUAV New Pixhack V5 NANO Small Flight Controller For Ardupilot PX4 Drone Parts free shipping whole sale

Quantity
In Stock

CUAV New Pixhack V5 NANO with NEO GPS Small Flight Controller For Ardupilot PX4 Drone Parts free shipping whole sale

aeProduct.getSubject()

1EN4EN 3EN 1EN56ENcompare en

EN 2



Features:

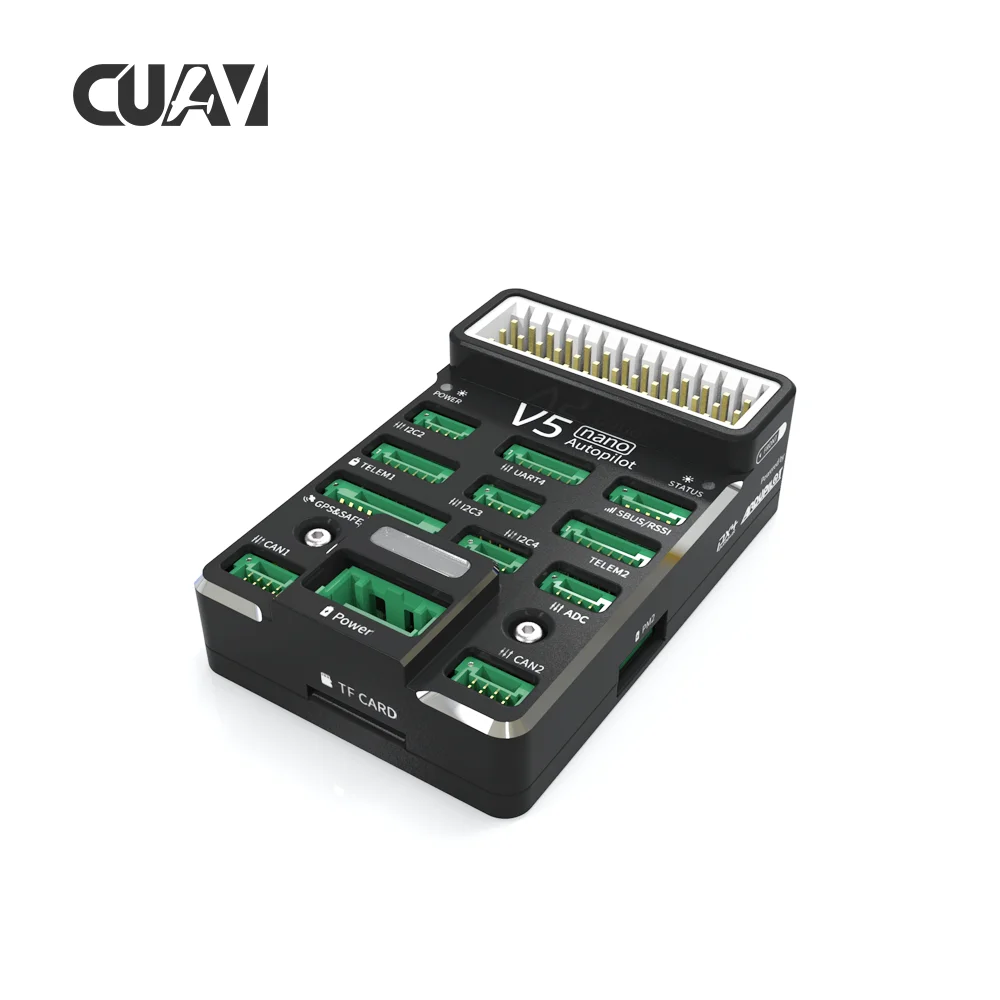

- Compact but powerful V5 nano flight controller + NEO GPS
- Support for hardware on open source platform PX4 and Autopilot
- Suitable for fixed-wing drones, helicopters, multicopters, FPVs, VTOL, Unmanned Boats, UAVs
- High Performance: Equipped with STM32F765 microprocessor, features 216MHz main frequency, 2M flash and 512K SDRAM. There are four groups of isolation chips and a MS5611 high-precision air gauge.
- Easy to install and dismantle with 2.6mm spacing between IO pins.
- Real-time Data Monitor: Five groups of built-in sensors enhance its safety and stable performance. There are ICM-20689 accelerometer and gyroscope, ICM-20602 accelerometer and gyroscope, BMI055 accelerometer and gyroscope, IST8310 magnetic compass and MS5611 air gauge.

Specifications:
Hardware Parameters:
- Main FMU Processor: STM32F765(32-bit, 216MHz, 2MB flash, 512KB RAM)

Sensors:
- Accelerometer: ICM-20602/ICM-20689/BMI055
- Gyroscope: ICM-20602/ICM-20689/BMI055
- Magnetometer: IST8310
- Air Gauge: MS5611

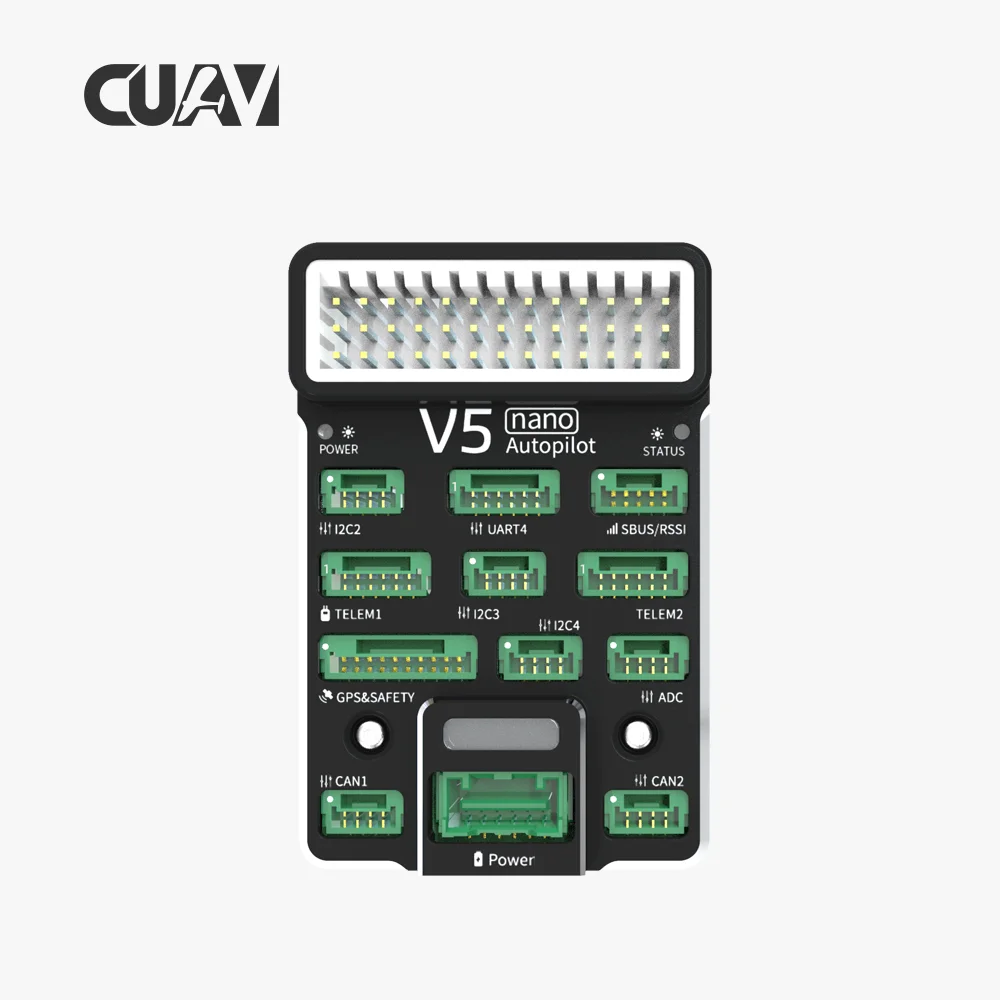

Interfaces:
- UART Ports: 5
- I2C Ports: 4
- PWM Output: Up to 11
- PWM Input: 4
- Signal Input Protocol for Remote Control: PPM/SBUS/DSM
- RC IN: 1
- PPM IN:1
- RSSI Input: PWM or 3.3V analog voltage
- CAN Standard Bus: 2
- Current & Voltage Input: 1
- Safety Switch: 1
- GPS Port: 1
- Debug Port: 1
- JATG Port: 1
- USB Port: 1 (Type-C)

Supported Models:
- For PX4 Hardware: Fixed-wing Aircrafts, 3-8 Multicopters, Helicopters, VTOL, UAVs, Unmanned Boats

Working Conditions & Physical Parameters:
- PM Working Voltage: 4.5 to 5.5V
- USB Voltage: 5V±0.25V
- Servo Input: 0 to 36V
- Working Temperature: -40 to 85℃

Weight & Dimensions:
- Dimensions: 40 x 60 x 17.5mm
- Weight: 40g

Package1 Included: with NEO GPS
- 1 x V5 nano Flight Controller
- 2 x Dupont Cables
- 1 x ADC6.6 Cable
- 2 x I2C/CAN Cables
- 1 x SBUS Signal Cable
- 1 x RSSI Cable
- 1 x DSM Signal Cable
- 1 x ADC3.3 Cable
- 1 x Debug Cable
- 1 x Safety Switch + Cable
- 1 x Voltage Current Cable
- 1 x PW-Link Module + Cable
- 1 x Power Suppl Module
- 1 x 16GB Memory Card
- 1 x I2C Expansion Board
- 1 x TTL Board

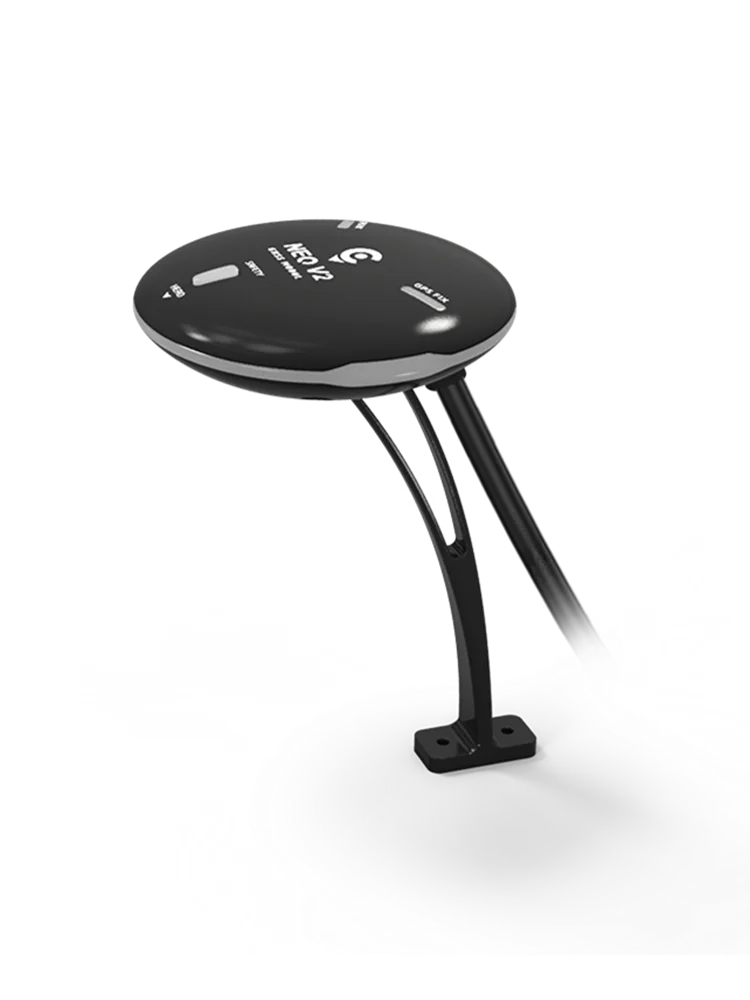

- 1 x NEO GPS
- 1 x GPS Bracket



Package2 Included: without NEO GPS

- 1 x V5 nano Flight Controller
- 2 x Dupont Cables
- 1 x ADC6.6 Cable
- 2 x I2C/CAN Cables
- 1 x SBUS Signal Cable
- 1 x RSSI Cable
- 1 x DSM Signal Cable
- 1 x ADC3.3 Cable
- 1 x Debug Cable
- 1 x Safety Switch + Cable
- 1 x Voltage Current Cable
- 1 x PW-Link Module + Cable
- 1 x Power Suppl Module
- 1 x 16GB Memory Card
- 1 x I2C Expansion Board
- 1 x TTL Board



aeProduct.getSubject()
4123


白底图 - 副本 (2)010203040506GPS 长图

aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
Return:

If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back

Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
