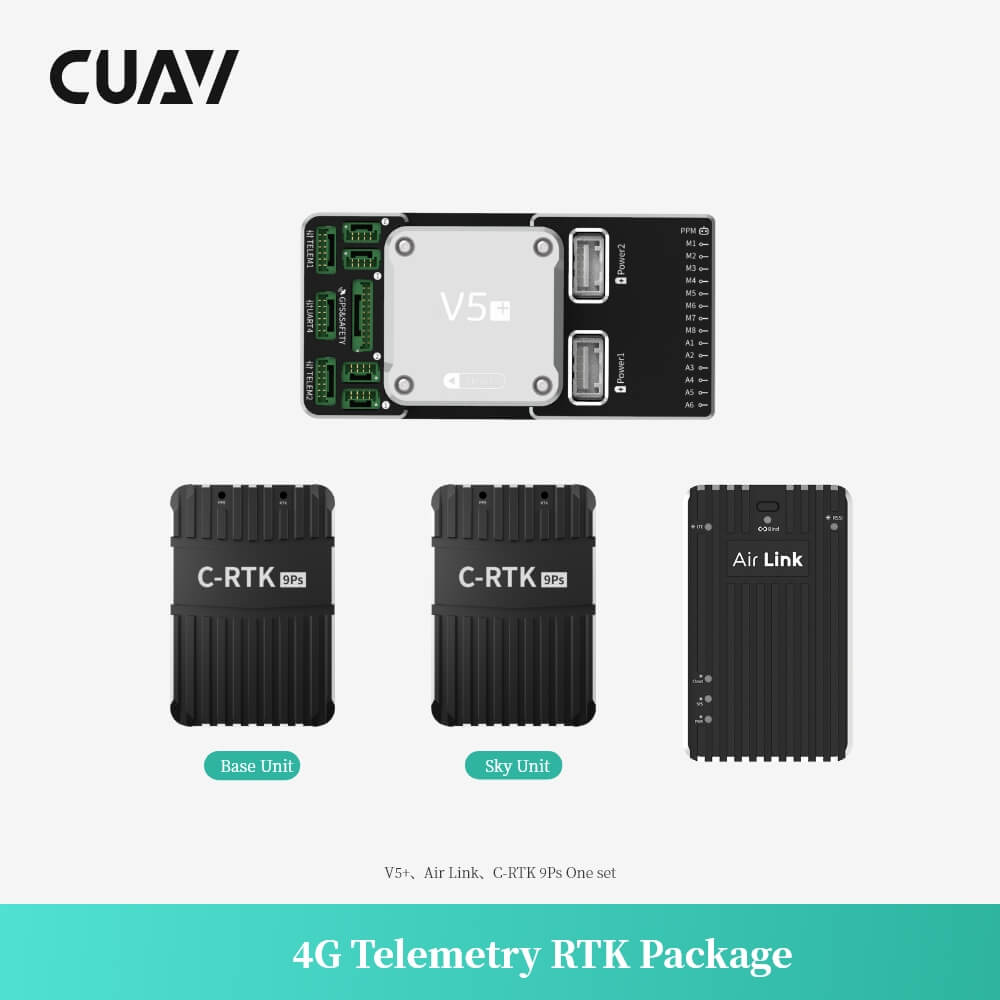

CUAV NEW match 4G Telemetry RTK Package with
V5+ flight controller *1
Air link *1
C-RTK 9P set *1
V5+ Flight controller
V5+ CUAV Advanced autopilot designed jointly with PX4 team and manufactured by CUAV. It is based on Pixhawk FMUv5 design standards and is perfectly compatible with PX4 and ArduPilot firmware. The separated design can support user customize flight control baseboard.
C-RTK 9P–Centimeter level positioning system
C-RTK 9P is a multi-satellite multi-frequency centimeter-level positioning and navigation module. It has a built-in electronic magnetic compass and a GNSS module. The two modules can form an RTK positioning and orientation system. The base station and mobile terminals can be seamlessly switched; It supports Beidou, Galileo, GLONASS, GPS global positioning system; mainly provides navigation and positioning services for robots, drones, intelligent driving and mechanical control applications.
UAV communication link A cost-effective UAV 4G data transmission link,can be connected to CUAVCloud system, support CUAV GS Android ground station, FeiGong Transmission, through FeiGong Transmission, can also use APM, QGC ground station.The data transmission delay is only 20~40ms.
