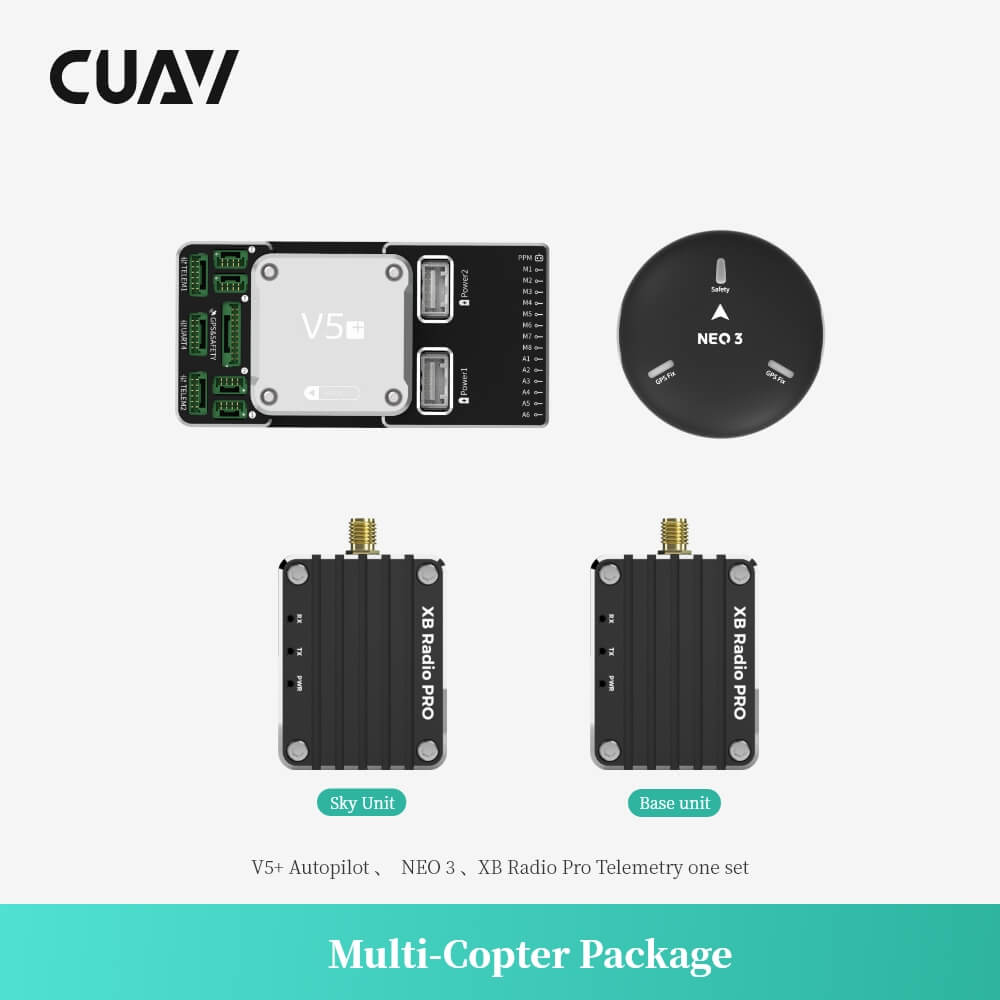

CUAV NEW Match Multi-Copter Package with
- V5+ *1
- NEO 3 GPS *1
- XBEE pro telemetry Sky unit*1
- XBEE pro telemetry Ground unit*1
V5+ Controller Feature:
- FMU v5 hardware standard, more advanced and stable than FMU v3
- Built-in shock absorption
- Support RTK centimeter-level GNSS module
- Multi-sensor redundant design
- Full model support
- Modular design, support custom baseboard
Product Introduction:
V5+ is a premium controller designed by the CUAV and PX4 teams and manufactured by CUAV. Based on the Pixhawk FMU v5 design standard, perfectly compatible with PX4 and ArduPilot firmware. Its modular design allows users to customize the baseboard.
Main Parameter | |
| Main FMU Processor | STM32F765 (32 Bit Arm Cortex -M7, 216MHz, 2MB FLASH, 512KB RAM) |
| IO Processor | STM32F100 (32 Bit Arm Cortex -M3,24MHz, 8KB SRAM) |
Sensors | |
| Accelerometer | ICM-20602 / ICM-20689 / BMI055 |
| Gyroscope | ICM-20602 / ICM-20689 / BMI055 |
| Magnetometer | IST8310 |
| Barometer | MS5611 |
Interfaces | |
| UART | 5 |
| I2C | 4 |
| SPI | 1 |
| CAN | 2 |
| ADC | 2 |
| PWM | 8 ~ 14 PWM outputs (6 from IO, 8 from FMU) |
| DSM/SBUS/RSSI | 1 |
| PPM IN | 1 |
| Power Interface | 2 |
| Safety Switch | 1 |
| DEBUG / F7 SWD | 1 |
| USB | 1 (Type-C) |
| TF slot | 1 |
| Rated Voltage | 4.5 ~ 5.5 V |
| USB Voltage | 5V ± 0.25 V |
| Servo Voltage | 0 ~ 36 V |
| Working Temp | -20 ~ 85℃ |
| Size | 85.5 × 42.0 × 33.0mm |
| Weight | 91g |
NEO 3 GPS–GNSS Module Feature:
- Ublox M9N satellite receiver, accuracy up to 0.7m
- Support BDS, GALILEO, GLONASS, GPS four satellite systems
- Support simultaneous reception of four satellite systems
- Triple filters design
Product Introduction:
NEO 3 is a cost-effective M9N navigation and positioning product with a single point positioning accuracy of up to 0.7m. It integrates positioning system, magnetic compass, controller status light, controller alarm, and barometer, and can receive signals from four major satellite navigation and positioning systems simultaneously.
Product Parameters | |
| Compass | ST8310 |
| RGB Drive | NCP5623 |
| Buzzer | Passive buzzer |
| Safety Switch | Physical button |
| GNSS Receiver | UBLOX NEO M9N |
| Number of Concurrent GNSS | 4(BDS、GALILEO、GLONASS、GPS) |
| Frequency Band | GPS:L1C/A GLONASS:L10F BDS:B11 GALILEO:E1B/C |
| GNSS Augmentation System | SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF) other:RTCM3.3 |
| Horizontal Accuracy | 2.0m |
| Speed Accuracy | 0.05m/s |
| Nav.update rate | 25Hz(Max) |
| Acquisition | Cold start:24s Hot start:2s Aided start:2s |
| Number of Saellites(MAX) | 32+ |
| Sensitivity | Trackng and nav-167dBm Cold start Hot start-148dBm Reacquisition-160dBm |
| Protocol | UART+IO+l2C |
| Port Type | GHR-10V-S |
| Supported Controller | CUAV series, Pixhawk series |
| Wave Filtering | SAW+LNA+SAW |
| Anti-Lectromagnetic/ Radio Frequency Interference | EMI+RFI |
| Upgrade Firmware | Support |
| Support Control Type | ArduPilot/PX4*(PX4 is stillworking hard to adapt to the clock) |
| Input Voltage | 4.7-5.2V |
| Operating Temperature | -10～70℃ |
| Size | 60×60×16mm |
| Weight | 33g |

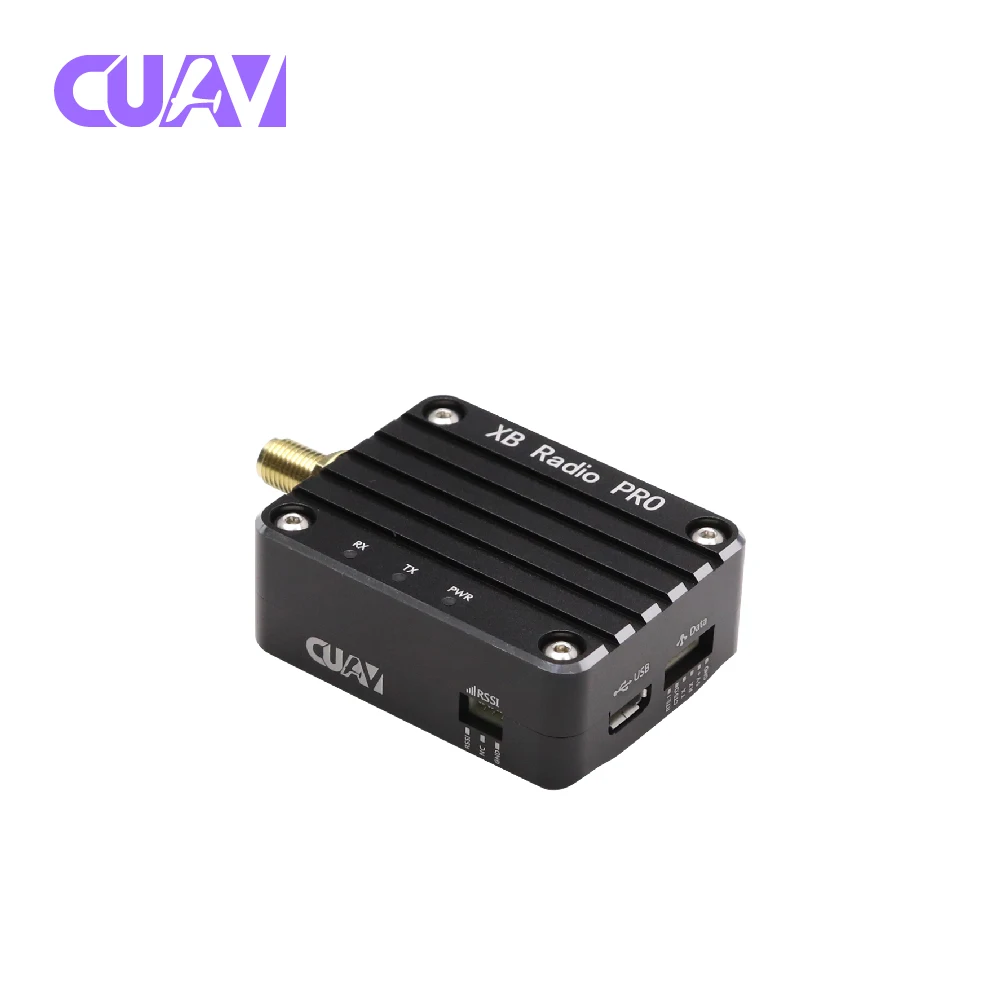

XB Radio Pro Telemetry Feature:
- 6.5km range
- 200kbps link rate
- Dual-end switchover design, reduce cost
- Integrated RSSI signal strength output
Product Introduction:
The XB Pro is an easy-to-use telemetry module that provides best-in-class wireless connectivity for drones or IoT devices. The DigiMesh network protocol shares a common hardware serial port that provides a variety of different protocols, allowing users to integrate into drones or devices with minimal development time and risk. The module supports up to 28 miles (with high-gain antenna) RF line-of-sight range, 200 kbps data rate, ideal for extended range applications that require increased data throughput.
Hardware | |
| Frequency Range | 902 ~ 928 MHz |
| Processor | ADF7023 transceiver，Cortex-X3 EFM32G230@28MHz Programmers include：Freescale MC9s08QE32 |
| Antenna Selection | wire.U.FlL and RPSMSA |
Performance | |
| Data Rate | 10kbps~200kbps, default 200kbps |
| Urban / Indoor Distance | 10kbps：up to 2000 feet (610 meters); 200kbps：up to 1000 feet |
| Outdoor/Suburban Distance | 10kbps：up to 15.5km 200kbps：up to 6.5km |
| Maximum Power | 24dBm (250mw) software optional |
| Receiver Sensitivity | 101dBm@200kbps; 110dBm@10kbps; |
Characteristic | |
| Data Interface | UART(3V）.SPI |
| GPIO | 15 digital iO, 4 10-bit ADC inputs, 2 PWM outputs |
| Network Topology | DIgiMEsh, relay, point-to-point, peer-to-peer network |
| Spread Spectrum | FHSS (software optional) |
| Programmability | |
| Internal Storage | 32KB FLASH/2KB RAM |
| CPU Clock | Up to 50MHz |
| Power | |
| Service Voltage | 4 ~ 7 V |
| Emission Current | 229 mA |
| Receive Current | 44 mA |
| Sleep Current | 3 uA |
Management agency certification | |
| FCC（America） | MCQ-XB900HP |
| iC（Canada） | 1846A—XB900HP |
| C-tick(Australia） | Yes |
| Anatel（Brazil） | Yes |
| IDA（Singapore） | Yes |
