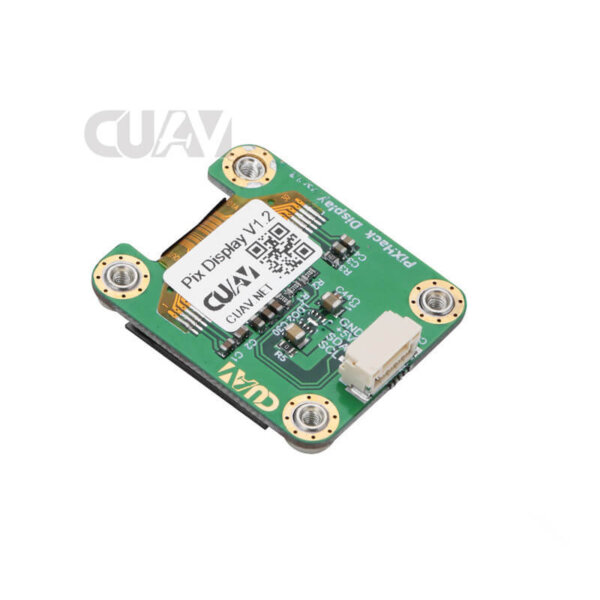

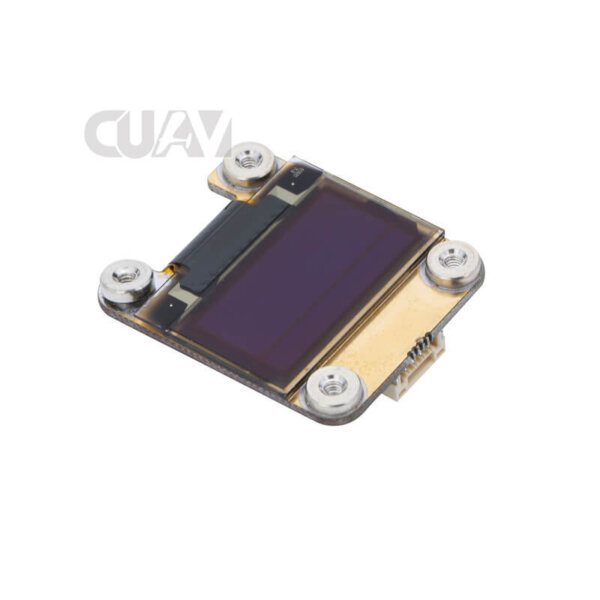

CUAV DISPLAY I2C OLED Monitor

$23.00

CUAV PIX_DISPLAY I2C OLED Monitor For Pixhack/Pixhawk RC Multicopter Flight Controller RC Models DIY Accessories

Clear
SKU: N/A Categories: ,

HOT CUAV DISPLAY I2C OLED Monitor For Pixhack/Pixhawk RC Multicopter Flight Control RC Models DIY Accessories

1
Description:
Screen resolution: 128*64
Screen material: OLED
Screen color: Yellow and blue
Data interface: I2C 4Lines
Operating voltage: 3.3-5V
Operating temperature; -10–+60°
Size of fixed hole: 25.76×20.2mm
Hole size: 2.4mm
Size:32.3×26.7x9mm
Weight:5gFeature:
Light weight and good work.Package included:

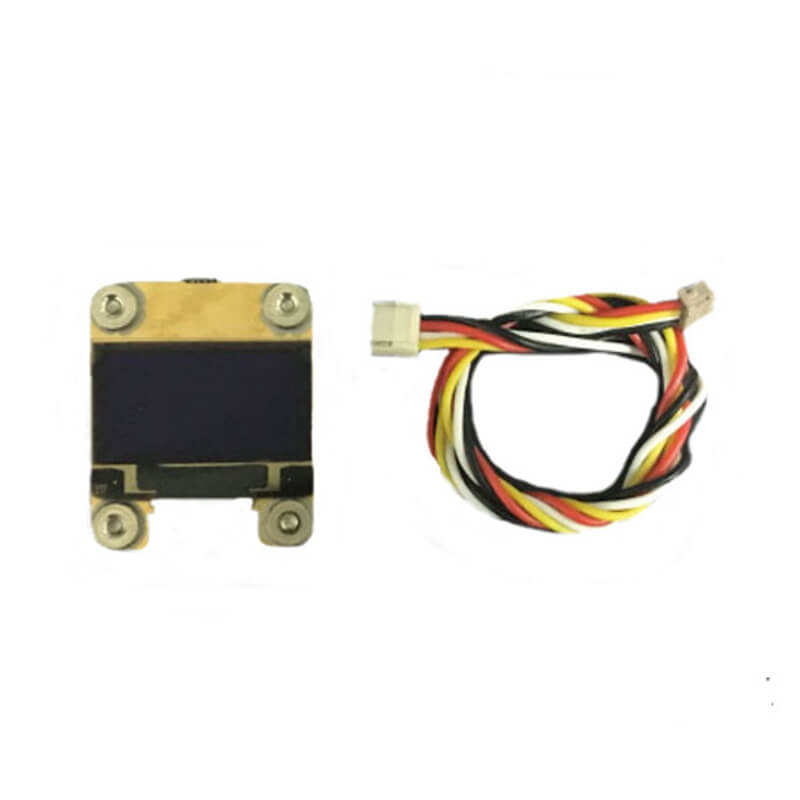

1 x I2C OLED Monitor
1 x Cable
4 x Screws

How to use:
pix_dispy

CUAV PIX_DISPLA will be inserted into the I2C control parts extended port will carry on the power; flight control will automatically identify the display accessories in self-test will display information if not show, please try NIF_DISPLAY TYPE type to 1 (type ssd1306), the power on again

After opening the OLED display, the status headlamp will be deactivated and not blinking

display_type

CUAV PIX DISPLAY Open hole fixed dimension drawing

PIXHACK_DISPLAY_



1201709469 _

aeProduct.getSubject()
aeProduct.getSubject()
Weight 0.3 kg
Dimensions 10 × 10 × 10 cm
DISPLAY VERSION

V5 Plus and X7 Series FC, PIX
