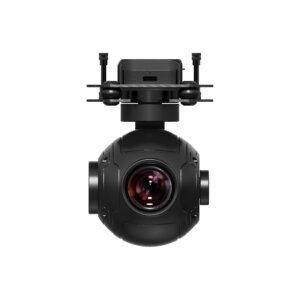

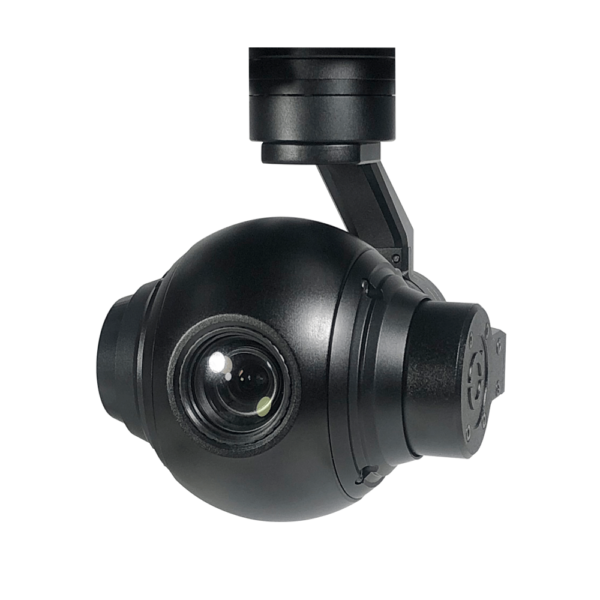

CUAV NEW 10x Optical Zoom UAV Camera Gimbal Spherical High Definition With HD Camera
Q10F FS
Professional 3-axis High-precise FOC Program
Stabilizing the Q10F is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. 300° rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.
10x Optical Zoom Camera
The Q10F gimbal and camera features an 10x optical zoom lens. The type 1/3 inch CMOS sensor supports approx, 4 million effective pixels, HD 1080p video, fast auto-focus speed, small size, designed for UAV aerial photography. Factory, all the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then ready to fly. The gimbal can be controlled in three directions: YAW, ROLL and PITCH , we use FOC solution can greatly compensate the vibration of UAV. The image is very stable even at ten optical zoom times. Q10F have been widely used in various fields like public security, electric power, fire, zoom aerial photography and other industries in the application of drones.
Applications
Specifications
Hardware Parameter
Working voltage 12V ~ 16V
Input voltage 3S ~ 4S
Output voltage 5V (connect with PWM)
Dynamic current 320mA @ 12V
Idle current 240mA @ 12V
Power consumption ≤ 3.85W
Working environment temp. -20℃ ~ +50℃
Output micro HDMI(HD output 1080P 60fps) / Analog
Local-storage SD card (Up to 32G, class 10, FAT32 or ex FAT format)
Control method PWM / TTL
Gimbal Spec
Pitch/Tilt ±90°
Roll ±45°
Yaw/Pan ±150°
Vibration angle Pitch/Roll: ±0.02°, Yaw：±0.03°
One-key to center √
Camera Spec
Imager Sensor 1/3inch CMOS
Total pixel 4MP
Effective pixel 2688*1520
Dynamic range 65dB
Lens 5MP
Optical zoom 10x, F=4.9~49mm
Min object distance 1.5M
Viewing angle Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end)
Vertical: 39.8°(wide end) ~ 4.2°(tele end)
Focus: 66.6°(wide end) ~ 7.2°(tele end)
Sync system Progressive scanning
Local video 1080P 30fps local TF card
HD output 1080P/720/480P 60fps HDMI1.4
AV output Standard CVBS 1Vp-p
S/N ratio 38dB
Min illumination Color 0.05lux@F1.6
Backlight compensation Backlight compensation/strong light inhibition
Gain Auto
White balance Auto/Manual
Shutter speed Auto
Control system UART/IR/PWM
Communication protocol PELCO-D, Hitachi protocol or VISCA
Focus Auto/Manual/One-time automatic focus
Focus speed 2s
Lens initialization Built-in
User presetting bit 20 sets
Image rotation 180°, Horizontal/Vertical mirror image
OSD Not support
Fotoformate JPEG
Videoformate MP4
Fotoformate JPEG
Videoformate MP4

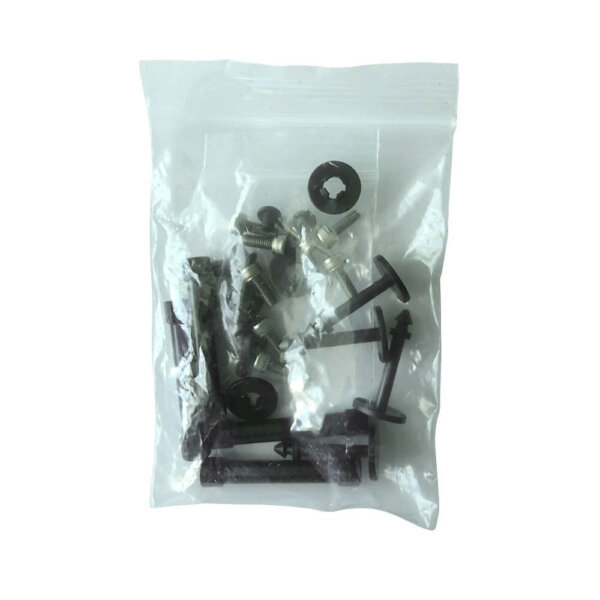

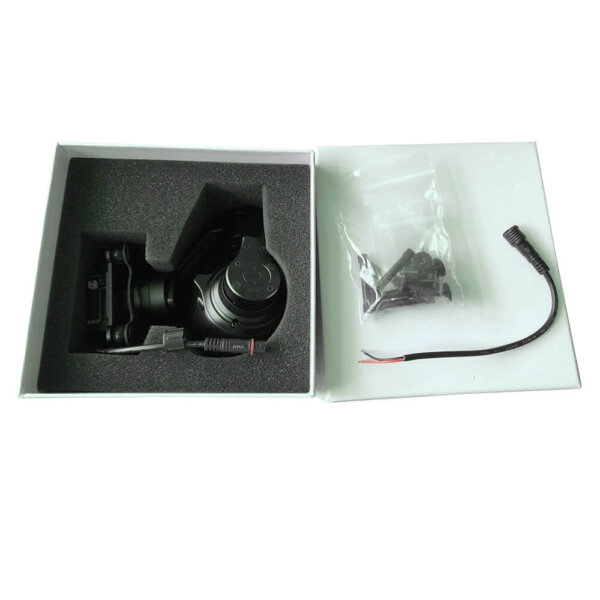

Packing Information
N.W. 413g
Product meas. 105*91*98mm
