CUAV V5+/X7+ Carrier Base Board Flight Controller Pixhawk For FPV RC Quadcopter Helicopter

V5+ base board customized

$149.00$179.00

Clear
Payment Methods:

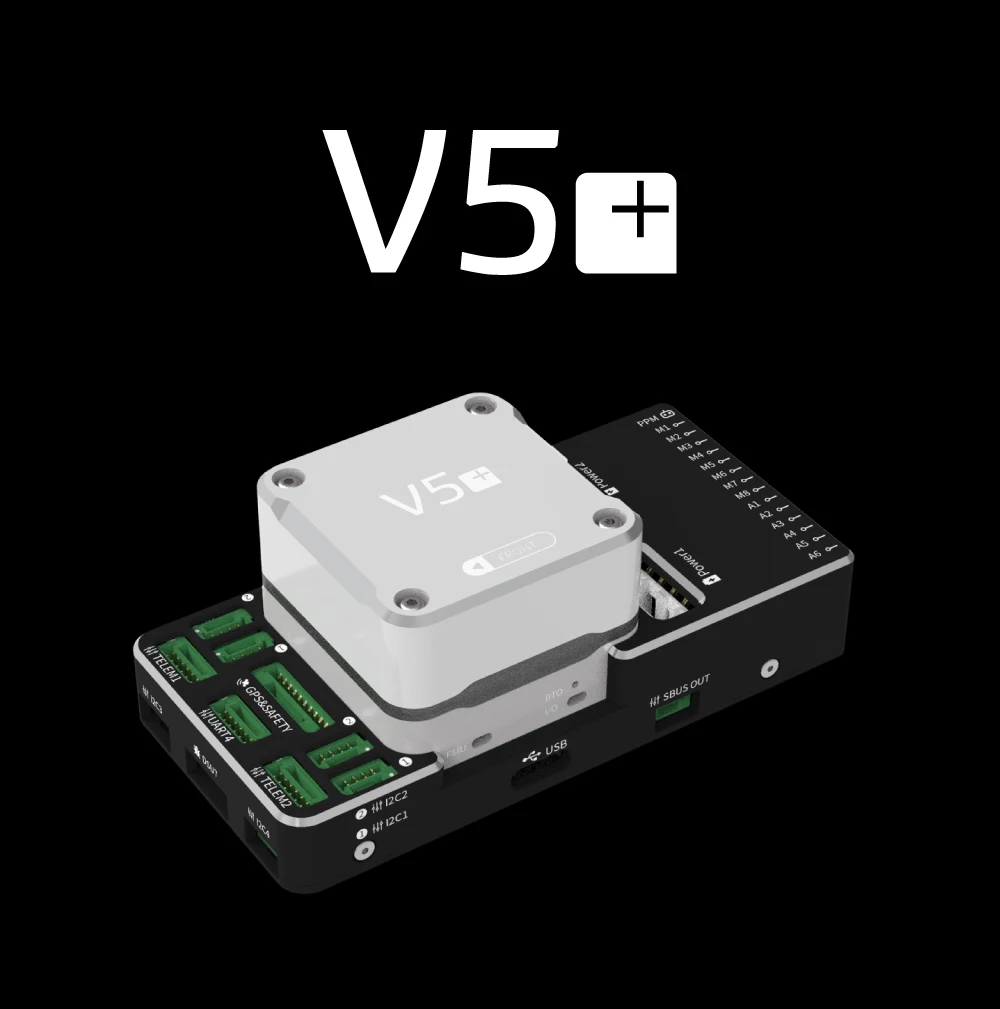

CUAV V5+ Carrier base Board Controller Pixhawk  for FPV RC Drone Quadcopter Helicopter Flight Simulator VTOL



V5 + Controller

V5+ is a premium controller designed by the CUAV and PX4 teams and manufactured by CUAV. Based on the Pixhawk FMU v5 design standard, perfectly compatible with PX4 and ArduPilot firmware. Its modular design allows users to customize the baseboard.

V5+ Controller Feature:

  • FMU v5 hardware standard, more advanced and stable than FMU v3
  • Built-in shock absorption
  • Support RTK centimeter-level GNSS module
  • Multi-sensor redundant design
  • Full model support
  • Modular design, support custom baseboard
Main Parameter
Main FMU ProcessorSTM32F765 (32 Bit Arm Cortex -M7, 216MHz, 2MB FLASH, 512KB RAM)
IO ProcessorSTM32F100 (32 Bit Arm Cortex -M3,24MHz, 8KB SRAM)
Sensors
AccelerometerICM-20602 / ICM-20689 / BMI055
GyroscopeICM-20602 / ICM-20689 / BMI055
MagnetometerIST8310
BarometerMS5611
Interfaces
UART5
I2C4
SPI1
CAN2
ADC2
PWM8 ~ 14 PWM outputs (6 from IO, 8 from FMU)
DSM/SBUS/RSSI1
PPM IN1
Power Interface2
Safety Switch1
DEBUG / F7 SWD1
USB1 (Type-C)
TF slot1
Rated Voltage4.5 ~ 5.5 V
USB Voltage5V ± 0.25 V
Servo Voltage0 ~ 36 V
Working Temp-20 ~ 85℃
Size85.5 × 42.0 × 33.0mm
Weight91g



V5+ baseboard

Procurement / Purchasing Communication

Laura

E-mail:Laura@cuav.net

WhatsApp:(+86)18078814327

Tina

E-mail:Tina@cuav.net

WhatsApp:(+86)18122367332

Baseboard

V5+ base board, X7+/ X7+ pro base board
