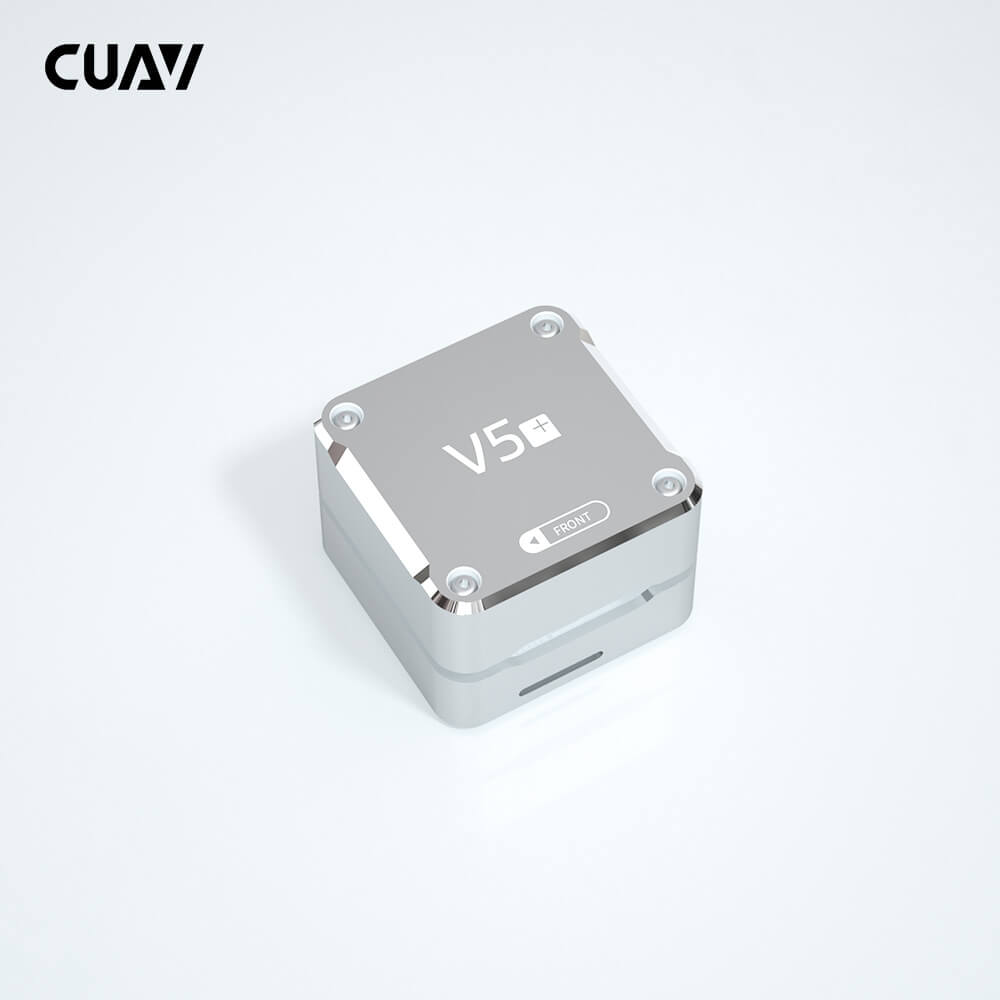

CUAV V5+ Core Controller Customize Your Own Carrier Board

please contact customer service for the stock availability

V5+ is an advanced controller manufactured by CUAV. The board is based on the Pixhawk FMUv5 design standard, the external interface uses the Pixhawk standard pinouts, and the modular design allows the users to customize their own carrier board. The autopilot is compatible with both PX4 and ArduPilot firmware.V5+ is ideal for academic research and commercial systems integration.

$219.00

Out of stock

Payment Methods:

Out of stock

Please Contact Customer Service for Stock Availability!

V5+ Controller Feature:
  • FMU v5 hardware standard, more advanced and stable than FMU v3
  • Built-in shock absorption
  • Support RTK centimeter-level GNSS module
  • Multi-sensor redundant design
  • Full model support
  • Modular design, support custom baseboard
Introduction:

V5+ is a premium controller designed by the CUAV and PX4 teams and manufactured by CUAV. Based on the Pixhawk FMU v5 design standard, perfectly compatible with PX4 and ArduPilot firmware. Its modular design allows users to customize the baseboard.

Main Parameter
Main FMU ProcessorSTM32F765 (32 Bit Arm Cortex -M7, 216MHz, 2MB FLASH, 512KB RAM)
IO ProcessorSTM32F100 (32 Bit Arm Cortex -M3,24MHz, 8KB SRAM)
Sensors
AccelerometerICM-20602 / ICM-20689 / BMI055
GyroscopeICM-20602 / ICM-20689 / BMI055
MagnetometerIST8310
BarometerMS5611
Interfaces
UART5
I2C4
SPI1
CAN2
ADC2
PWM8 ~ 14 PWM outputs (6 from IO, 8 from FMU)
DSM/SBUS/RSSI1
PPM IN1
Power Interface2
Safety Switch1
DEBUG / F7 SWD1
USB1 (Type-C)
TF slot1
Rated Voltage4.5 ~ 5.5 V
USB Voltage5V ± 0.25 V
Servo Voltage0 ~ 36 V
Working Temp-20 ~ 85℃
Size85.5 × 42.0 × 33.0mm
Weight91g
