UAV Telemetry Module

The telemetry module mainly transmits various data and real-time videos of UAVs to realize the communication between the aircraft and ground pilot. The telemetry module can be divided into four types: data transmission module, image transmission module and data&image integrate transmission module, and data&image remote controller. Data transmission module can only transmit UAV data, image transmission module can transmit real-time video of UAV, and data&image integrate transmission module can transmit UAV data and real-time video together. Figure and number integrated remote control has more remote control functions.data&image remote controller integrates image and data transmission function in the remote control.There are two types of telemetry modes: point-to-point telemetry module and 4G telemetry module. Point-to-point telemetry refers to the direct paired communication between Sky terminal and ground terminal. 4G telemetry module uses Telecom operator network for UAV communication.

LBA 3 Communication Micro Base Station

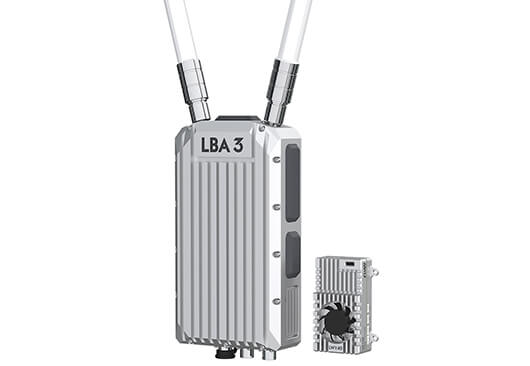

The LBA 3 private network micro-base station system is a high-performance long-distance and large-bandwidth link system solution independently developed by Leixun Innovation. It consists of a LBA 3 Base, an air terminal and an AG gateway. It has long-distance communication coverage capability and 30Mbps bandwidth. equipped with ground stations such as CUAV LGC, it can realize formation flight. It is ideal for long-distance communication links for industrial Unmanned Systems equipment.

LTE Link SE 4G UAV Telemetry Module

LTE Link SE 4G communication module and uses Telecom operator 4G network for communication. Light weight and small volume. 1080p HD image transmission, 250ms low latency, data transmission delay 40ms. Supports team functions and video sharing.

P8 Module UAV Telemetry

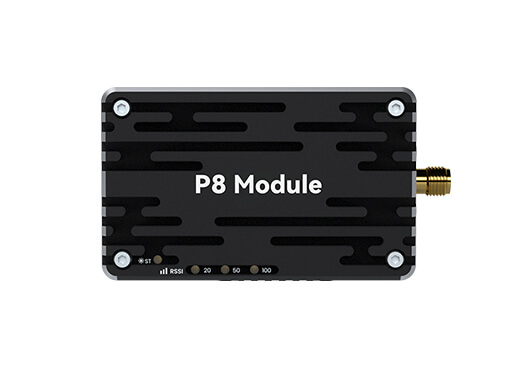

P8 Module is an ultra-long data transmission module of UAV. It adopts the communication frequency band of 840MHz. It has a transmission distance of 40km and a transmission rate of 345Kbps. It supports relay communication, meet communication requirements in multiple application scenarios.

P9 Module UAV Telemetry

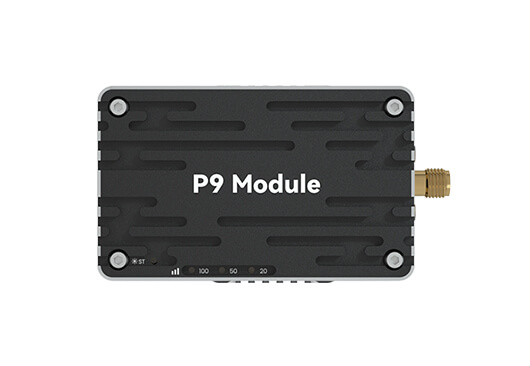

P9 Module products is a ultra-long distance UAV data communication module. The product has stable performance, strong anti-interference ability in the process of long-distance communication, safe and reliable encryption, verification
and transmission of data, ensuring fast refresh of real-time data and preventing data tampering in the process of data communication. T

XB Radio Pro Telemetry

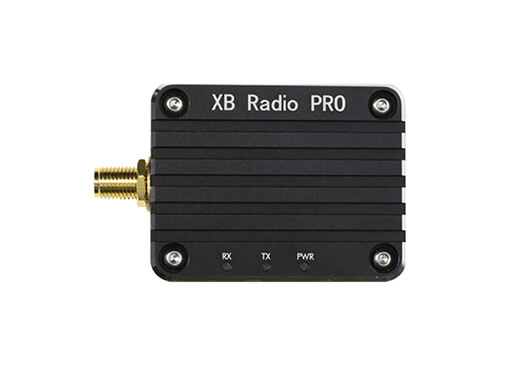

The XB Pro is an easy-to-use telemetry module that provides best-in-class wireless connectivity for drones or IoT devices. The DigiMesh network protocol shares a common hardware serial port that provides a variety of different protocols, allowing users to integrate into drones or devices with minimal development time and risk. The module supports up to 28 miles (with high-gain antenna) RF line-of-sight range, 200 kbps data rate, ideal for extended range applications that require increased data throughput.

H16(Pro) Data&video Remote Controller

H16/H16 PRO — supports HDMI, network port, SENSOR interface, dual serial port passthrough, S.BUS and other rich interfaces, and supports more cameras, gimbals and other video equipment.Provide development kit, SDK and technical support.Support video levitation, mainstream flight control ground station, QGC, support wireless RTSP video stream sharing.

How to Distinguish Between Different Telemetry Module

CUAV Products	LBA 3	P8 Module	P9 Module	XB Radio Pro
Product Type	Communication Micro Base Station (data transmission + image transmission)	Data Transmission	Data Transmission	Data Transmission
Frequency Band	1.4 G version: 1420 MHz ~ 1448 MHz 800 M version: 806 MHz ~ 826 MHz	840 ~ 845 MHz	902 ~ 928 MHz	902 ~ 928 MHz
Transmit Power	33 dBm (typical value)	30 dBm	30 dBm	24 dBm
Bandwidth	20 Mbps (10 MHz）	345 Kbps	230.4 Kbps	200 Kbps
Input Voltage	LBA 3 BASE: 20 ~ 60 V (Standard: 24V 1.5A) POE Module supports 100 ~ 240 V mains input LW140/800: 20 ~ 60 V input (Standard: 24V 1A)	12 ~ 60 V	12 ~ 60 V	4 ~ 7 V
Operating Temperature	-15 ~ +65 ℃	-40 ~ +85℃	-40 ~ +85℃	/
Size	LBA3 BASE: 220 × 120 × 50 mm LW140/800: 90 × 65 × 26.4 mm	64.6 × 39.7 × 16.5 mm	65 × 40 × 16.5 mm	57.1 × 36.7 × 12.8 mm
Weight	LBA3 BASE: 1.65 kg LW140/800: 155 g	86 g (including antenna)	86 g (including antenna)	37 g
