For unmanned systems, accurate positioning is always a necessity. To ensure users meet this demand, CUAV has continuously refined its positioning module and accumulated extensive experience.
Today, the latest in the CUAV positioning module series, the NEO 4 SE, has officially debuted, taking over the baton and providing reliable positioning support for more unmanned systems.
Introducing the NEO 4 SE GNSS Module: Precision Redefined for Modern Applications
In an era where accuracy and reliability are non-negotiable, the NEO 4 SE GNSS Module emerges as a game-changer. Designed for developers, engineers, and innovators, this cutting-edge module combines u-blox M10 satellite technology, STM32H5 processing power, and DroneCAN protocol compatibility to deliver unparalleled performance in positioning, navigation, and anti-interference.
Whether you’re building drones, robotics, IoT devices, or surveying equipment, the NEO 4 SE is engineered to meet the most demanding requirements. And now, you can experience it firsthand—request a free sample today!
Why Choose the NEO 4 SE GNSS Module?
1. Superior Satellite Reception with u-blox M10
The NEO 4 SE supports four concurrent GNSS systems (GPS, GLONASS, BeiDou, and Galileo) via the advanced u-blox M10 receiver, ensuring fast and precise positioning even in challenging environments.
Cold Start in 27s | Hot Start in 1s
Horizontal Accuracy: 1.5m CEP
Up to 25Hz update rate (single GNSS)
2. High-Performance STM32H5 Processor
Powered by the STM32H5 Arm Cortex-M33 (250 MHz), the module runs CUAV’s self-developed M4C architecture software, optimizing speed and efficiency for real-time applications.
3. Enhanced Anti-Interference & Signal Integrity
Dual SAW + LNA integration for superior signal filtering.
Built-in ST IIS2MDC electronic compass for stable heading.
RF interference/spoofing detection to ensure data reliability.
4. Seamless DroneCAN Protocol Integration
Compatible with PX4, ArduPilot, and other open-source platforms, the NEO 4 SE simplifies integration for UAV and robotic systems.
5. User-Friendly Design
Multi-functional RGB status light for real-time feedback.
Disarming switch for added safety.
Compact & lightweight (60×60×16.1mm, 33g).

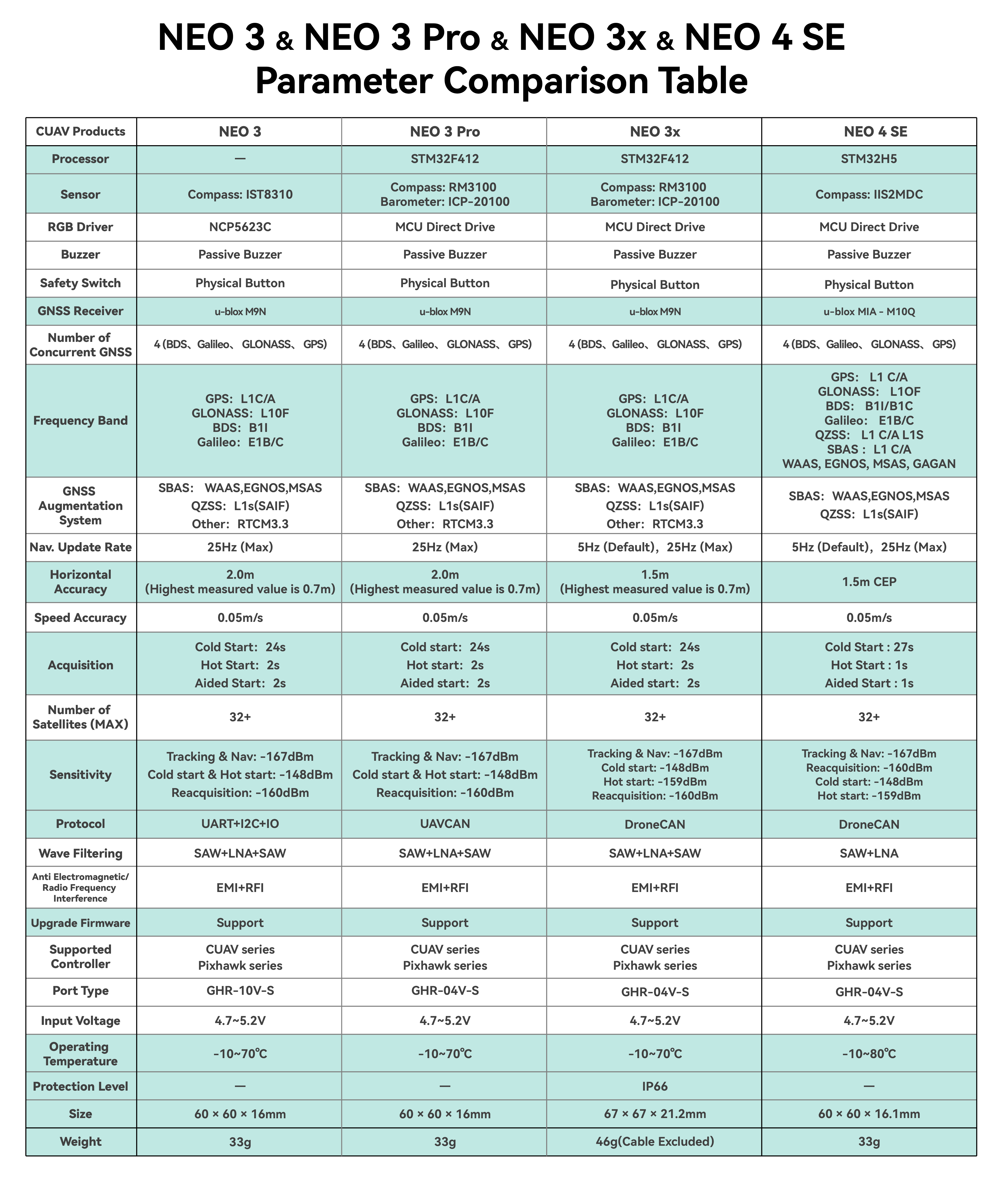

Technical Specifications
| Feature | Specification |
|---|---|
| Receiver Type | u-blox MIA-M10Q |
| Processor | STM32H5 Arm Cortex-M33 (250 MHz) |
| Frequency Bands | GPS L1 C/A, GLONASS L10F, BeiDou B11/B1C, Galileo E1B/C, QZSS L1 C/A, SBAS (WAAS/EGNOS/MSAS/GAGAN) |
| Concurrent GNSS | BeiDou / Galileo / GLONASS / GPS / QZSS |
| Navigation Update Rate | Up to 10Hz (4 GNSS) / 25Hz (single GNSS) |
| Startup Time | Cold Start: 27s / Hot Start: 1s / Aided Start: 1s |
| Position Accuracy | 1.5m CEP |
| Signal Integrity | RF interference/jamming detection, spoofing reporting |
| Protocol | DroneCAN |
| Firmware | CUAV M4C GNSS (upgradeable) |
| Data Interface | JST GH 1.25 4P |
| Dimensions | 60 × 60 × 16.1 mm |
| Weight | 33g |
| Input Voltage | 4.7V–5.2V |
| Operating Temperature | –10°C to 80°C |
Applications
The NEO 4 SE is ideal for:
✔ Drones & UAVs – High-frequency positioning for autonomous flight.
✔ Robotics – Reliable navigation for AGVs and industrial robots.
✔ Precision Agriculture – Accurate field mapping and guidance.
✔ Marine & Automotive – Stable tracking in dynamic environments.
✔ IoT & Smart Devices – Low-power, high-accuracy location services.
Get Your Free Sample Today!
We’re confident the NEO 4 SE GNSS Module will exceed your expectations. Limited free samples are available—apply now to test its capabilities in your project!
📩 How to Request:
Email us at:Â Lindy@cuav.net
WhatsApp:Â +86 180 1188 1413
Tell us about your application.
We’ll review and ship your sample ASAP!
🚀 Why Wait? Elevate your navigation system with the NEO 4 SE!
Final Thoughts
With multi-GNSS support, ultra-fast positioning, and robust anti-interference, the NEO 4 SE is the ultimate choice for developers who demand precision. Don’t miss out—request your sample now and experience the difference!
🔗 Learn more & order: https://store.cuav.net/shop/cuav-neo-4-se-gps-module
