NEO 4 SE GNSS Module: Key Specs & Hardware Integration

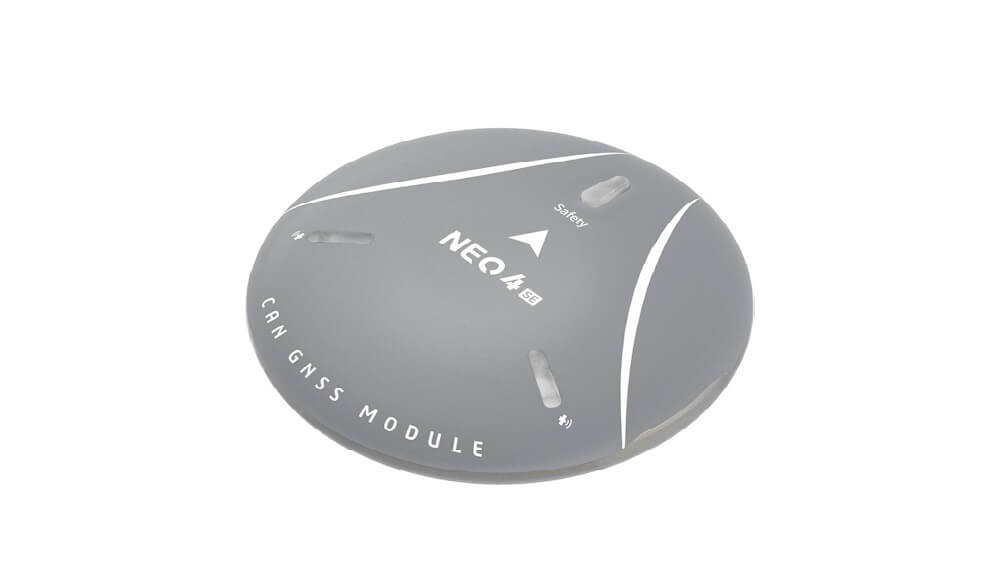

NEO 4 SE is a high-performance single-point positioning module for unmanned systems. It integrates Ublox’s tenth-generation high-precision GNSS receiver, high-performance STM32H5 processor, electronic compass, safety switch, RGB full-color status light, supports DroneCan protocol, and is perfectly compatible with ArduPilot/PX4 firmware.

 Note

The NEO 4 SE is fully supported by ArduPilot firmware 4.0 and higher.

Features

  • U-blox M10Q Satellite Reception System
  • Self-developed highly flexible M4C architecture
  • STM32H5 high-performance processing unit
  • SAW+LNA dual filtering; stronger anti-interference ability
  • ST IIS2MDC electronic compass, strong anti-magnetic interference
  • Multi-function RGB full-color status light
  • DroneCAN standard protocol, high real-time performance, and strong anti-interference
  • Compatible with ArduPilot and PX4

Data sheet


Basic parameters
Satellite receiverU-blox MIA-M10Q
ProcessorSTM32H5 Arm® Cortex®-M33 250 MHz
CompassIIS2MDC
Frequency BandGPS： L1 C/A
GLONASS： L1OF
BEIDOU： B1I/B1C
Galileo： E1B/C
QZSS： L1 C/A L1S
Augmentation systemsSBAS: EGNOS, GAGAN, MSAS, WAAS, BDSBAS, KASS, and SouthPAN
QZSS: L1S (SLAS)
Number of Concurrent GNSS4(BeiDou, Galileo, GLONASS, GPS)
OscillatorsTCXO
AcquisitionCold Start: 27s
Hot Start: 1s
Aided Start: 1s
SensitivityTracking and nav:-167dBm
Reacquisition: -160dBm
Cold start：-148dBm
Hot star: -159dBm
Nav. Update RateDefault:5Hz，
Up to 10Hz（four satellite system）
Up to 25Hz（single satellite system)
Horizontal Position Accuracy1.5m CEP
Signal IntegrityRF interference and jamming detection and reporting, Spoofing detection and reporting
Wave filteringSAW+LNA+SAW+LNA
Anti-Electromagnetic/radio frequency interferenceEMI+RFI
ProtocolDroneCAN
Upgrade FirmwareSupport
FirmwareCUAV M4C GNSS
Data InterfaceGHR-04V-S
Size60mmx60mmx16.1mm
Weight33g
Input Voltage4.7 V ~ 5.2V
Operating Temperature-10 ℃ ~ +80℃

 Note

Ardupilot 4.1.0/PX4 1.13.0 and above versions fully support NEO 4SE.

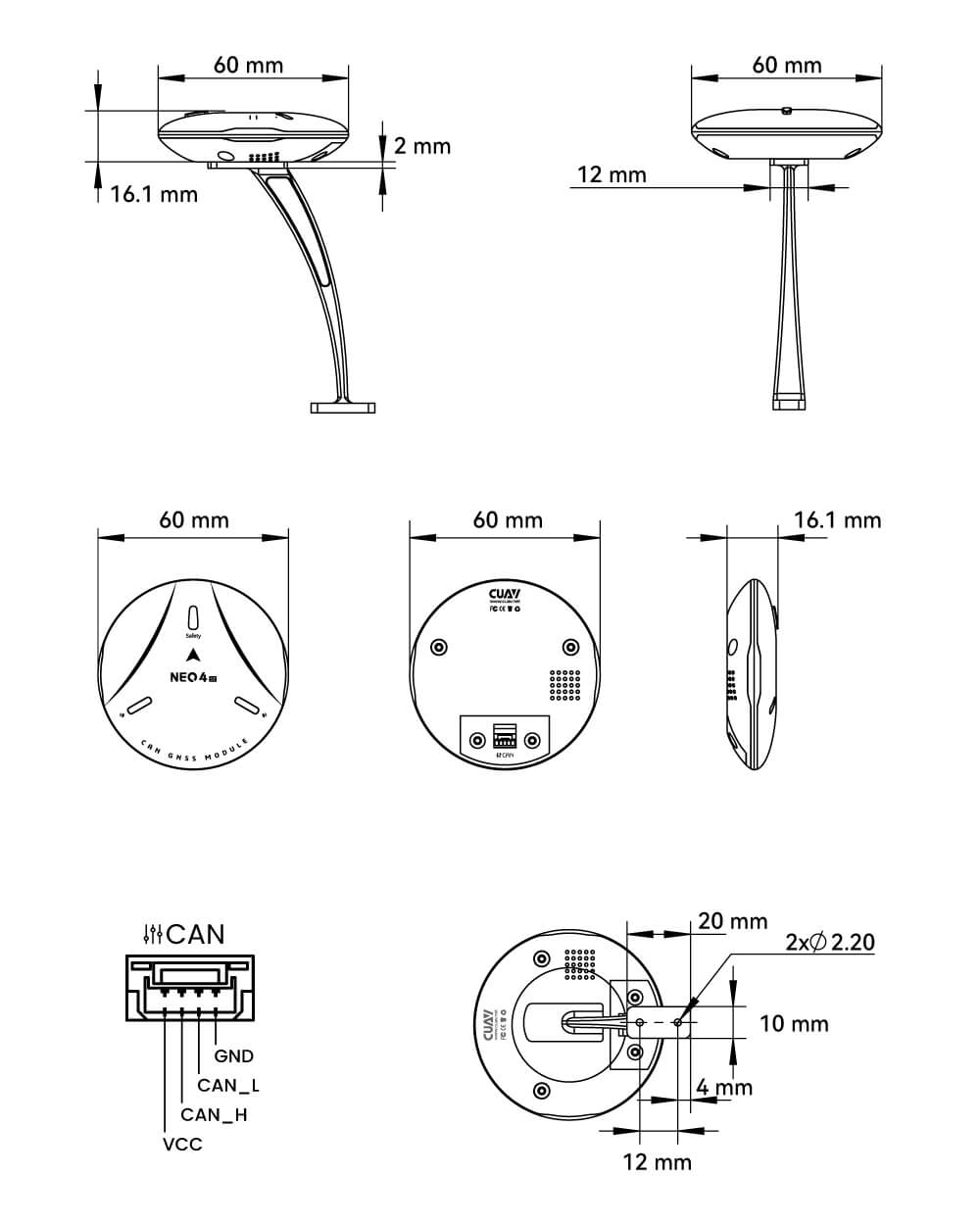

Size and Pinouts

purchase

Hardware connection

  • Connect neo 4SE to the CAN1/CAN2 interface of the smart controller (CAN1 is recommended)

 Tip

The rest of the ArduPilot/PX4 flight stack setup is the same.

Flight control parameter settings

You need to set the flight controller parameters to enable Neo 4SE; the setting method varies depending on the flight controller firmware.

ArduPilot

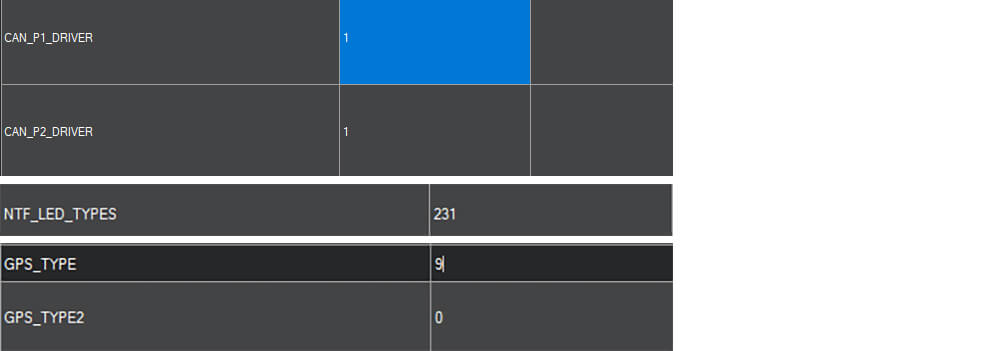

Set the following parameters in the Mission planner’s All Parameters table and restart after writing:

  • CAN_P1_DRIVER is set to 1.
  • CAN_P2_DRIVER is set to 1.
  • NTF_LED_TYPES is set to 231.
  • GPS_TYPE/ GPS1_TYPE is set to 9 (if used as GPS1).

PX4

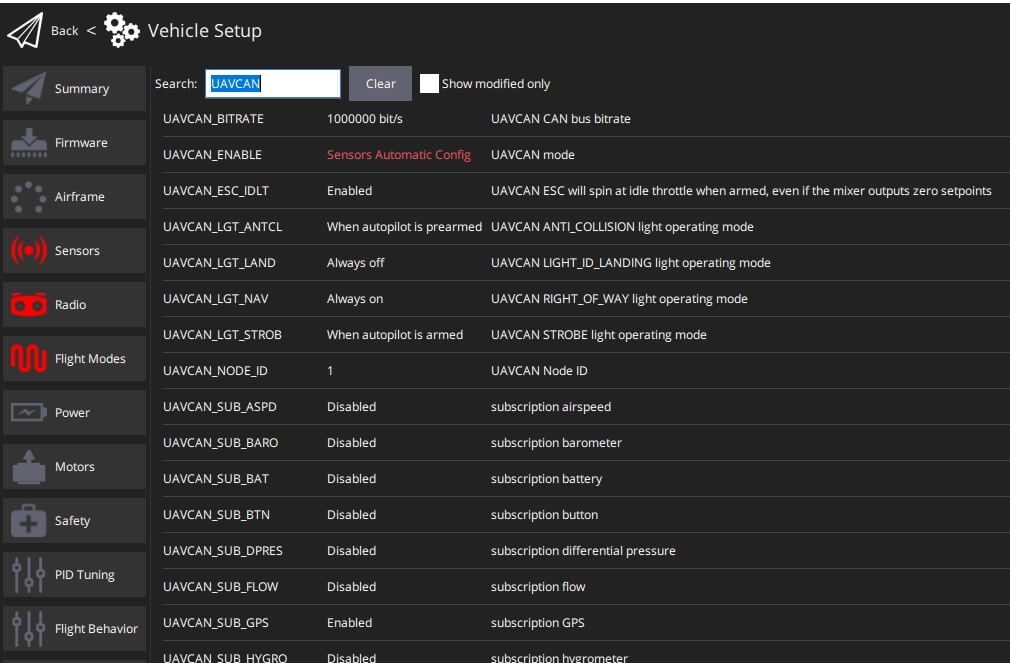

In the QGroundControl>Parameters window, set the following parameters and reboot after writing:

  • UAVCAN_ENABLEis set to Sensors Automatic config.
  • UAVCAN_SUB_GPS is set to Enable.
