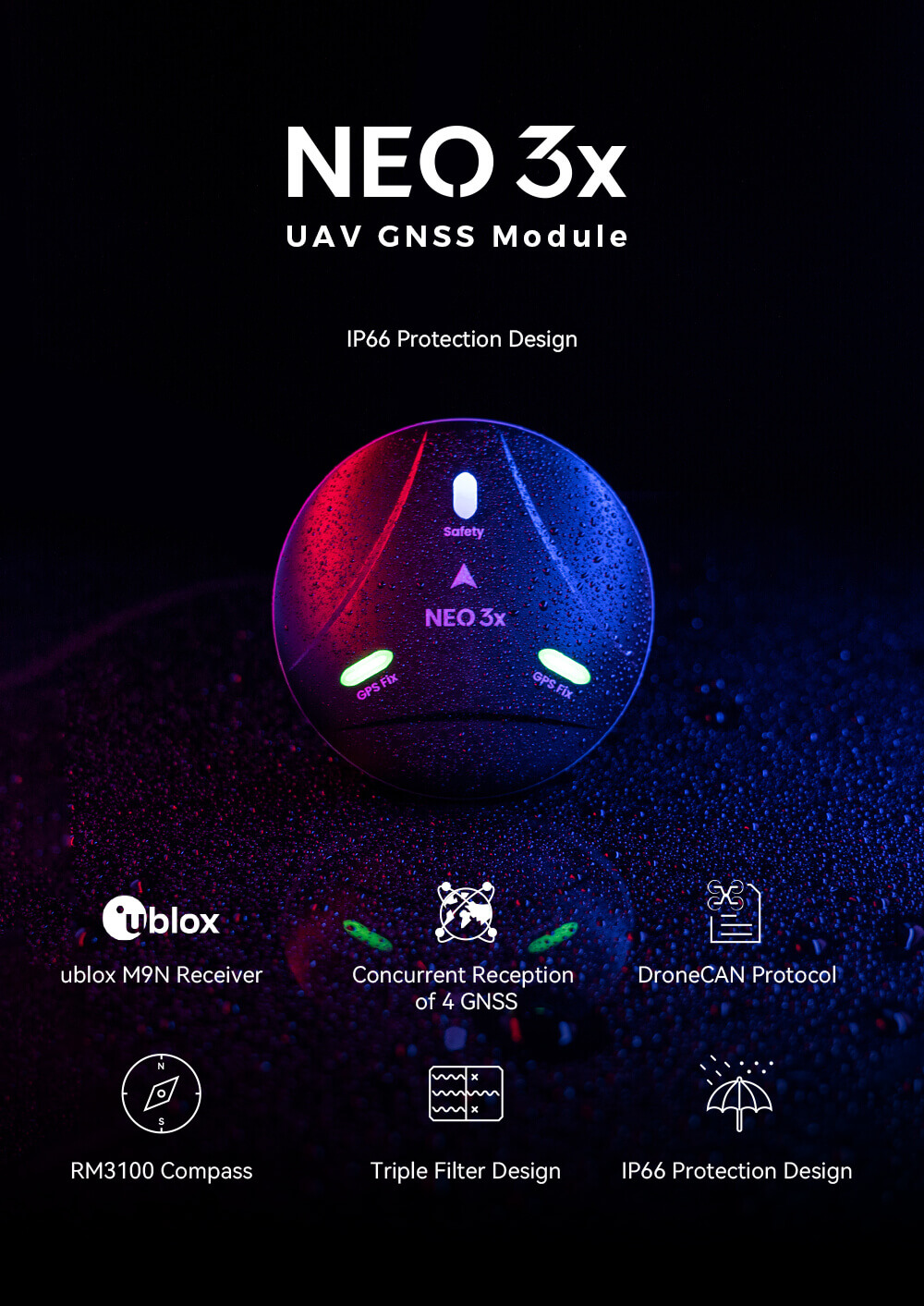

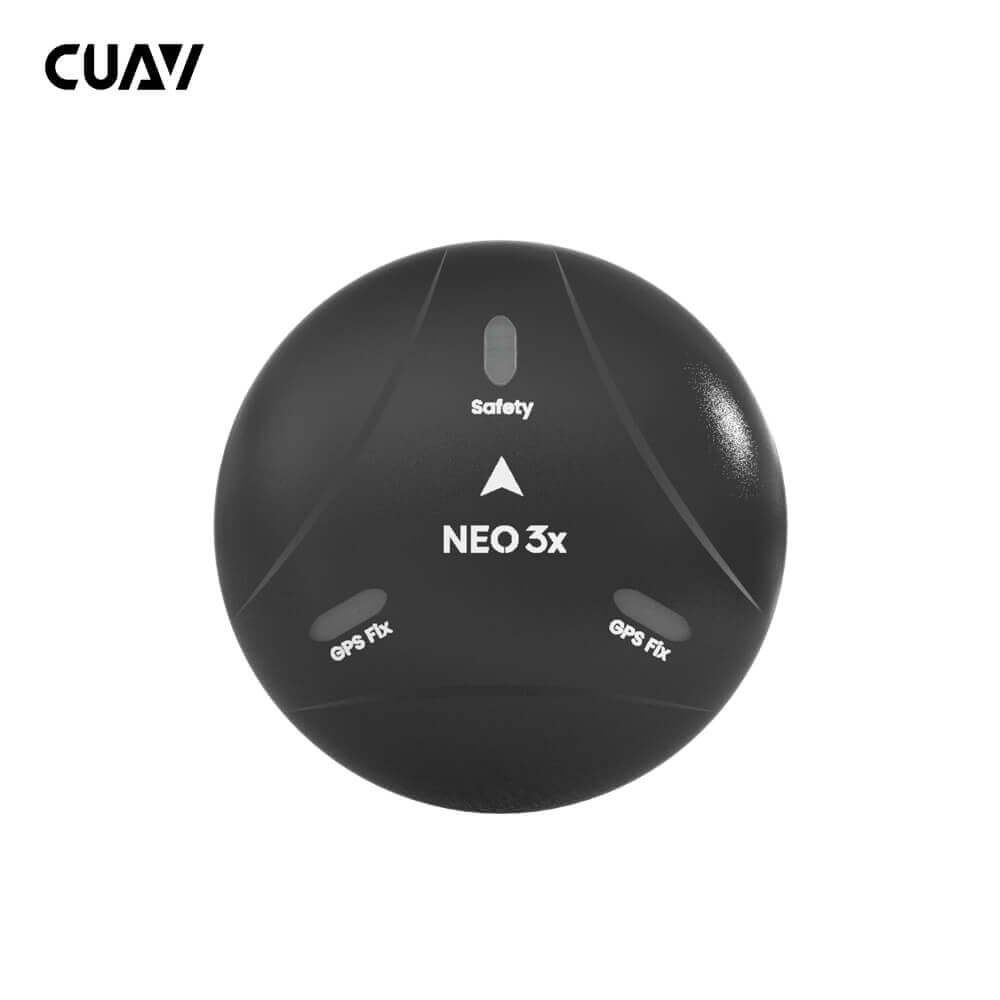

CUAV NEO 3X GNSS Module Feature
- u-blox M9N satellite receiver, accuracy up to 0.7m
- Support BeiDou, Galileo, GLONASS, and GPS systems
- Built-in F4 processor, with a 100MHz Cortex®-M4 core supporting floating-point arithmetic units
- IP66 standard dustproof and waterproof

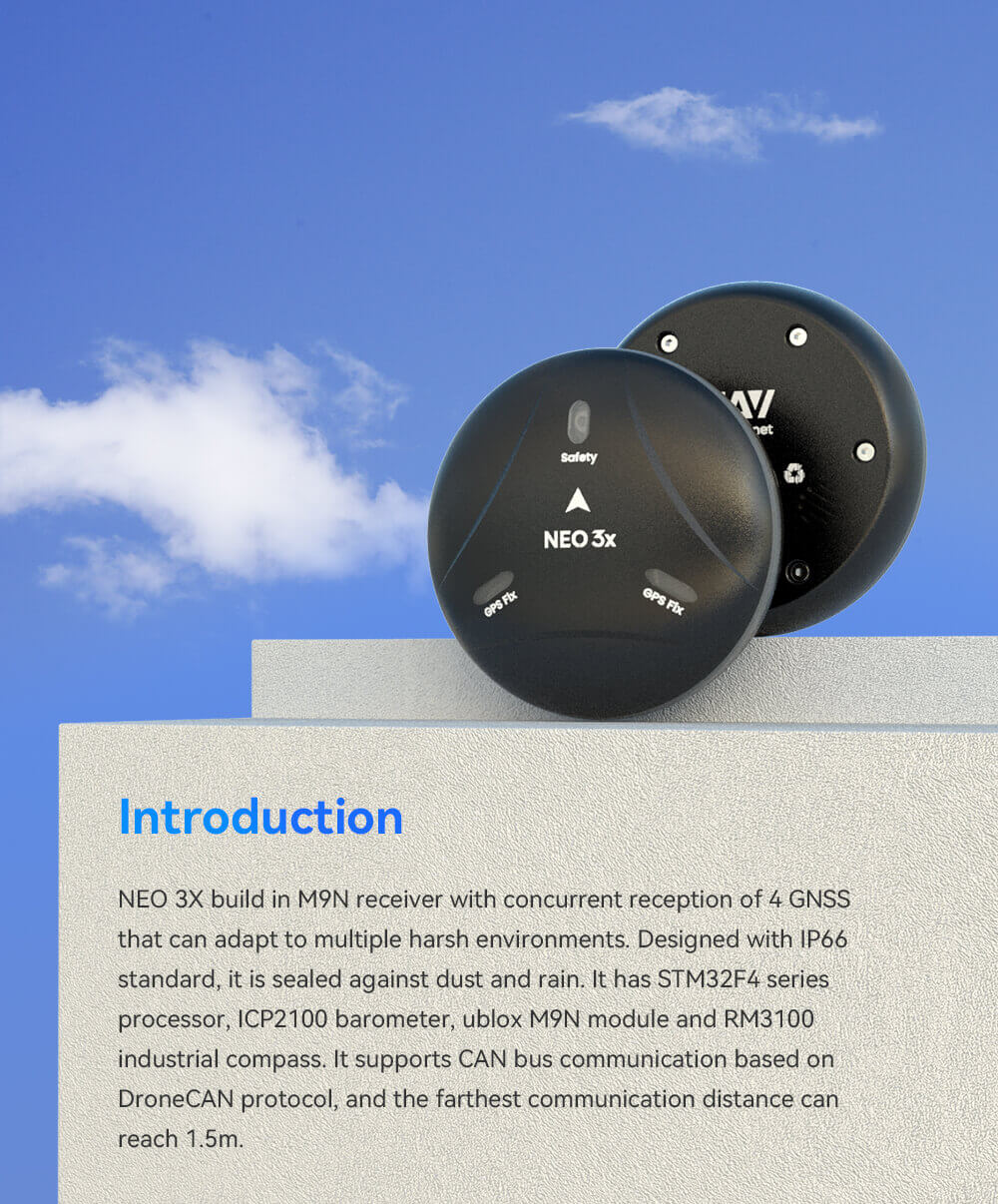

CUAV NEO 3X GNSS Module Brief
NEO 3X built in M9N receiver with concurrent reception of 4 GNSS that can adapt to multiple harsh environments. Designed with an IP66 standard, it is sealed against dust and rain. It has an STM32F4 series processor, an ICP2100 barometer, a u-blox M9N module, and an RM3100 industrial compass. It supports CAN bus communication based on DroneCAN protocol, and the farthest communication distance can reach 1.5m.
Product Parameters | |
| MCU | STM32F412(32 Bit Arm® Cortex®-M4, 100MHz, 512KB FLASH, 256KB RAM) |
| Protocol | DroneCAN |
| Compass | RM3100 |
| Barometer | ICP-20100 |
| Satellite Receiver | ublox M9N |
| Frequency Band | GPS：L1C/A GLONASS：L10F BDS：B1I GALILEO：E1B/C |
| Number of Concurrent GNSS | 4 |
| Horizontal | 1.5m |
| Accuracy | (Highest measured value is 0.7m) |
| Number of Satellites(MAX) | 32+ |
| Acquisition | Cold start：24s Hot start：2s Aided start：2s |
| Nav. update rate | 5Hz(default)，25Hz(MAX) |
| Sensitivity | Tracking & Nav： -167dBm Reacquisition：-160dBm Cold start：-148dBm Hot start：-159dBm |
| Protection Level | IP66 |
| Operating Voltage | 4.7 ~ 5.2V |
| Operating Temperature | -10 ~ 70℃ |
| Size | 67.0 × 67.0 × 21.2mm |
| Weight | 46g(Cable Excluded) |
CUAV NEO 3X GNSS Module Description:
ublox M9N GNSS Receiver
It uses a high-performance Ublox M9N GNSS receiver with concurrent reception of 4 GNSS, and the highest measured accuracy can reach 0.7m

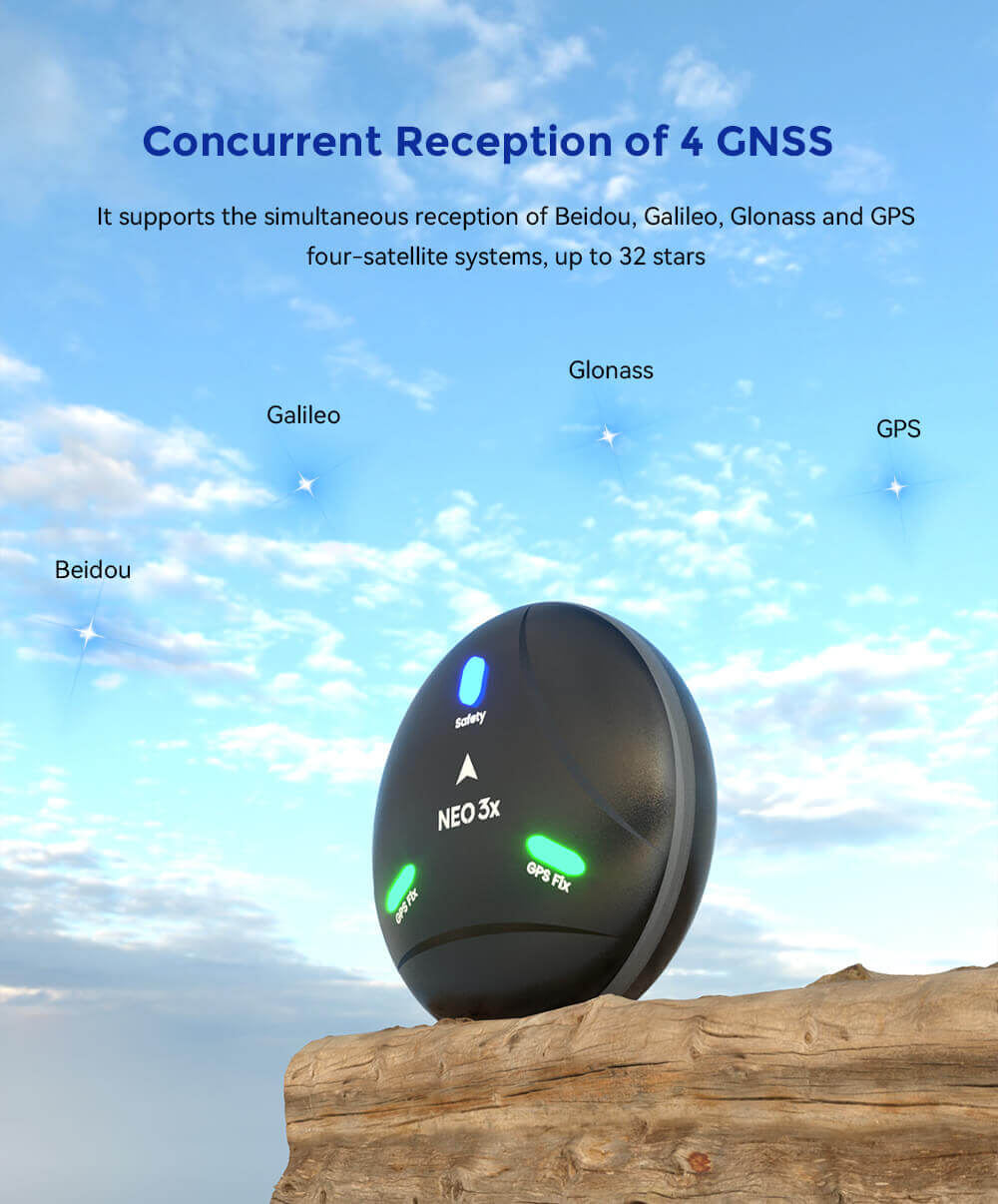

Concurrent Reception of 4 GNSS
It supports the simultaneous reception of Beidou, Galileo, Glonass, and GPS four-satellite systems, up to 32 stars

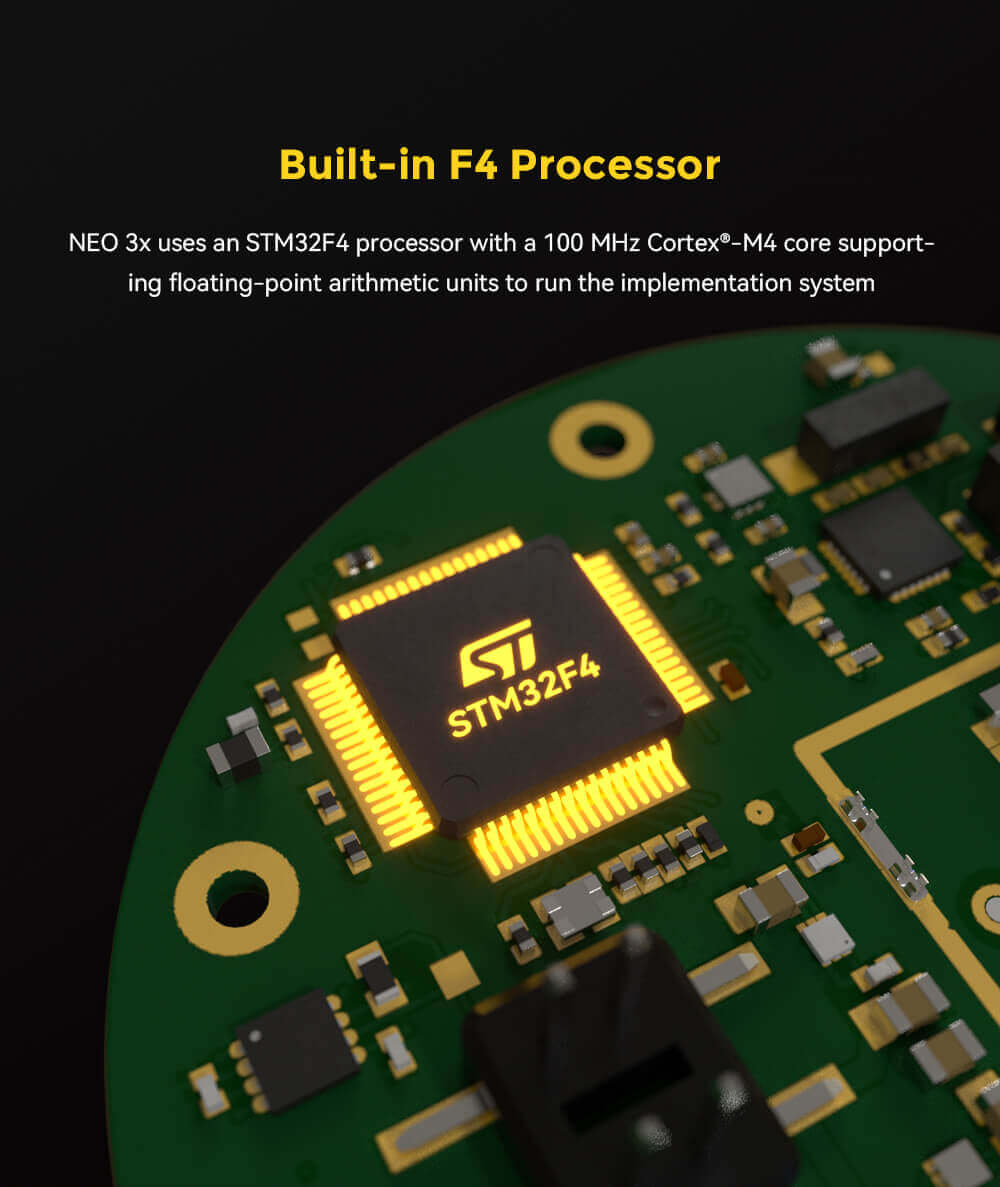

Built-in F4 Processor
NEO 3x uses an STM32F4 processor with a 100 MHz Cortex-M4 core supporting floating-point arithmetic units to run the implementation system.

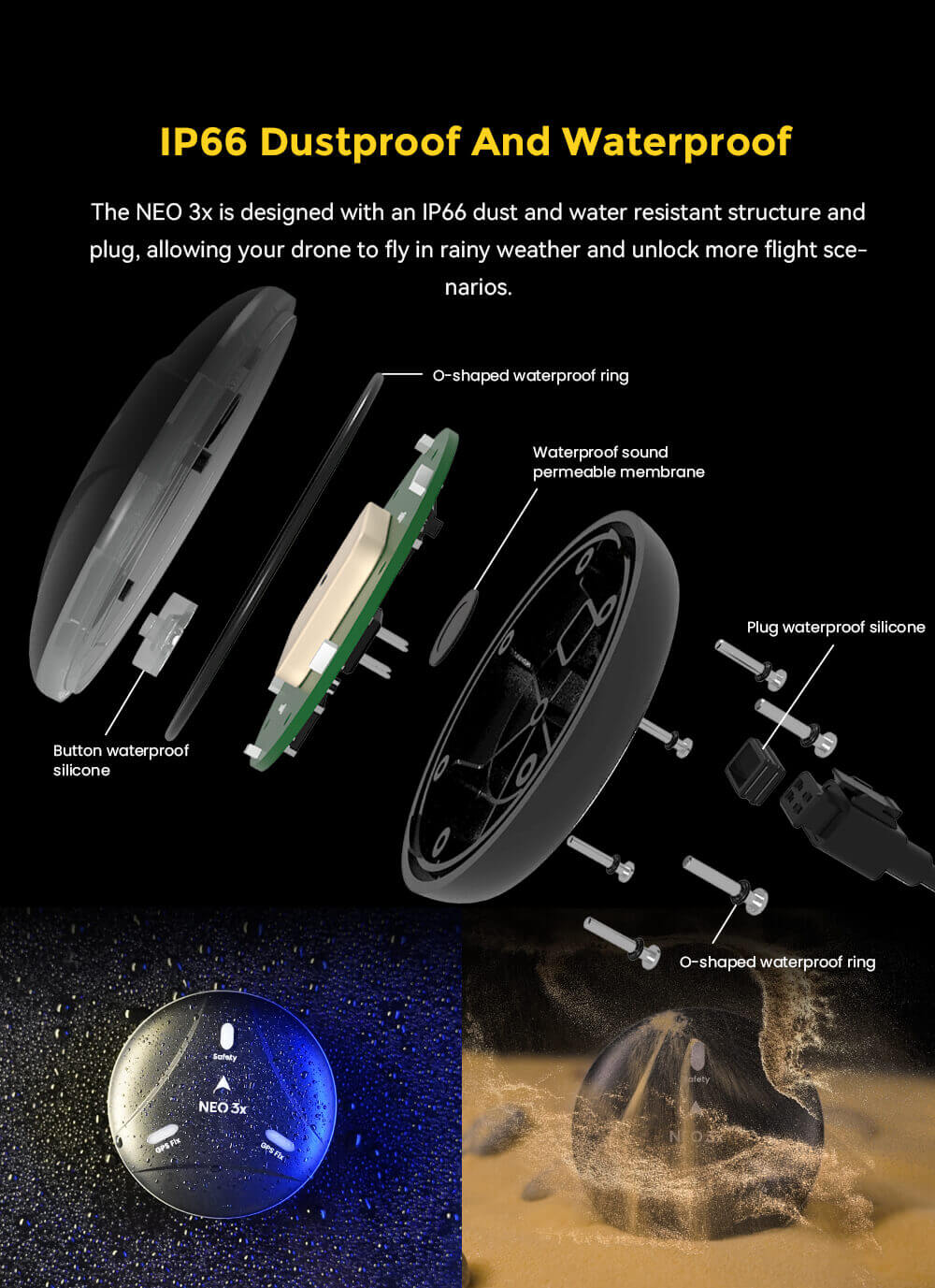

IP66 Dustproof And Waterproof
The NEO 3x is designed with an IP66 dust and water-resistant structure andplug, allowing your drone to fly in rainy weather and unlock more flight scenarios.

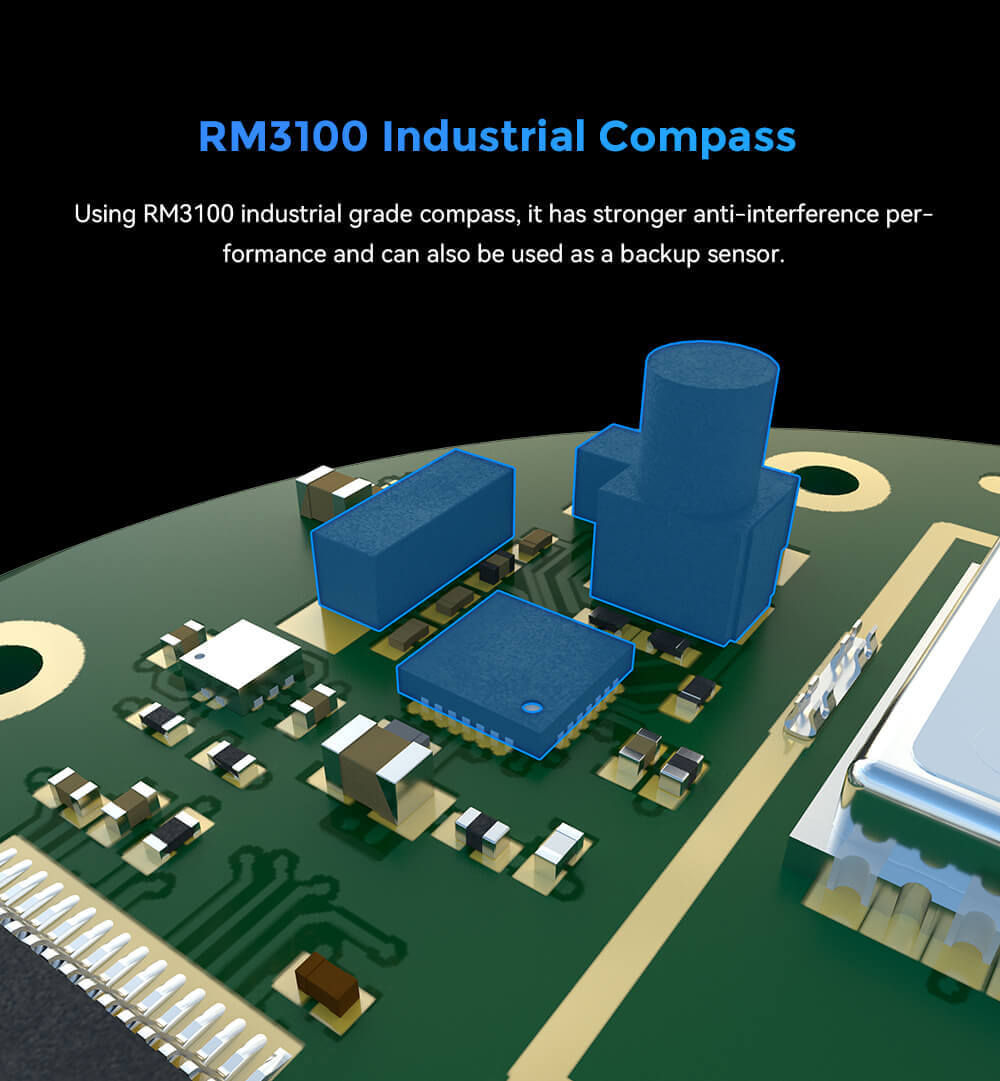

RM3100 Industrial Compass
Using RM3100 industrial grade compass, it has stronger anti-interference per-formance and can also be used as a backup sensor.

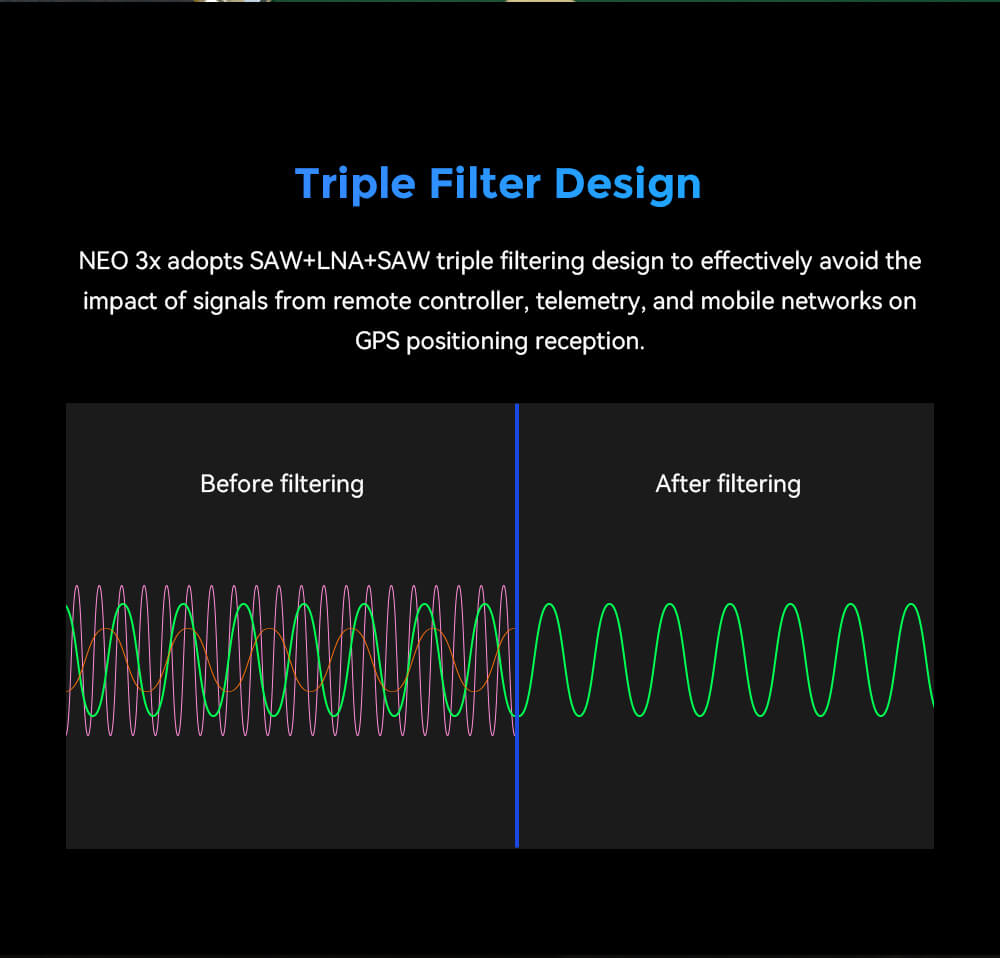

Triple Filter Design
NEO 3x adopts a SAW+LNA+SAW triple filtering design to effectively avoid the impact of signals from remote controllers, telemetry, and mobile networks on GPS positioning reception.

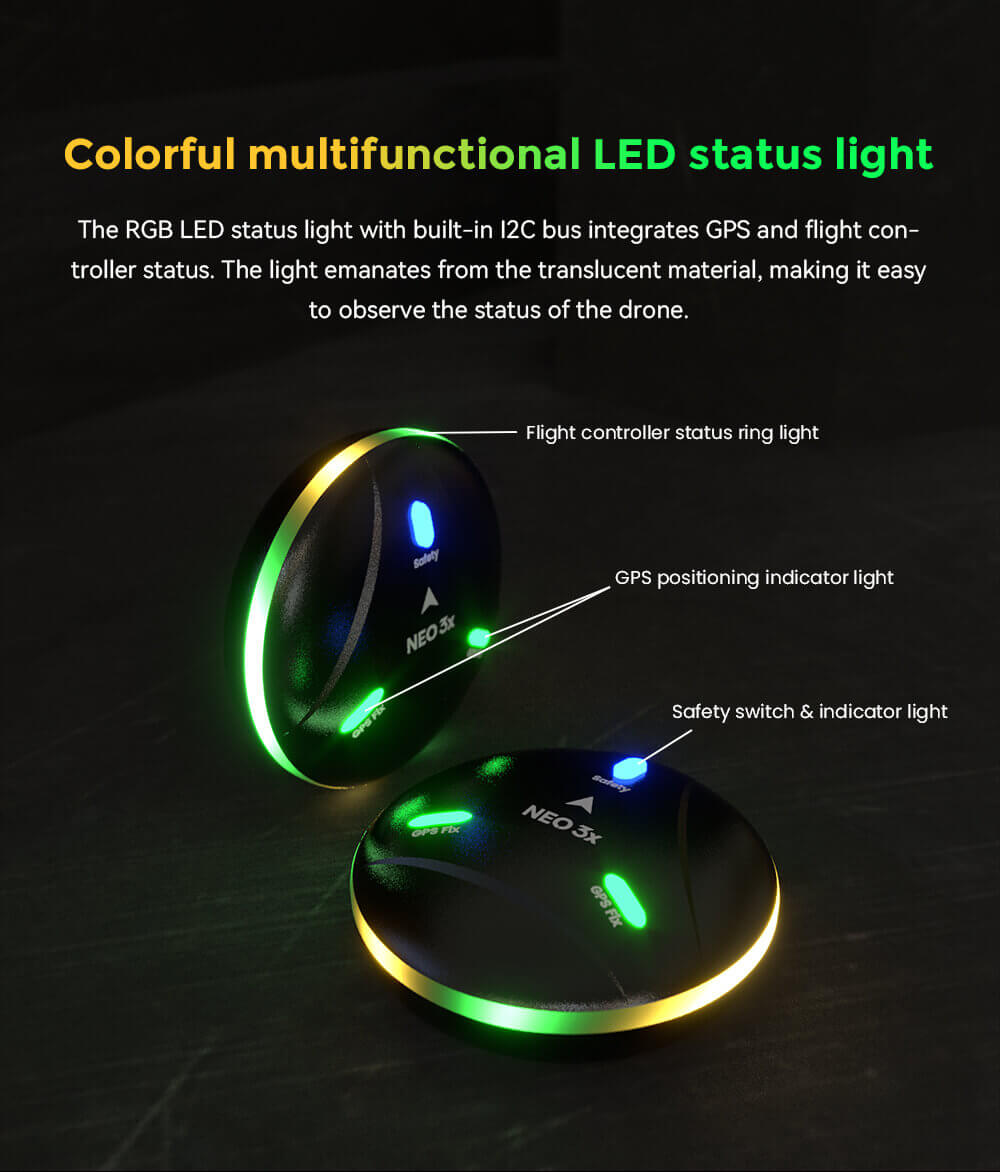

Colorful multifunctional LED status light
The RGB LED status light, with a built-in 12C bus, integrates GPS and flight controller status. The light emanates from the translucent material, making it easyto observe the status of the drone.

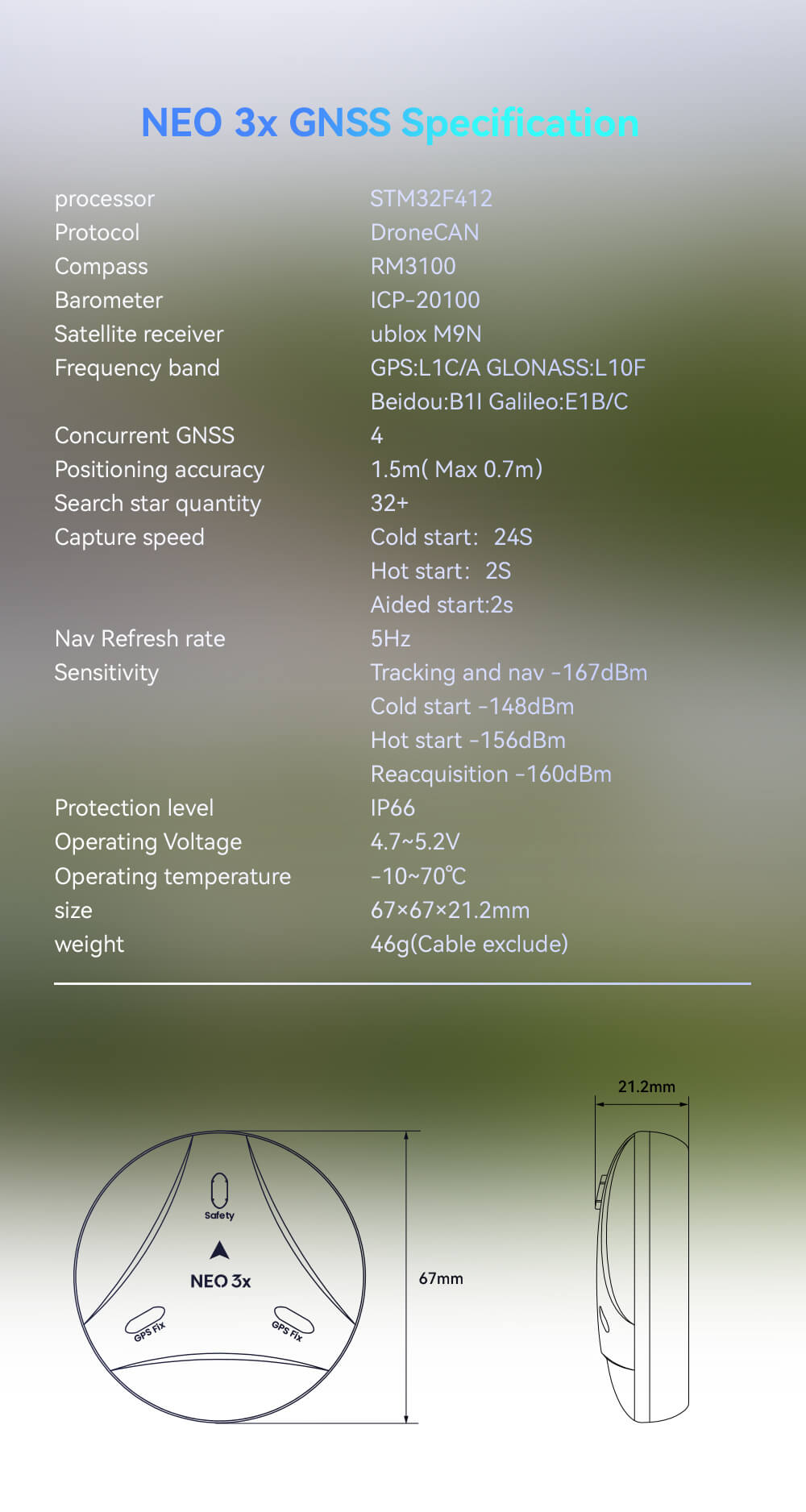

NEO 3X GNSS Specification

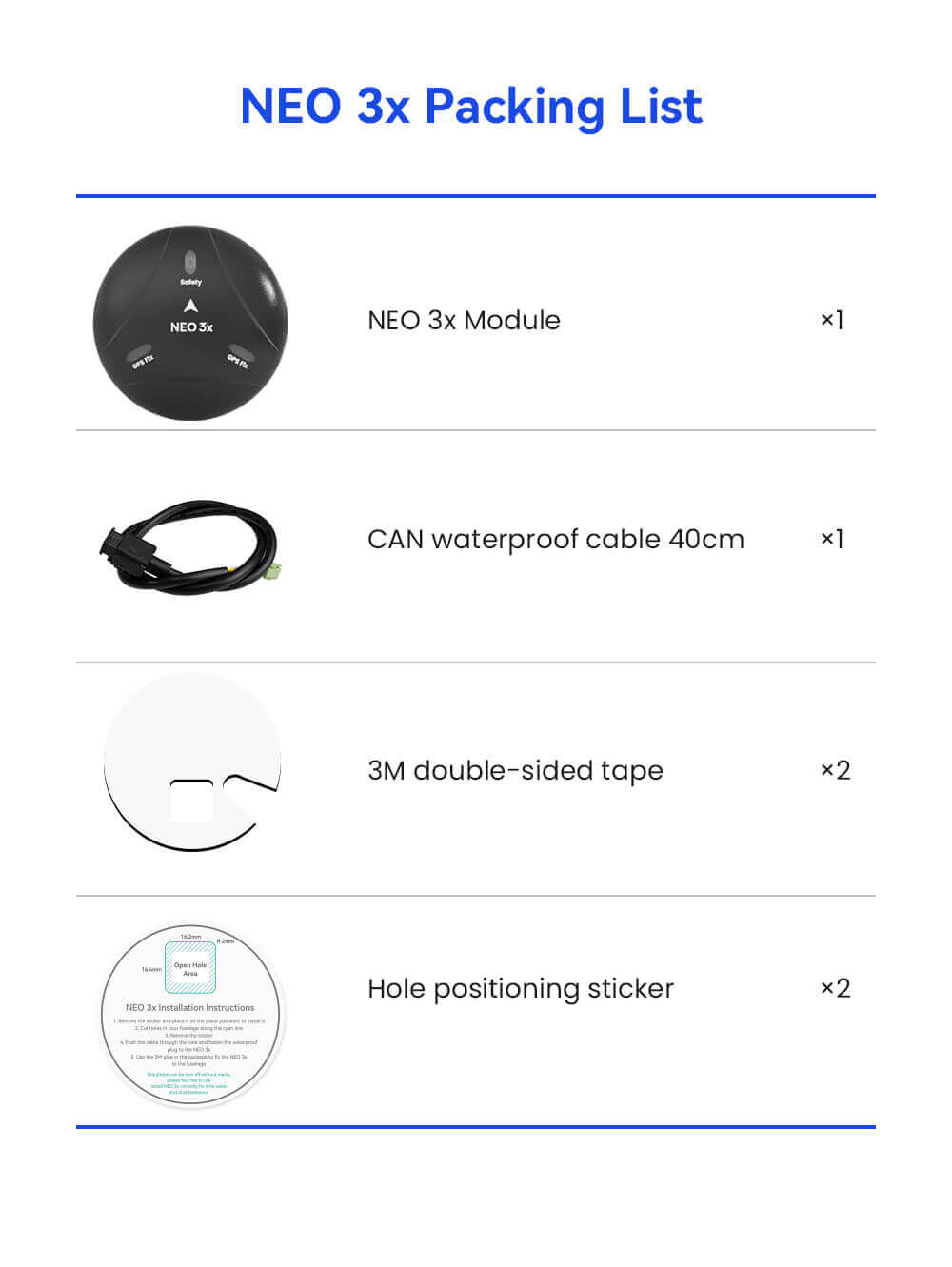

NEO 3X GNSS Packing List
