CUAV Raefly VT370 VTOL UAV
Notes: Product configuration can be customized according to your requirement， showing price is NOT including shipping fee. For more information please contact us . thanks so much.

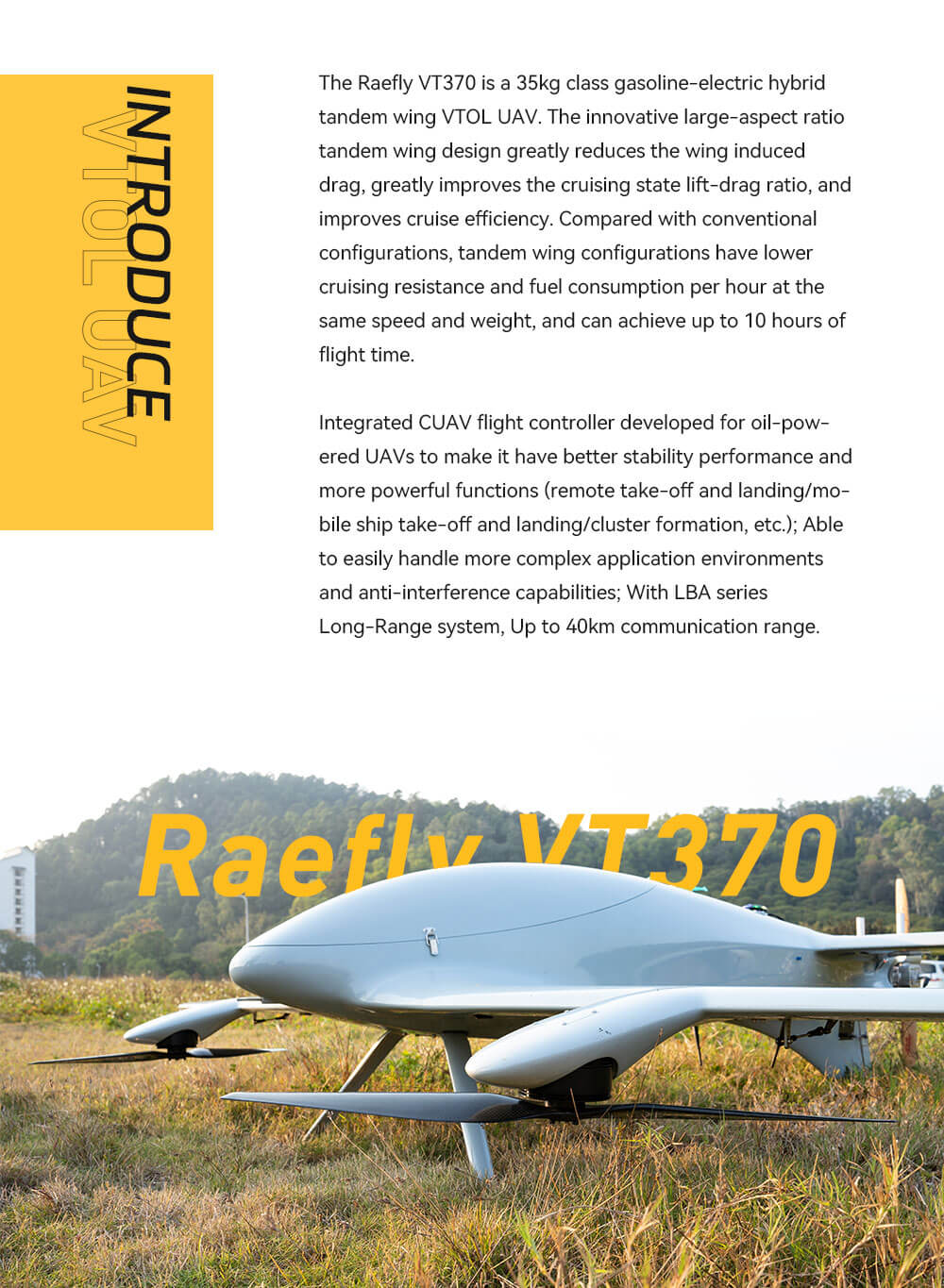

VT370 Vtol UAV Brief：
Raefly VT370 is a 35kg gasoline-hybrid tandem-wing vertical take-off and landing fixed-wing UAV. The innovative tandem-wing design with a large aspect ratio greatly reduces induced drag, significantly increases the lift-to-drag ratio in the cruising state, and improves cruising efficiency. Compared with the conventional configuration, the tandem wing configuration has lower cruise resistance and fuel consumption per hour at the same speed and weight, and can achieve up to 10 hours of flight time. Integrates powerful CUAV self-developed controller and communication links, etc., supports remote take-off and landing, moving platform take-off and landing, terrain following, cluster formation, and other functions; suitable for aerial surveying and mapping, inspection, fire safety, material delivery, and other application fields.
Raefly VT370 Specifications | |
| Layout | Tandem wing |
| Power | VTOL electric, fixed-wing oil |
| Takeoff weight | 35kg |
| Maximum load | 15kg (including oil) |
| Battery life | 10 hours (8kg load,10L oil) |
| Wind resistance | level 6 |

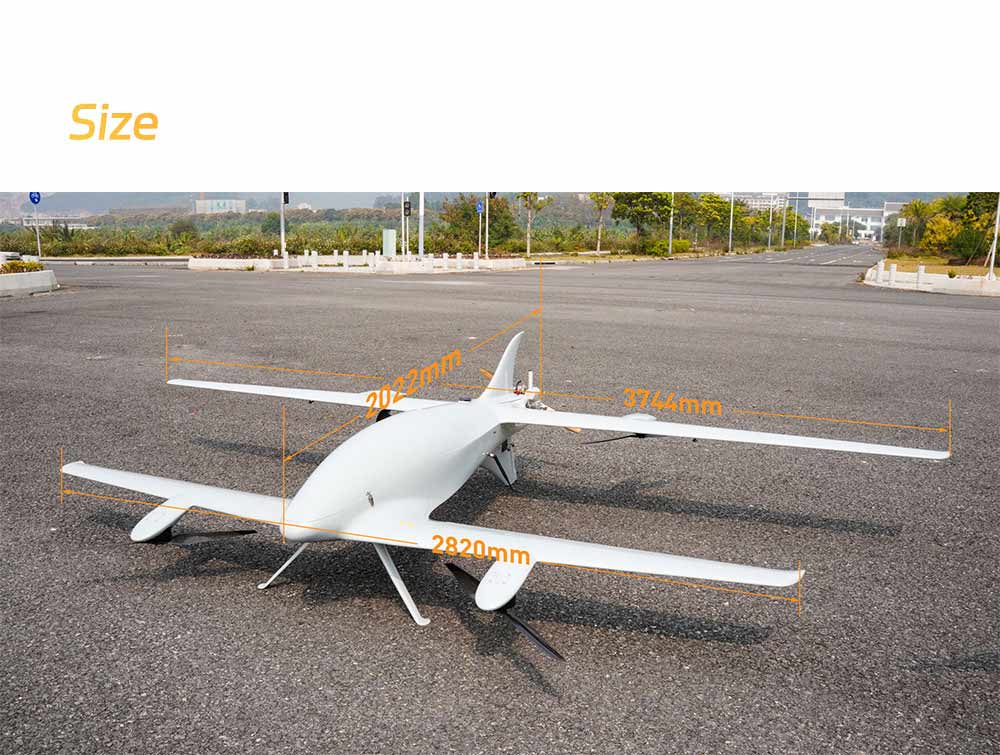

| Span | Front 2820mm/Rear 3744mm |
| Full length | 2022mm |
| Height | 696mm |
| Width | 470mm |
| Load bin size 1 | 240*240*200mm |
| Load bin size 2 | 160*200*120mm |
| Shipping box size | 2130*750*630mm(including wheels) |
| Standard Engine | Two-cylinder gasoline engine |
| Fuel tank capacity | 6~10L |
| Cruising speed | 24-40m/s |
| Max rate of climb | 4m/s(Fix-wing) |
| Max flight altitude | 5000m |
| Operating temperature | -2OC-5OC |
VT370 Vtol UAV Description：

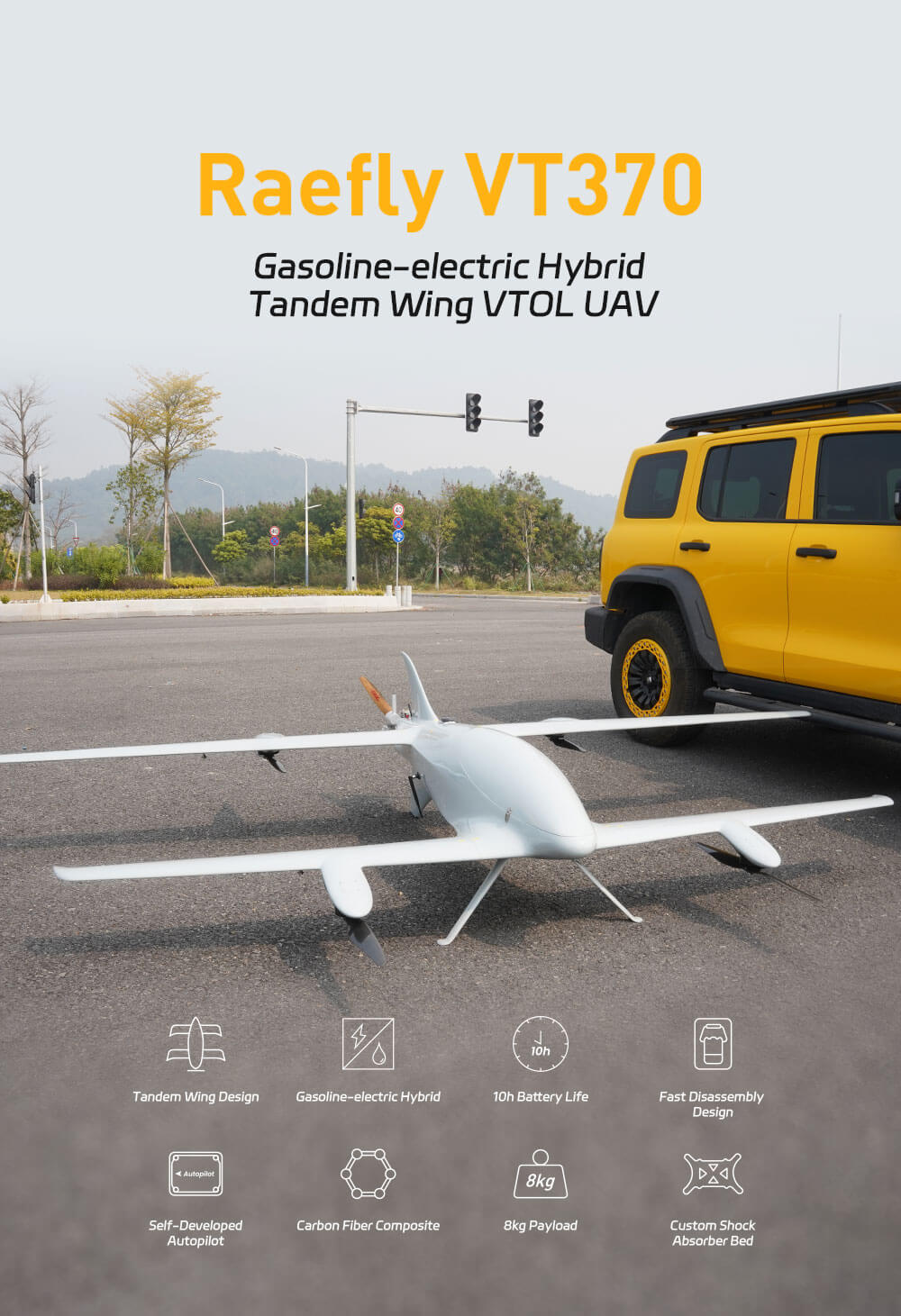

Gasoline-electric Hybrid Tandem Wing VTOL UAV Feature
- Tandem Wing Design
- Gasoline-electric Hybrid
- 10h Battery Life
- Fast Disassembly Design
- Self-Developed Controller
- Carbon Fiber Composite
- 8kg Payload
- Custom Shock Absorber Bed

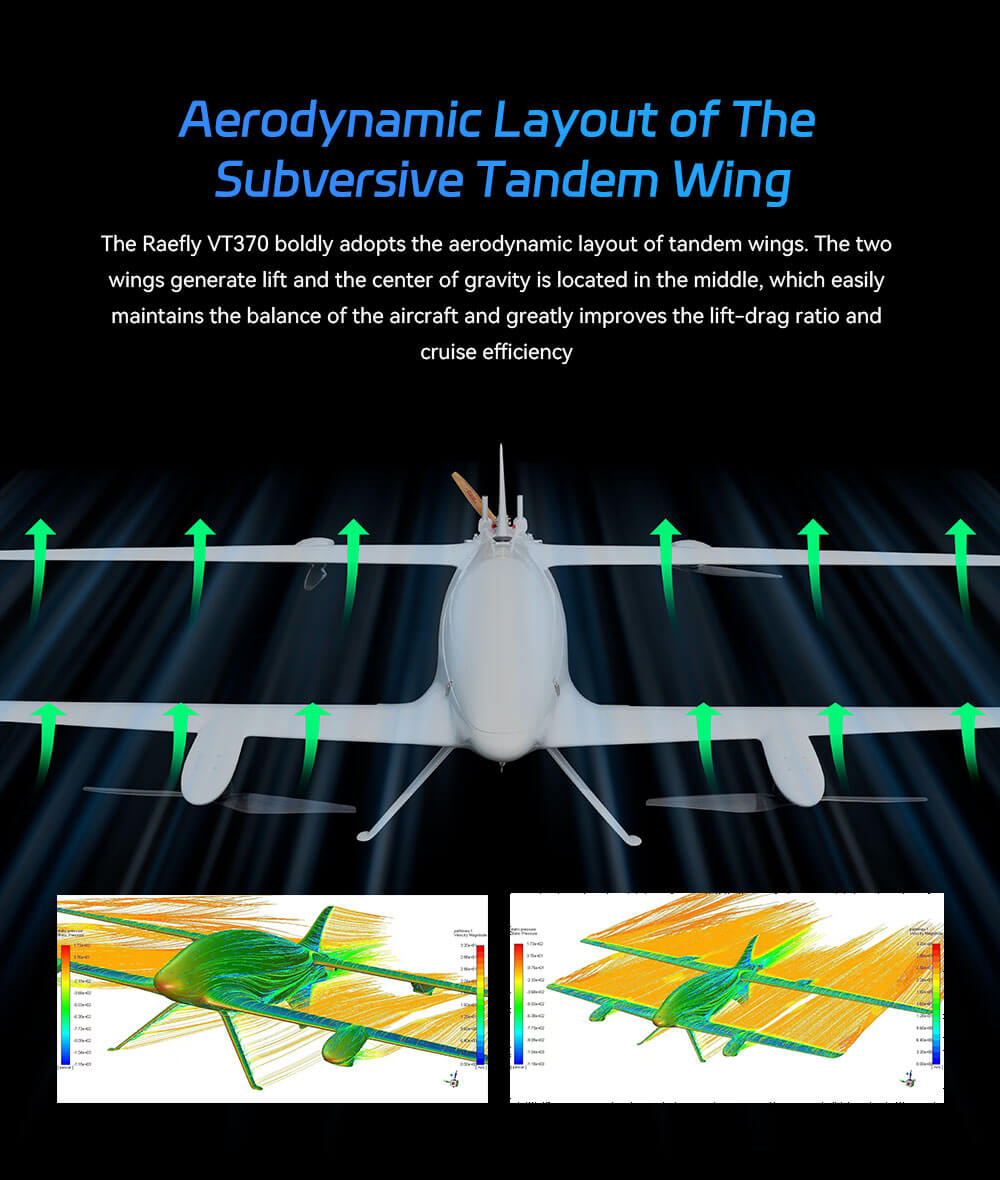

Aerodynamic Layout of TheSubversive Tandem Wing
The Raefly VT370 boldly adopts the aerodynamic layout of tandem wings. The twowings generate lift and the center of gravity is located in the middle, which easilymaintains the balance of the aircraft and greatly improves the lift-drag ratio andcruise efficiency

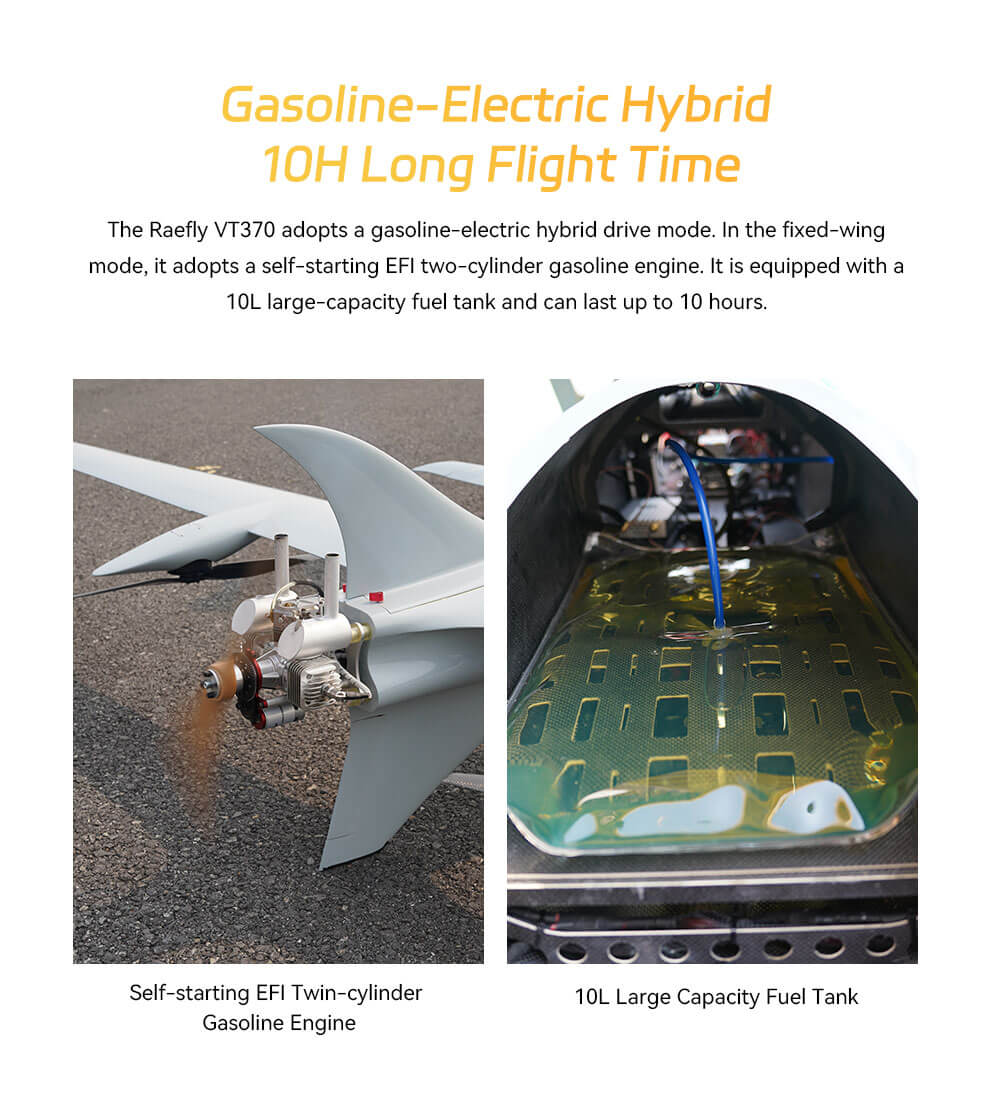

Gasoline-Electric Hybrid 10H Long Flight Time
The Raefly VT370 adopts a gasoline-electric hybrid drive mode. In the fixed-wing mode, it adopts a self-starting EFl two-cylinder gasoline engine. It is equipped with a 10L large-capacity fuel tank and can last up to 10 hours.

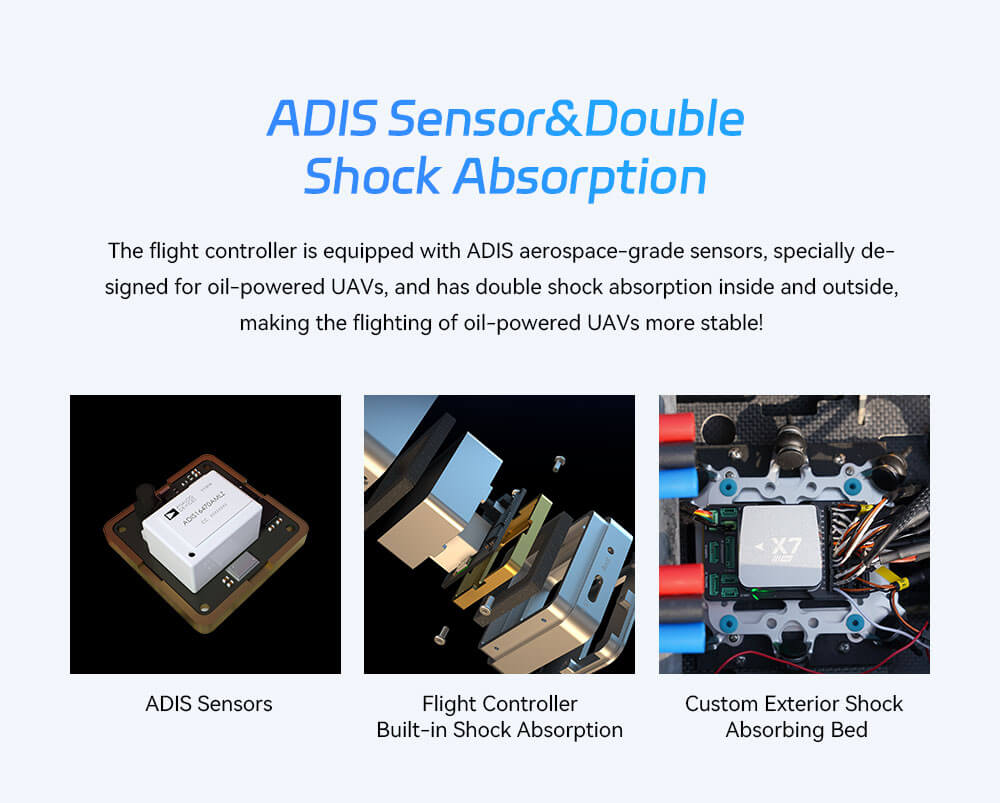

ADlS Sensor & Double Shock Absorption
The Controller is equipped with ADlS aerospace-grade sensors, specially designed for oil-powered UAVs, and has double shock absorption inside and outside, making the flight of oil-powered UAVs more stable!

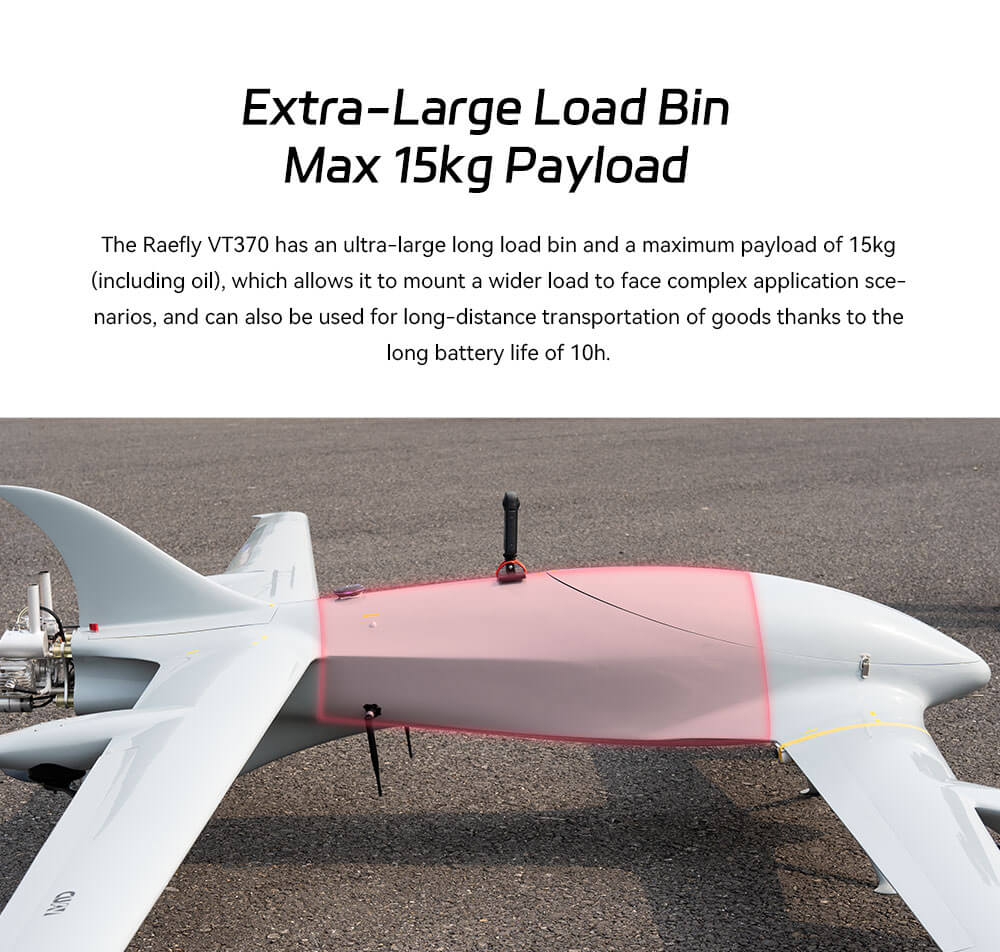

Extra-Large Load Bin Max 15kg Payload
The Raefly VT370 has an ultra-large long load bin and a maximum payload of 15kg(including oil), which allows it to mount a wider load to face complex application scenarios, and can also be used for long-distance transportation of goods thanks to the long battery life of 10h.

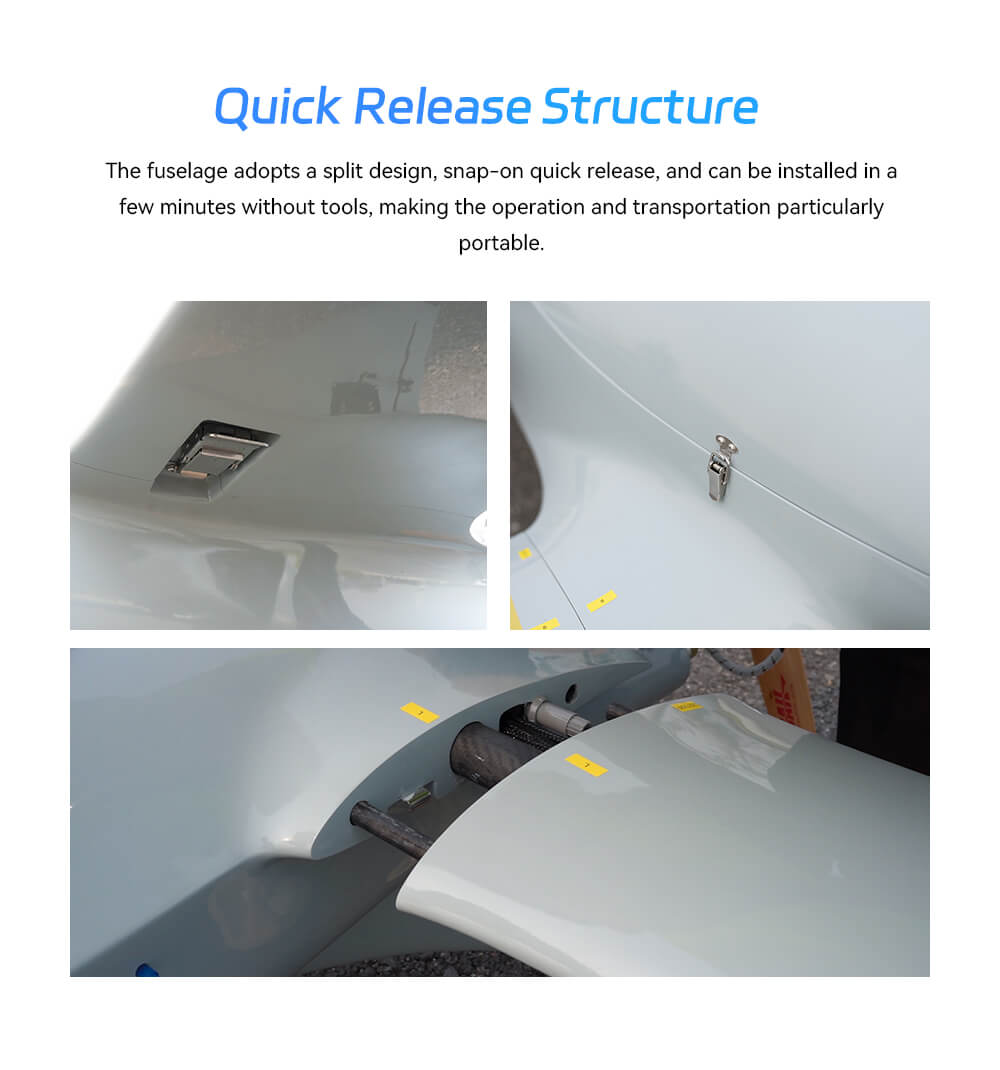

Quick Release Structure
The fuselage adopts a split design, snap-on quick release, and can be installed in a few minutes without tools, making the operation and transportation particularly portable.

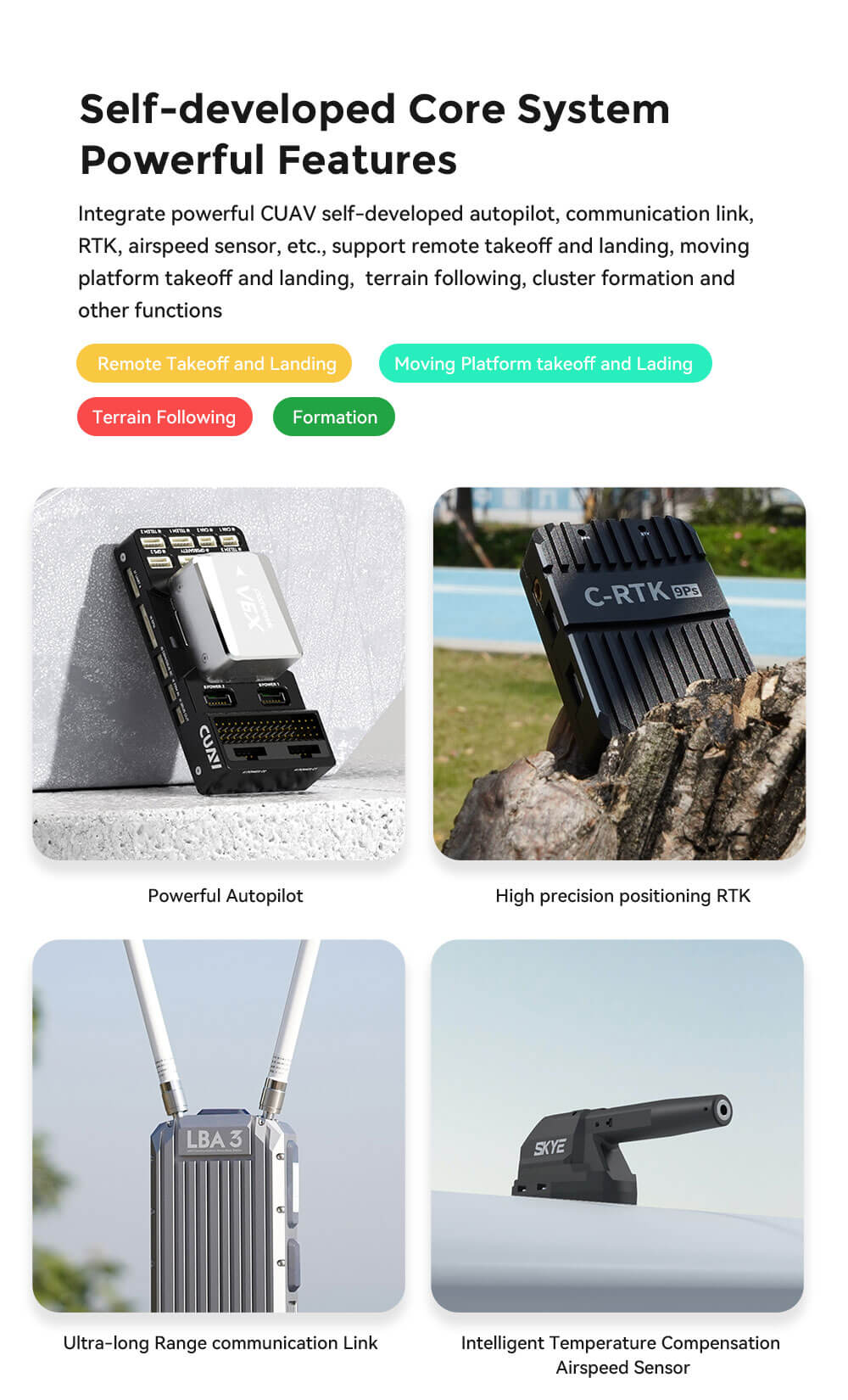

Self-developed Core System Powerful Features
Integrate powerful CUAV self-developed autopilot, communication link, RTK, airspeed sensor, etc., support remote takeoff and landing, moving platform takeoff and landing, terrain following, cluster formation, and other functions
- Remote Take-off and Landing
- Moving Platform take off and Lading
- Terrain Following
- Formation
- Powerful Controller
- High precision positioning RTK
- Ultra-long Range communication Link
- Intelligent Temperature Compensation Airspeed Sensor

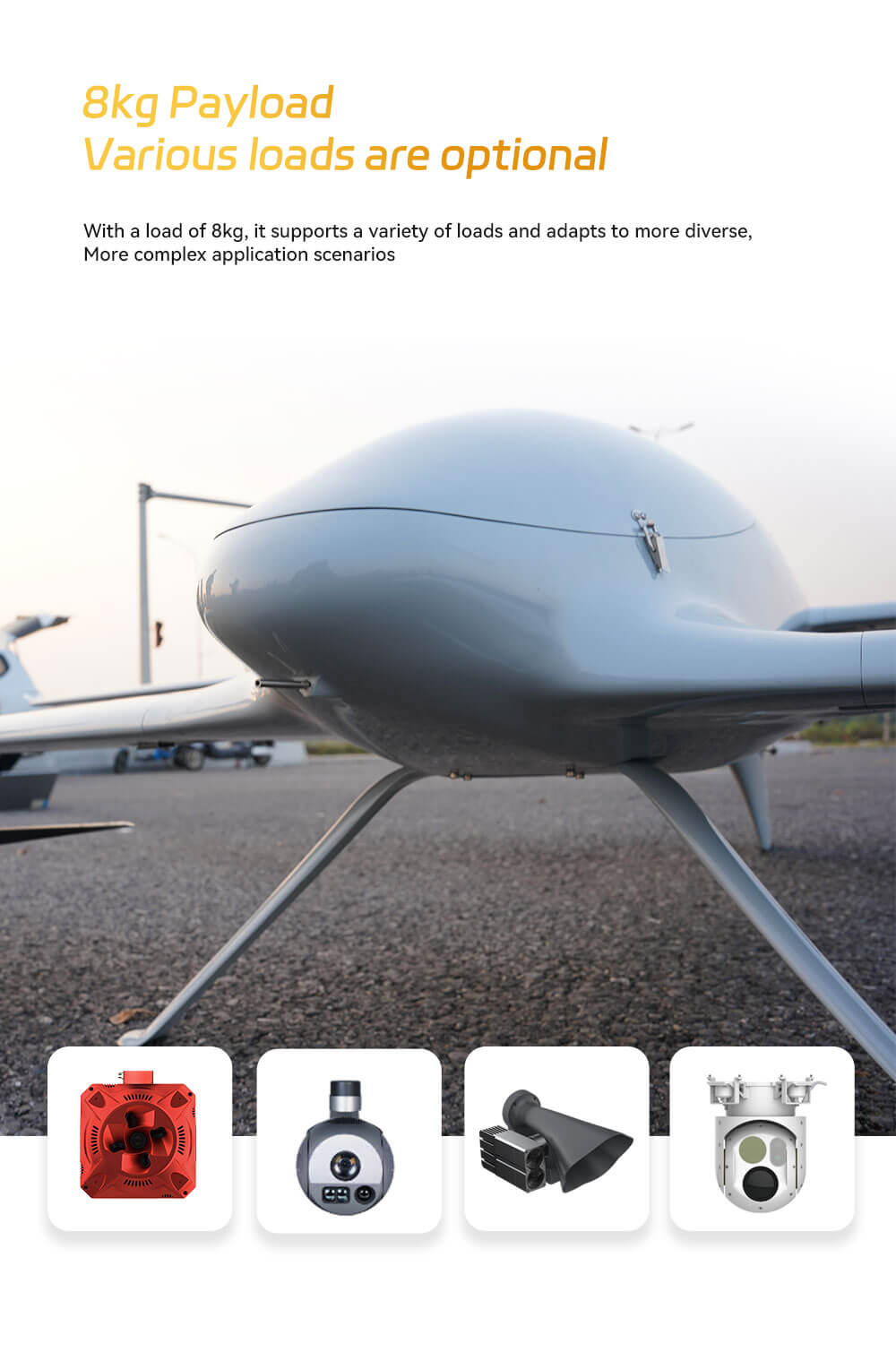

8kg Payload Various loads are optional
With a load of 8kg, it supports a variety of loads and adapts to more diverse, more complex application scenarios
Application Scenarios
- Mapping: 3D Modeling. Urban Planning. Geological Exploration, Land title confirmation
- Inspection: Land and Transportation, Oil and Gas Pipelines, Environmental Protection Supervision, Water Supervision, Forestry Supervision
- Logistics: Logistics Transportation | Emergency Material Transportation
- Security: Security and firefighting, Anti-smuggling, Anti-drug, Anti-crime and evil, Maritime Supervision, and Emergency Rescue
- Scientific research: Scientific experiment. Training and education. Secondary development. Subject research.
- Agriculture: Precision Agriculture. Ecological Protection. Poppy patrol.

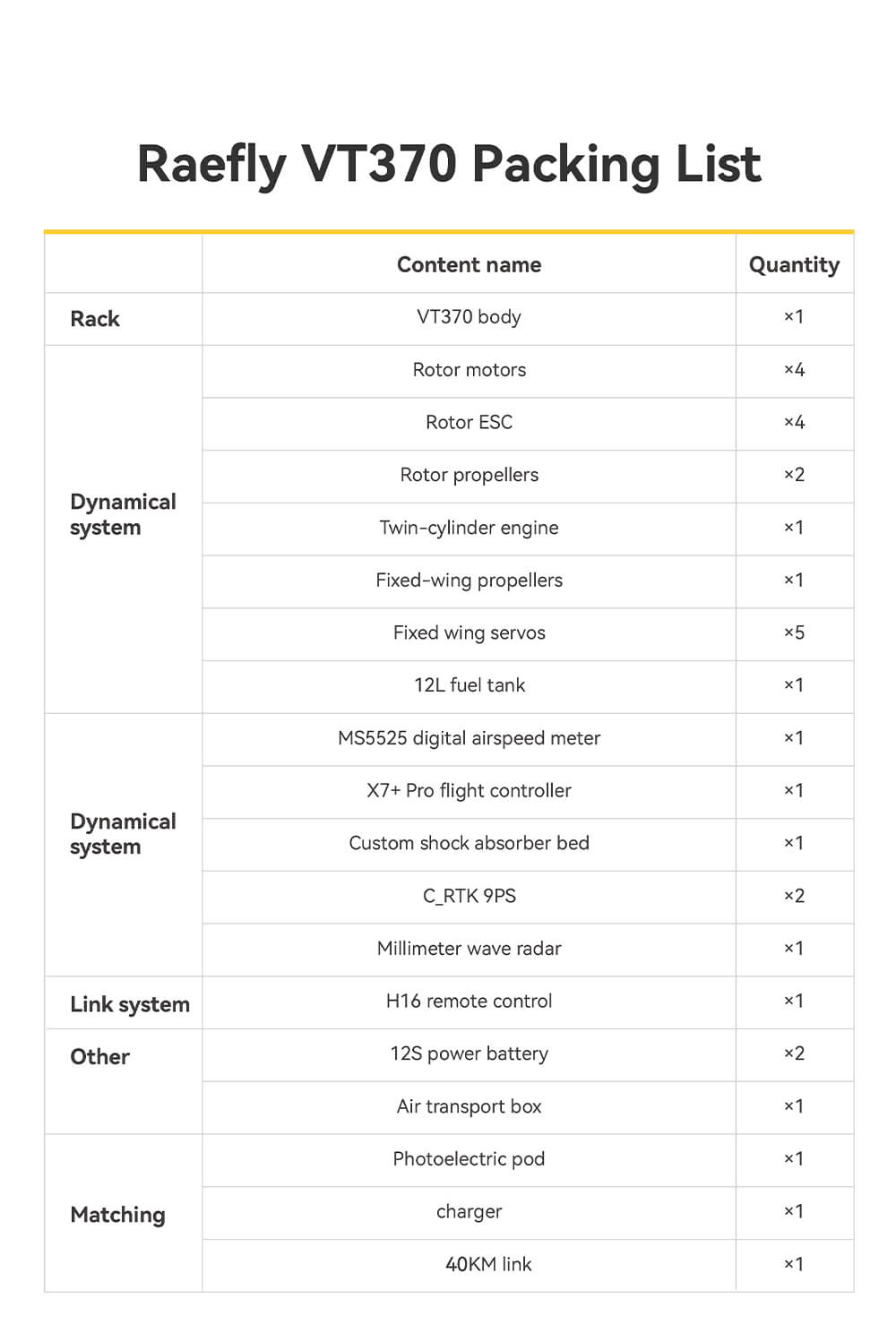

Raefly VT370 Packing List | ||
| Content name | Quantity | |
| Rack | VT370 body | ×1 |
| Dynamical system | Rotor motors | ×4 |
| Rotor ESC | ×4 | |
| Rotor propellers | ×2 | |
| Twin-cylinder engine | ×1 | |
| Fixed-wing propellers | ×1 | |
| Fixed-wing servos | ×5 | |
| 12L fuel tank | ×1 | |
| Controller system | MS5525 digital airspeed meter | ×1 |
| X7+ Pro controller | ×1 | |
| Custom shock absorber bed | ×1 | |
| C-RTK 9PS | ×2 | |
| Millimeter wave radar | ×1 | |
| Link system | H16 remote control | ×1 |
| Other | 12S power battery | ×2 |
| Air transport box | ×1 | |
| Matching | Photoelectric pod | ×1 |
| charger | ×1 | |
| 40KM link | ×1 | |
