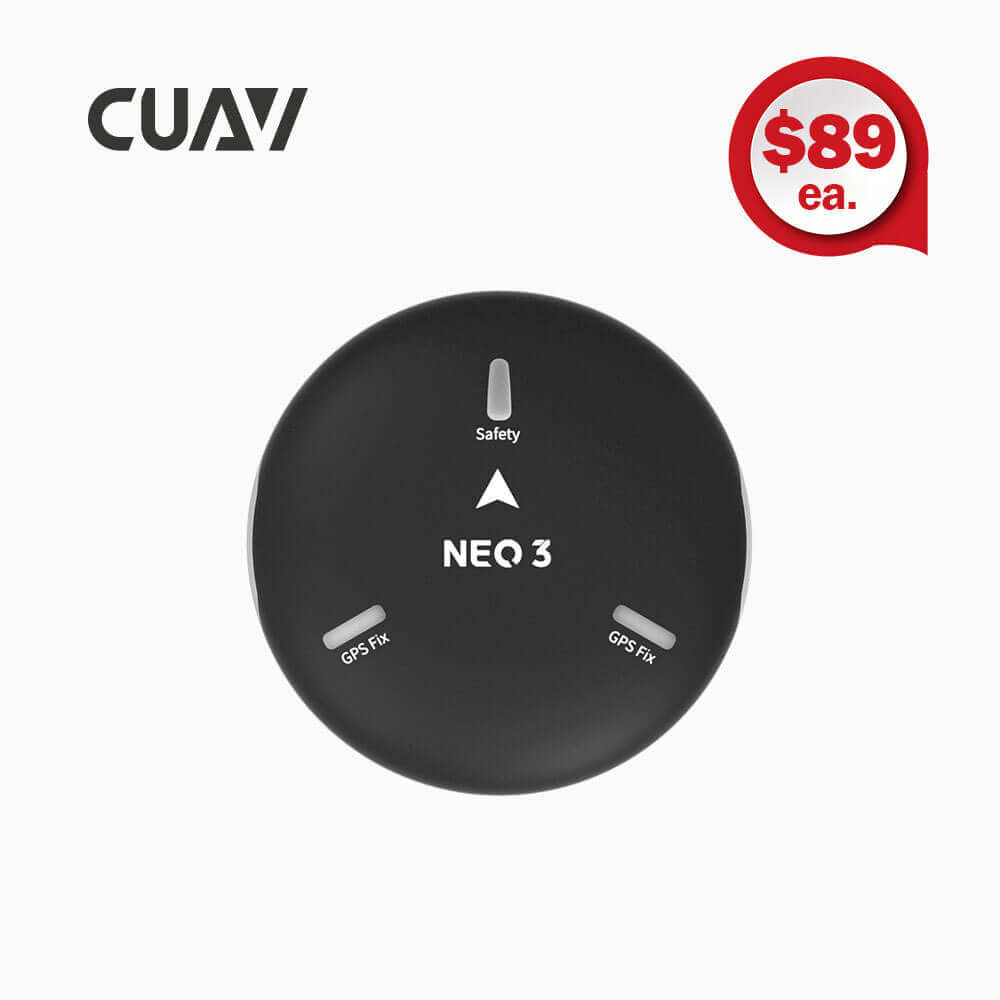

NEO 3 GNSS Module:
1– Ublox M9N satellite receiver, accuracy up to 0.7m
2– Support BDS, GALILEO, GLONASS, GPS four satellite systems
3– Support simultaneous reception of four satellite systems
4– Triple filters design
Introduction:
NEO 3 is a cost-effective M9N navigation and positioning product with a single point positioning accuracy of up to 0.7m. It integrates positioning system, magnetic compass, controller status light, controller alarm, and barometer, and can receive signals from four major satellite navigation and positioning systems simultaneously
Main Parameters
Main Parameters | |
| Compass | ST8310 |
| RGB Drive | NCP5623 |
| Buzzer | Passive buzzer |
| Safety Switch | Physical button |
| GNSS Receiver | UBLOX NEO M9N |
| Number of Concurrent GNSS | 4(BDS、GALILEO、GLONASS、GPS) |
| Frequency Band | GPS:L1C/A GLONASS:L10F BDS:B11 GALILEO:E1B/C |
| GNSS Augmentation System | SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF) other:RTCM3.3 |
| Horizontal Accuracy | 2.0m |
| Speed Accuracy | 0.05m/s |
| Nav.update rate | 25Hz(Max) |
| Acquisition | Cold start:24s Hot start:2s Aided start:2s |
| Number of Saellites(MAX) | 32+ |
| Sensitivity | Trackng and nav-167dBm Cold start Hot start-148dBm Reacquisition-160dBm |
| Protocol | UART+IO+l2C |
| Port Type | GHR-10V-S |
| Supported Controller | CUAV series, Pixhawk series |
| Wave Filtering | SAW+LNA+SAW |
| Anti-Lectromagnetic/Radio FrequencyInterference | EMI+RFI |
| Upgrade Firmware | Support |
| Support Control Type | ArduPilot/PX4*(PX4 is stillworking hard to adapt to the clock) |
| Input Voltage | 4.7-5.2V |
| Operating Temperature | -10～70℃ |
| Size | 60×60×16mm |
| Weight | 33g |
Product Feature
- Buzzer prompt
- Safety switch
- Industrial grade
- electronic compass
- RGB surround light
- CROCOMM custom antenna
Satellite receiver Ublox M9N
New generation satellite receiver Ublox M9N. The actual measurement can reach a maximum accuracy of 0.7m.
Beidou and Galileo satellite systems
Concurrent reception of GPS, GLONASS, Beidou and Galileo satellite.
Triple filtering design
NEO V3 Pro adopts SAW+ LNA + SAW triple filtering design, which effectively avoids the influence of remote control. digital transmission. and 4G signals on GPS positioning reception.
Measured comparison data betweenNEO 3 and NEO V2
Test environment
Location: football field of science and technology information Park, Nansha district,Guangzhou. China Weather: Sunny
Test method
Install NEO V2 and NEO 3 on the Xunwing X4 flight platform. NEO 3 is GPS1 NEO V2 is GPS2. use the autopilot log storage function to read log data
for analysis.
Test data
Number of satellites
