Introduction:

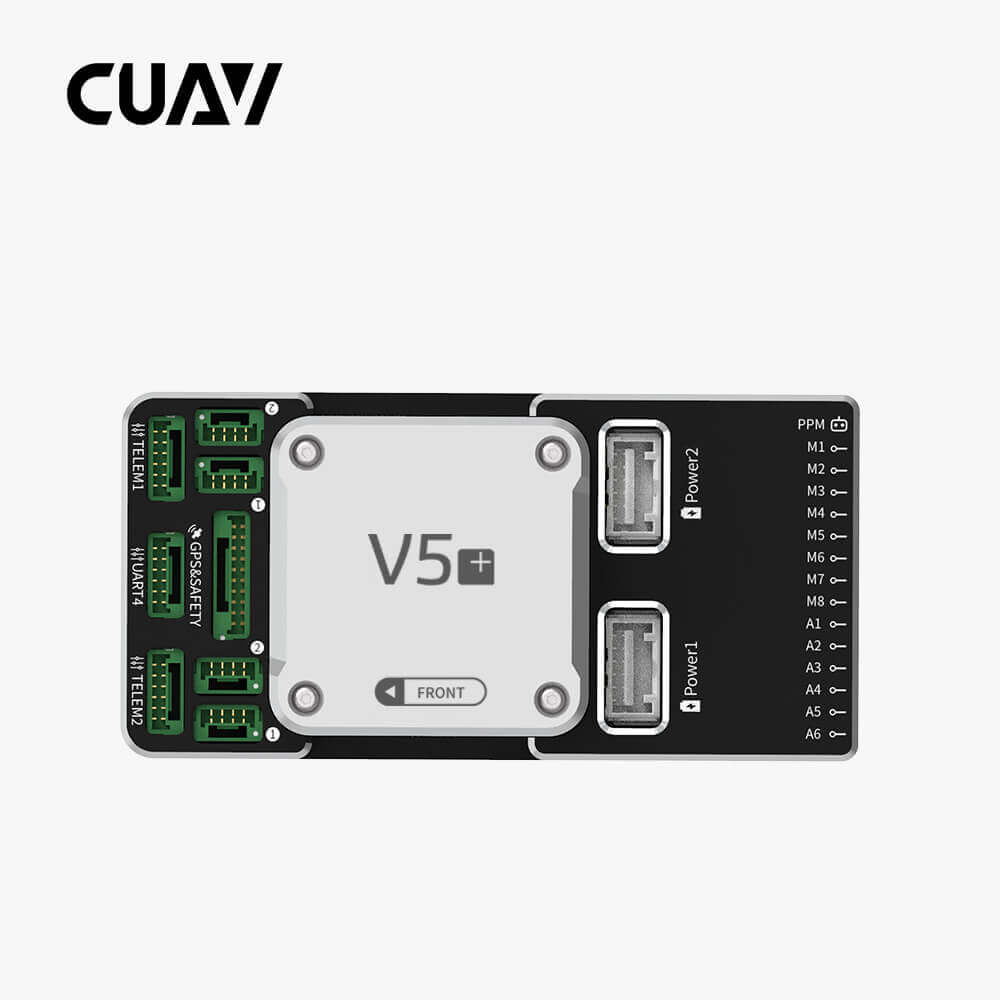

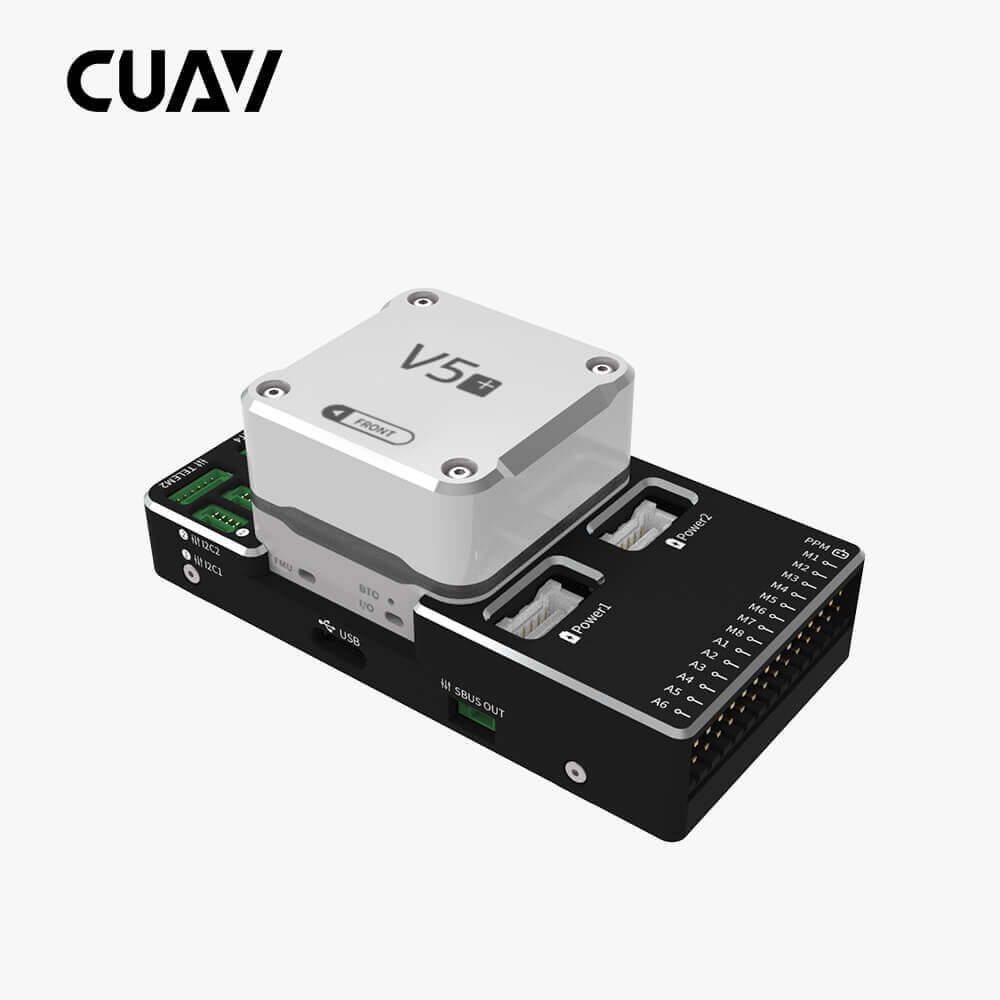

V5+ is a premium controller designed by the CUAV and PX4 teams and manufactured by CUAV. Based on the Pixhawk FMU v5 design standard, perfectly compatible with PX4 and ArduPilot firmware. Its modular design allows users to customize the baseboard.
Main Parameter | |
| Main FMU Processor | STM32F765 (32 Bit Arm Cortex -M7, 216MHz, 2MB FLASH, 512KB RAM) |
| IO Processor | STM32F100 (32 Bit Arm Cortex -M3,24MHz, 8KB SRAM) |
Sensors | |
| Accelerometer | ICM-20602 / ICM-20689 / BMI055 |
| Gyroscope | ICM-20602 / ICM-20689 / BMI055 |
| Magnetometer | IST8310 |
| Barometer | MS5611 |
Interfaces | |
| UART | 5 |
| I2C | 4 |
| SPI | 1 |
| CAN | 2 |
| ADC | 2 |
| PWM | 8 ~ 14 PWM outputs (6 from IO, 8 from FMU) |
| DSM/SBUS/RSSI | 1 |
| PPM IN | 1 |
| Power Interface | 2 |
| Safety Switch | 1 |
| DEBUG / F7 SWD | 1 |
| USB | 1 (Type-C) |
| TF slot | 1 |
| Rated Voltage | 4.5 ~ 5.5 V |
| USB Voltage | 5V ± 0.25 V |
| Servo Voltage | 0 ~ 36 V |
| Working Temp | -20 ~ 85℃ |
| Size | 85.5 × 42.0 × 33.0mm |
| Weight | 91g |

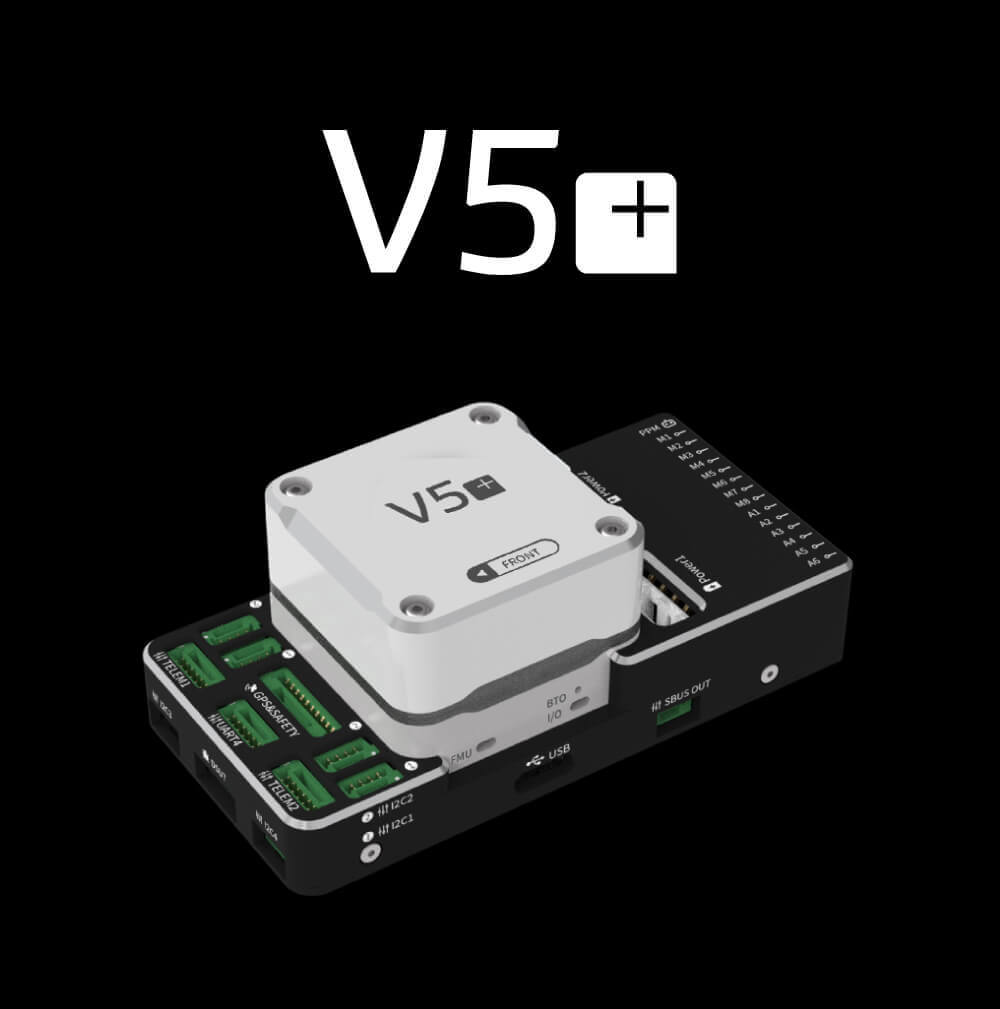

V5+ Controller Brief:

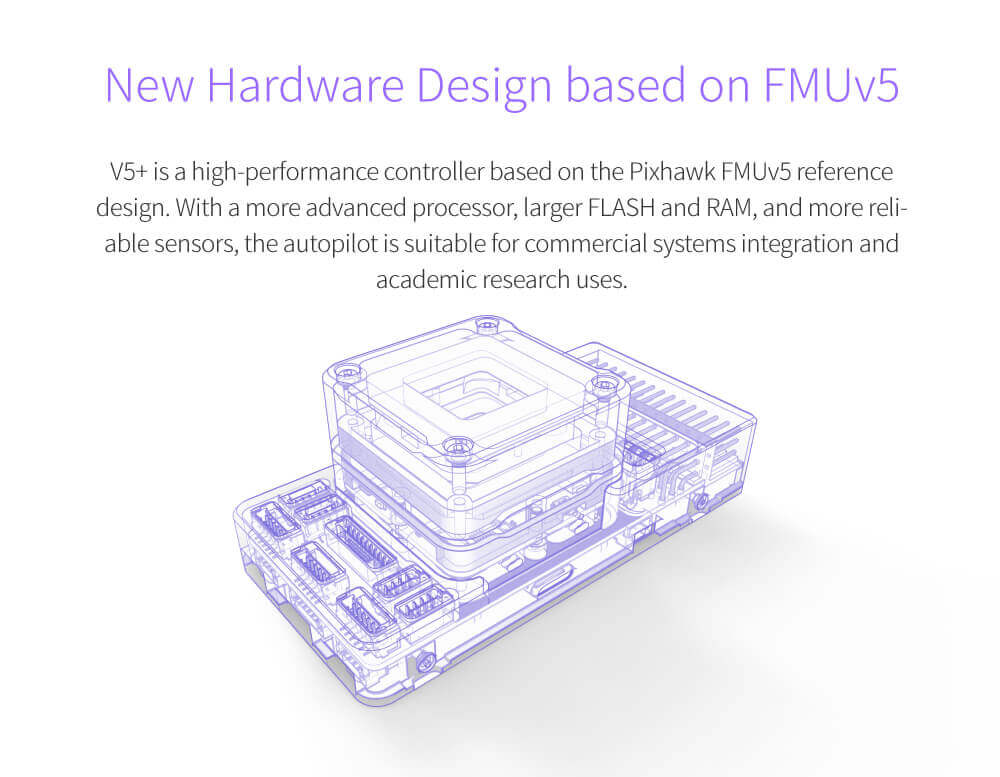

New Hardware Design based on FMUv5
V5+ is a high-performance controller based on the Pixhawk FMUv5 referencedesign. With a more advanced processor, larger FLASH and RAM, and more reli.able sensors, the autopilot is suitable for commercial systems integration andacademic research uses.

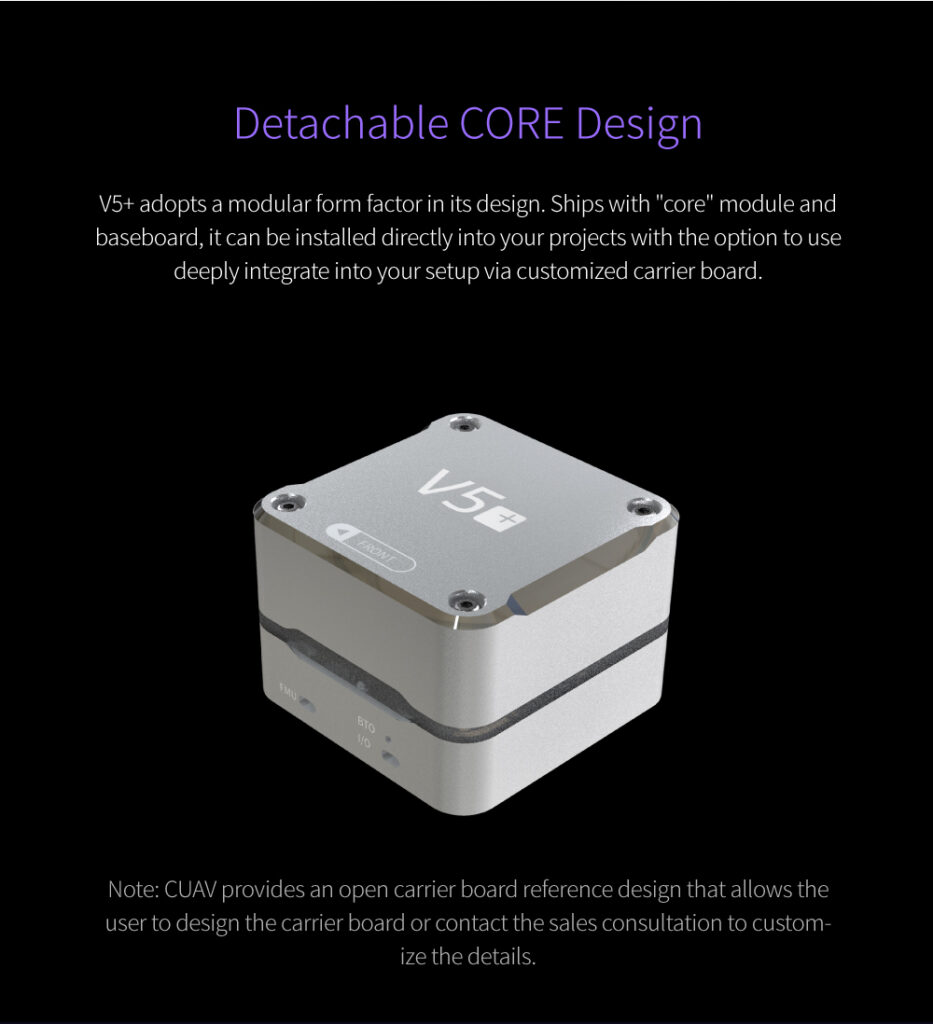

Detachable CORE Design
V5+ adopts a modular form factor in its design. Ships with “core” module and baseboard, it can be installed directly into your projects with the option to use deeply integrate into your setup via customized carrier board.
Note: CUAV provides an open carrier board reference design that allows the user to design the carrier board or contact the sales consultation to customize the details.

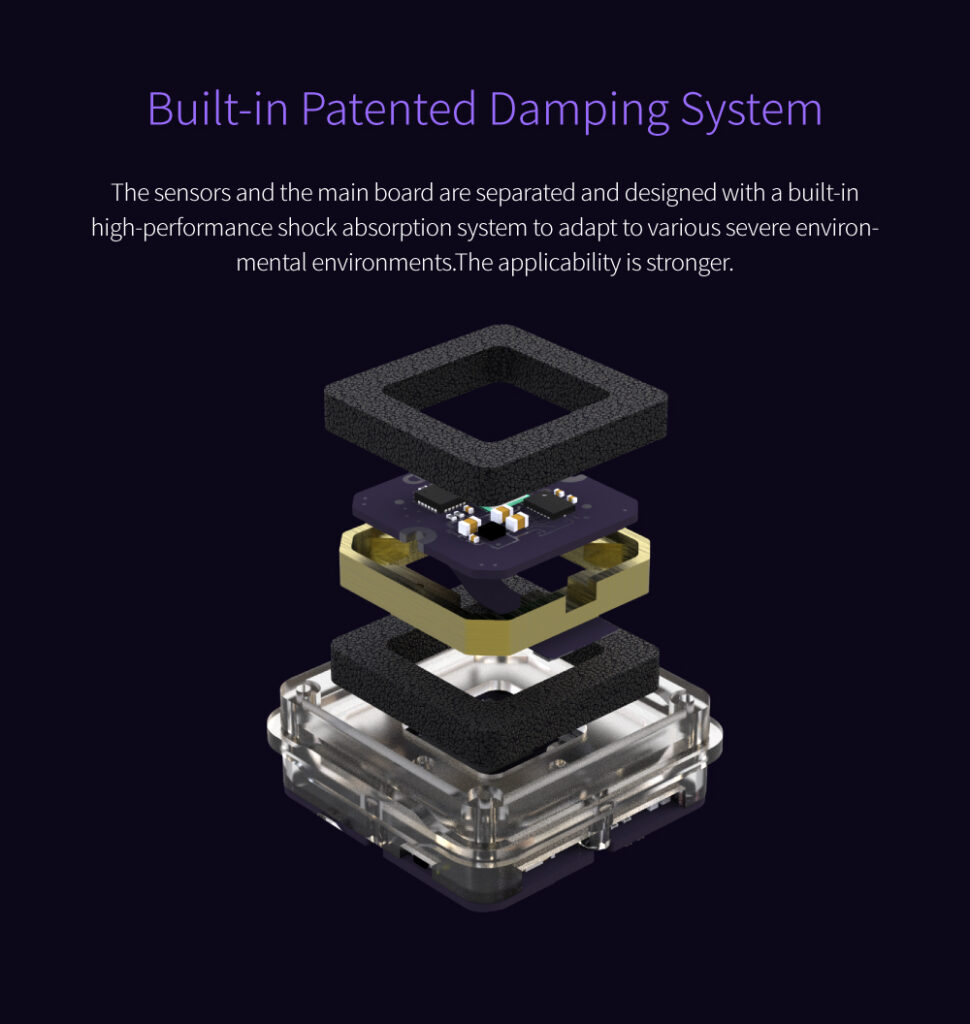

Built-in Patented Damping System
The sensors and the main board are separated and designed with a built-in high-performance shock absorption system to adapt to various severe environ-mental environments.The applicability is stronger.
Built-in Patented Damping System
The sensors and the main board are separated and designed with a built-in high-performance shock absorption system to adapt to various severe environ-mental environments.The applicability is stronger.

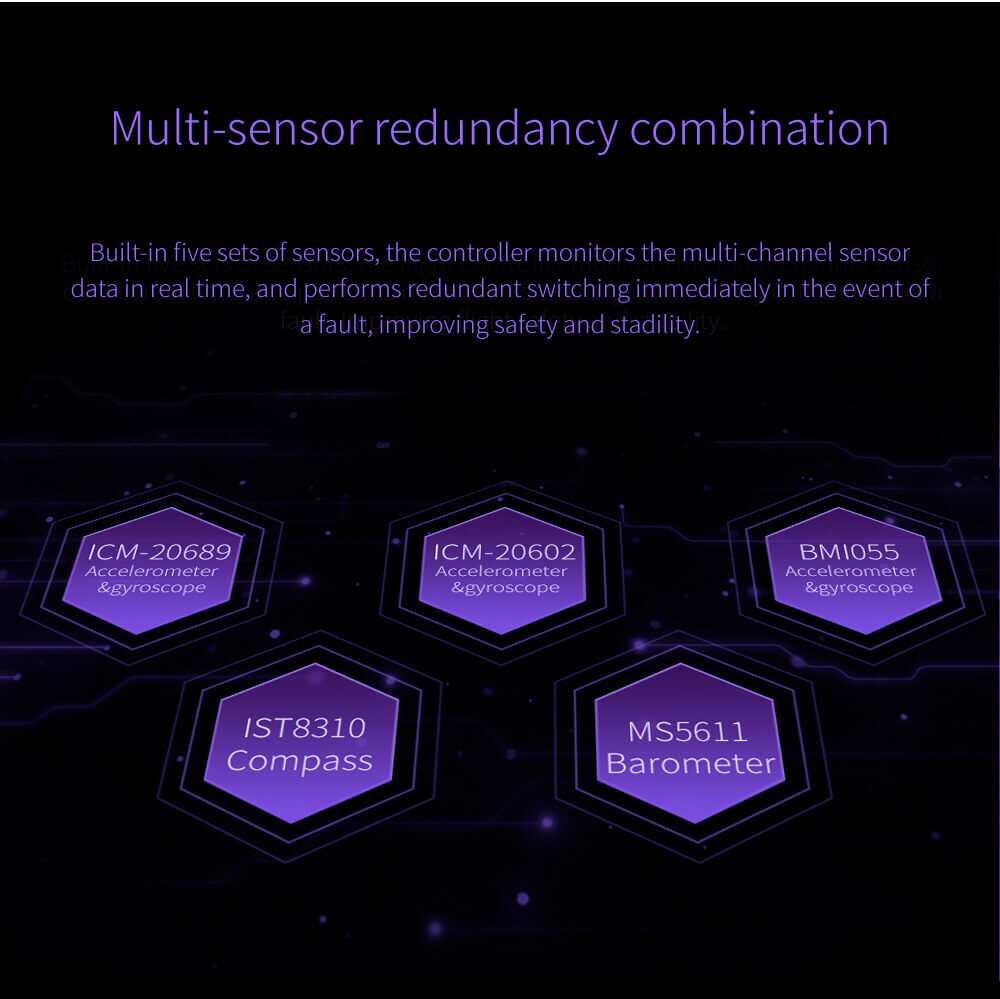

Multi-sensor redundancy combination
Built-in five sets of sensors, the controller monitors the multi-channel sensordata in real time, and performs redundant switching immediately in the event ofa fault, improving safety and stadility.
Faster F765 processor
V5+ selects the STM32F 765 processor with better performance. lts frequency isup to 216MHZ and it contains 2MB FLASH/512K RAM. The clock speed is higher, the RAM is larger, and the speed will be greatly improved.
Support RTK centimeter positioning
V5+ supports RTK positioning, module for precise centimeter positioning tomeet your higher positioning requirements.
(RTK positioning module needs to be purchased separately)

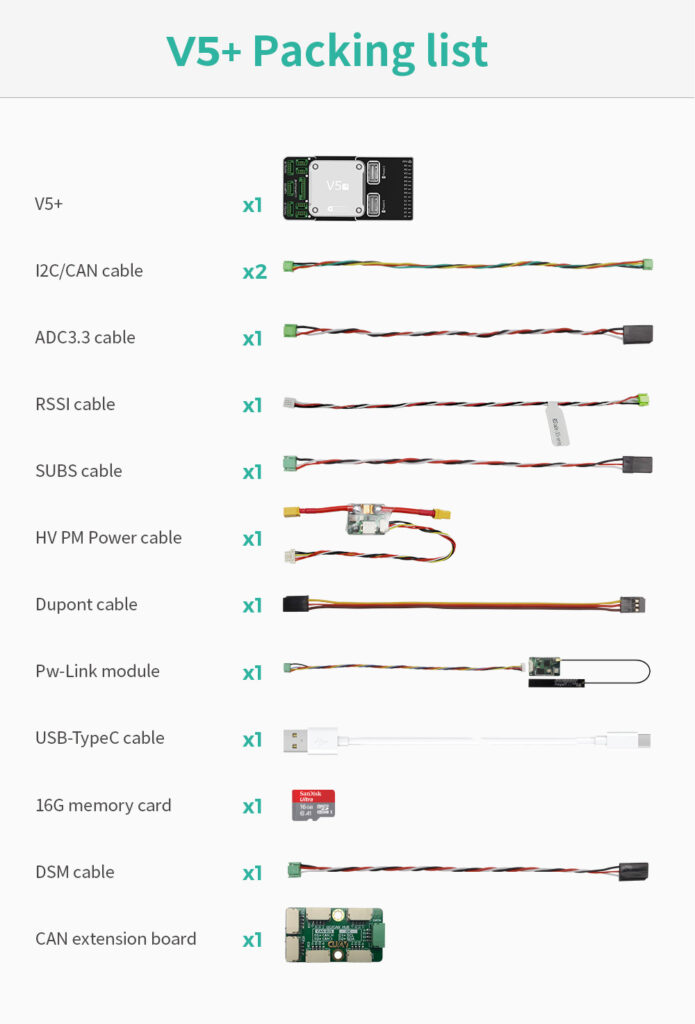

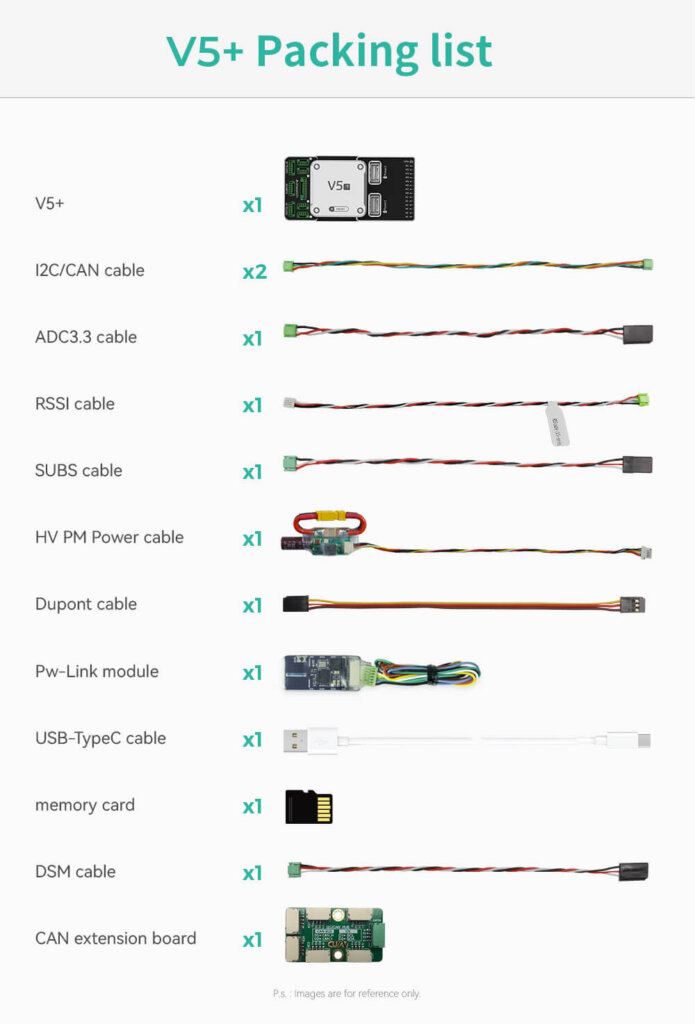

V5+ Packing List:
