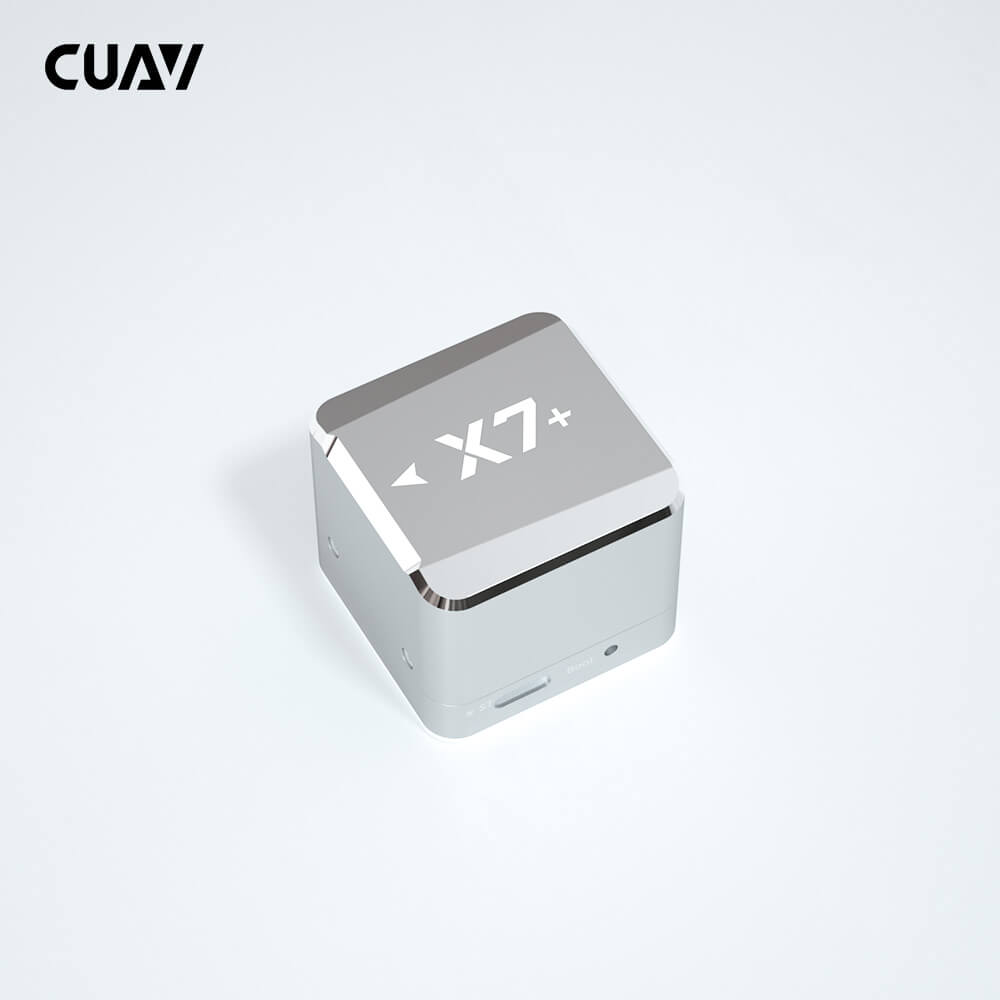

CUAV X7+ Core Introduction
The CORE series units contain all the functions of the Intelligent Controller. Users CAN design their own carrier baseboard according to the interface definition of the CORE units, or buy our CAN PDB products for collocation. Please check the parameters of CORE units of different models in the corresponding controller units.
Notice
– The Core series products do not include the carrier baseboard. Buyers need to design their own baseboard or buy our CAN PDB to use it.
– Contact the sales to get the Core interface definition before purchasing.
– Large purchase volume. Our company can design the bottom plate free of charge. Please contact the sales consultant for details.
CUAV X7+ Controller Feature
- H7 double-precision floating-point processor
- Built-in shock absorption
- 3 sets of IMUs support intelligent failover
- Support temperature compensation
- High-performance ICM-42688-P sensor
- Modular design, support customized baseboard
- Support more Dshot output
- Dedicated DroneCAN power interface
CUAV X7+ Controller Brief:
X7+ is a premium controller designed and produced by CUAV. It adopts the STM32H7 series processor, which has higher performance than Pixhawk FMU v5x, and integrates high-precision industrial-grade sensors and ultra-low-temperature drift sensors. It supports ArduPilot & PX4 firmware. The X7+ series offers improved stability and enhanced immunity to interference.
Main Parameter | |
| Processor | STM32H743(Arm Cortex -M7,480MHz, 2MB FLASH, 1MB RAM) |
Sensors | |
| Accelerometer | ICM-42688-P / ICM-20689 / ICM-20689 |
| Gyroscope | ICM-42688-P / ICM-20689 / ICM-20689 |
| Compass | RM3100 |
| Barometer | MS5611 *2 |
Interfaces | |
| UART | 5 |
| I2C | 6 (2 interfaces are integrated in GPS&SAFETY&UART4) |
| PWM OUT | 14 ( M1~M12 Support DSHOT protocol) |
| RC IN | 1 (Support PPM SBUS DSM) |
| RSSI | PWM or 3.3V analog voltage |
| CAN | 2 |
| Power IN | 2 (Power A for ADC protocol, Power C for CAN protocol) |
| Safety Switch | 1 |
| GPS | 2 |
| ADC | 1 |
| DEBUG | 1 |
| JATG | 1 |
| USB | 1 |
| Rated Voltage | 4.5 ~ 5.5 V |
| USB Voltage | 4.75 ~ 5.25 V |
| Servo Voltage | 0 ~ 10 V |
| Working Temp | -20 ~ 85 ℃ |
| Humidity | 5% ~ 95%（Does not condense） |
| Size | 77.0 × 45.5 × 39.0mm |
| Weight | 101g |
