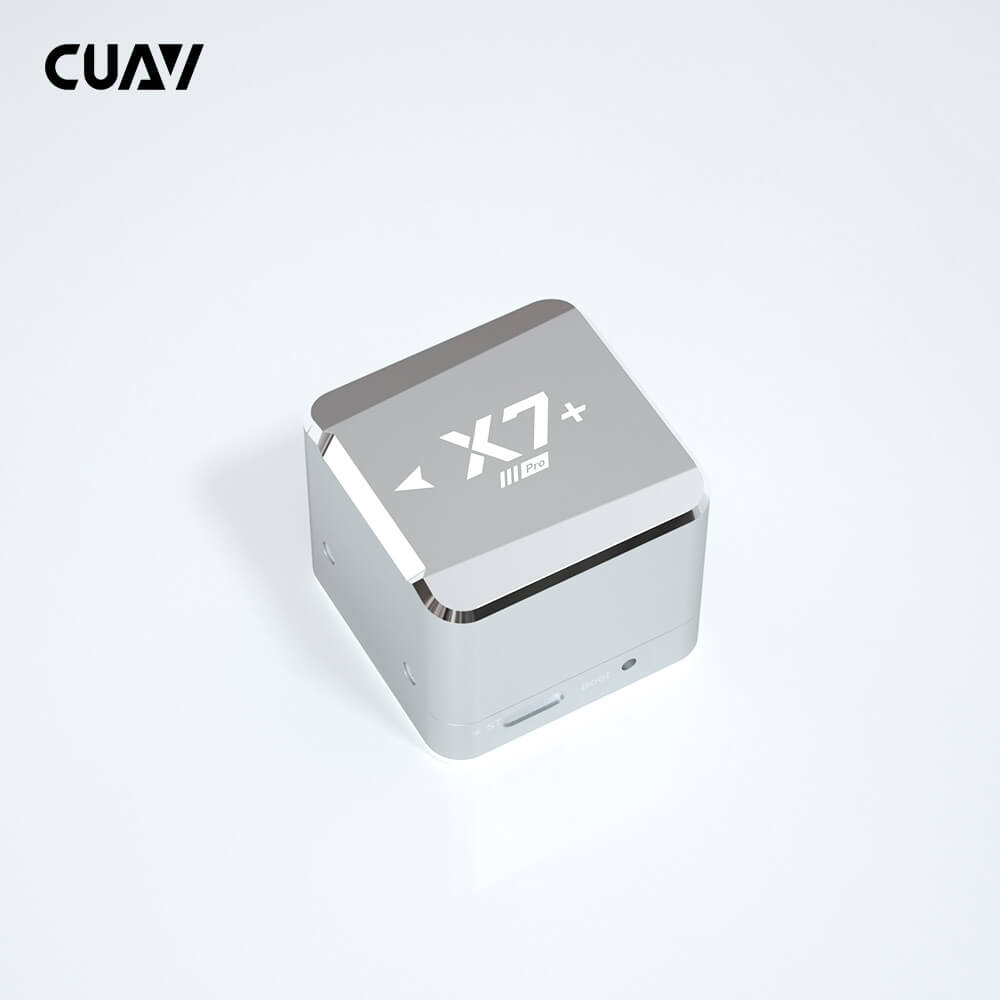

CUAV X7+ Core Introduction
The CORE series units contain all the functions of the Intelligent Controller. Users CAN design their own carrier baseboard according to the interface definition of the CORE units, or buy our CAN PDB products for collocation. Please check the parameters of CORE units of different models in the corresponding controller units.
Notice
– The Core series products do not include the carrier baseboard. Buyers need to design their own baseboard or buy our CAN PDB to use it.
– Contact the sales to get the Core interface definition before purchasing.
– Large purchase volume. Our company can design the bottom plate free of charge. Please contact the sales consultant for details.
X7+ Pro Controller Feature
- H7 double-precision floating-point processor
- ADIS16470 sensor
- Industrial-grade RM3100 compass
- Built-in shock absorption
- 3 sets of IMUs support intelligent failover
- Support temperature compensation
- Dedicated DroneCAN power interface
- Modular design, support customized baseboard

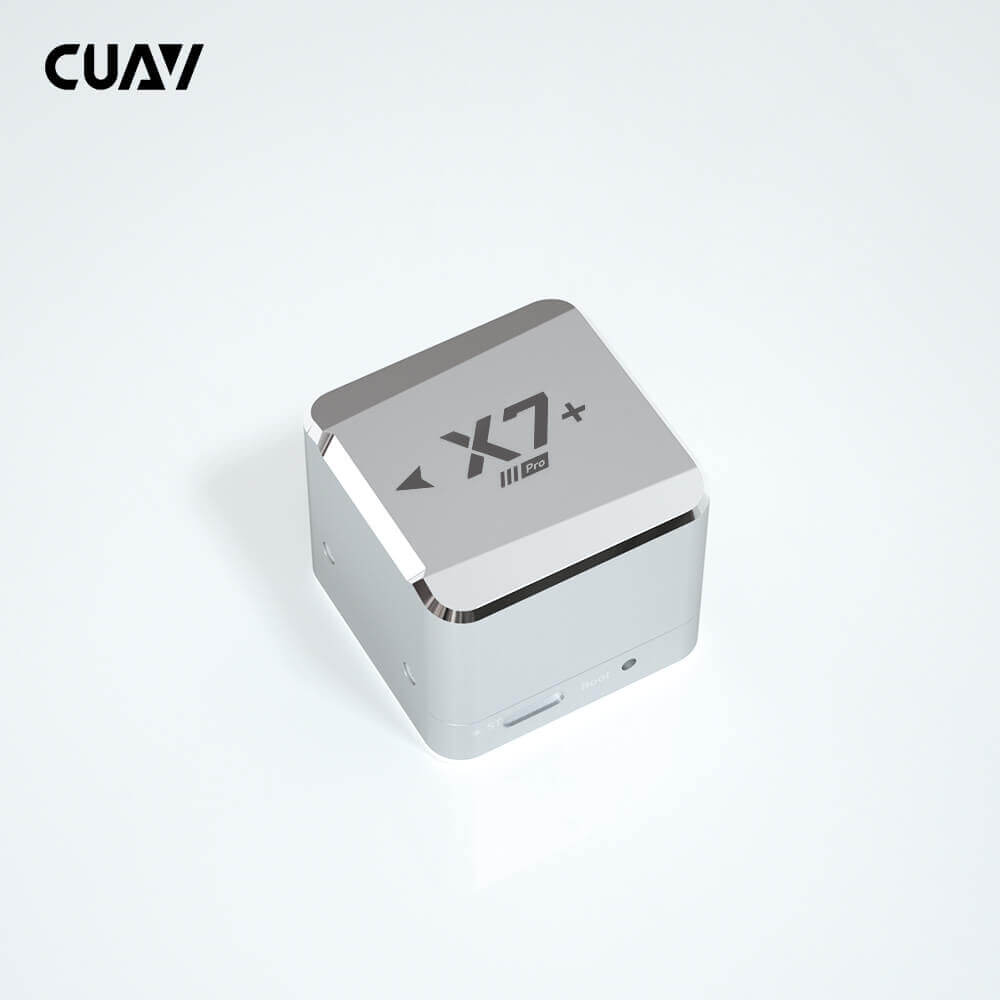

X7+ Pro Controller Brief
X7+ Pro is a high-end intelligent controller developed by CUAV® for industry and industrial applications. It is equipped with a high-performance STM32H7 processor with a processing speed of up to 480Mhz and supports double floating-point operations. It is also equipped with an ADIS16470 automotive-grade sensor with excellent gyroscope and accelerometer performance, supports low-error long-flight attitude calculation, and is equipped with an industrial-grade RM3100 magnetometer, which has strong anti-magnetic interference capabilities. The excellent processor performance and IMU performance enable unmanned system equipment to have better stability and anti-interference capabilities in complex environments.
Main Parameter | |
| Processor | STM32H743(Arm Cortex -M7,480MHz,2MB FLASH, 1MB RAM) |
Sensors | |
| Accelerometer | ADIS16470 / ICM-42688-P / ICM-20689 |
| Gyroscope | ADIS16470 / ICM-42688-P / ICM-20689 |
| Compass | RM3100 |
| Barometer | MS5611 *2 |
Interfaces | |
| UART | 5 |
| I2C | 6 (2 interfaces are integrated in GPS&SAFETY&UART4) |
| PWM OUT | 14 ( M1~M12 Support DSHOT protocol) |
| RC IN | 1 (Support PPM SBUS DSM) |
| RSSI | PWM or 3.3V analog voltage |
| CAN | 2 |
| Power IN | 2 (Power A for ADC protocol, Power C for CAN protocol) |
| Safety Switch | Integrated into the GPS & SAFETY port |
| GPS Port | 2 |
| ADC | 1 |
| DEBUG | 1 |
| JATG | 1 |
| USB | 1 |
| Rated Voltage | 14.5 ~ 5.5 V |
| USB Voltage | 4.75 ~ 5.25 V |
| Servo Voltage | 0 ~ 10 V |
| Working Temp | -20 ~ 85 ℃ |
| Humidity | 5% ~ 95%（Does not condense） |
| Size | 77.0 × 45.5 × 39.0mm |
| Weight | 101g |
