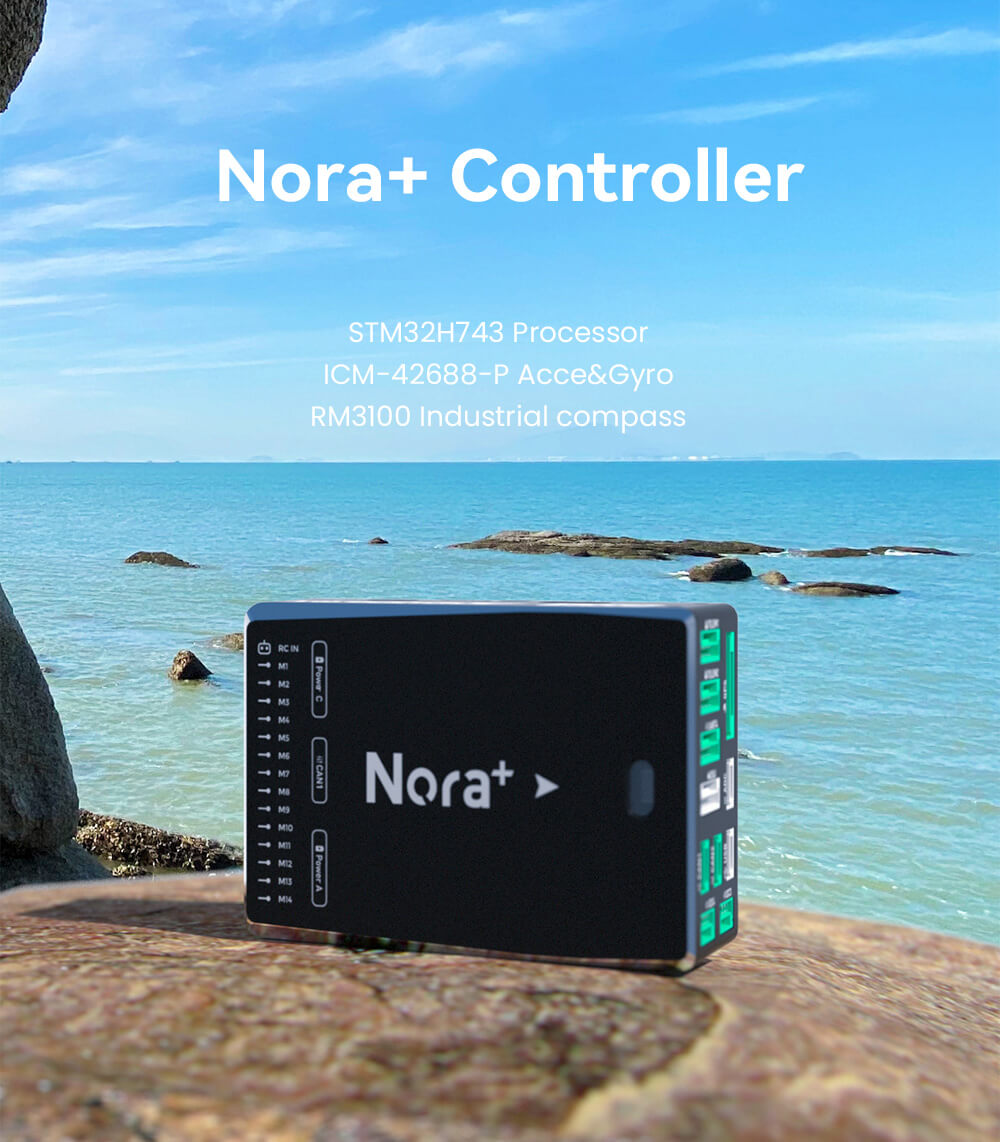

CUAV Nora+ Controller Brief:
Nora+ is a cost-effective controller with excellent performance, a compact body, and a light size. Built-in industrial-grade RM3100 compass, CUAV patented shock absorption design, and temperature compensation system for better stability and interference immunity.
CUAV Nora+ Controller Feature:
- H7 double-precision floating-point processor
- Classic side interface design
- Built-in shock absorption
- 3 sets of IMUs support intelligent failover
- Support temperature compensation
- Support CAN ammeter
- RM3100 industrial-grade compass
CUAV Nora+ Controller Specification:
Main Parameter | |
| Processor | STM32H743/STM32H753(Arm Cortex-M7,480MHz, 2MB FLASH, 1MB RAM) |
Sensors | |
| Accelerometer | ICM-42688-P / ICM-20689 / BMI088 |
| Gyroscope | ICM-42688-P / ICM-20689 / BMI088 |
| Compass | RM3100 |
| Barometer | MS5611 *2 |
Interfaces | |
| UART | 5 |
| I2C | 6 (2 interfaces are integrated in GPS&SAFETY&UART4) |
| PWM OUT | 14 ( M1~M12 Support DSHOT protocol) |
| RC IN | 1 (Support PPM SBUS DSM) |
| RSSI | PWM or 3.3V analog voltage |
| CAN | 2 |
| Power IN | 2 (Power A for ADC protocol, Power C for CAN protocol) |
| Safety Switch | 1 |
| GPS Port | 2（UART4 can be used as GPS2 interface) |
| DEBUG | 1 |
| JATG | 1 |
| USB | 2 (Type-C × 1 GH1.25 × 1) |
| Rated Voltage | 4.5 ~ 5.5 V |
| USB Voltage | 4.75 ~ 5.25 V |
| Servo Voltage | 0 ~ 10 V |
| Working Temp | -20 ~ 85 ℃ |
| Humidity | 5% ~ 95%（Does not condense） |
| Size | 85.5 × 42.0 × 33.0mm |
| Weight | 91g |
CUAV Nora+ Controller Description:

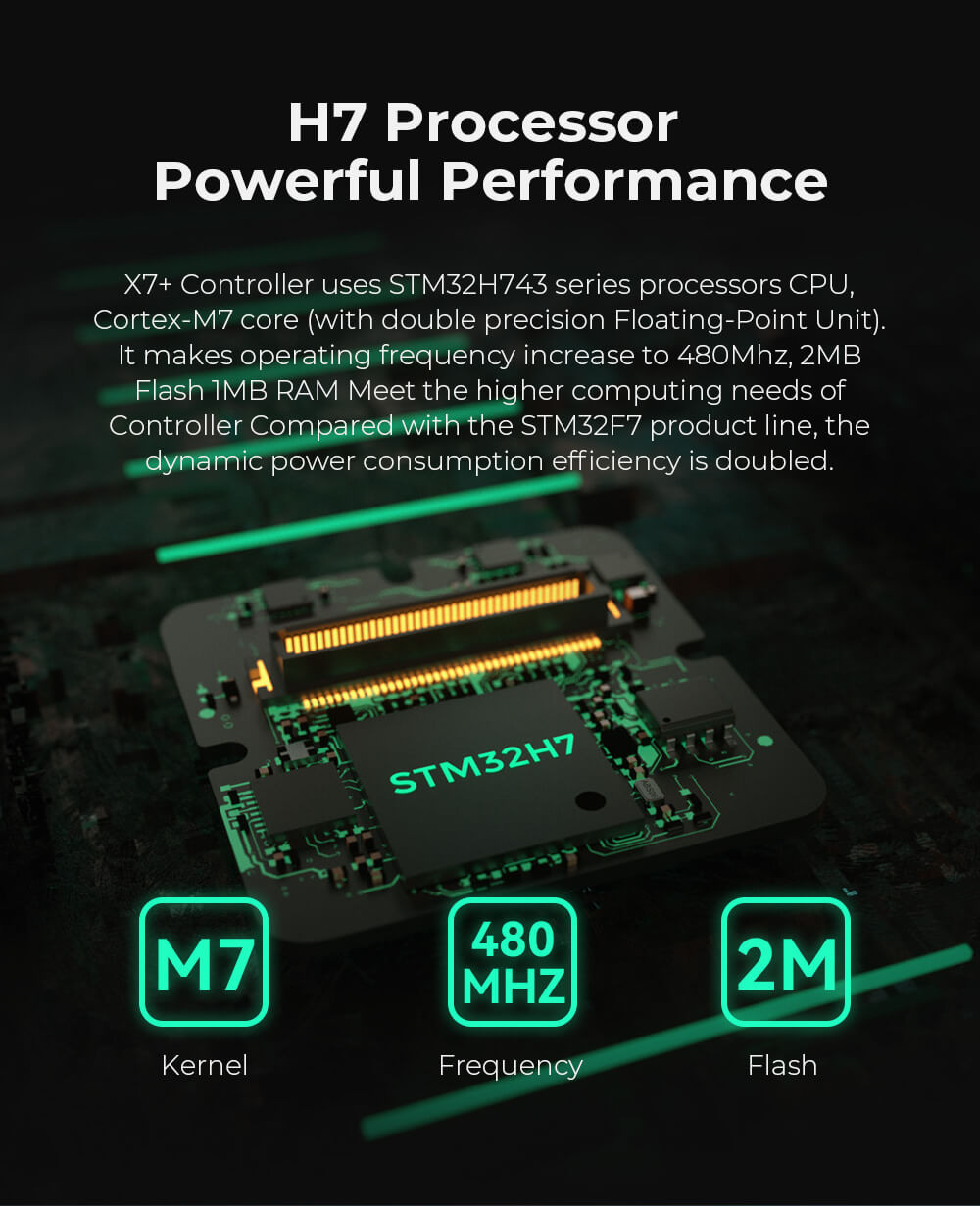

H7 Processor Powerful Performance
X7+ Controller uses STM32H743 series processors, CPU, Cortex-M7 core (with double precision Floating-Point Unit). It makes the operating frequency increase to 480 MHz, 2 MB Flash, 1 MB RAM, meeting the higher computing needs of the Controller. Compared with the STM32F7 product line, the dynamic power consumption efficiency is doubled.

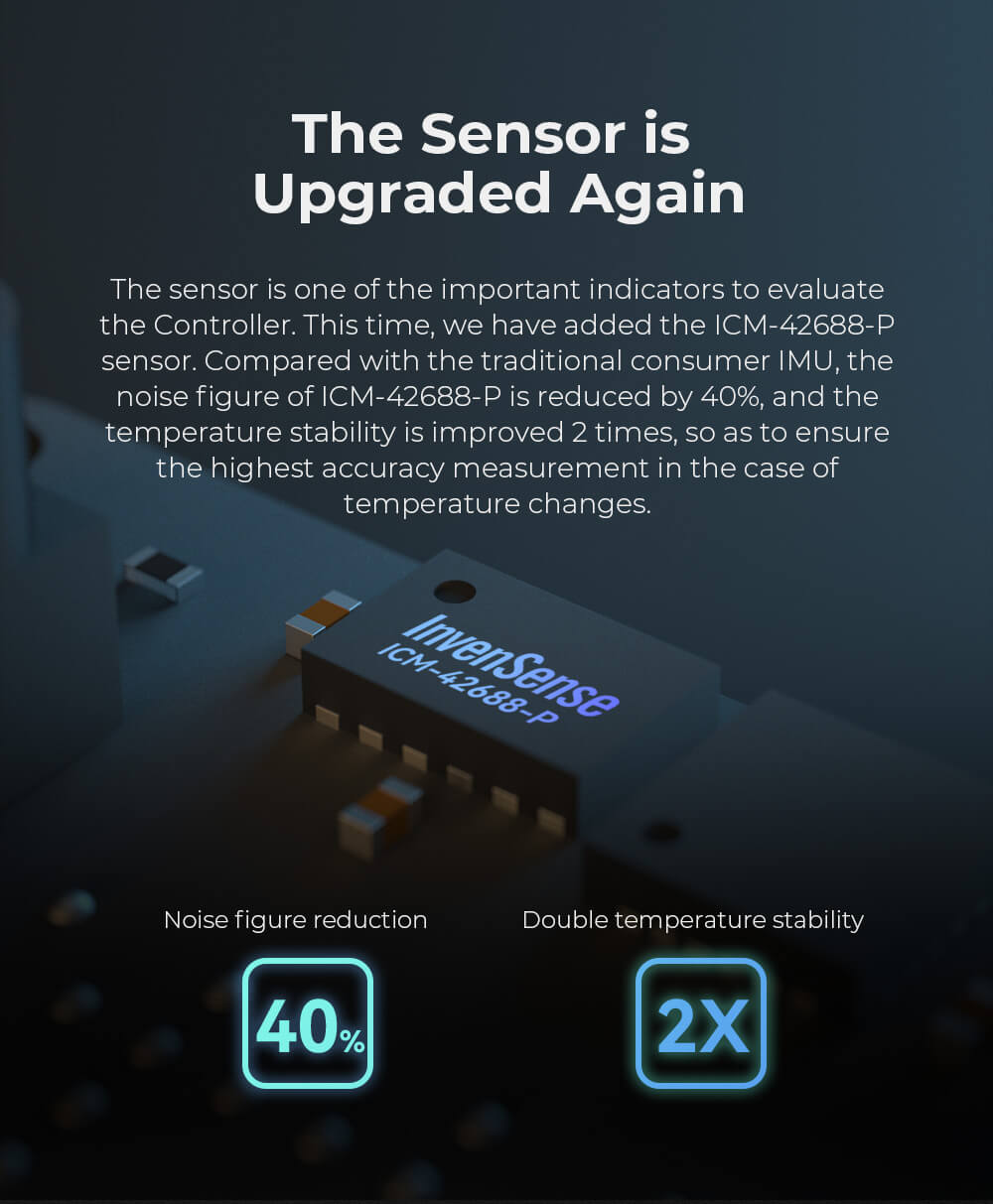

The Sensor is Upgraded Again
The sensor is one of the important indicators to evaluate the Controller. This time, we have added the lCM-42688-P sensor. Compared with the traditional consumer lMU, the noise figure of lCM-42688-P is reduced by 40%, and the temperature stability is improved 2 times, to ensure the highest accuracy measurement in the case of temperature changes.

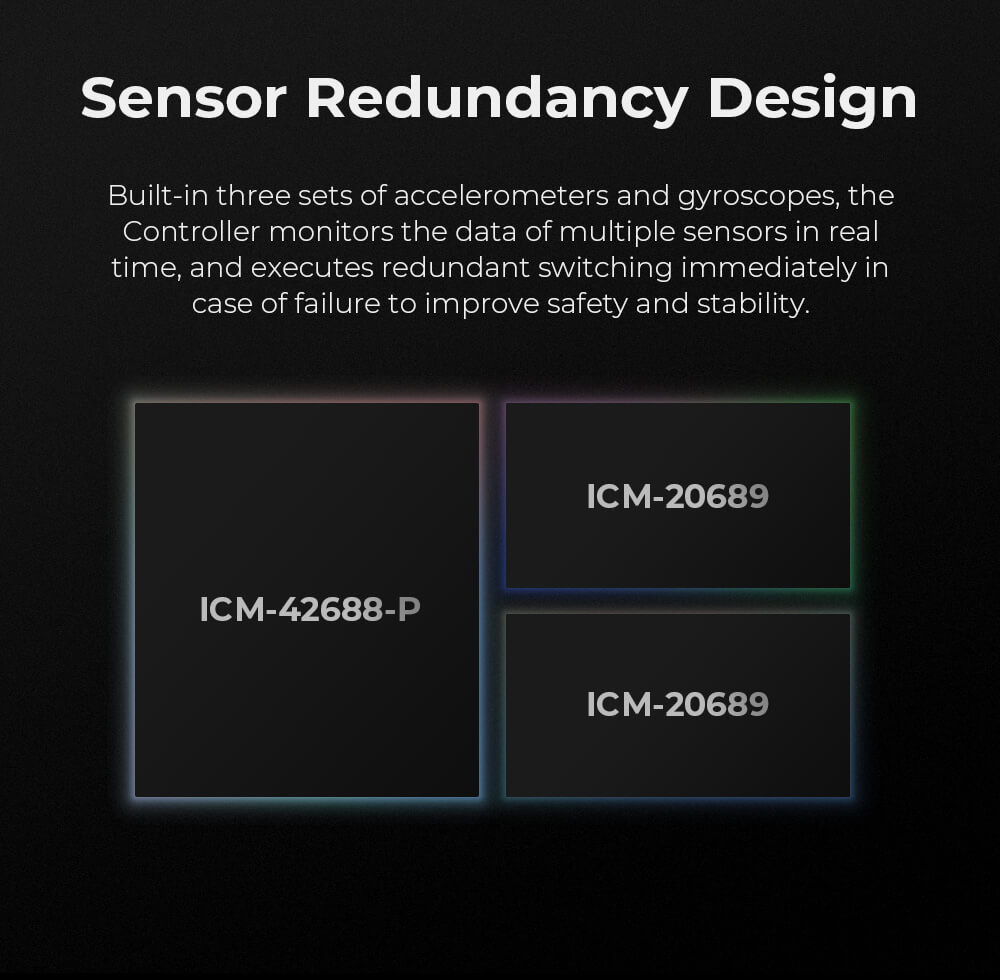

Sensor Redundancy Design
Built with three sets of accelerometers and gyroscopes, the Controller monitors the data of multiple sensors in real-time, and executes redundant switching immediately in case of failure to improve safety and stability.

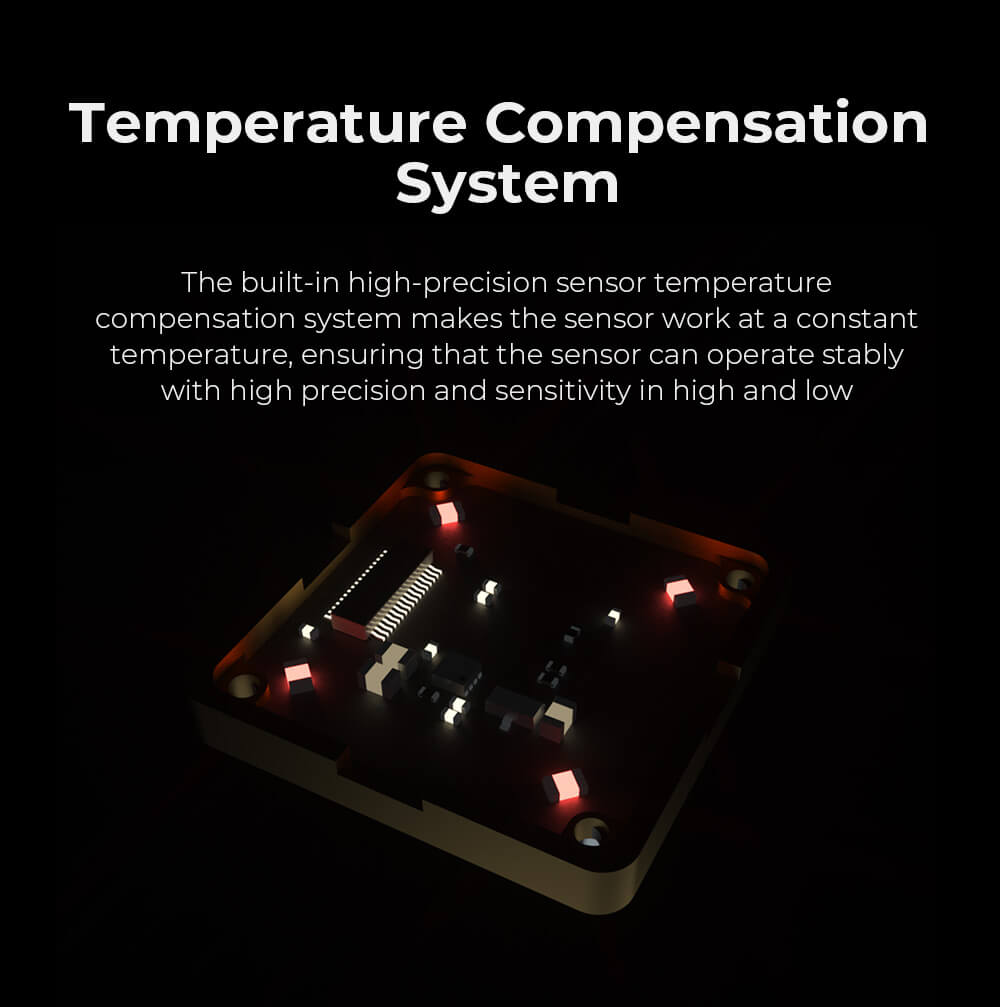

Temperature compensation System
The built-in high-precision sensor temperature compensation system makes the sensor work at a constant temperature, ensuring that the sensor can operate stably with high precision and sensitivity in high and low

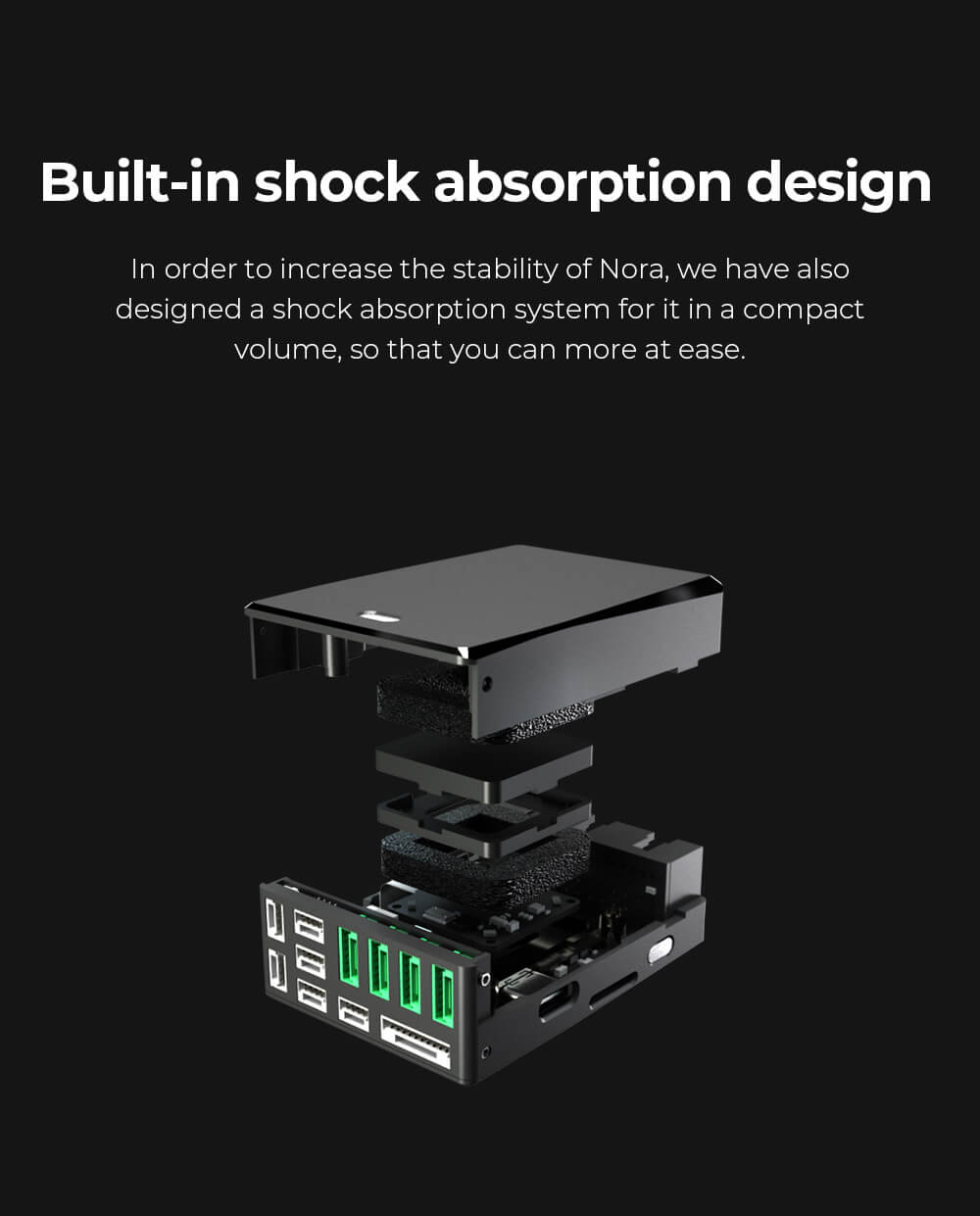

Built-in shock absorption design
In order to increase the stability of Nora, we have also designed a shock absorption system for it in a compact volume, so that you can feel more at ease.

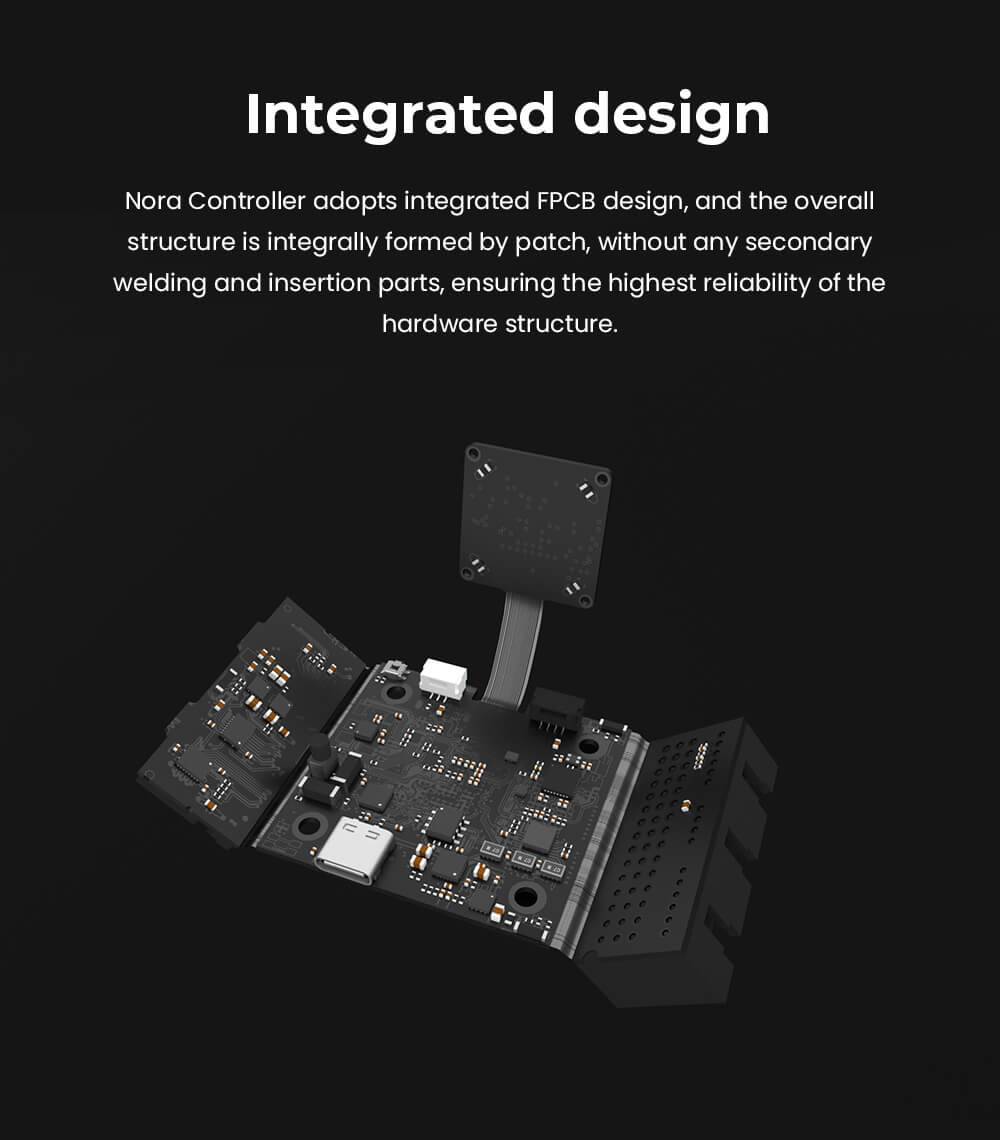

Integrated design
Nora+ Controller adopts an integrated FpcB design, and the overall structure is integrally formed by patch, without any secondary welding and insertion parts, ensuring the highest reliability of the hardware structure.

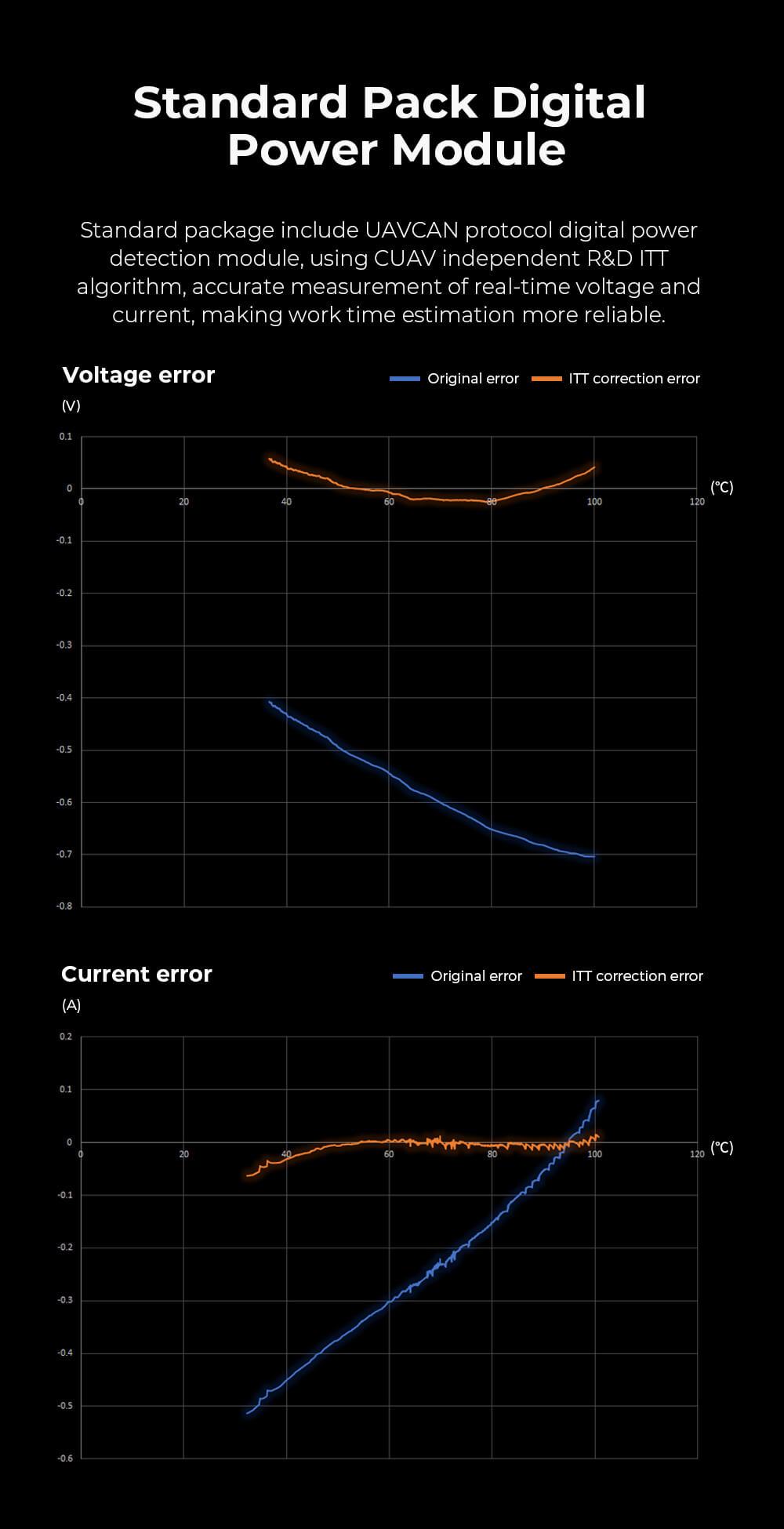

Standard Pack Digital Power Module
The standard package includes a UAVCAN protocol digital powered detection module, using CUAVindependent R&D algorithm, accurate measurement of real-time voltage and current, making worktime estimation more reliable.

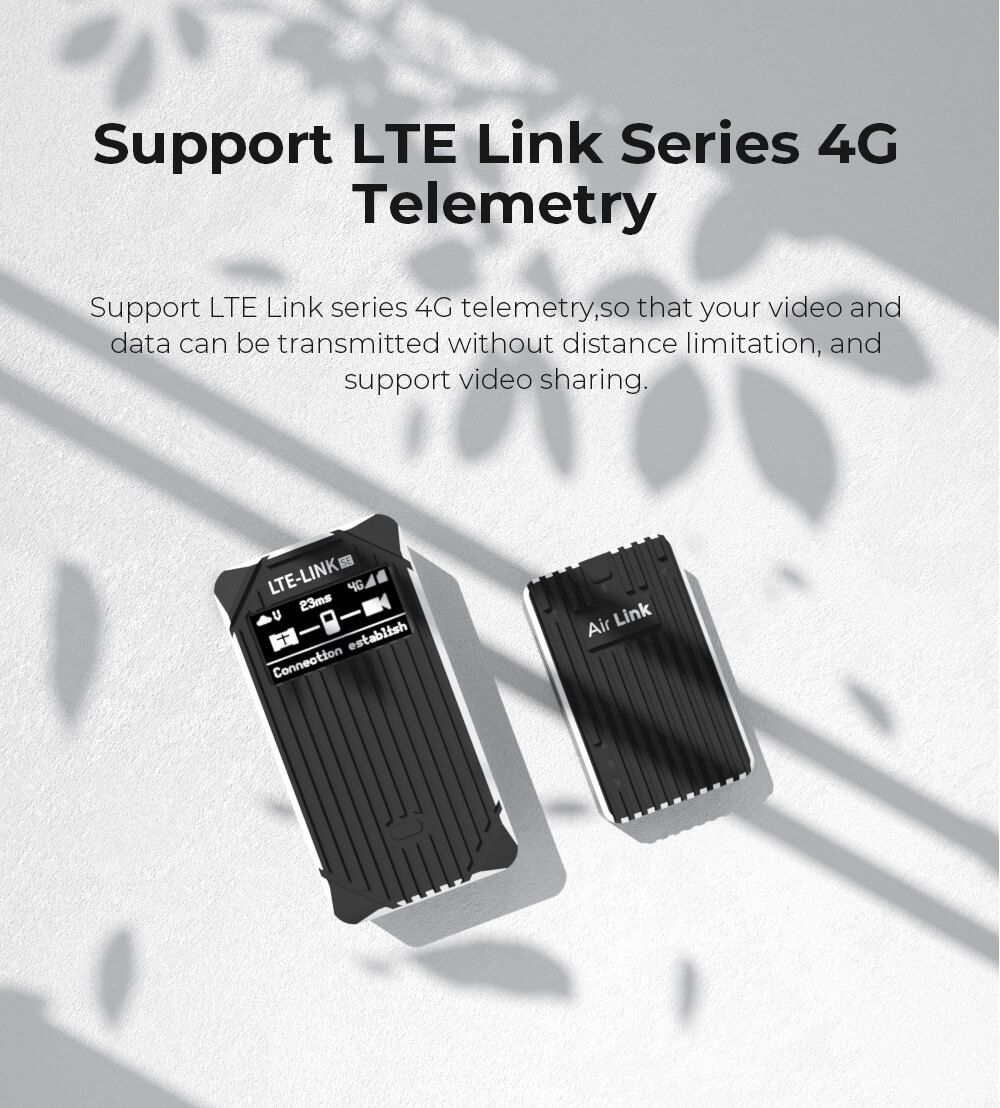

Support LTE Link Series 4G Telemetry
Support LTE Link series 4G telemetry, so that your video and data can be transmitted without distance limitation, and support video sharing.
Optional RTK & PPK Module Realize More Applications
CUAV’s RTK&PPK series products can be purchased to achieve centimeter-level positioning, which can be used in scenes that require high-precision positioning. Such as plant agriculture, surveying, and mapping etc.
Long-term partner of ArduPilot & PX4, Supports APM and PX4 firmware
CUAV Tech Inc., Ltd. is a national high-tech enterprise and a Guangdong Province specialized new enterprise guided by the innovative technology of unmanned open-source systems and integrating research and development, production, and sales. We have a long-term friendly relationship with PX4, ArduPilot, and Dronecode.
