CUAV P9 Radio Drone Telemetry | High power High speed Ultra-vision UAV Data Link Communication Module

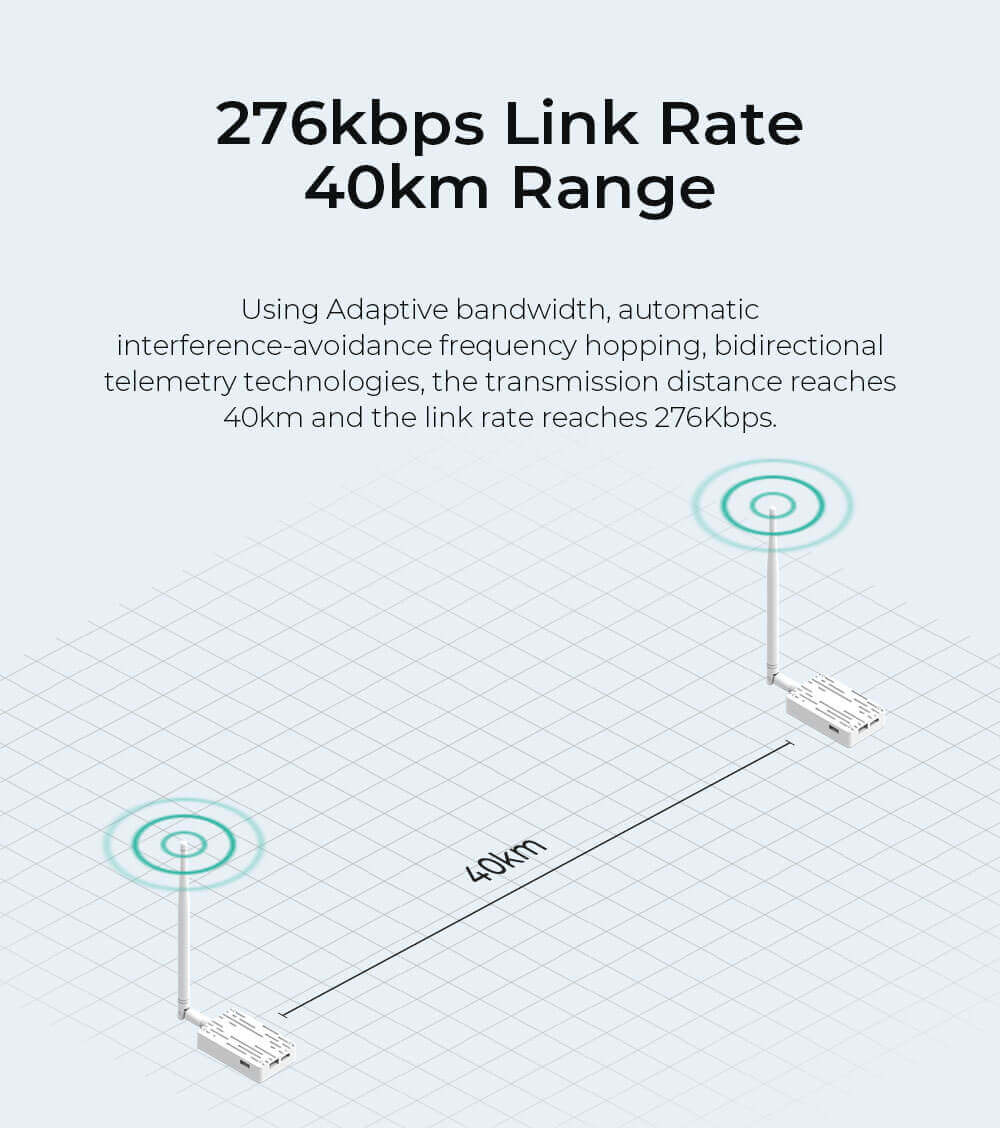

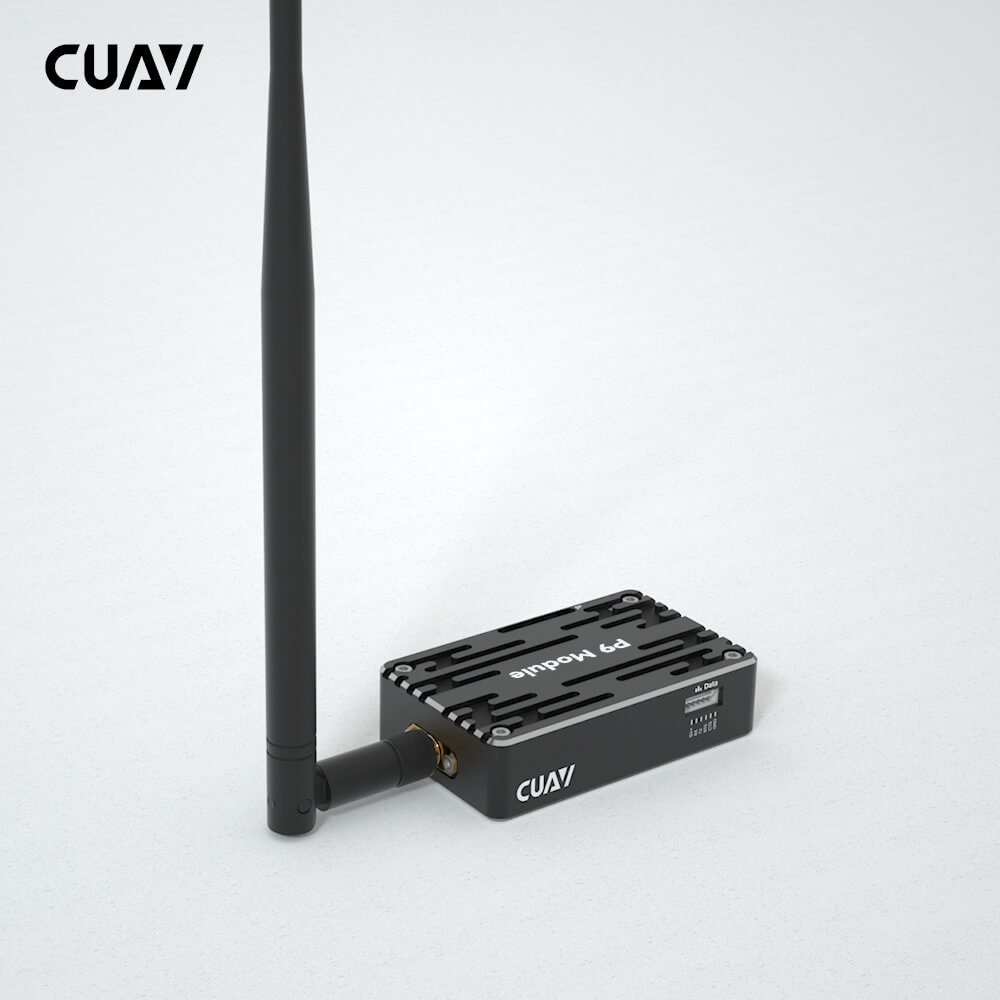

CUAV P9 telemetry features:

1–902-928MHz frequency band

2–276kbps Link Rate

3–40km Range.

4–Support 3S-12S Battary Input.

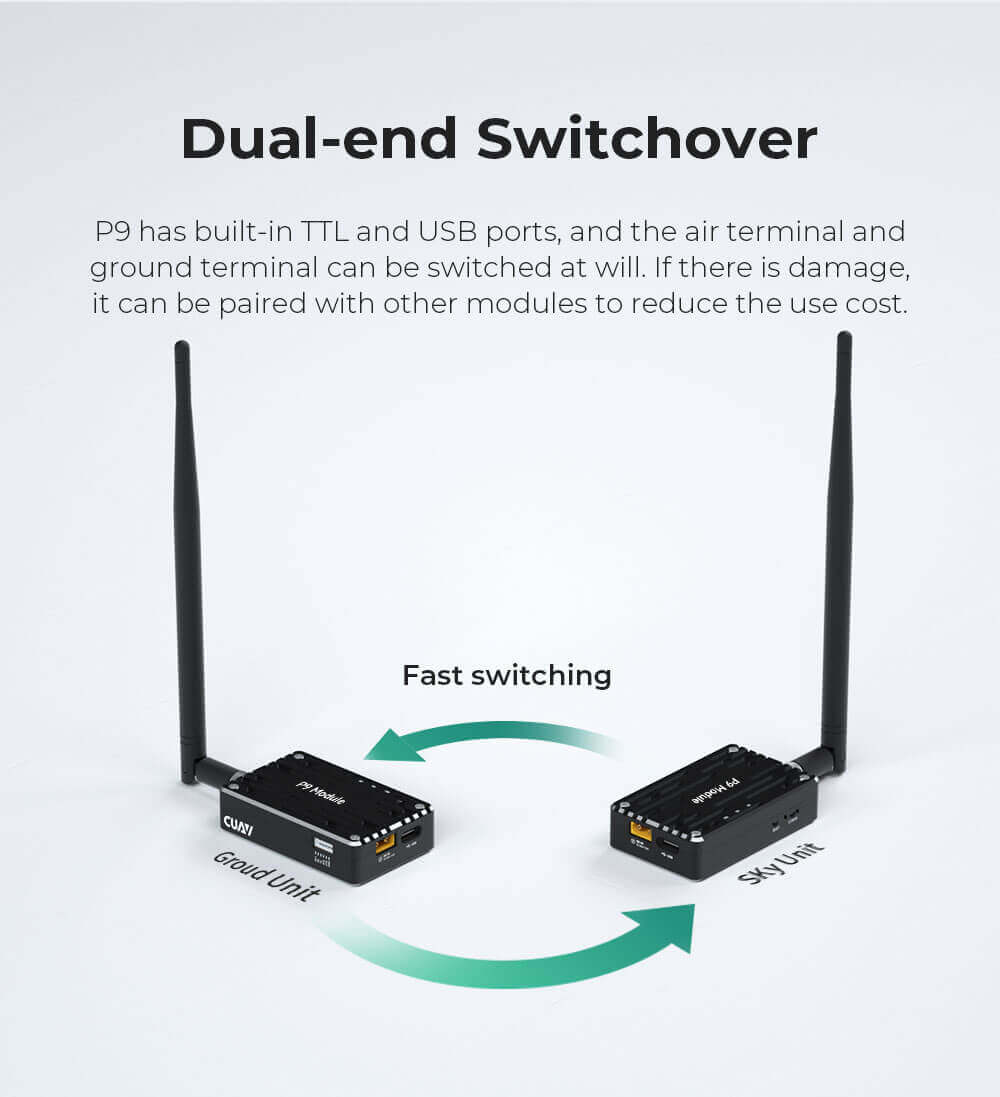

5–Dual-end Switchover design reduced costs

$239.00$459.00

Clear
Payment Methods:
Introduction:

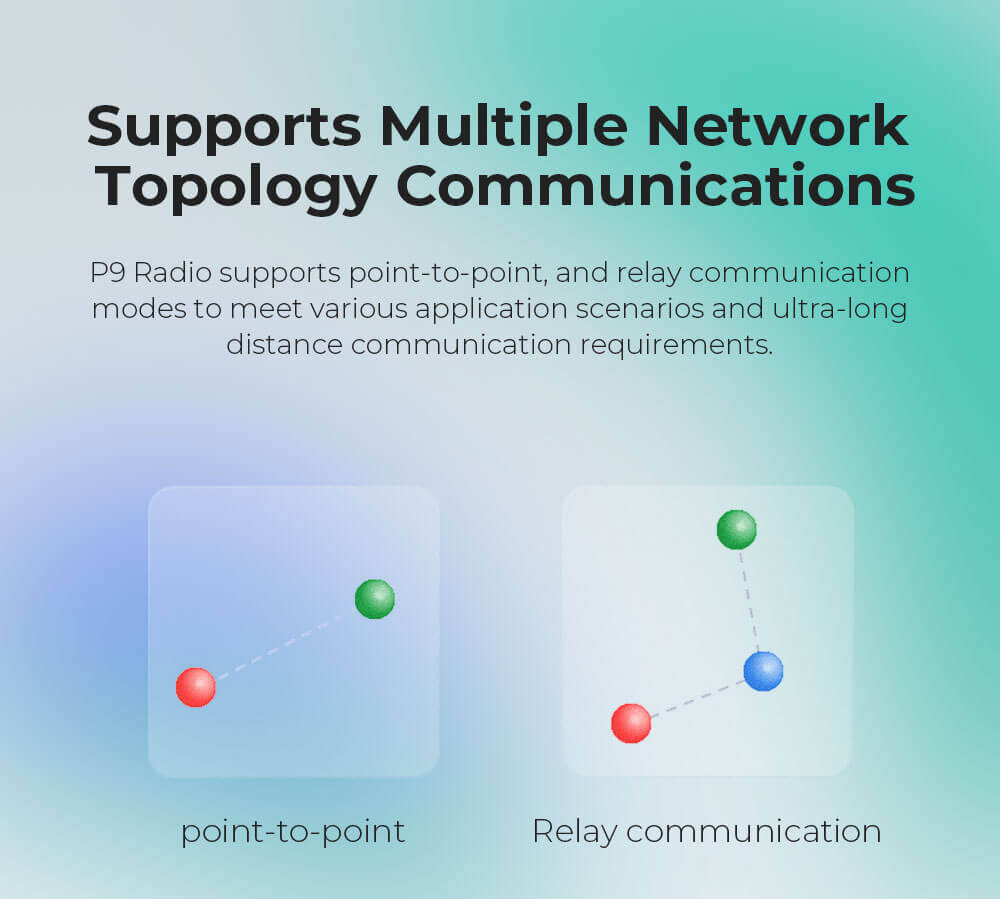

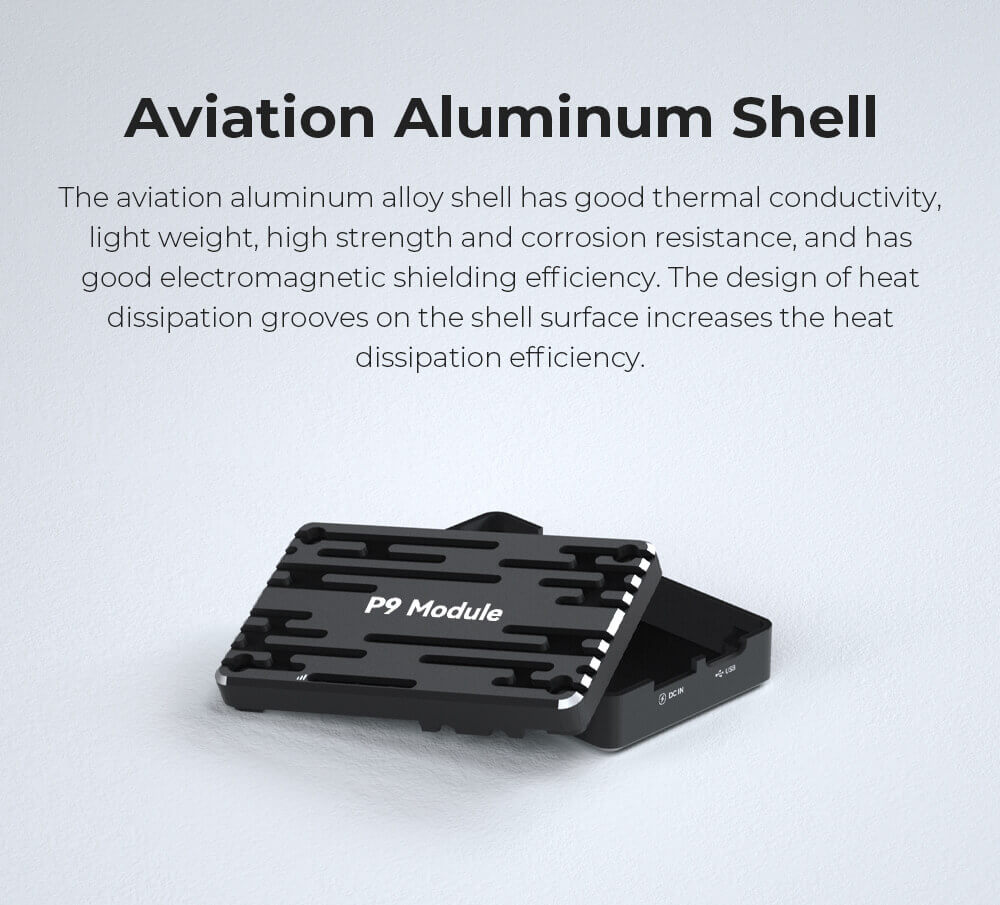

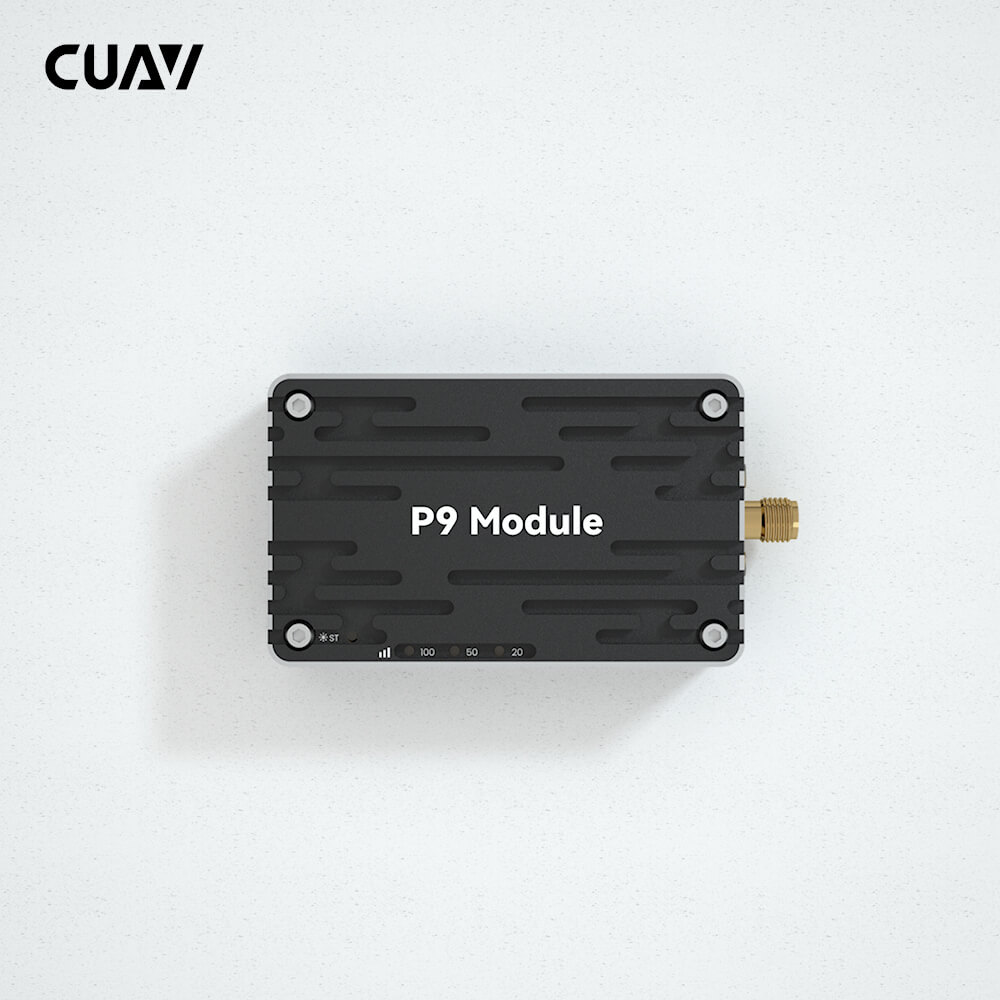

P9 Module is an ultra-long data telemetry module of Unmanned Systems. It adopts the communication frequency band of 902~928MHz. It has a transmission distance of 40km and a link rate of 276kbps. P9 Module supports 3~12S wide voltage input. It supports relay communication, meeting communication requirements in multiple application scenarios.

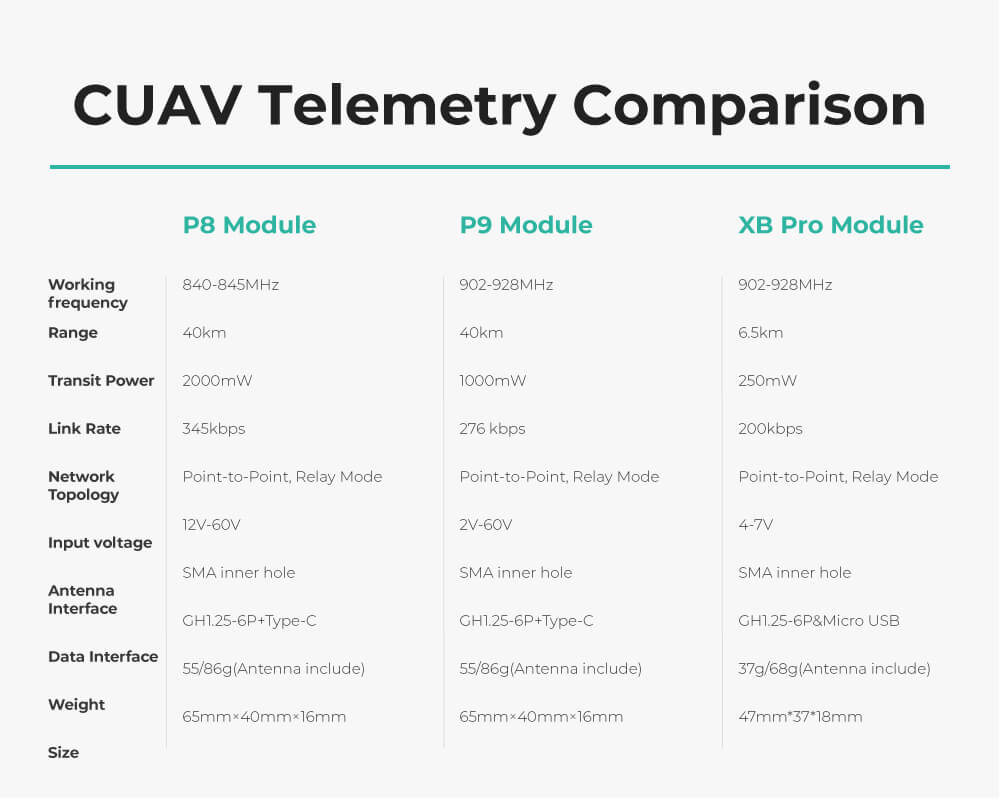

Main Parameter
Working Frequency902 ~ 928 MHz
Transmission TechnologyFrequency Hopping
Transfer ProtocolTransparent Transmission
Forwarding Error DetectionHamming /BCH/Golay/Reed-Solomo
Error DetectingError Detection 32 bits of CRC, ARQ
EncryptOptional (see –AES option)
RangeReference distance: 40km(The transmission distance is different under different environments/ configurations, please refer to actual use)
Sensitivity-110 dBm @ 115.2 kbps
-108 dBm @ 172.8 kbps
-107 dBm @ 230.4 kbps
Output Power100mW ~ 1W (20 ~ 30dBm)Default1W)
Antenna Gain5dBi
Serial Interface3.3V CMOS TTL
Baud RateUp to 230.4kbps;57600(Default)
Link Rate115 ~ 276 kbps
Operating ModesAuto Routing, Store and Forward,Self Healing, Packet Routing Modes
Operating Voltage12 ~ 60V
Power ConsumptionSleep < 1mA
Idle < 3.5mA
RX:35mA ~ 80mA
TX:800mA ~ 1200mA

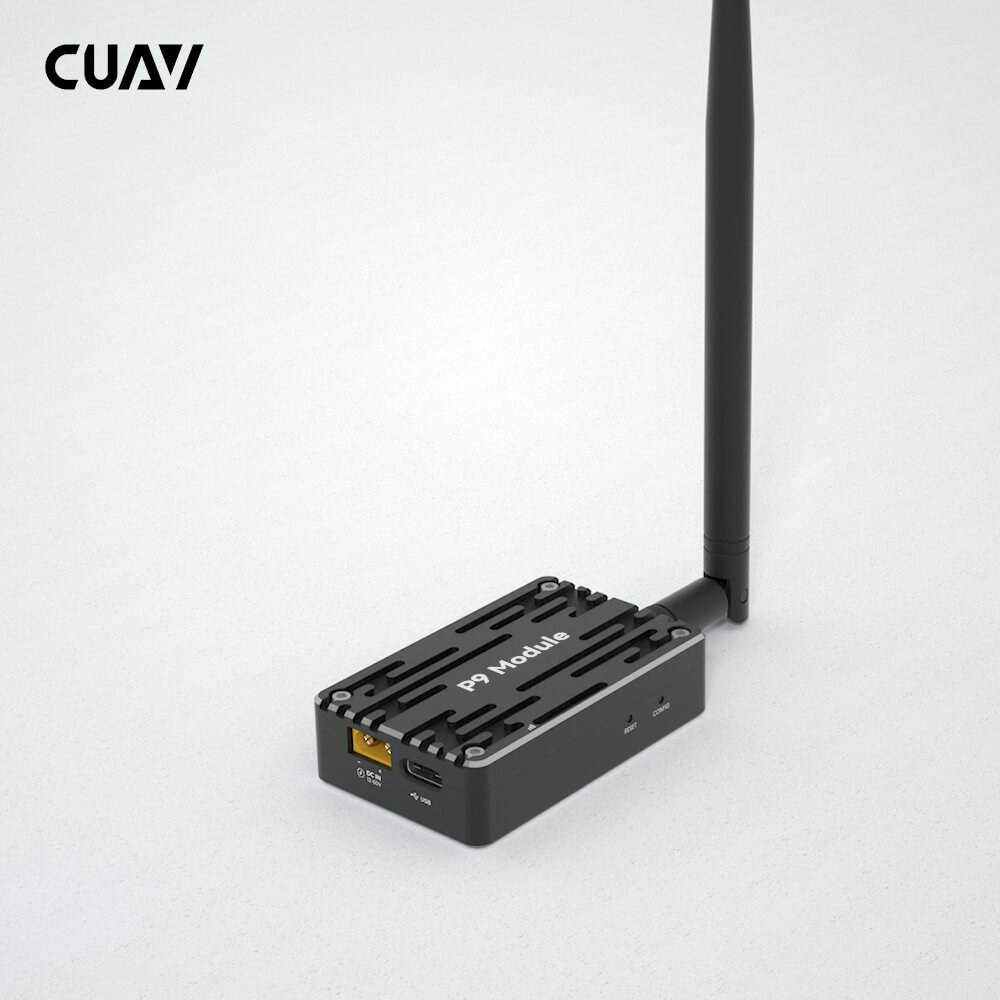

InterfaceSerial:GHR-06V-S
Antenna:SMA inner needle
USB:Type-C
Power:TX30PW-M
Operating Temperature-40 ~ 85℃
Humidity5% ~ 95%(Non-condensing)
Size65.0 × 40.0 × 16.5 mm
Weight55g(Module);Antenna:31g
Weight1 kg
Dimensions30 × 20 × 10 cm
Version

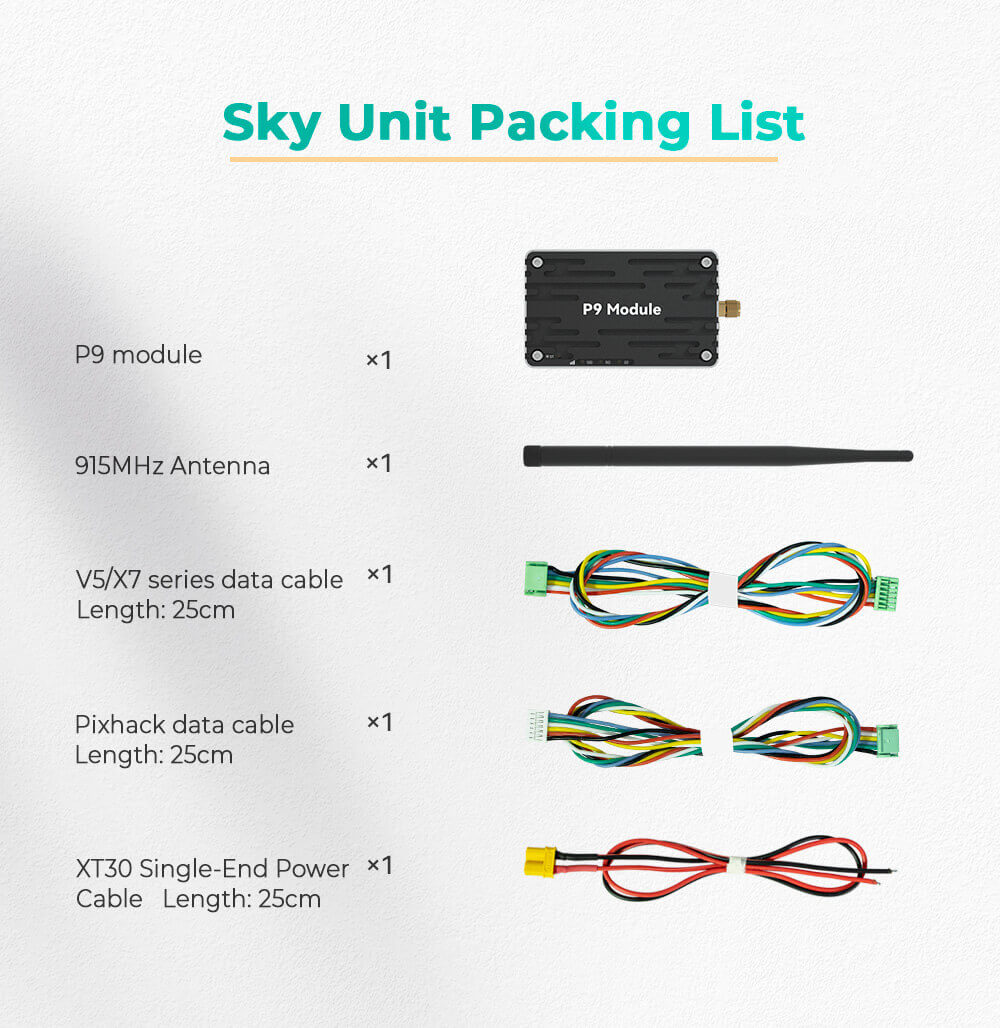

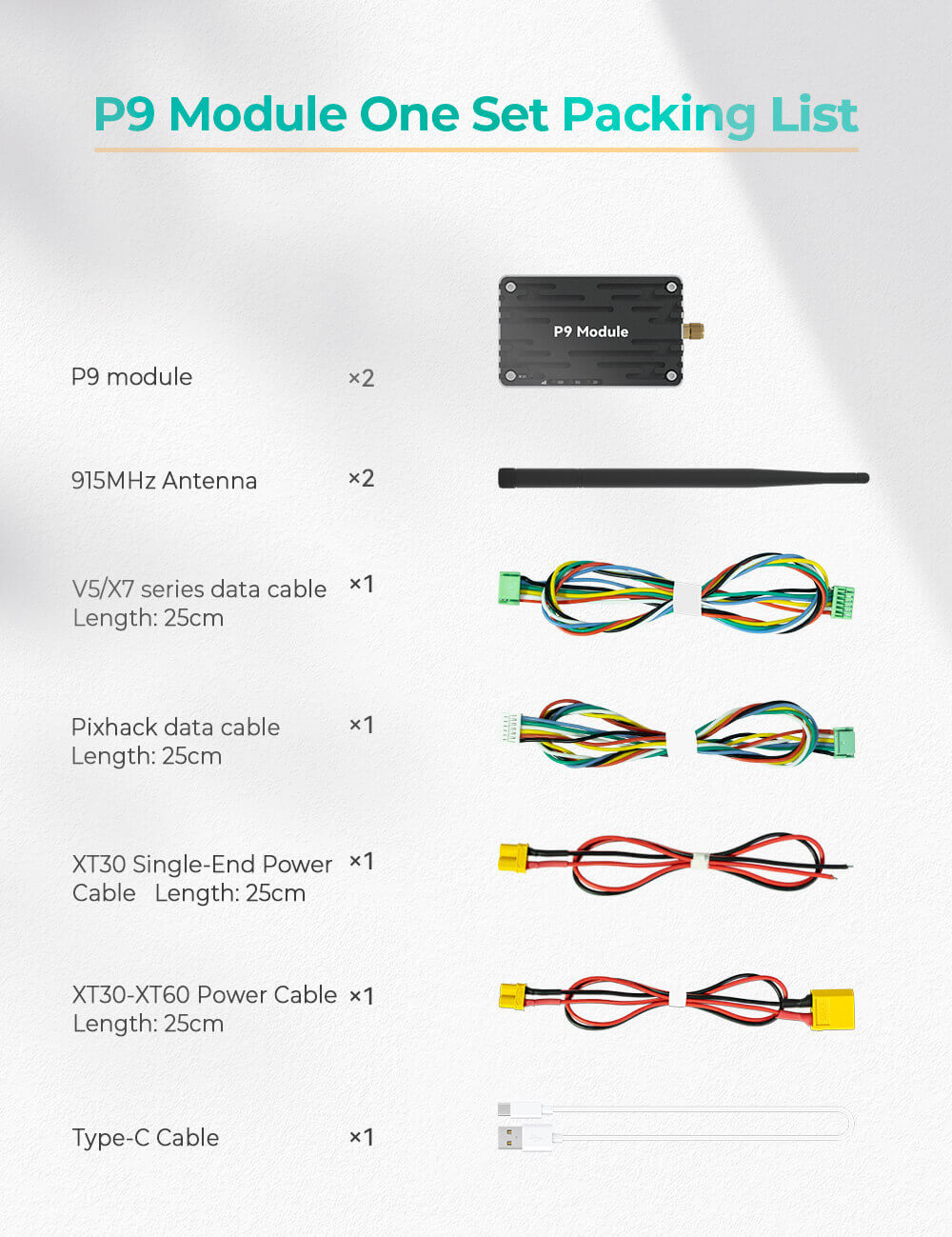

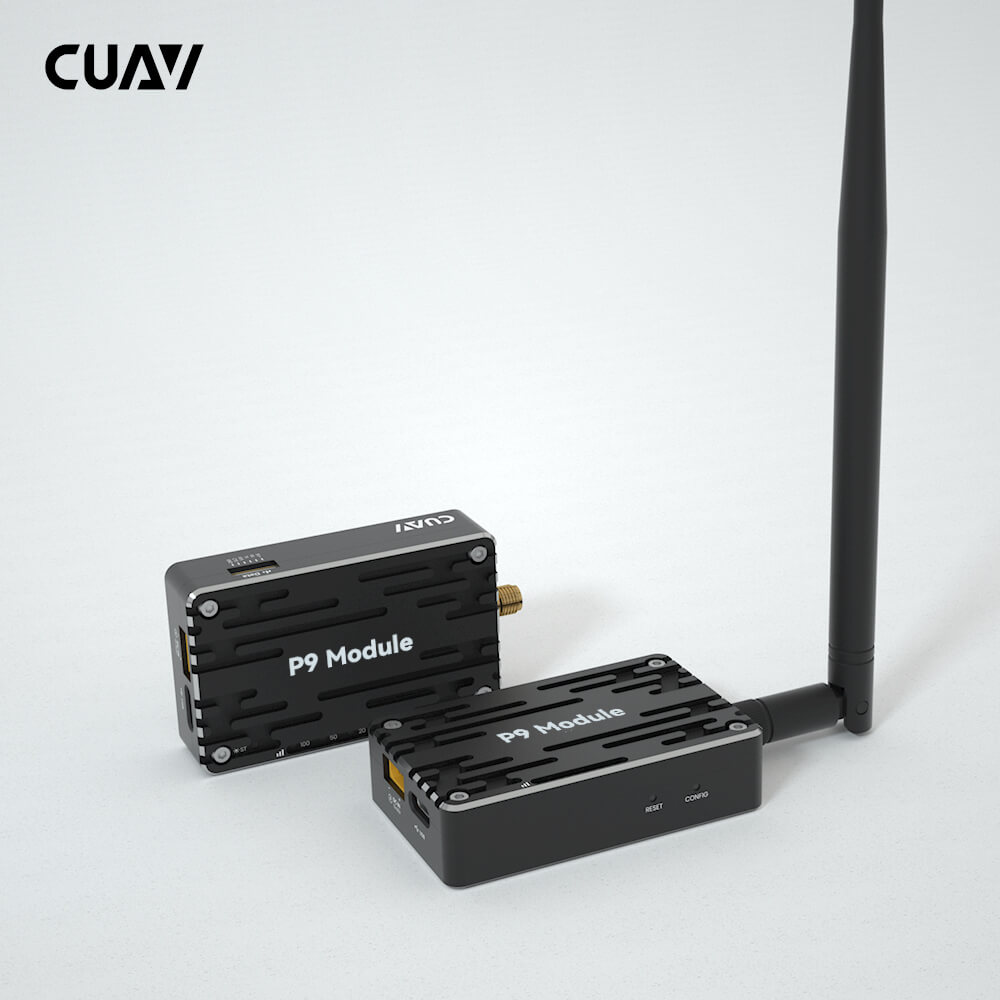

base and sky unit set, Base end, Sky end

Working frequency

902-928MHz

Spreading Method

Frequency Hopping

Transport protocols

transparent transmission

Forward Error Correction

Hamming, BCH, Golay, Reed-Solomon, Viterbi

Encryption

32 bits of CRC、ARQ

Range

Reference distance: 40km (The transmission distance is different under different environments/configurations,please refer to actual use)

Sensitivity

-110dBM@115.2kbps
-108dBm@172.8kbps
-107dBm@230.4kbps

Transit power

Hopping:100mw~1000mw(20~30dBm)Default:1000mW

Antenna gain

5DBi

Serial type

3.3VCMOSTTL

Baud Rate

Max230.4kbps; 57600 (default)

Operating Modes

Auto Routing, Storeand Forward, Self Healing, Packet Routing Modes

Input voltage

12V-60V

Power consumption

Sleep<1mA,Idle<3.5mA,RX:35~80mA,TX(Peak):<2A

Interface

Antenna: SMAinner needle; Serial;
GHR-06V-S;USB:TYPE-C;PoWer:XT30PW-M

Operation Temperature

-40°℃~85°℃

Humidity

5%to 95% noncondensing

Weight

P9 module; 55g antenna 31g; total 86g

Size

65mm×40mm×16.5mm
