CUAV Raefly VT240 Pro VTOL UAV
Notes: Showing price shown does NOT include the shipping fee. For more information, please contact us. Thanks so much.
Introduction:

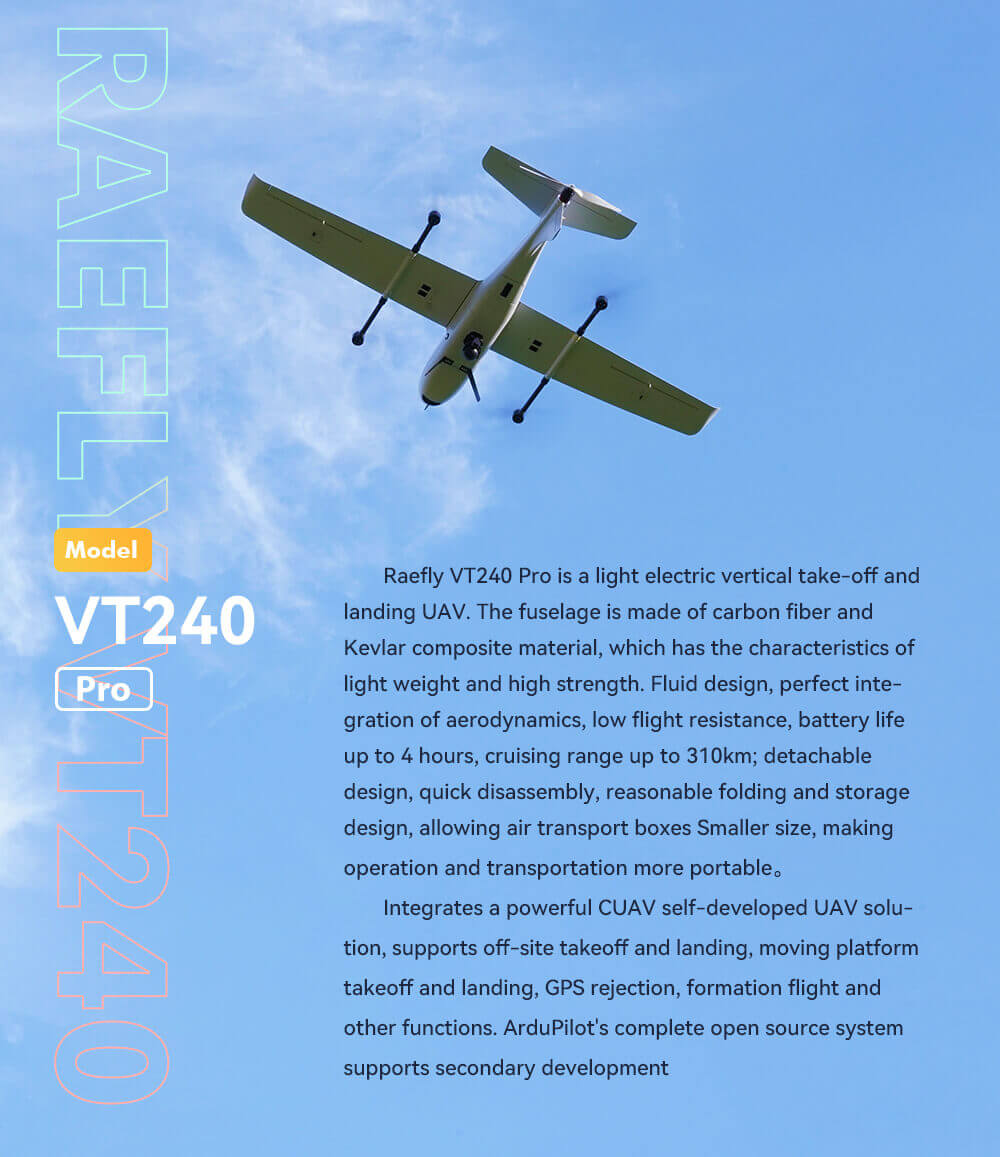

Raefly VT240 Pro is a light electric vertical take-off and landing UAV. The fuselage is made of carbon fiber and Kevlar composite material, which has the characteristics of light weight and high strength. Fluid design, perfect integration of aerodynamics, low flight resistance, battery life up to 4 hours, cruising range up to 310km; detachable design, quick disassembly, reasonable folding and storage design, allowing air transport boxes. Smaller size, making operation and transportation more portable. Integrates a powerful CUAV self-developed UAV solution, supports off-site takeoff and landing, moving platform takeoff and landing, GPS rejection, formation flight, and other functions. ArduPilot’s complete open source system supports secondary development
Raefly VT290 Specifications | |
| Body material | Carbon fiber+Kevlar composite material |

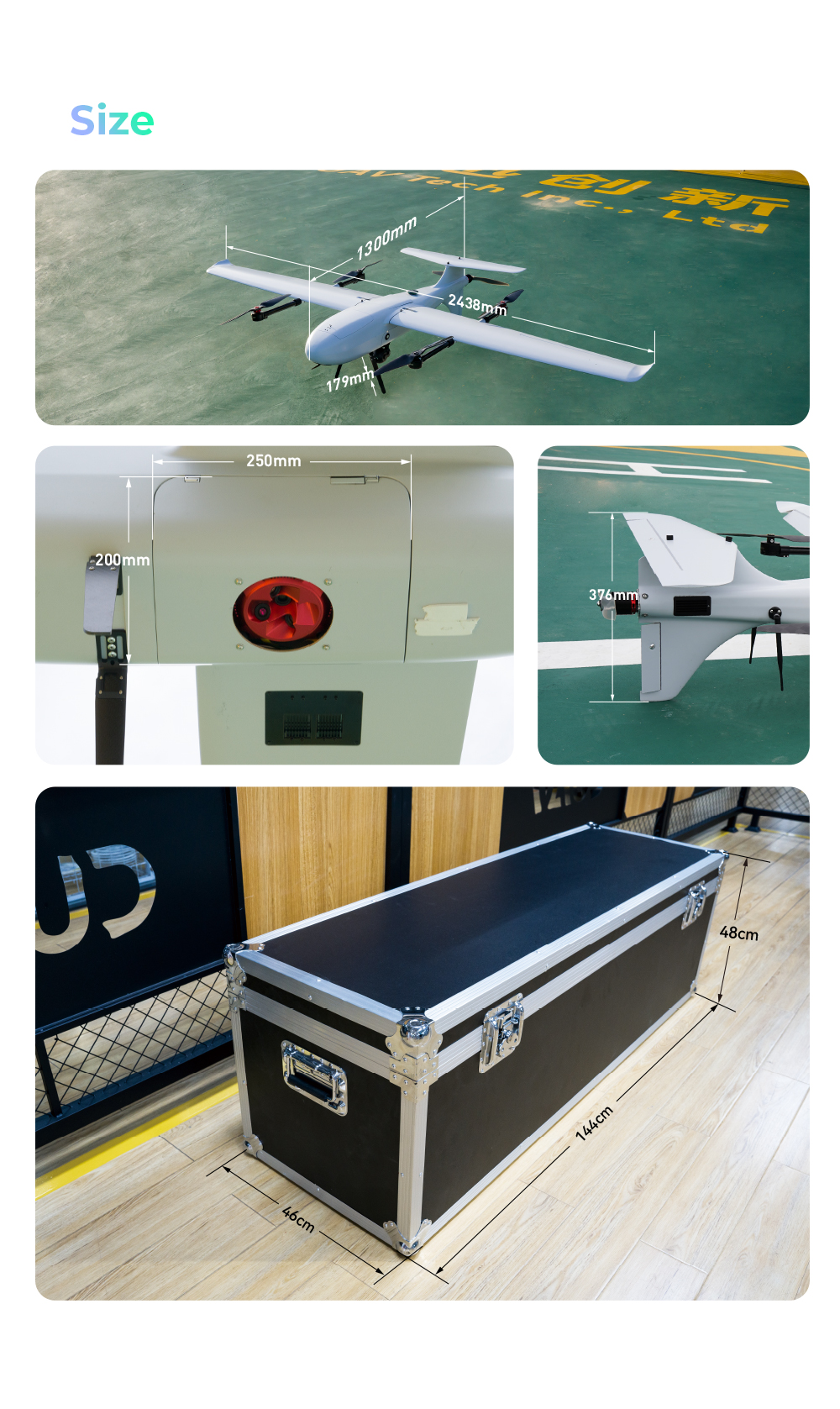

| Size | 2438×1300×376mm |
| Max flying speed | 30m/s |
| Economical cruising speed | 18m/s(65km/h) |
| Stall speed | 14.5m/s@13kg |
| Max cruising range | 310km |
| Max payload | 2kg |
| Wind resistance | Level 5 |
| Take-off and landing mode | VTOL |
| Power energy | Electric |
| Positioning accuracy | Single point positioning:1.5M RTK:1CM+1PPM |
| Flight controller | Standard CUAV Autopilot (optional) |
| Communication distance | Subject to link data |
| Customised/Optional | Autopilot, GNSS receiver, remote controller, mission payload, fuselage coating, waterproof design, remote ID, etc. |
| Ground station | QGroundcontrol/Missionplanner/LGC |
| Application | Surveying and mapping, Inspection, delivery*, monitoring, public security, traffic, etc. |
Raefly VT240 Pro VTOL UAV Description:

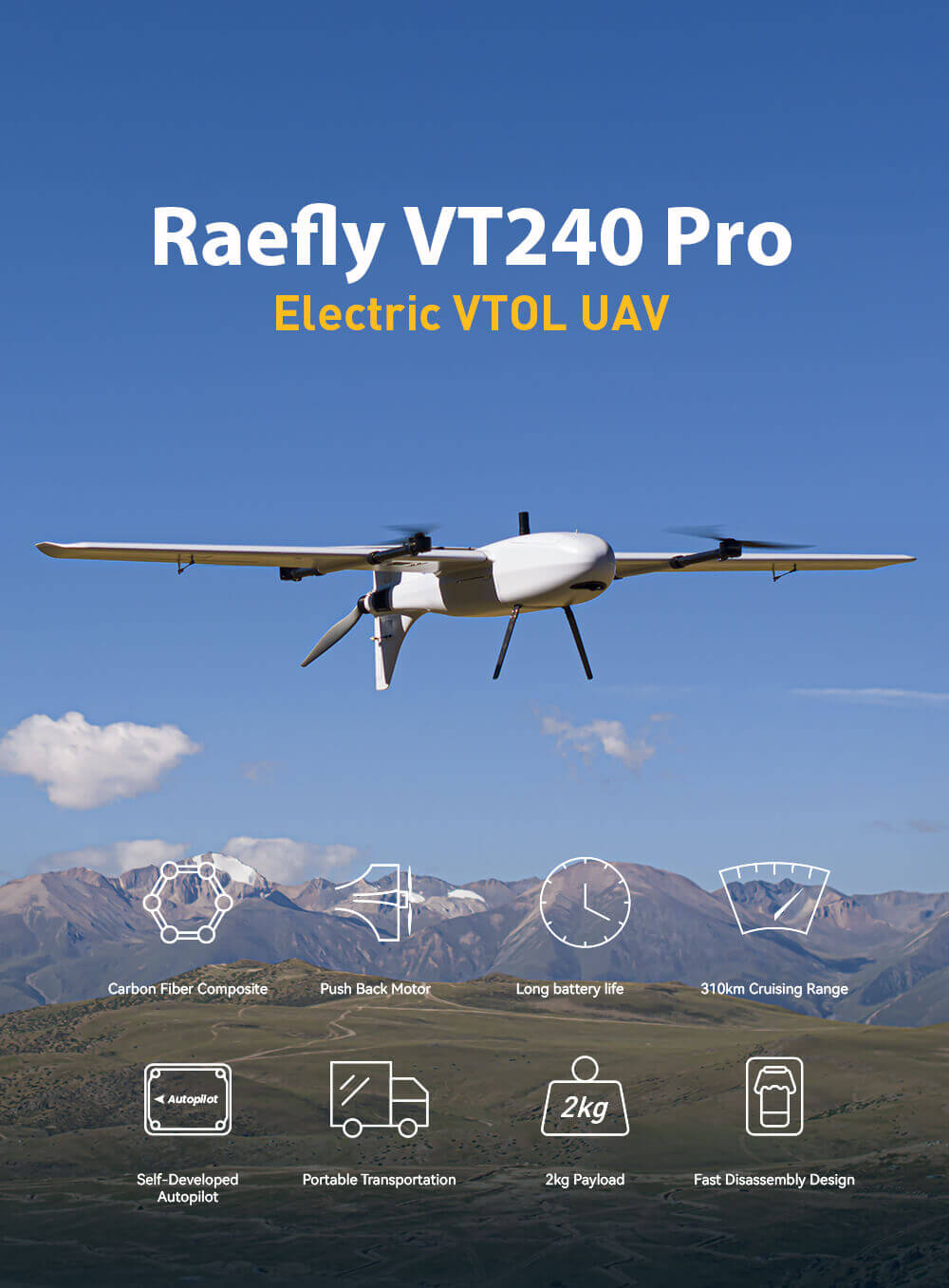

Raefly VT240 Pro Electric VTOL UAV Main Feature and Description
- Carbon Fiber Composite
- Self-Developed Autopilot
- Push Back Motor
- Portable Transportation
- Long battery life
- 2kg Payload
- 310km Cruising Range
- Fast Disassembly Design

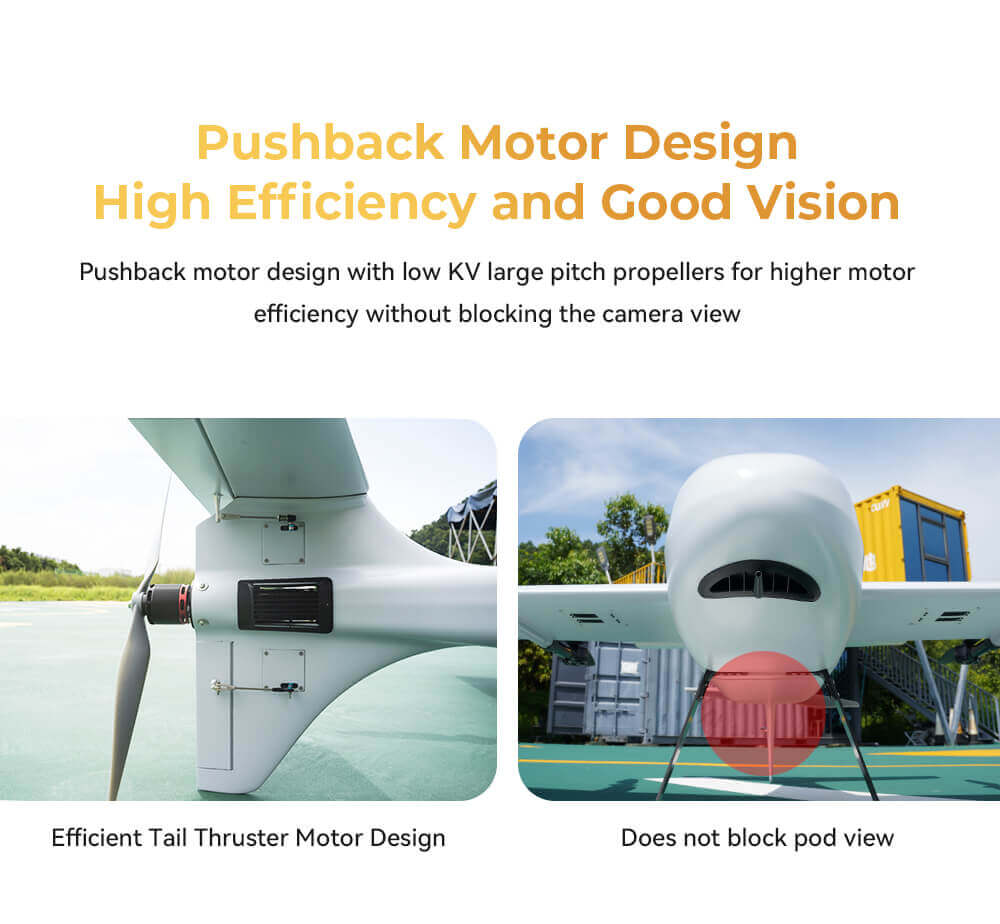

Pushback Motor Design High Efficiency and Good Vision
Pushback motor design with low KV large pitch propellers for higher motorefficiency without blocking the camera view

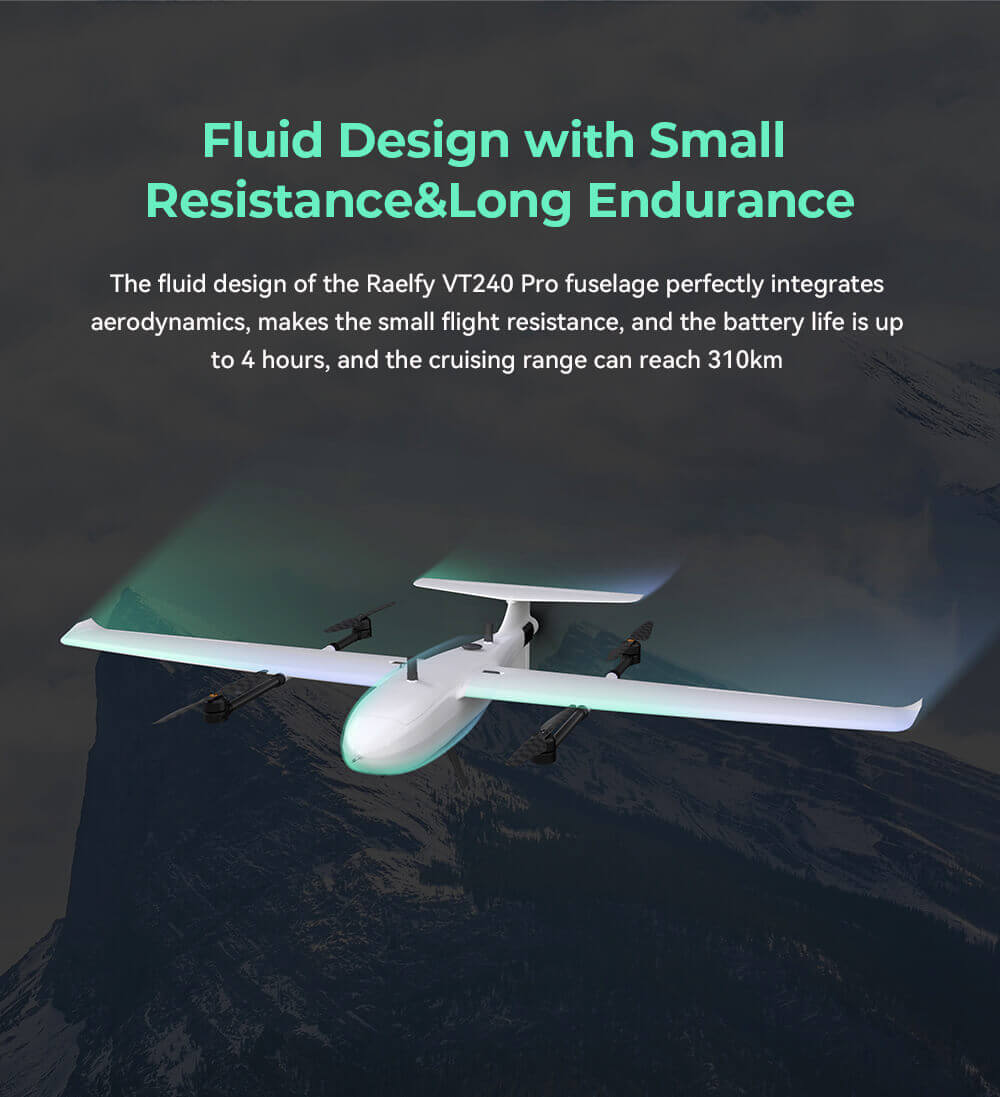

Fluid Design with small Resistance & Long Endurance
The fluid design of the Raelfy VT240 Pro fuselage perfectly integrates aerodynamics, resulting in small flight resistance, and the battery life is up to 4 hours, and the cruising range can reach 310km
Quick Loading Structure Portable for Operation & Transportation
The fuselage features a modular design, allowing for quick disassembly and reassembly. The reasonable folding and storage design makes the air transport box smaller and more portable for both operation and transportation.
Self-developed Core System Powerful Features
Integrate powerful CUAV self-developed autopilot, communication link, RTK, airspeed sensor, etc., support remote takeoff and landing, moving platform takeoff and landing, terrain following, cluster formation, and other functions
- Remote Take-off and Landing
- Moving Platform take off and Lading
- Terrain Following
- Formation
- Powerful Controller
- High precision positioning RTK
- Ultra-long Range communication Link
- Intelligent Temperature Compensation Airspeed Sensor

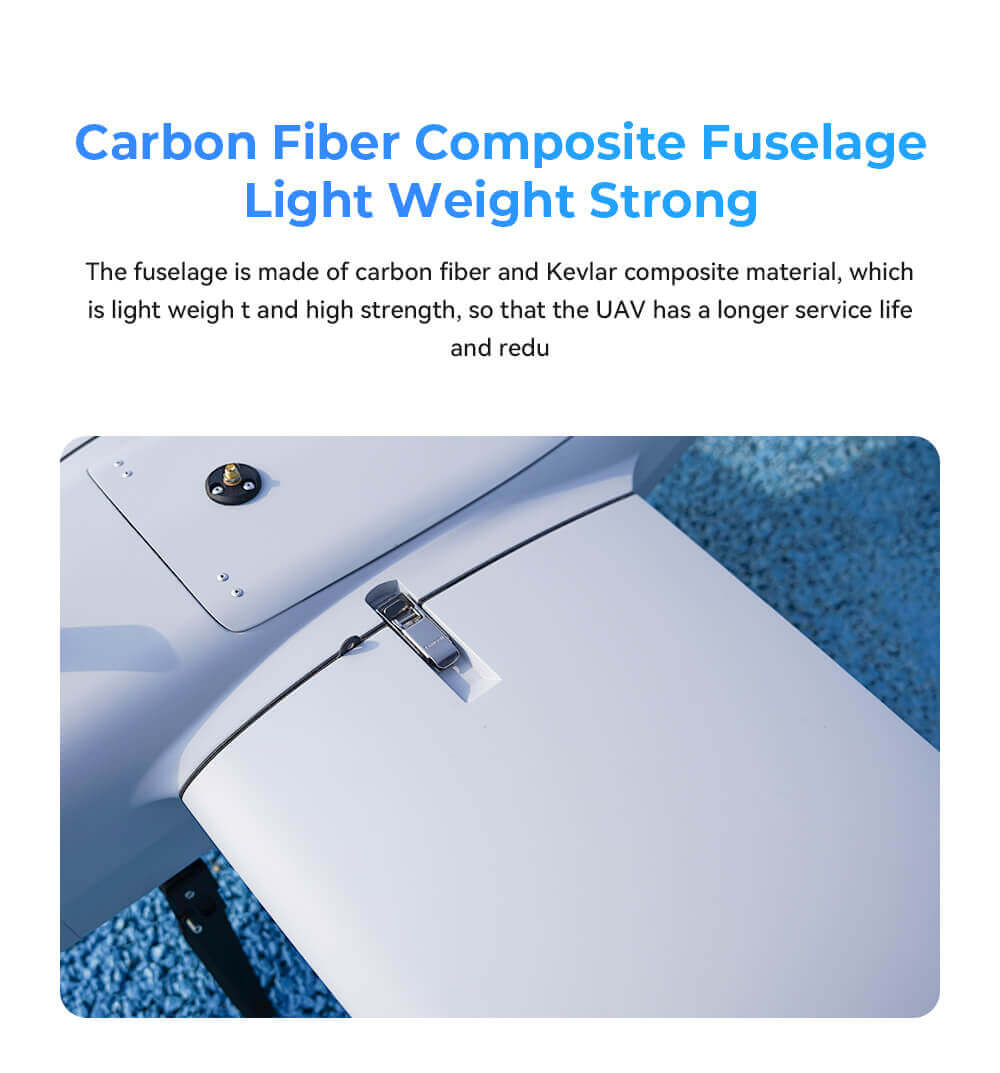

Carbon Fiber Composite Fuselage Light Weight Strong
The fuselage is made of carbon fiber and Kevlar composite material, which is lightweight and highly strength, so that the UAV has a longer service life and reduces

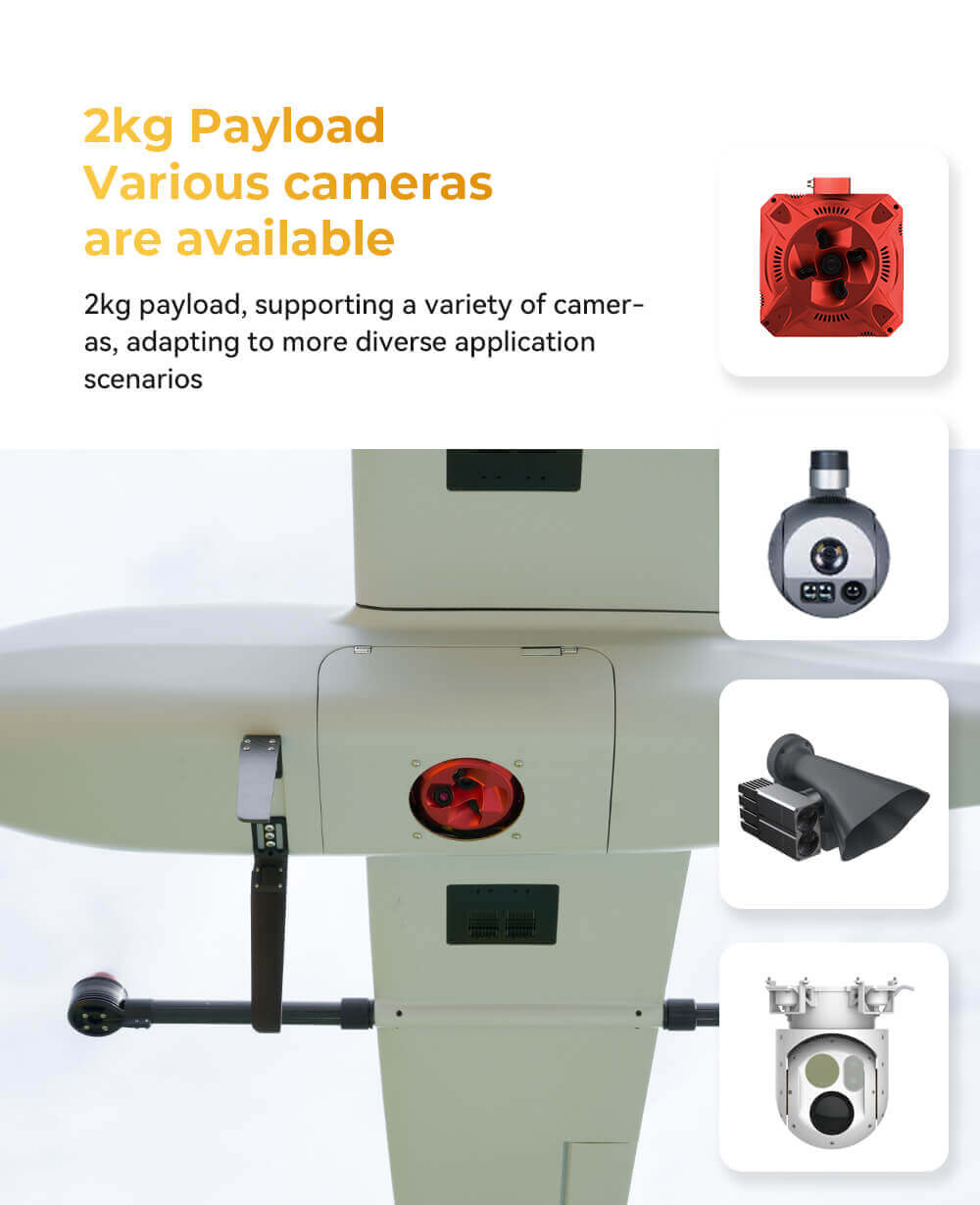

2kg Payload Various cameras are available
2kg payload, supporting a variety of camera-as, adapting to more diverse applications, scenarios
Application Scenarios
- Mapping: 3D Modeling. Urban Planning. Geological Exploration, Land title confirmation
- Inspection: Land and Transportation, Oil and Gas Pipelines, Environmental Protection Supervision, Water Supervision, Forestry Supervision
- Logistics: Logistics Transportation | Emergency Material Transportation
- Security: Security and firefighting, Anti-smuggling, Anti-drug, Anti-crime and evil, Maritime Supervision, and Emergency Rescue
- Scientific research: Scientific experiment. Training and education. Secondary development. Subject research.
- Agriculture: Precision Agriculture. Ecological Protection. Poppy patrol.

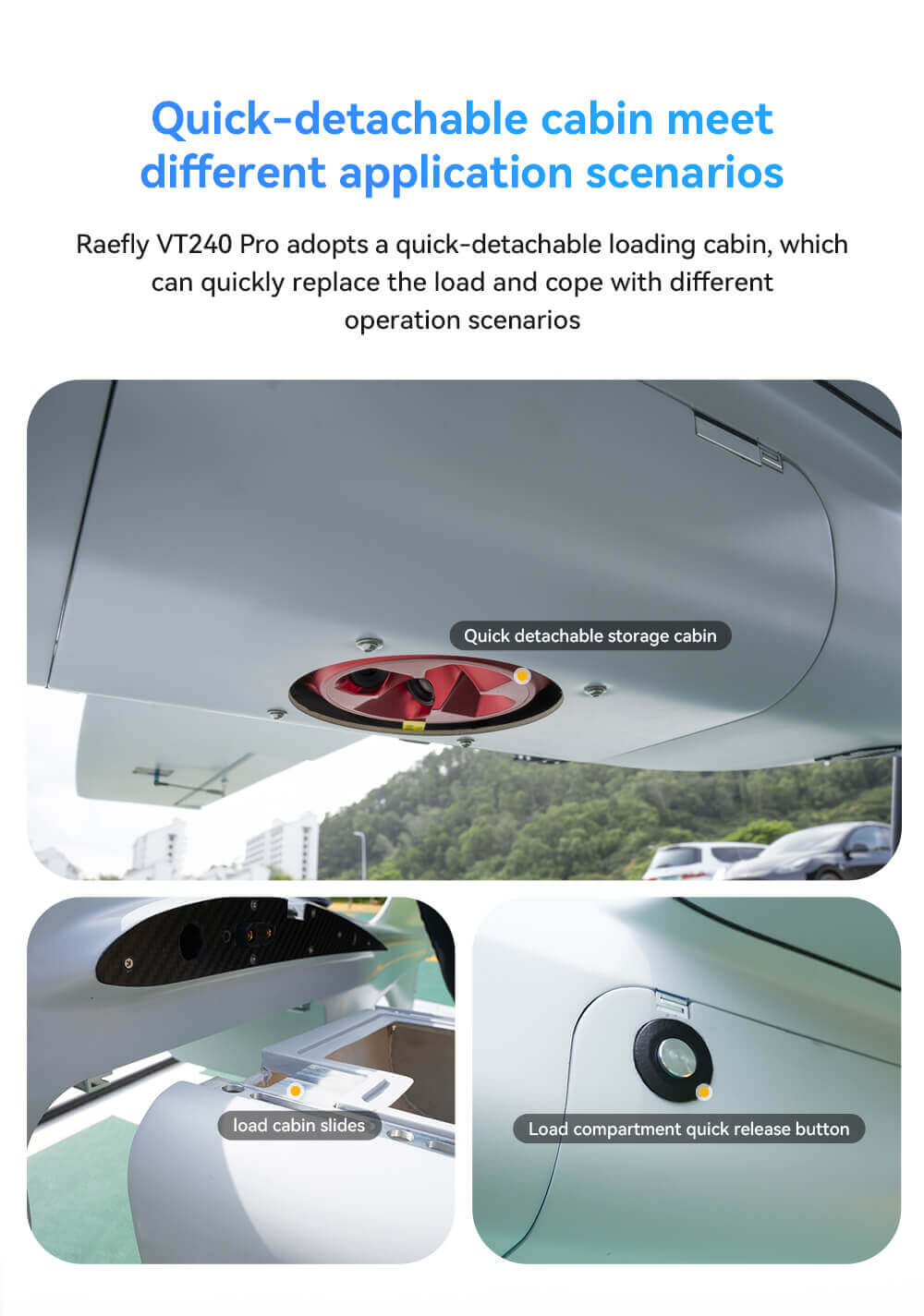

Quick-detachable cabin meet different application scenarios
Raefly VT240 Pro adopts a quick-detachable loading cabin, which can quickly replace the load and cope with different operation scenarios
