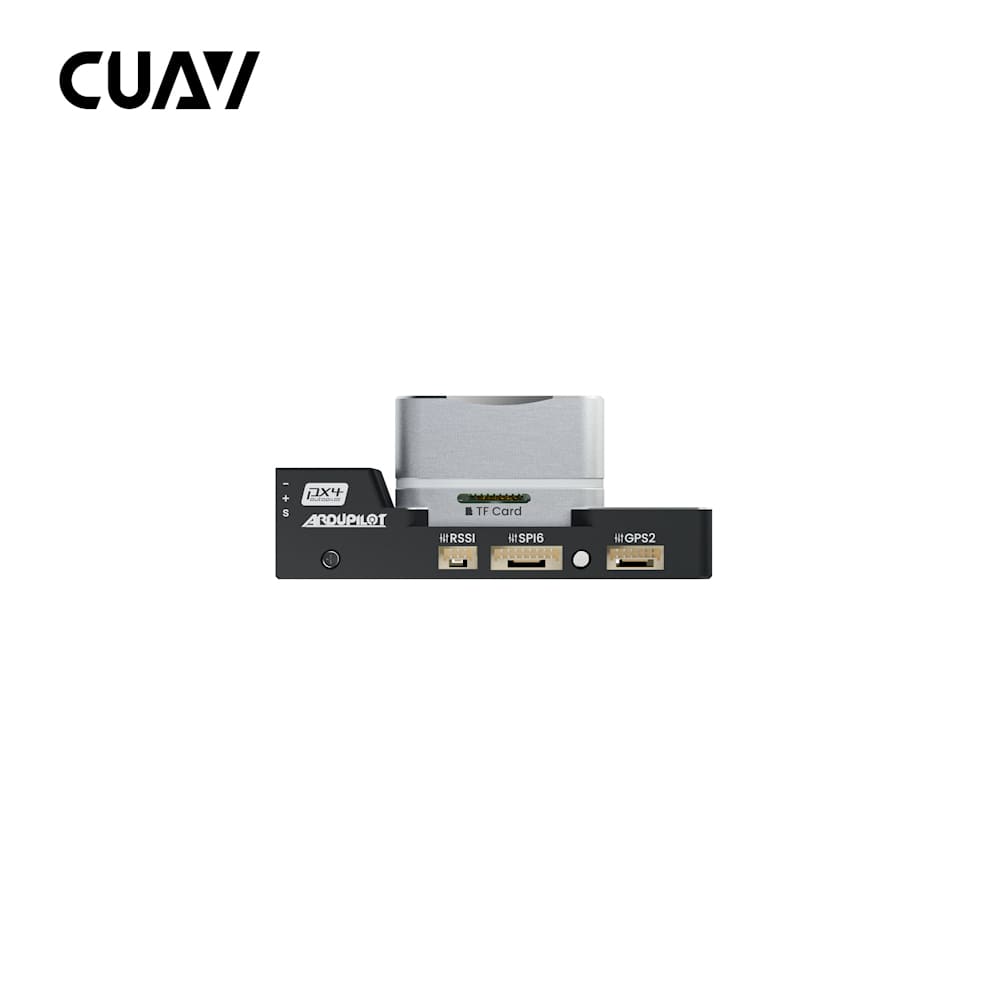

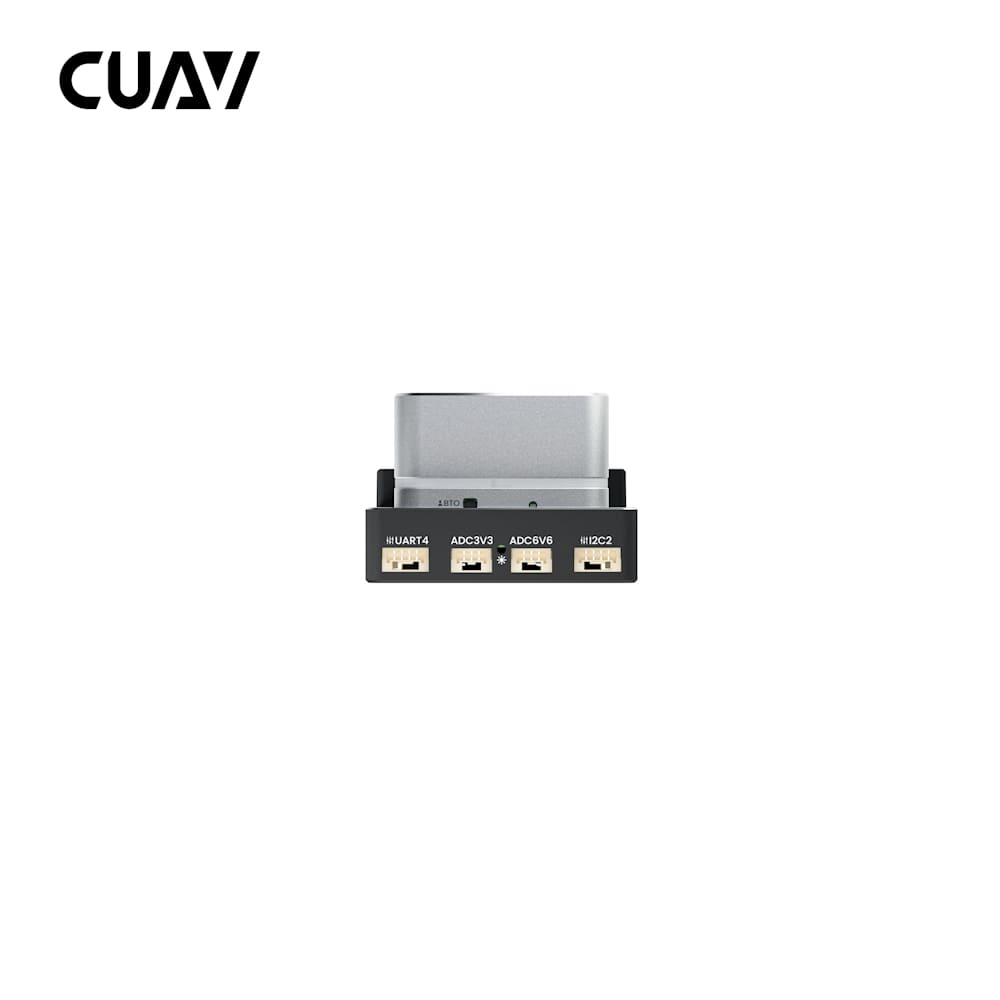

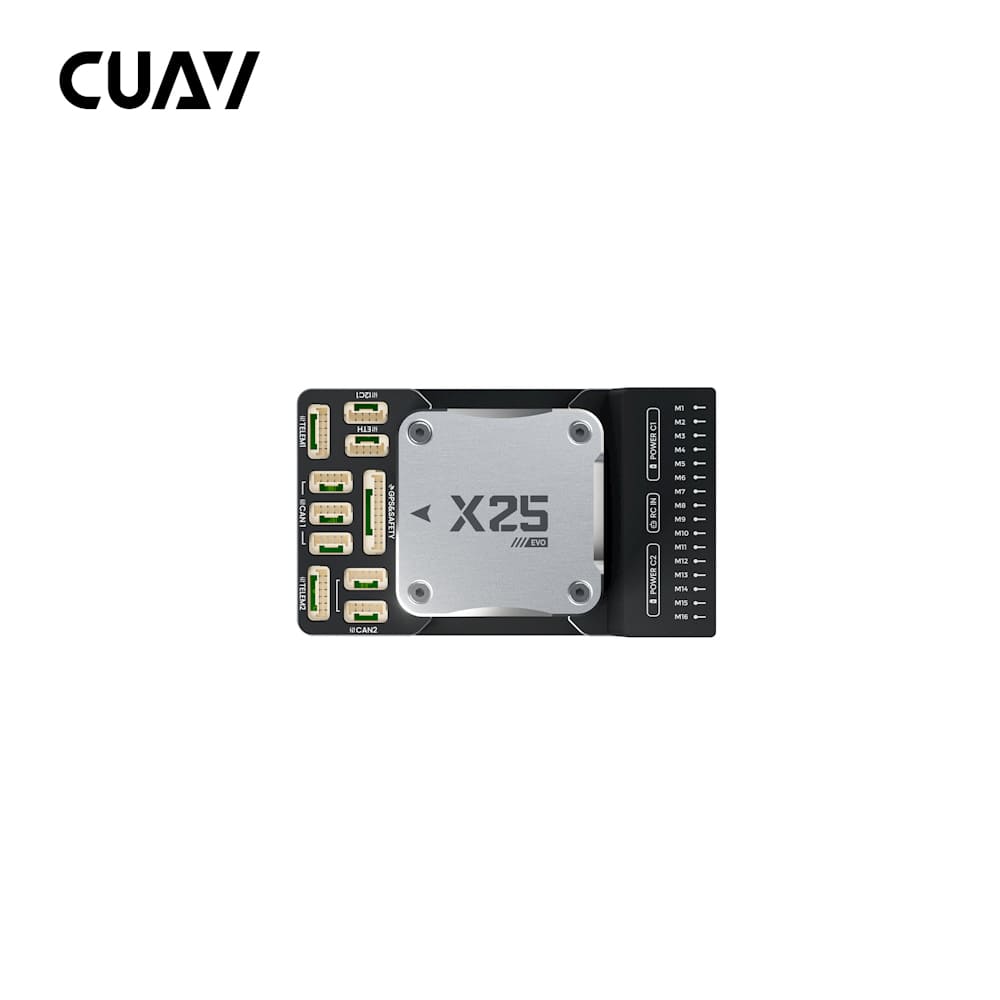

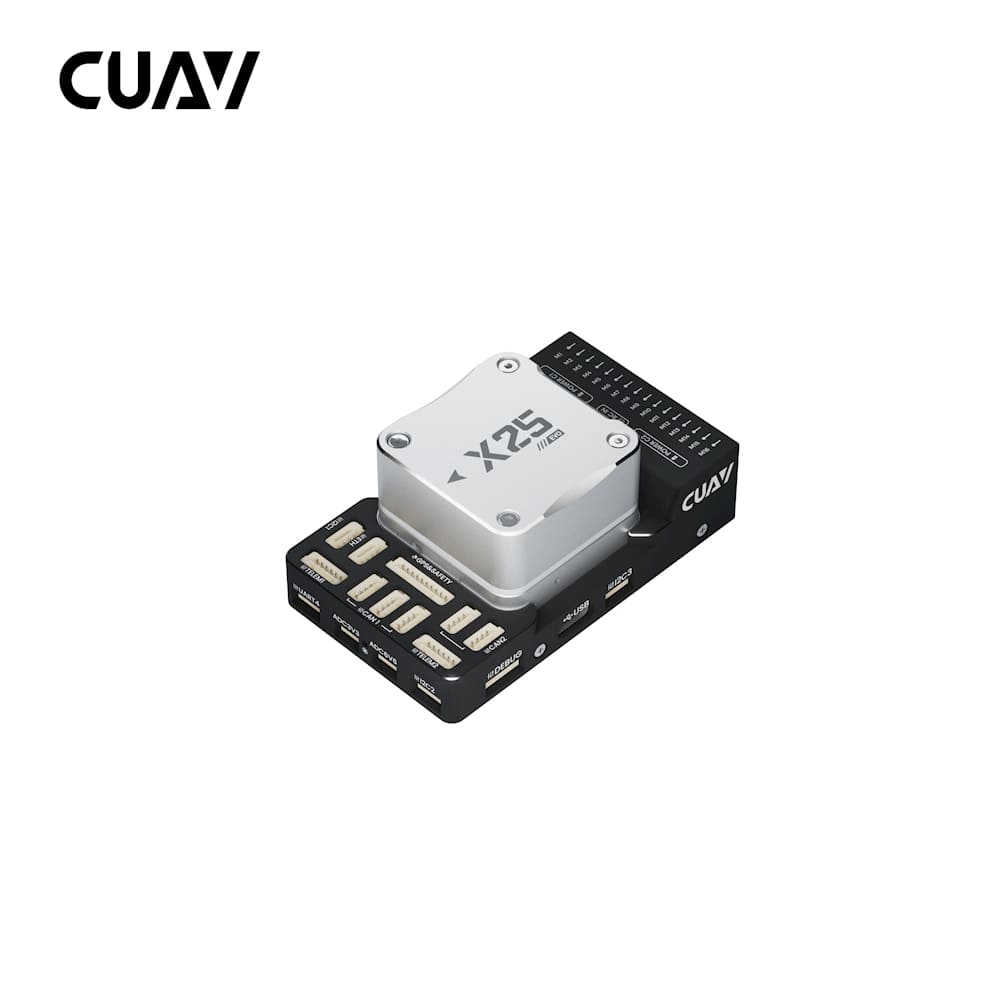

CUAV X25 EVO Features:

  1. Disruptive Wide-Range Power Supply Architecture
  2. Brand-New Industrial IMU Sensor Matrix
  3. High-Performance H7 Processor
  4. Dual Temperature compensation System
  5. Double Shock-Absorption Structure System
  6. Global AwarenessI CAN Bus + 100M Ethernet
  7. Enhanced Compatibility with High-Power
  8. Large Unmanned Systems
  9. Multifunctional RGB Full-Color indicator Light

$419.00

Out of stock

Payment Methods:

Out of stock

Please Contact Customer Service for Stock Availability!

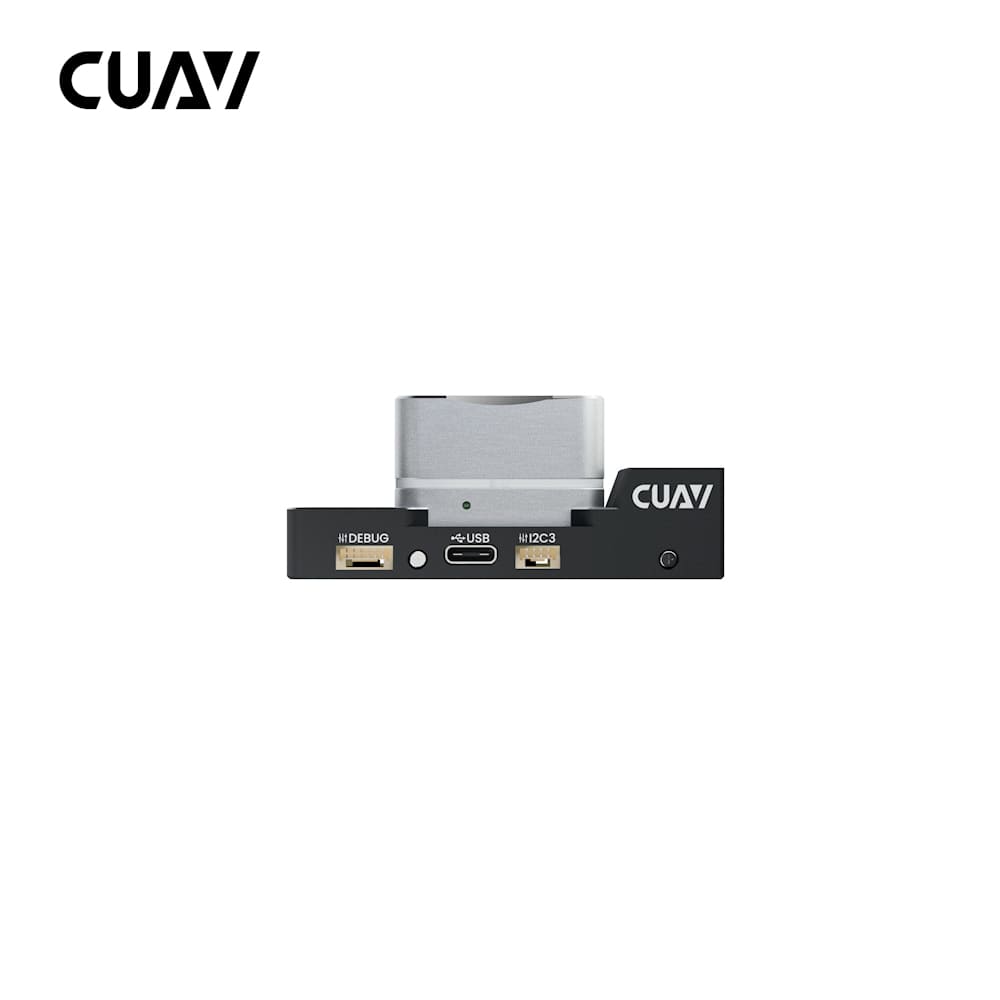

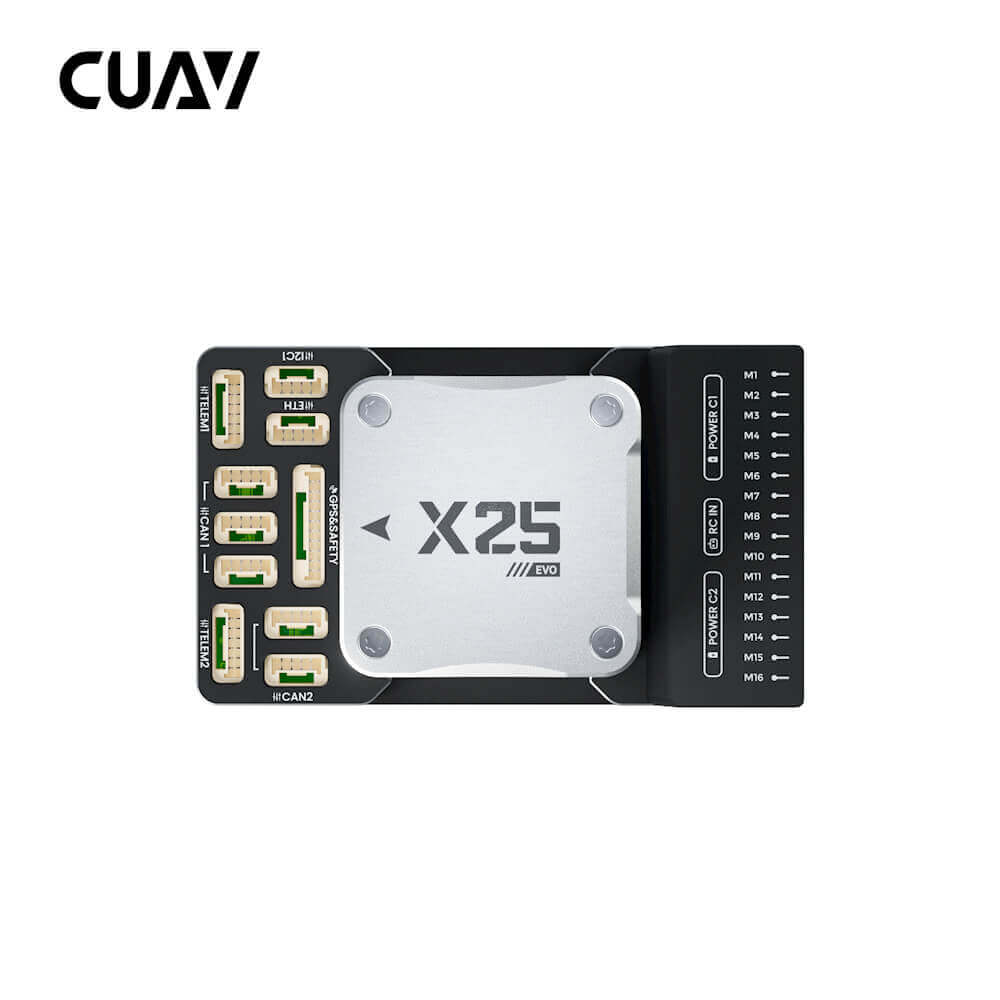

Basic Parameters
ProcessorSTM32H7 Arm° Cortex°-M7 480 MHz
Versionx25Evo
Gyro&AcceIIM-42653×2
Gyro Sensing Range:±4OOO°/s
Accel Sensing Range: ±32g
IIM-42652
Gyro Sensing Range:±2000°/s
Accel Sensing Range: ±16g
CompassRM31OO
BarometerTDK IPC20100/Bosch BMP581
PortType
PWM OUT16
Power IN (CAN)2(5055670871-5055650801)
GPS Ports2
TELEM Ports2
UART4 Ports1
RC IN1(PPM/SBUS/DSM,etc.)
DEBUG Ports (DSU)1
Ethernet (ETH)1
CAN BusCAN1x3
CAN2x2
SPl6 Expansion1
ADC 3V31
ADC 6V61
USB Ports1(Type-C)
I2C Ports3
RSSI Ports1
Power ModulePMU 2 Lite
Electrical and Mechanical Data
Input VoltageUSB:4.75v~5.25v
PMU 2Lite: 20V~70V
Power: 1OV~18V
Operating Temperature-2OC~+85C
Size76.5× 45.45 ×32.2mm
Weight110g

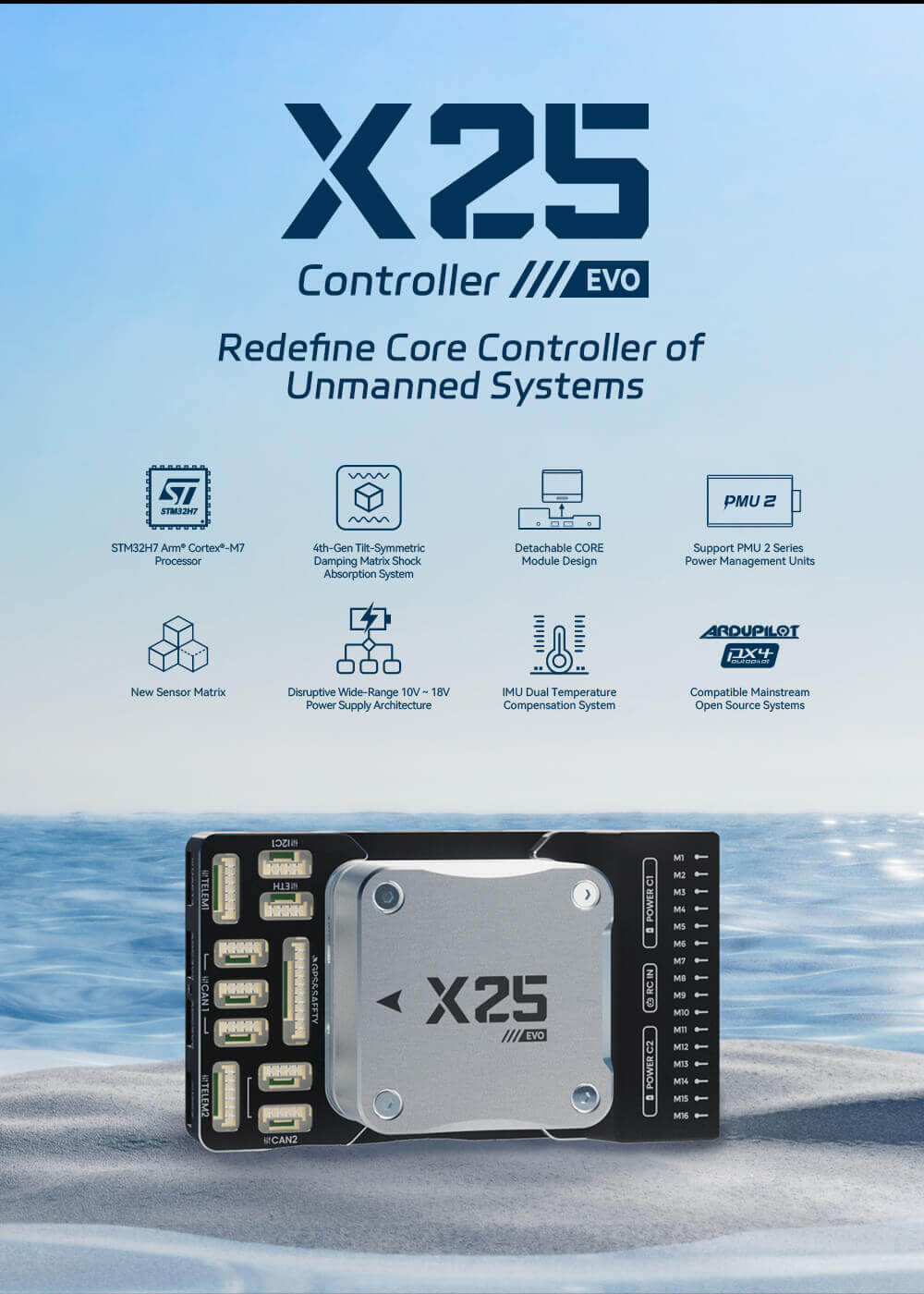

CUAV X25 EVO Controller Feature: Redefine Core Controller of Unmanned Systems

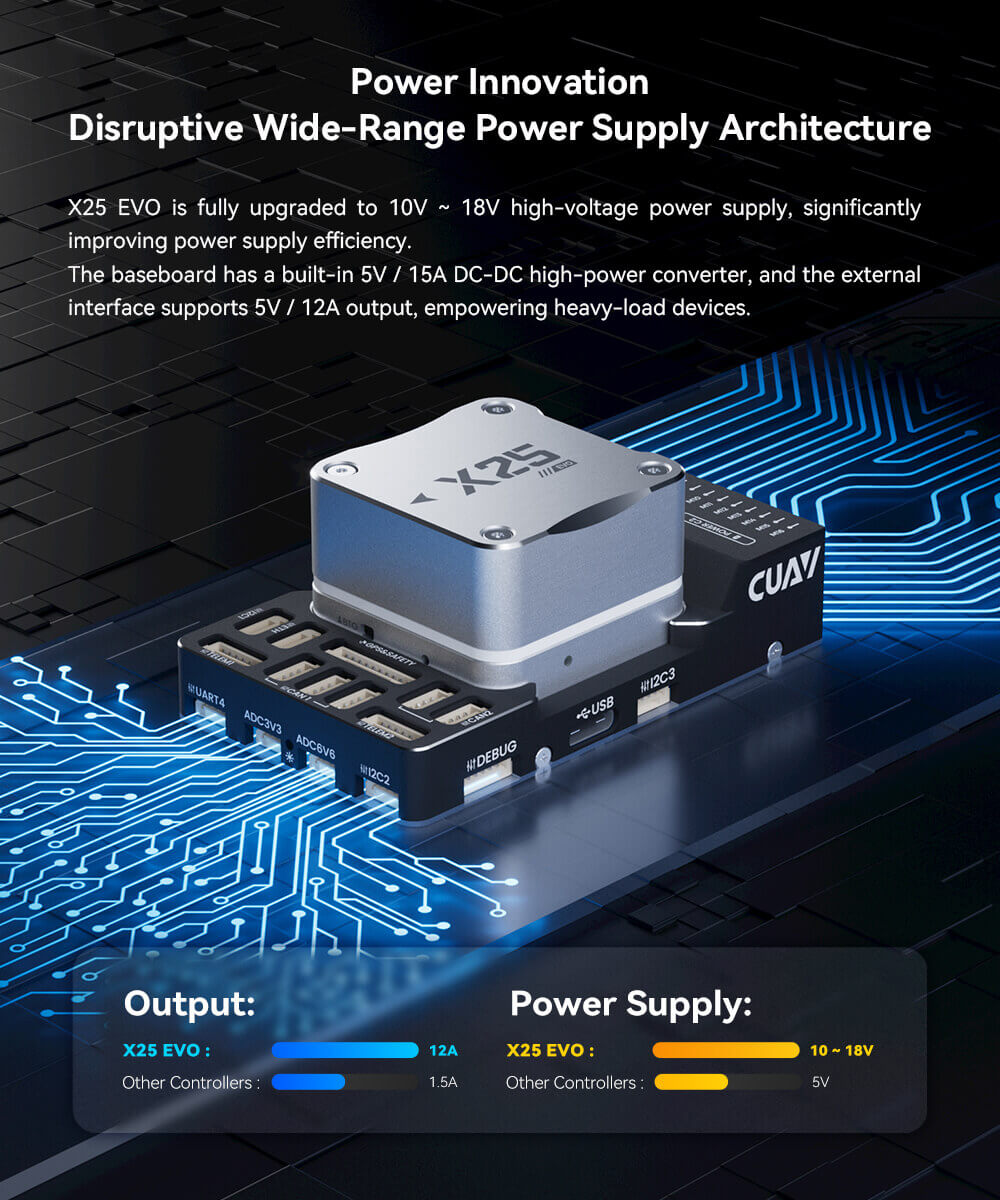

Power Innovation | Disruptive Wide-Range Power Supply Architecture

  • X25 EVO is fully upgraded to 10V ~ 18V high-voltage power supply, significantly improving power supply efficiency.
  • The baseboard has a built-in 5V/15A DC-DC high-power converter, and the external interface supports 5V/12A output, empowering heavy-load devices.
CUAV X25 EVO Controller Feature: Power Innovation | Disruptive Wide-Range Power Supply Architecture

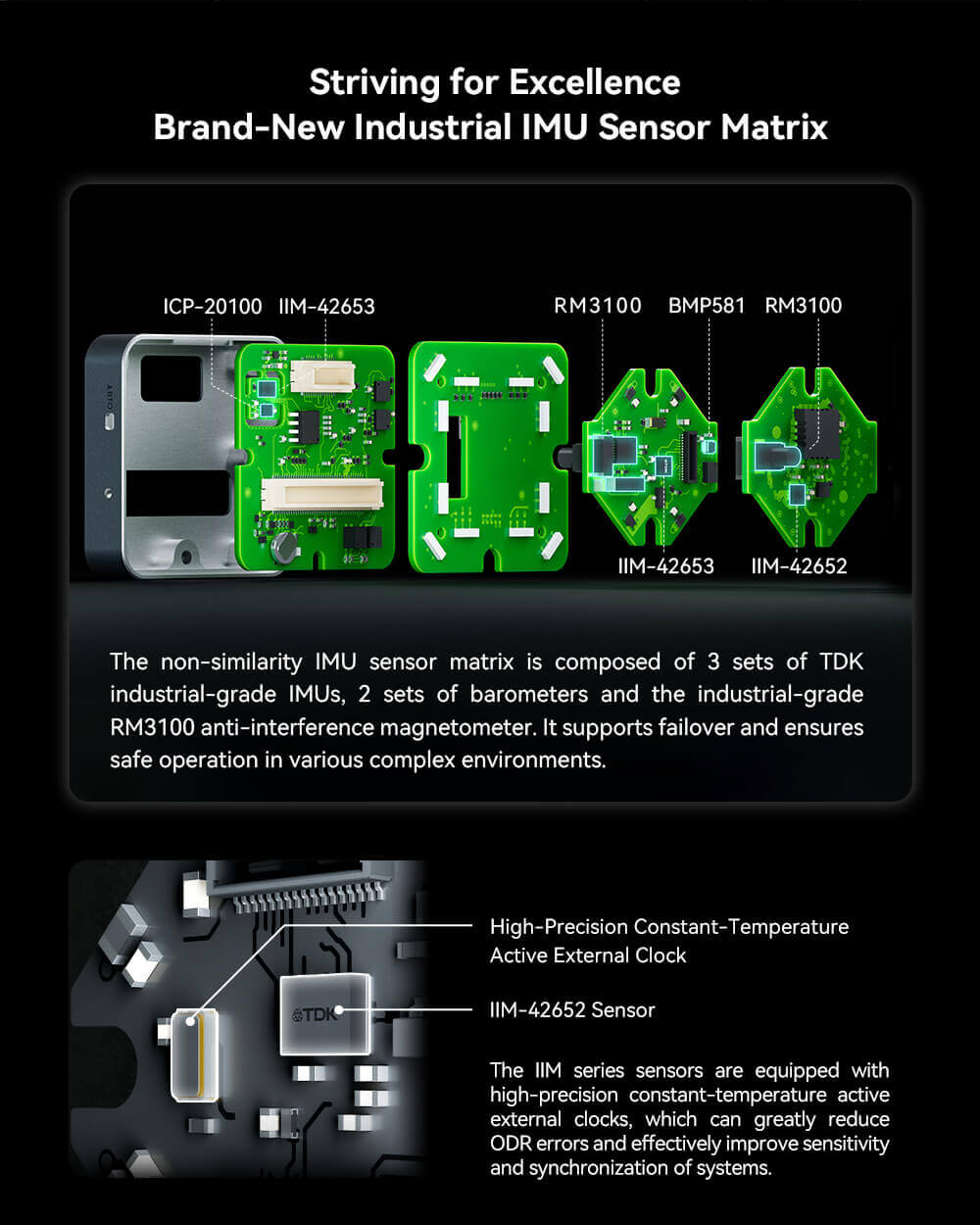

Striving for Excellence | Brand-New Industrial IMU Sensor Matrix

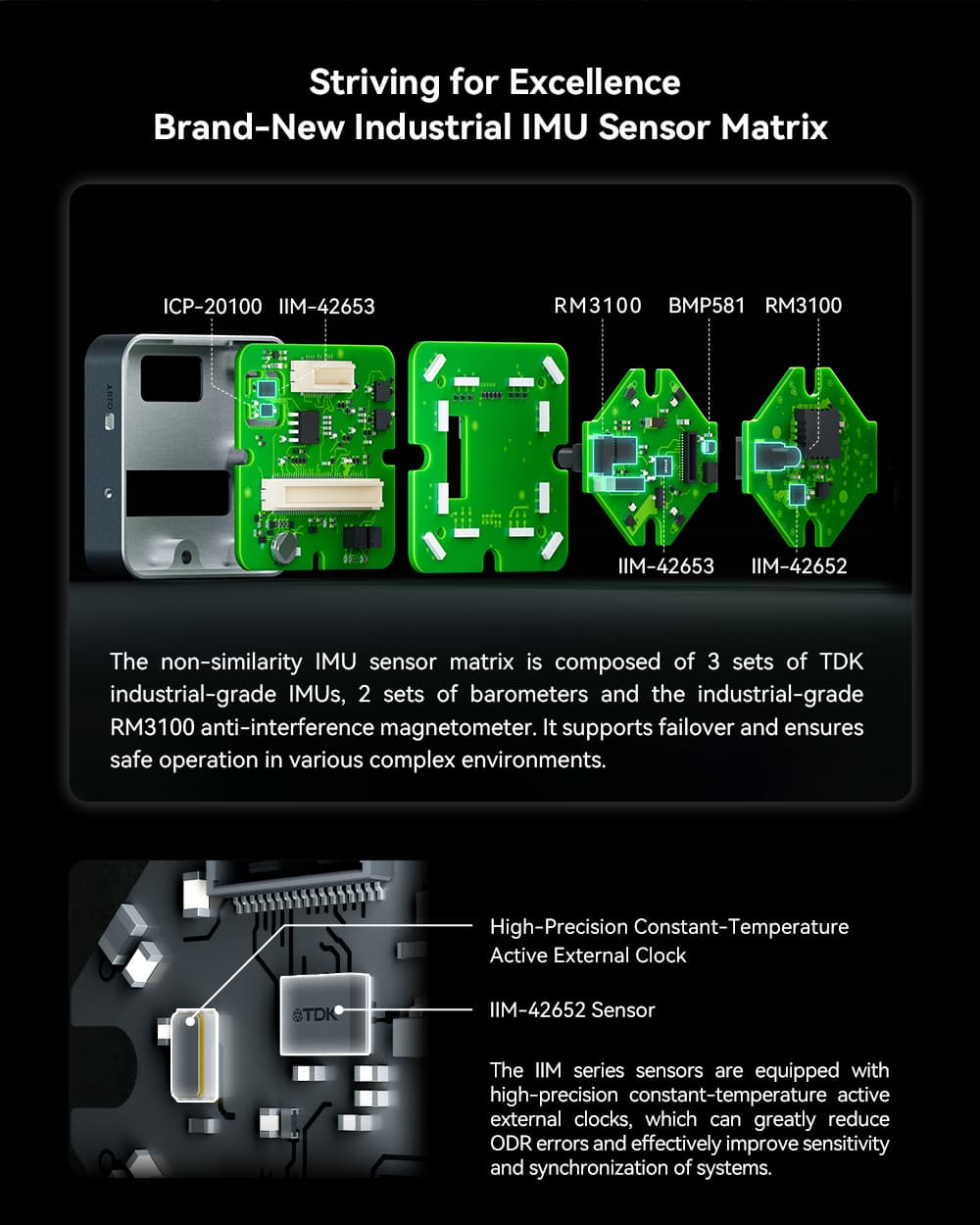

  • The non-similarity IMU sensor matrix is composed of 3 sets of TDK industrial-grade IMUs, 2 sets of barometers and the industrial-grade RM3100 anti-interference magnetometer. It supports failover and ensures safe operation in various complex environments.

  • The IIM series sensors are equipped with high-precision constant-temperature active external clocks, which can greatly reduce ODR errors and effectively improve sensitivity and synchronization of systems.
CUAV X25 EVO Controller Feature: Striving for Excellence | Brand-New Industrial IMU Sensor Matrix

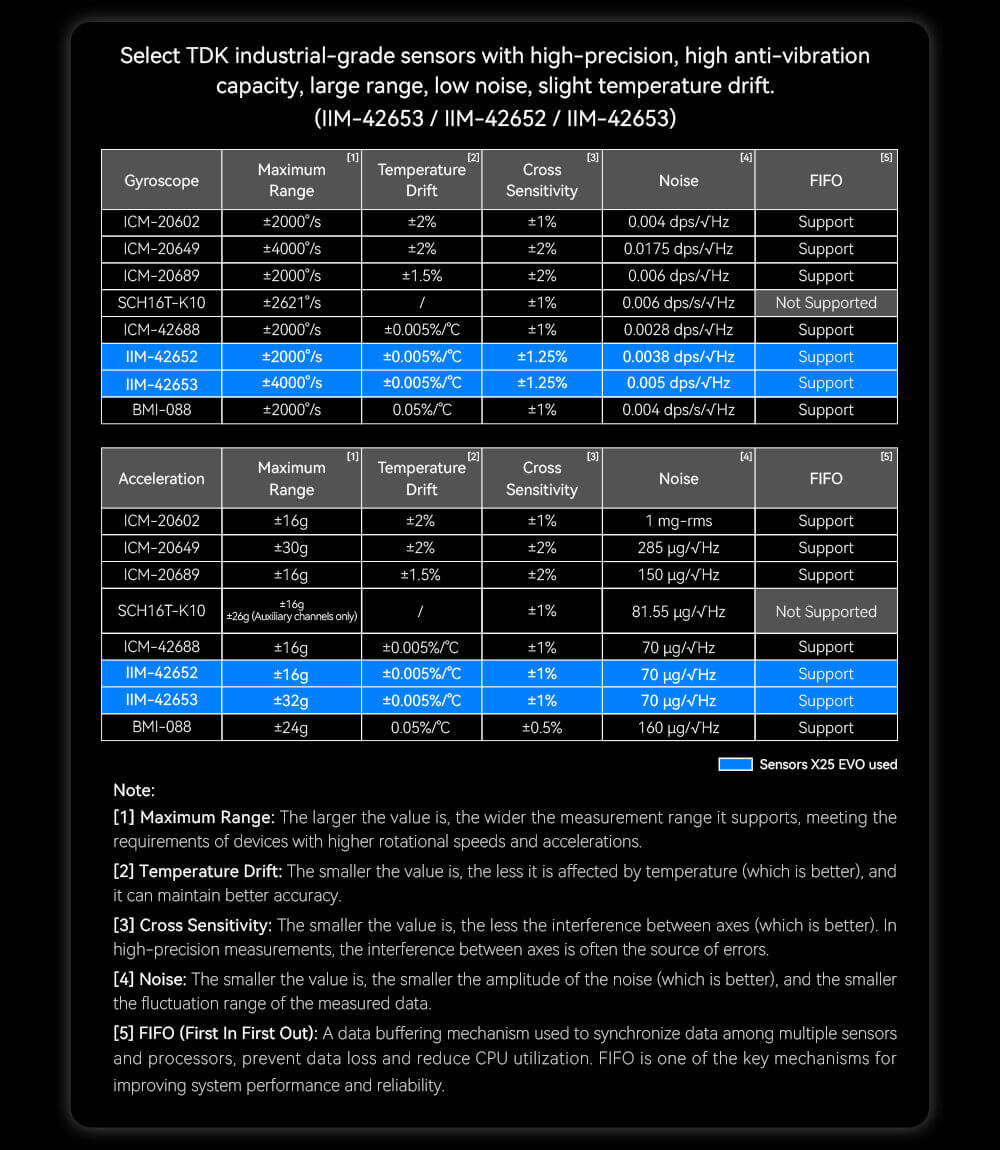

  • Select TDK industrial-grade sensors with high-precision, high anti-vibration capacity, large range, low noise, slight temperature drift.
  • (IIM-42653/ IIM-42652/ IIM-42653)
CUAV X25 EVO Controller Feature: Select TDK industrial-grade sensors with high-precision, high anti-vibration capacity, large range, low noise, slight temperature drift. (IIM-42653/ IIM-42652/ IIM-42653)

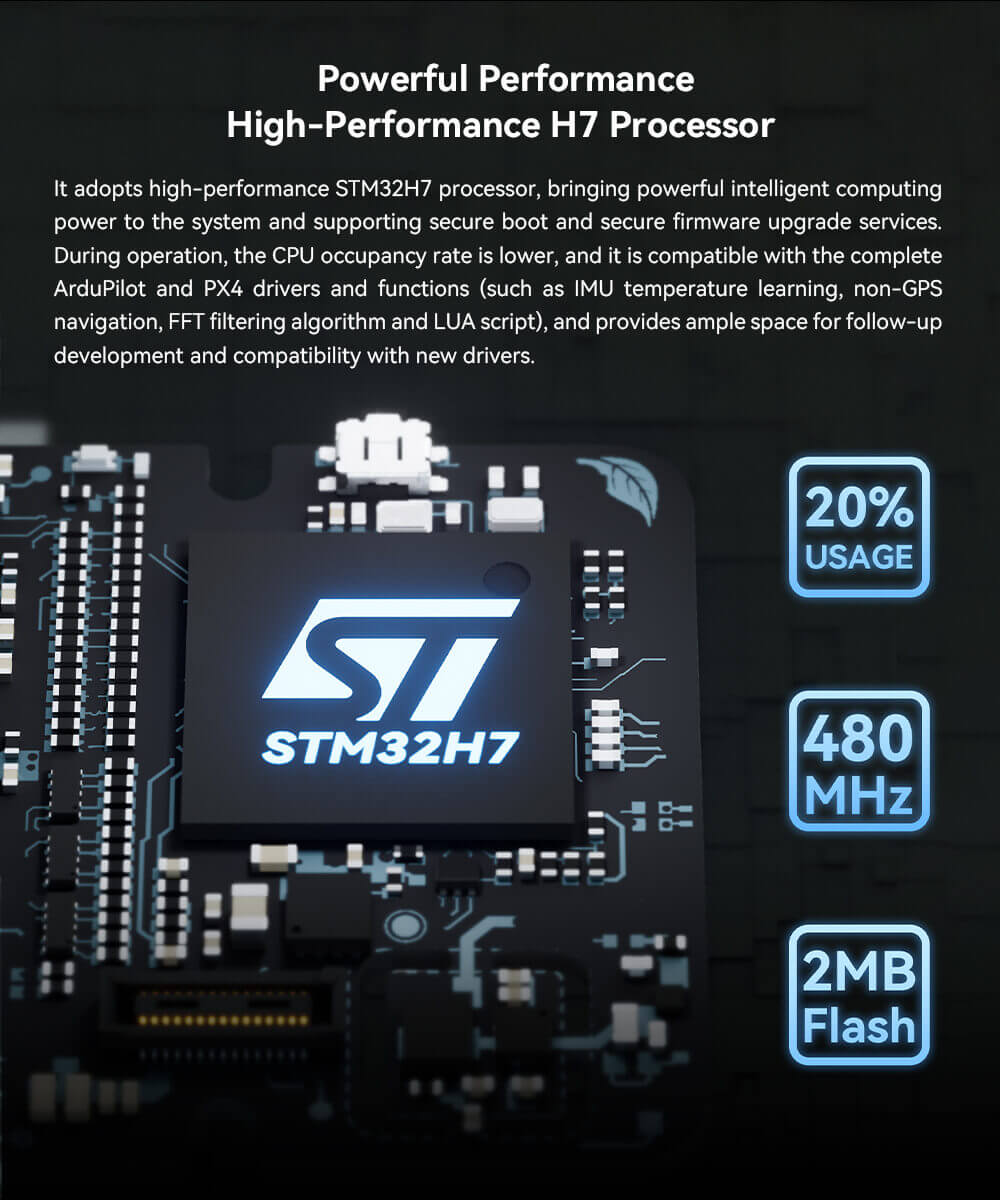

Powerful Performance | High-Performance H7 Processor

  • It adopts high-performance STM32H7 processor, bringing powerful intelligent computing power to the system and supporting secure boot and secure firmware upgrade services. During operation, the CPU occpancy rate is lower, and it is compatible with the complete ArduPilot and PX4 drivers and functions (such as IMU temperature learning, non-GPS navigation, FFT filtering algorithm and LUA script), and provides ample space for follow-up development and compatibility with new drivers.
CUAV X25 EVO Controller Feature: Powerful Performance | High-Performance H7 Processor

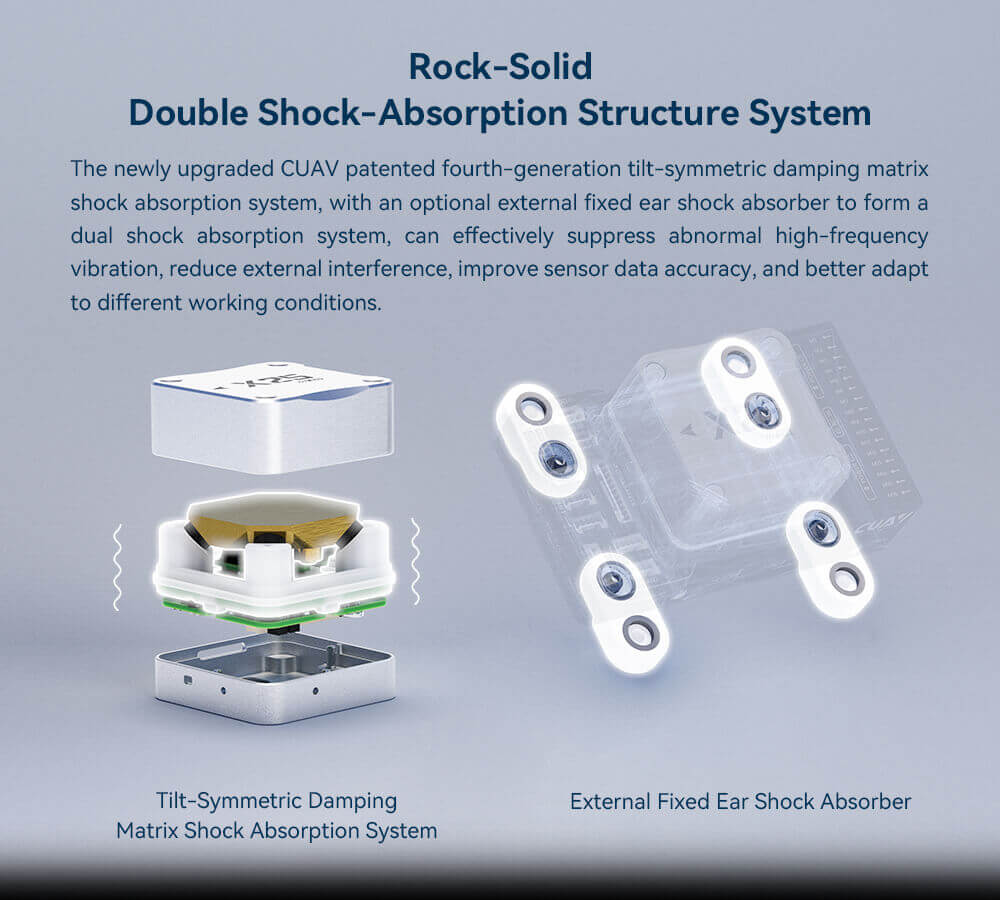

Rock-Solid | Double Shock-Absorption Structure System

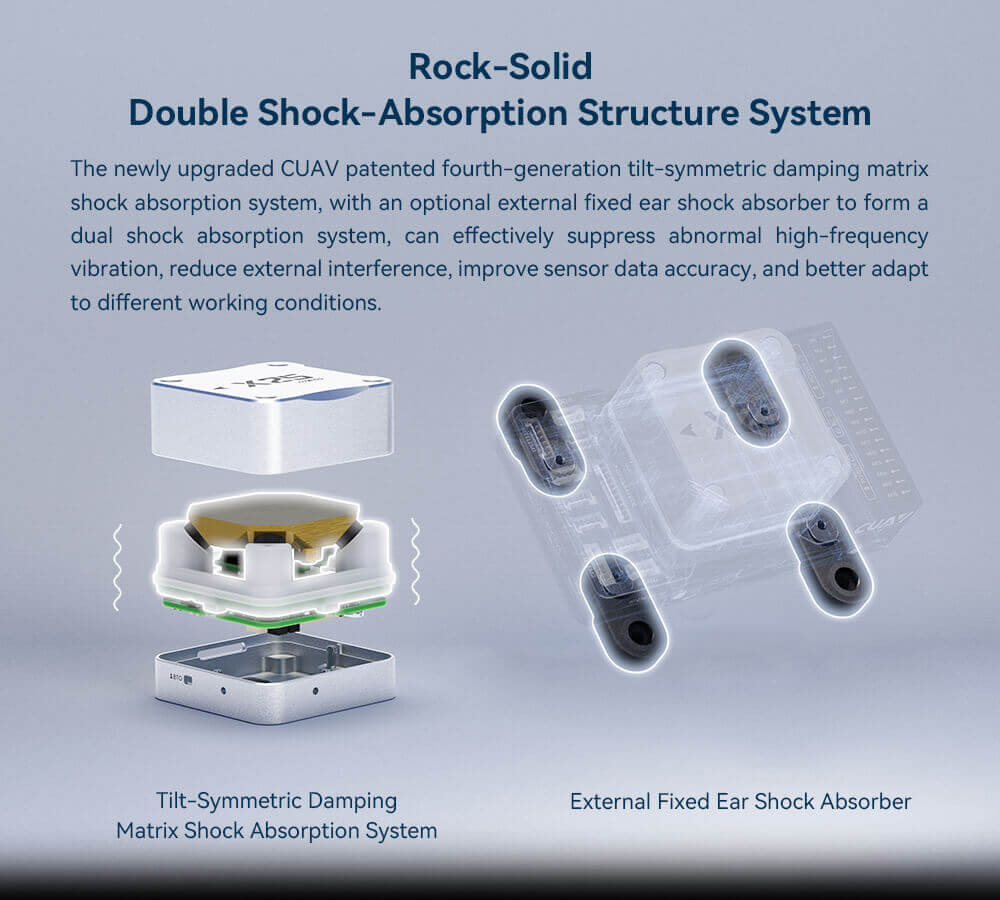

  • The newly upgraded CUAV patented fourth-generation tilt-symmetric damping matrix shock absorptionsystem, with an optional external fixed ear shock absorber to form a dual shock absorption system, can effectively suppress abnormal high-frequency vibration, reduce external interference, improve sensor data accuracy, and better adapt to different working conditions.
CUAV X25 EVO Controller Feature: Rock-Solid | Double Shock-Absorption Structure System

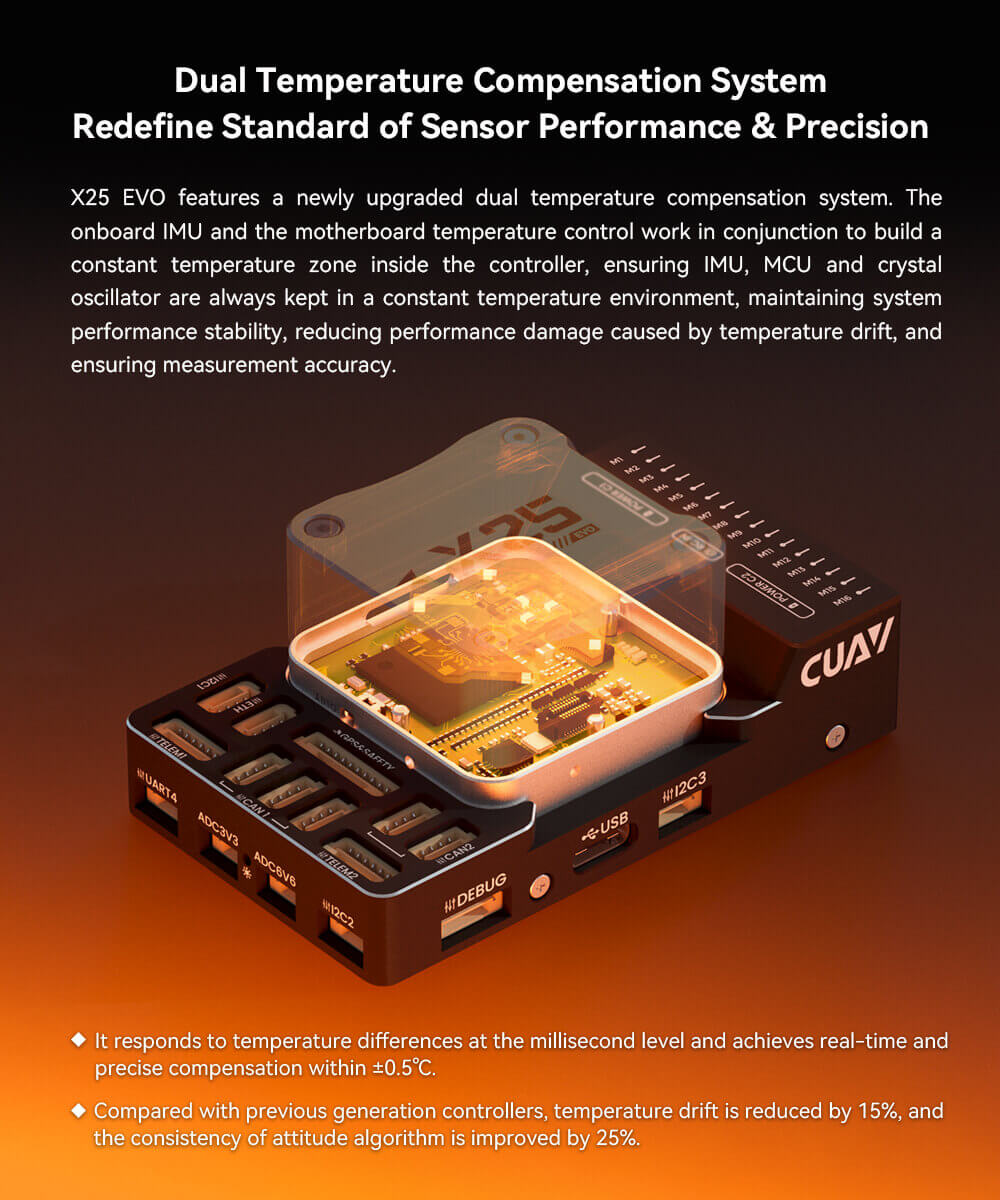

Dual Temperature Compensation System | Redefine Standard of Sensor Performance & Precision

  • X25 EVO features a newly upgraded dual temperature compensation system. The onboard IMU and the motherboard temperature control work in conjunction to build a constant temperature zone inside the controller, ensuring IMU, MCU and crystal oscillator are always kept in a constant temperature environment, maintaining system performance stability, reducing performance damage caused by temperature drift, and ensuring measurement accuracy.
  • It responds to temperature differences at the millisecond level and achieves real-time and precise compensation within ±0.5℃.

  • Compared with previous generation controllers, temperature drift is reduced by 15%,and the consistency of attitude algorithm is improved by 25%.

CUAV X25 EVO Controller Feature: Dual Temperature Compensation System | Redefine Standard of Sensor Performance & Precision

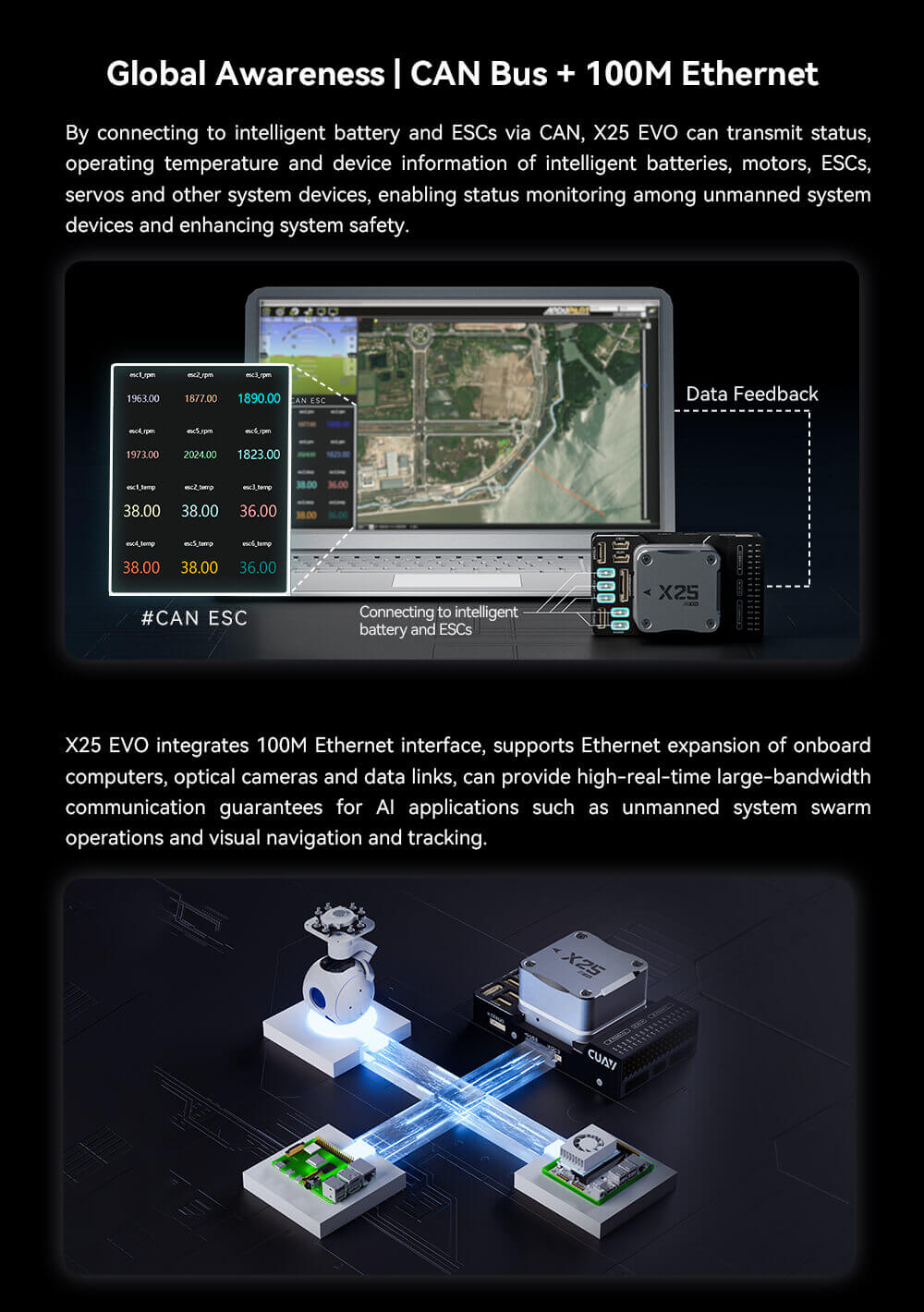

Global Awareness | CAN Bus + 100M Ethernet

  • By connecting to intelligent battery and ESCs via CAN, X25 EVO can transmit status, operating temperature and device information of intelligent batteries, motors, ESCs, servos and other system devices, enabling status monitoring among unmanned system devices and enhancing system safety.
  • X25 EVO integrates 100M Ethernet interface, supports Ethernet expansion of onboard computers, optical cameras and data links, can provide high-real-time large-bandwidth communication guarantees for AI applications such as unmanned system swarm operations and visual navigation and tracking.
CUAV X25 EVO Controller Feature: Global Awareness | CAN Bus + 100M Ethernet

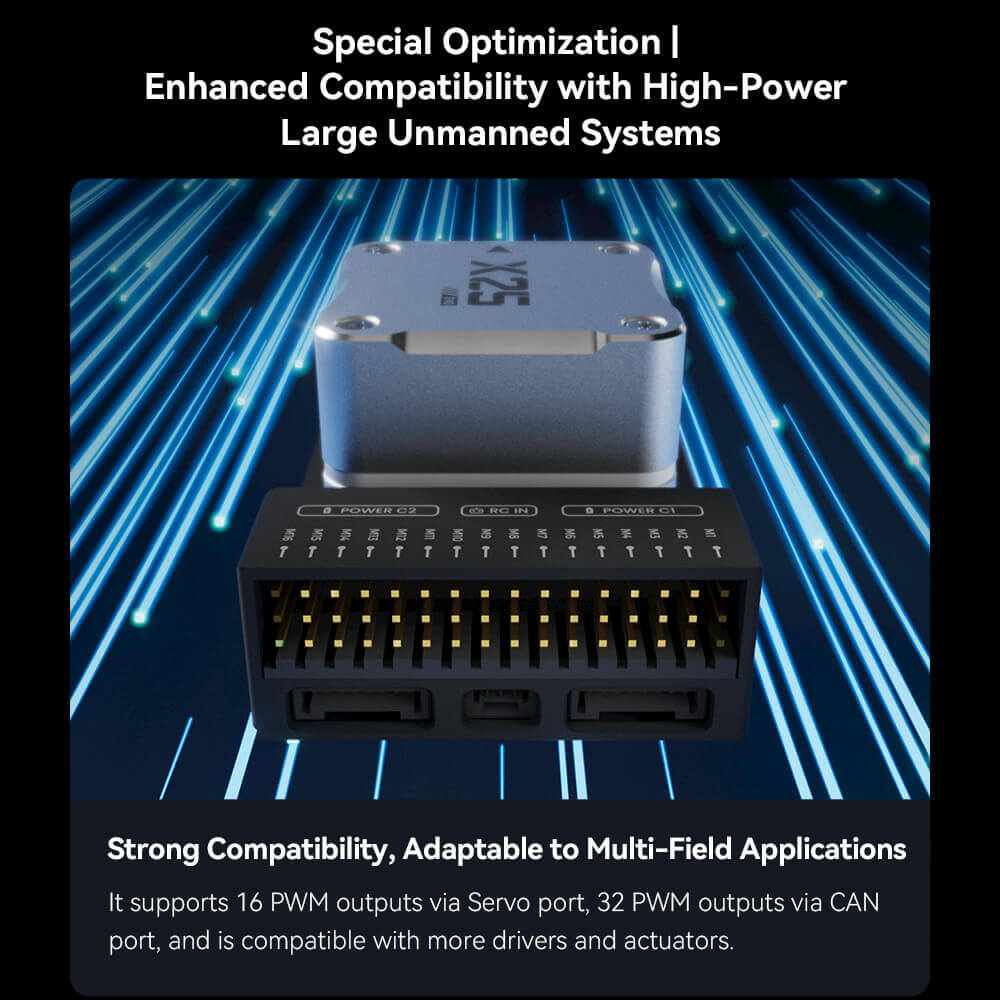

Special Optimization | Enhanced Compatibility with High-Power Large Unmanned Systems

Strong Compatibility, Adaptable to Multi-Field Applications
  • It supports 16 PWM outputs via Servo port, 32 PWN outputs via CAN port, and is compatible with more drivers and actuators.
CUAV X25 EVO Controller Feature: Special Optimization | Enhanced Compatibility with High-Power Large Unmanned Systems

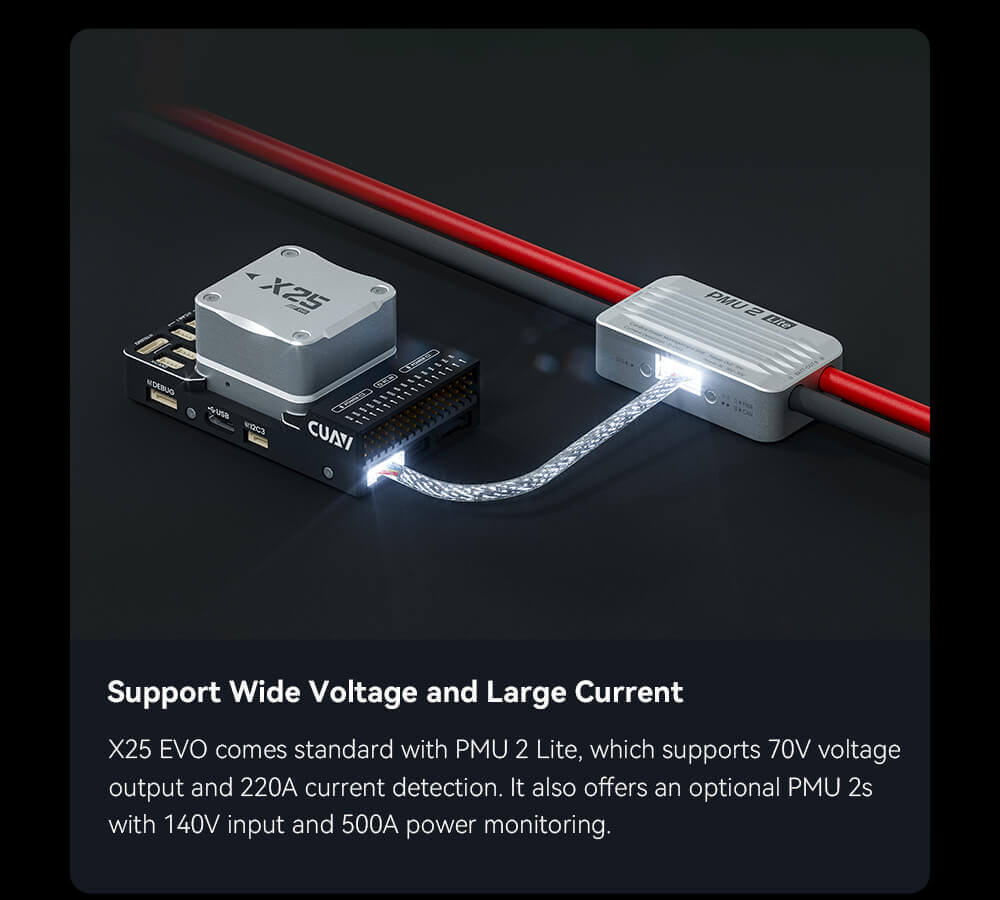

Support Wide Voltage and Large Current

  • X25 EVO comes standard with PMU 2 Lite, which supports 70V voltage output and 220A current detection. It also offers an optional PMU 2s with 140V input and 500A power monitoring.
CUAV X25 EVO Controller Feature: Support Wide Voltage and Large Current

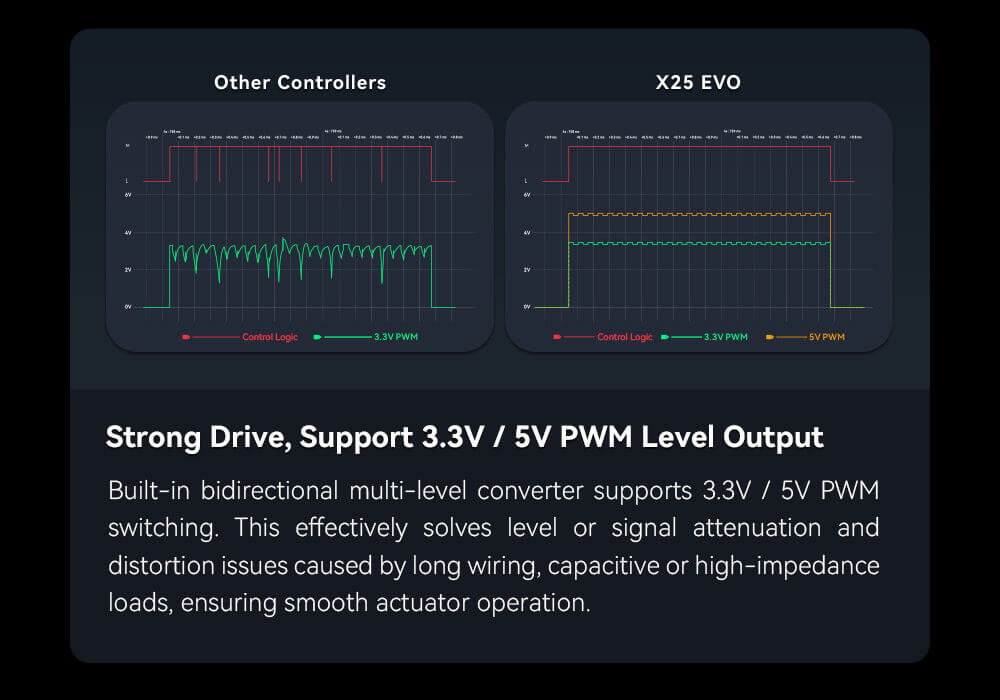

Strong Drive, Support 3.3V / 5V PWM Level Output:

  • Built-in bidirectional multi-level converter supports 3.3V/ 5V PWM switching. This effectively solves level or signal attenuation and distortion issues caused by long wiring, capacitive or high-impedance loads, ensuring smooth actuator operation.
CUAV X25 EVO Controller Feature: Strong Drive, Support 3.3V / 5V PWM Level Output

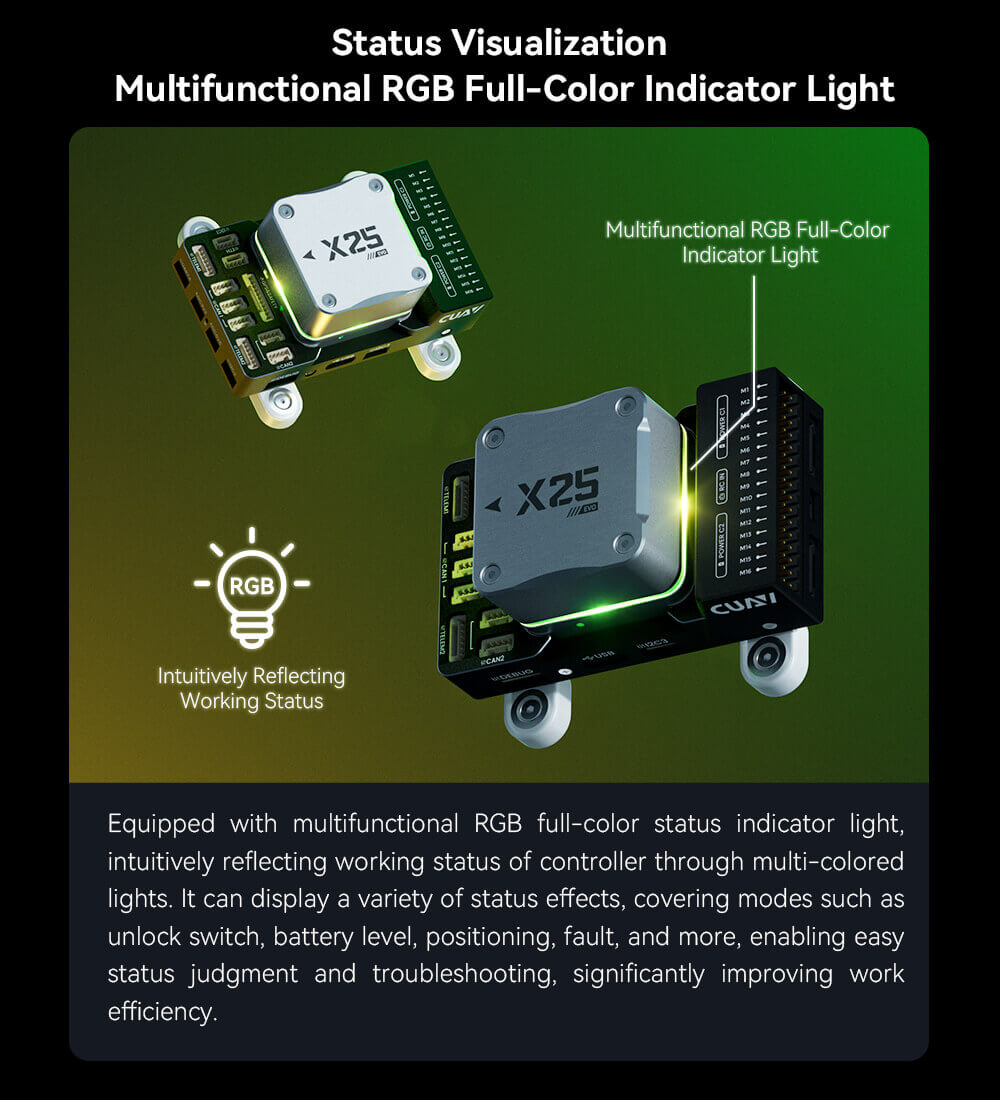

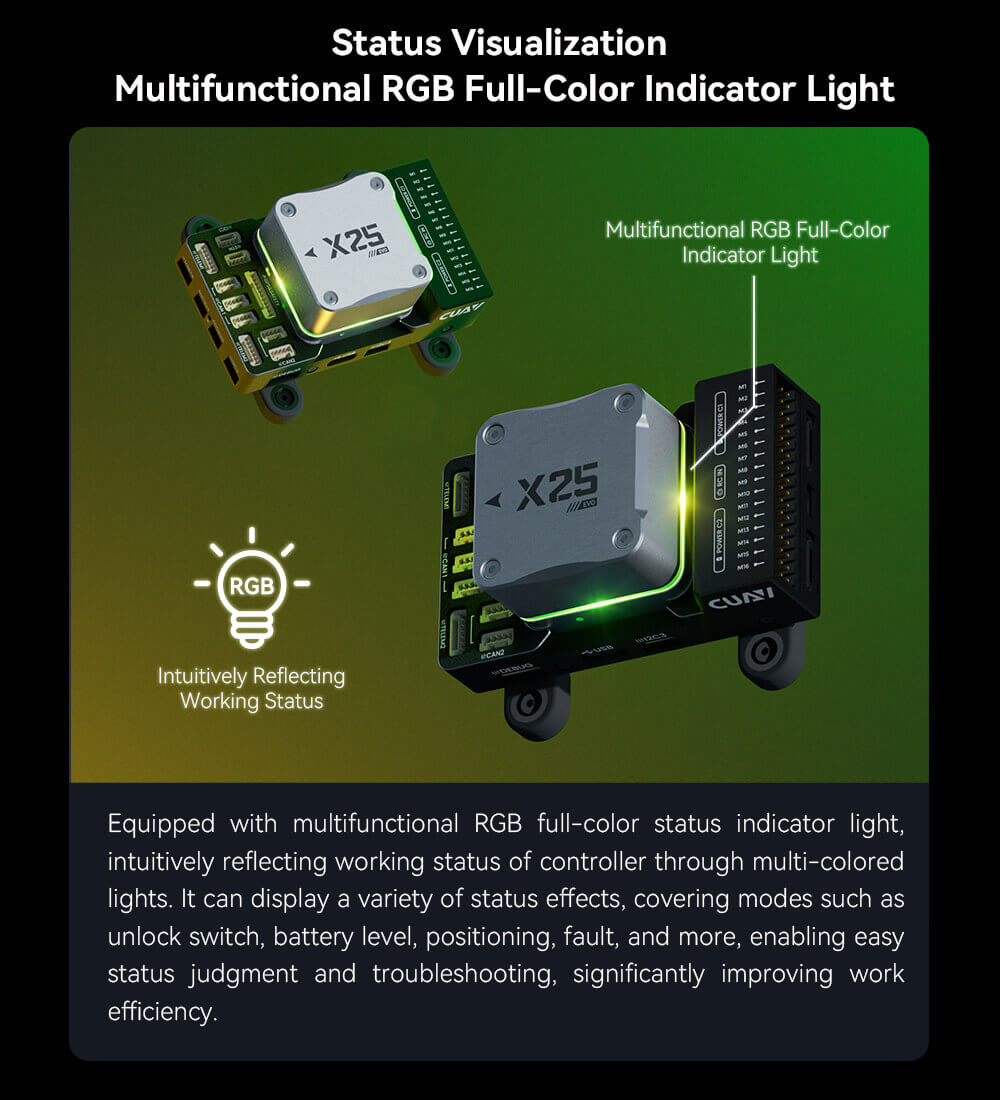

Status Visuaization Multifunctional RGB Full-Color Indicator Light

  • Equipped with multifunctional RGB full-color status indicator light, intuitively reflecting working status of controller through multi-colored lights. It can display a variety of status effects, covering modes such as unlock switch, battery level, positioning, fault, and more, enabling easy status judgment and troubleshooting, significantly improving work efficiency.
CUAV X25 EVO Controller Feature: Status Visuaization Multifunctional RGB Full-Color Indicator Light

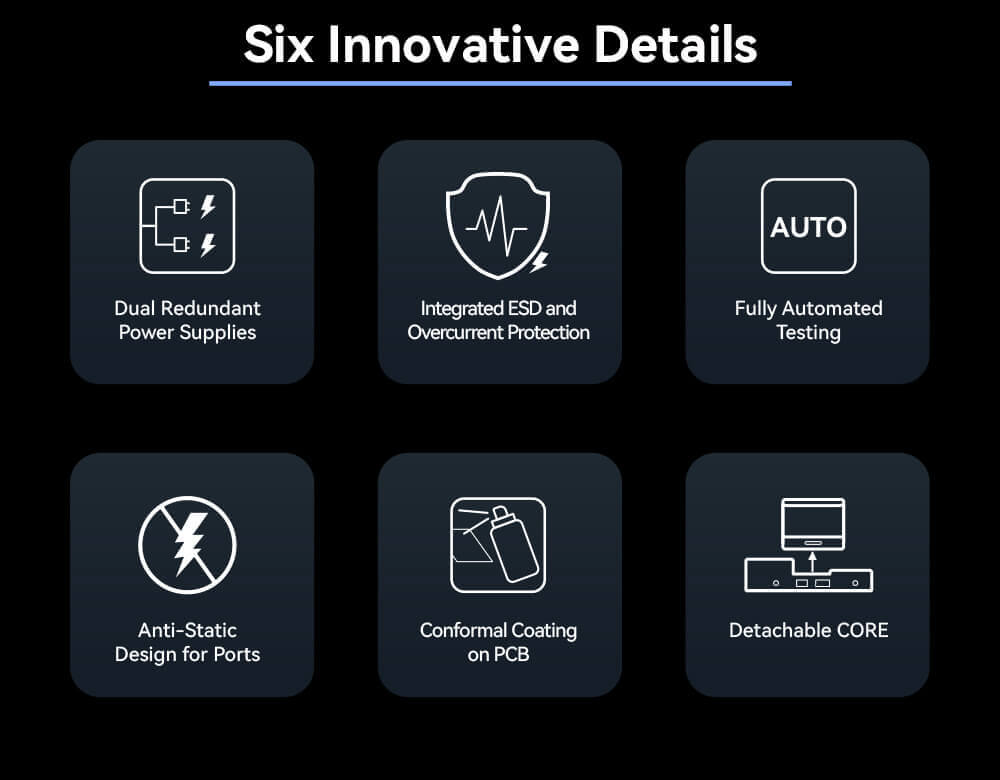

Six Innovative Details

  • Dual Redundant Power Supplies
  • Integrated ESD and Overcurrent Protection
  • Fuly Automated Testing
  • Anti-Static Design for Ports
  • Conformal Coating on PCB
  • Detachable CORE
CUAV X25 EVO Controller Feature: Six Innovative Details

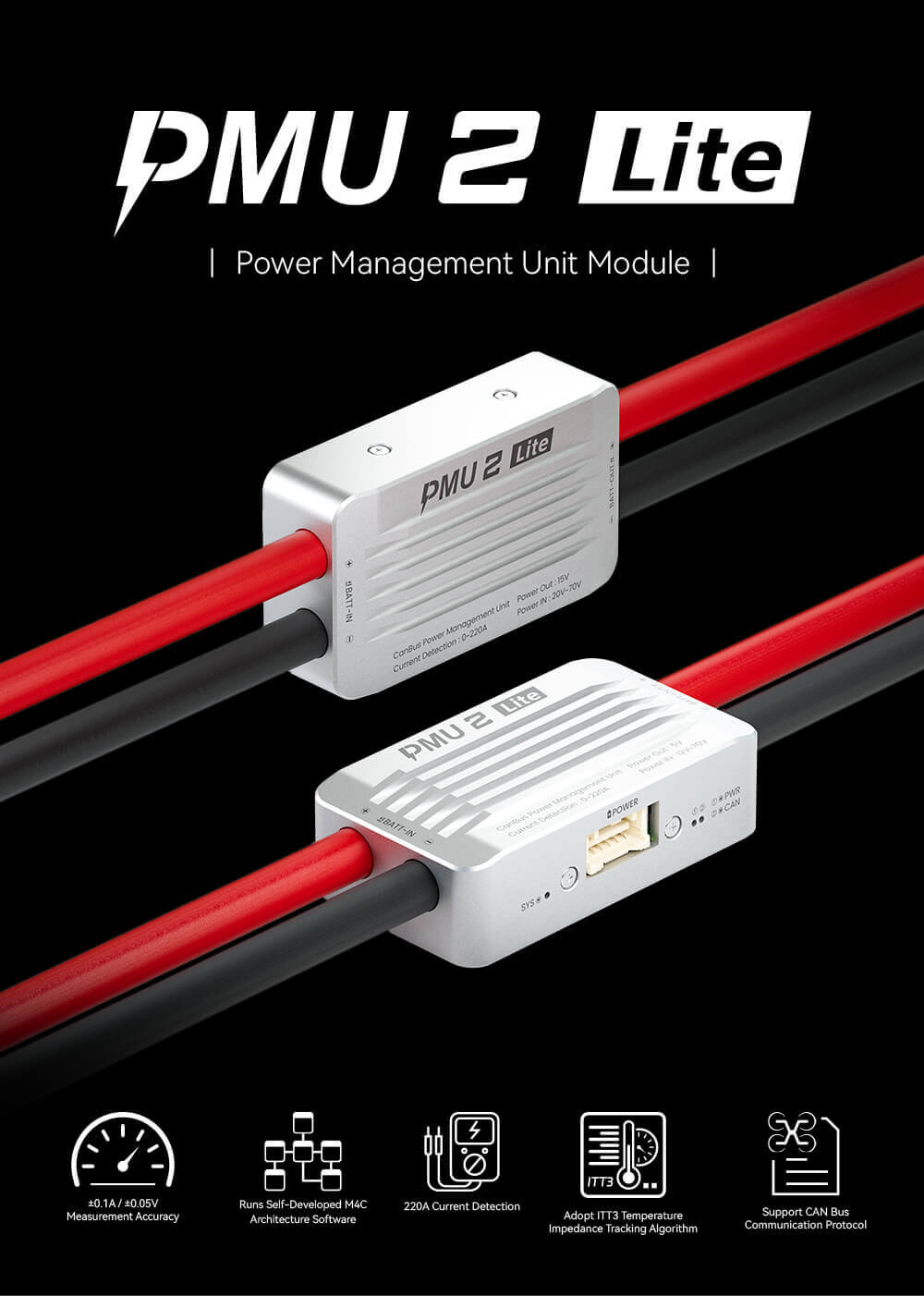

CUAV PMU 2 Lite Power Module Features:

1. 220A Current Detection Overcurrent Warning Protection
2. 16S Battery Input Wide Voltage, Flexible Adaptation.
3. High-Performance Processor Runs M4C Architecture Software.
4. CAN Bus Communication Multi-Platform Compatibility.
5. 15V/5V Output Extensive Controller Compatibility.
6. Aluminum Alloy Shell Excellent Heat Dissipation.
7. Factory Pre-Calibrated Ready-to-Use.

CUAV PMU 2 Lite Power Module Feature
  • 220A Current Detection Overcurrent Warning Protection
PMU 2 Lite utilizes non-contact, coreless busbar current detection technology and CNC-machined current sensing sheets. PMU 2 Lite can achieve instantaneous, high-current 220A lossless current measurement in a compact package. It also supports overcurrent warning, effectively ensuring safe system operation, preventing abnormal damage to equipment, and improving overall reliability.
CUAV PMU 2 Lite Power Module Feature: 220A Current Detection Overcurrent Warning Protection.

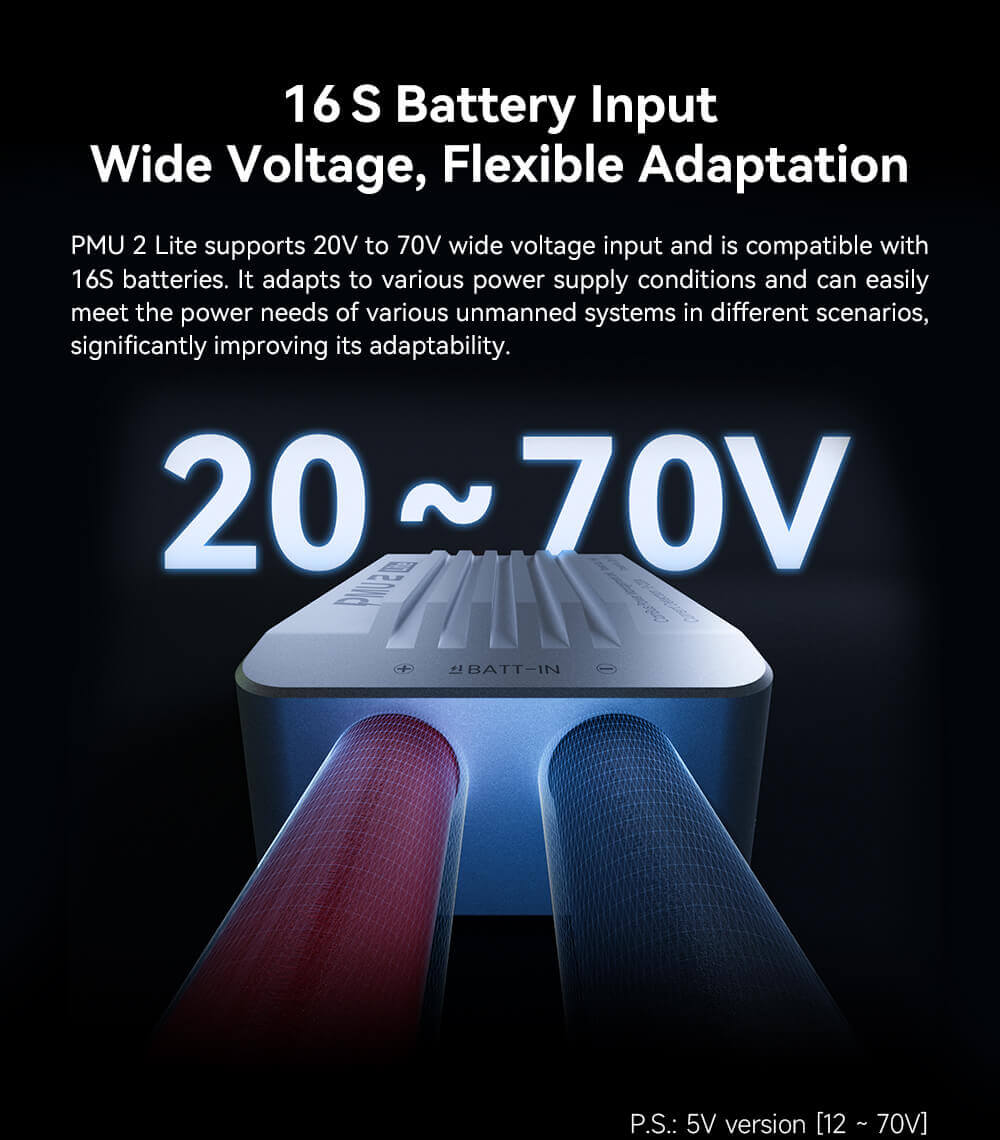

  • 16S Battery Input Wide Voltage, Flexible Adaptation.

PMU 2 Lite supports 20V to 70V wide voltage input and is compatible with 16S batteries. It adapts to various power supply conditions and can easily meet the power needs of various unmanned systems in different scenarios, significantly improving its adaptability.

CUAV PMU 2 Lite Power Module Feature: 16S Battery Input Wide Voltage, Flexible Adaptation.

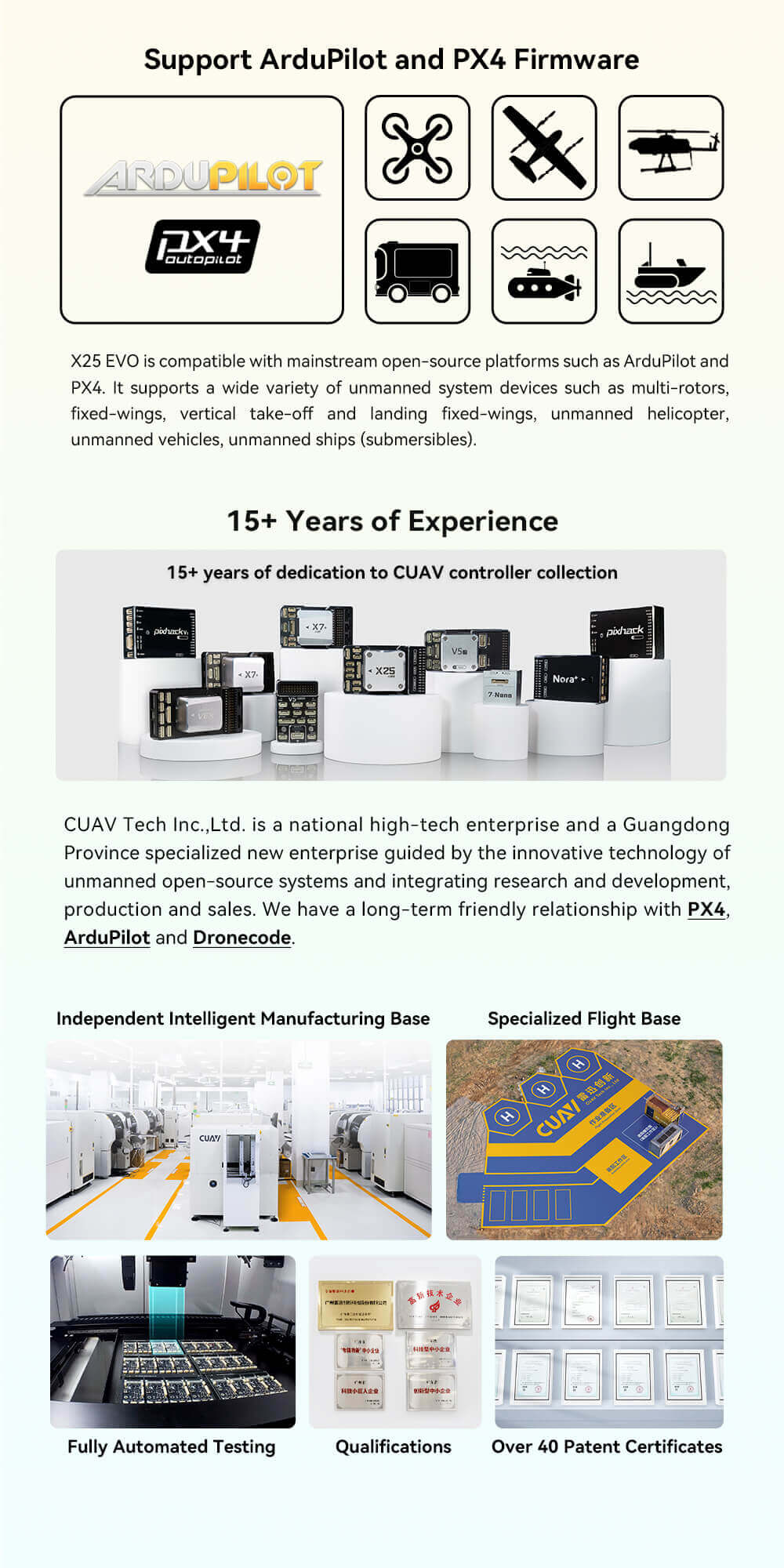

Support ArduPilot and PX4 Firmware

  • X25 EVO is compatible with mainstream open-source platforms such as ArduPilot and PX4. It supports a wide variety of unmanned system devices such as multi-rotors, fixed-wings, vertical take-off and landing fixed-wings, unmanned helicopter, unmanned vehicles, unmanned ships(submersibles).
CUAV Support ArduPilot and PX4 Firmware

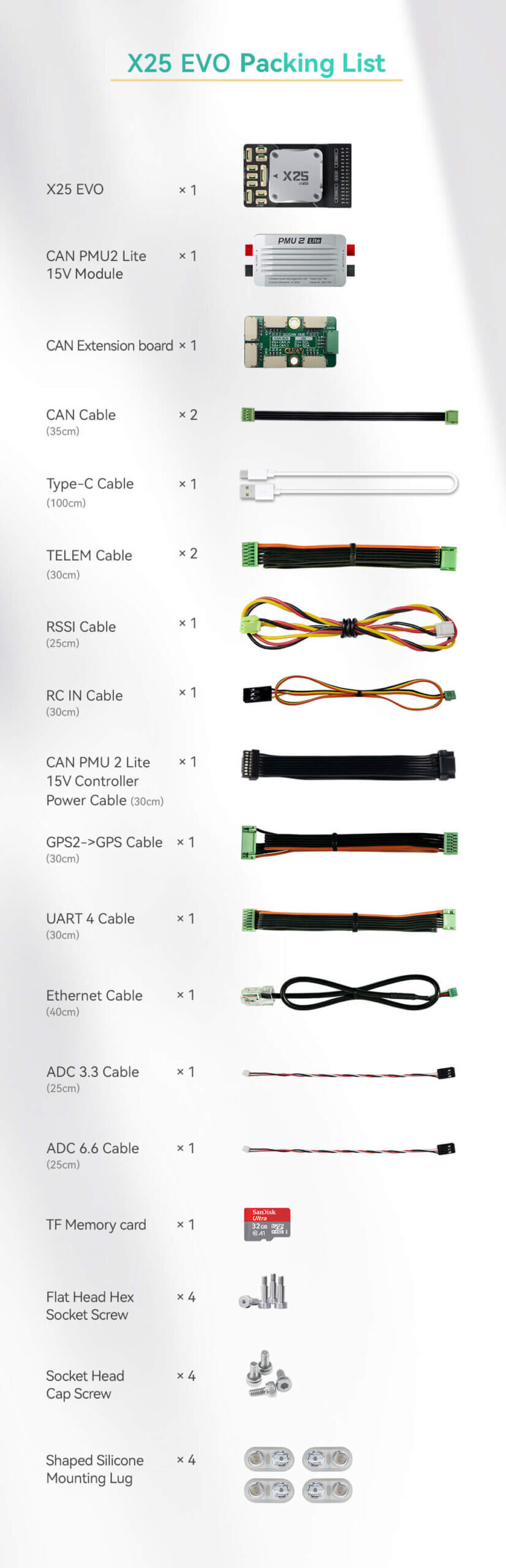

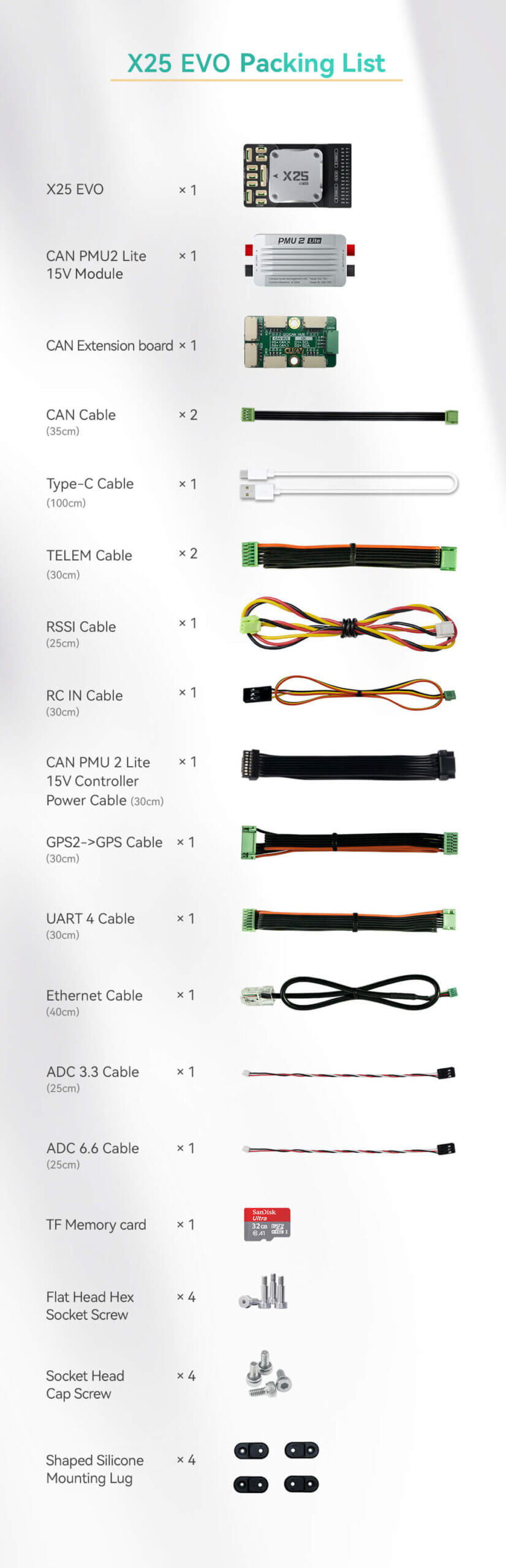

CUAV X25 EVO Drone Controller Packing List

Procurement/Purchasing Communication

Laura

E-mail:Laura@cuav.net

WhatsApp:(+86)18078814327

Tina

E-mail:Tina@cuav.net

WhatsApp:(+86)18122367332

Weight 0.3 kg
Dimensions 20 × 10 × 10 cm
Material

Metal

Main Processor

STM32H753

Acc & Gyro

IIM-42653; IIM42652; IIM42653

Compass

RM3100

Barometer

ICP-20100/ BMP581

UART Serial Port

7

Servo OUT

16

5V PWM

Support

Size

76.5*45.45*32.2mm

Weight

110g
