CUAV XBEE Over the horizon data transmission module
Summarize
CUAV XBEE Radio is a high-power, high-speed, high-reception sensitivity data transmission module
It has a built-in S3B RF module from the United States DIGI company, transmitting power up to 250mW, ISM 900MHZ legal frequency, supporting a variety of advanced network options and topology modes
The CUAV XBEE Radio module offers an unprecedented range of low-cost wireless data solutions. This module is easy to use and is especially suitable for unmanned unit networks and point-to-point over-the-horizon transmission, providing stable, critical data transmission between drones and equipment. Their small size saves valuable on-board space.
Characteristic
Ultra high receiving sensitivity
Highest -110dBm Receiver Sensitivity in Low Rate Mode
Long distance
The low-speed mode supports up to 14km.
High speed
Up to 200k air speed
CNC integrated shell
Aerospace aluminum alloy one-piece CNC housing, lightweight, strong, beautiful and anti-jamming

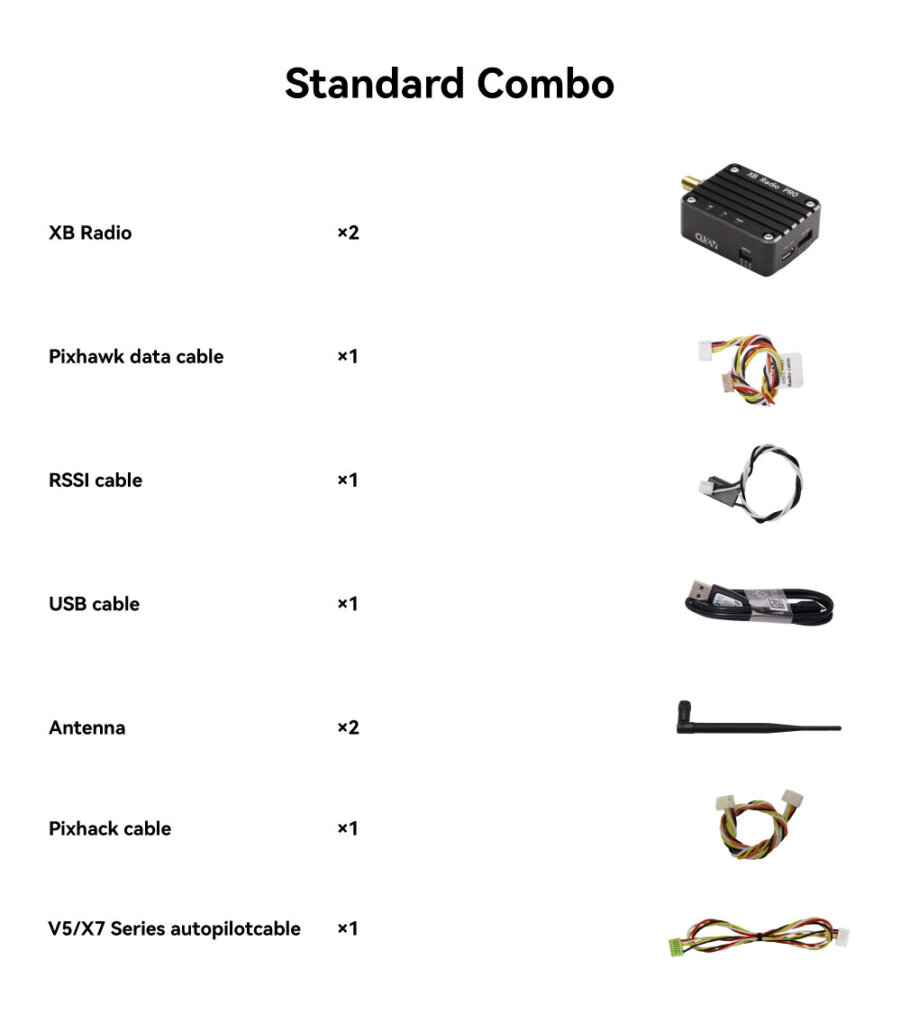

Parameter
Hardware | |
| Frequency Range | 902 ~ 928 MHz |
| Processor | ADF7023 transceiver，Cortex-X3 EFM32G230@28MHz Programmers include：Freescale MC9s08QE32 |
| Antenna Selection | wire.U.FlL and RPSMSA |
Performance | |
| Data Rate | 10kbps~200kbps, default 200kbps |
| Urban / Indoor Distance | 10kbps：up to 2000 feet (610 meters); 200kbps：up to 1000 feet |
| Outdoor/Suburban Distance | 10kbps：up to 15.5km 200kbps：up to 6.5km |
| Maximum Power | 24dBm (250mw) software optional |
| Receiver Sensitivity | 101dBm@200kbps; 110dBm@10kbps; |
Characteristic | |
| Data Interface | UART(3V）.SPI |
| GPIO | 15 digital iO, 4 10-bit ADC inputs, 2 PWM outputs |
| Network Topology | DIgiMEsh, relay, point-to-point, peer-to-peer network |
| Spread Spectrum | FHSS (software optional) |
| Programmability | |
| Internal Storage | 32KB FLASH/2KB RAM |
| CPU Clock | Up to 50MHz |
Power | |
| Service Voltage | 4 ~ 7 V |
| Emission Current | 229 mA |
| Receive Current | 44 mA |
| Sleep Current | 3 uA |
Management agency certification | |
| FCC（America） | MCQ-XB900HP |
| iC（Canada） | 1846A—XB900HP |
| C-tick(Australia） | Yes |
| Anatel（Brazil） | Yes |
| IDA（Singapore） | Yes |
