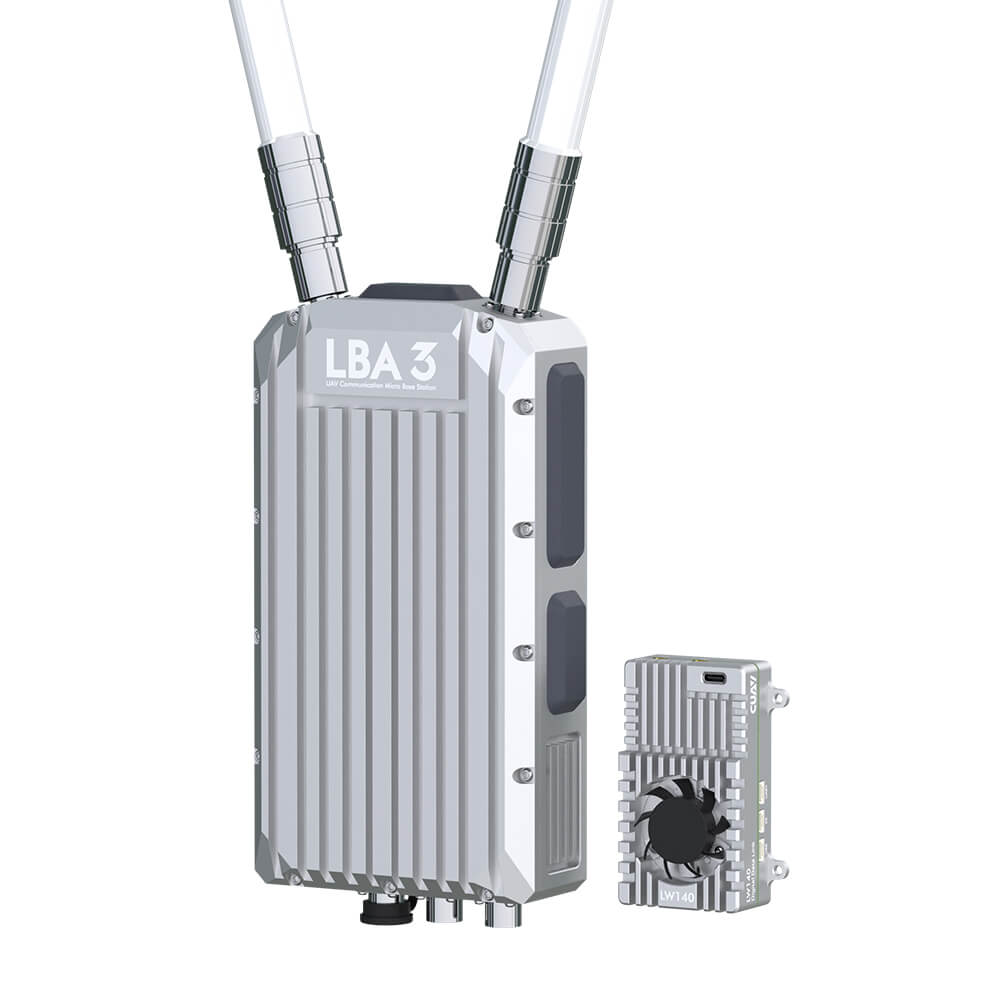

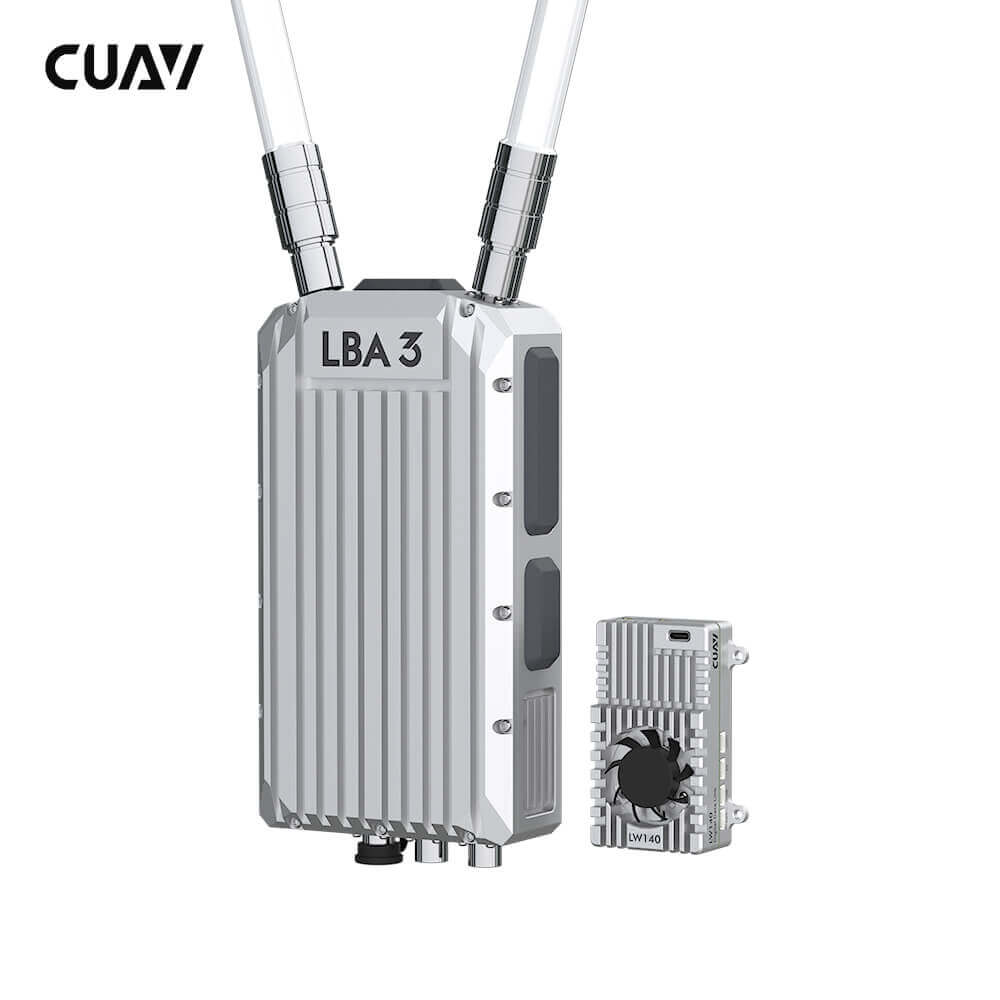

CUAV LBA 3 Communication Micro Base Station Brief:

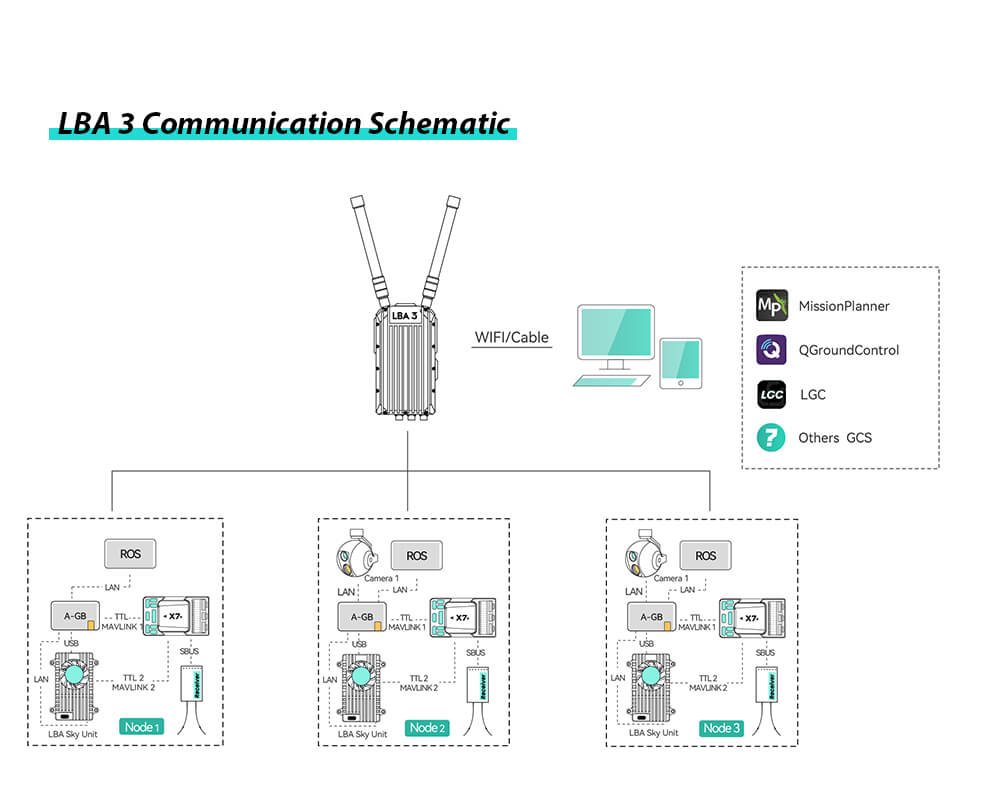

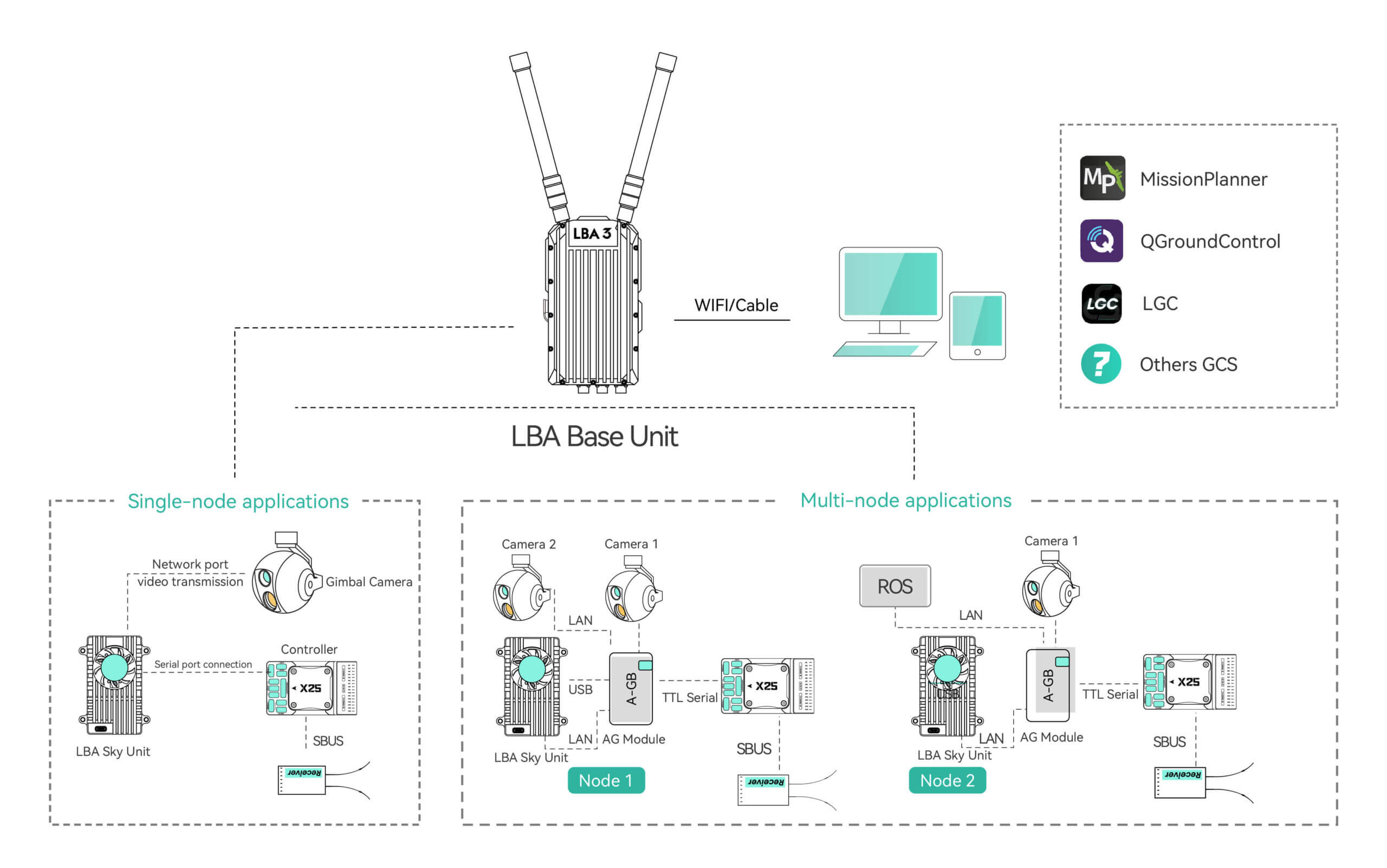

The LBA3 private network micro-base station system is a long-range, high-bandwidth link solution independently developed by CUAV. It comprises a micro-base station, an airborne unit, and an AG gateway, offering long-range communication coverage and a bandwidth of 30 Mbps. The system enables remote control and video transmission for unmanned vehicles and supports formation missions when paired with ground control stations such as the CUAV LGC.
CUAV LBA 3 Communication Micro Base Station Feature:
- Developed based on advanced LTE technology
- 30Mbps large bandwidth, support star network
- AES encryption technology
- IP67 industrial three-proof design, no pressure for outdoor work

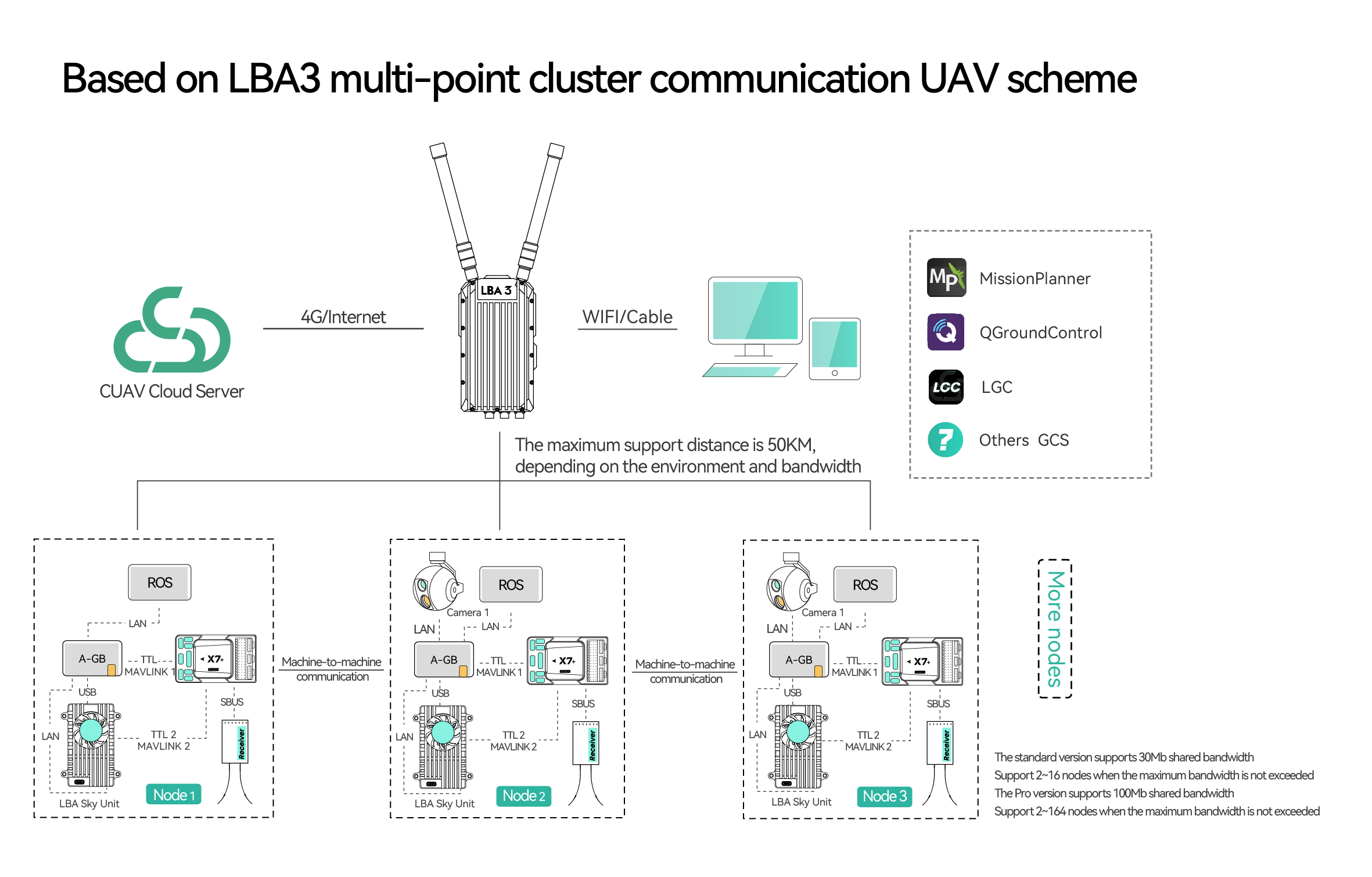

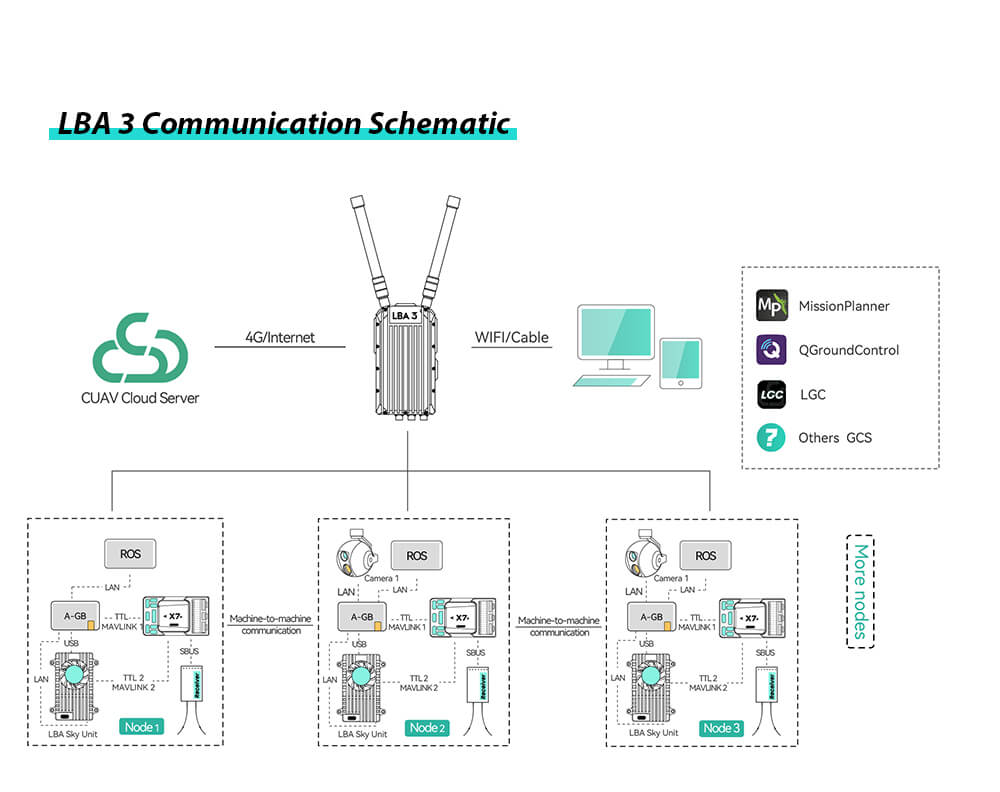

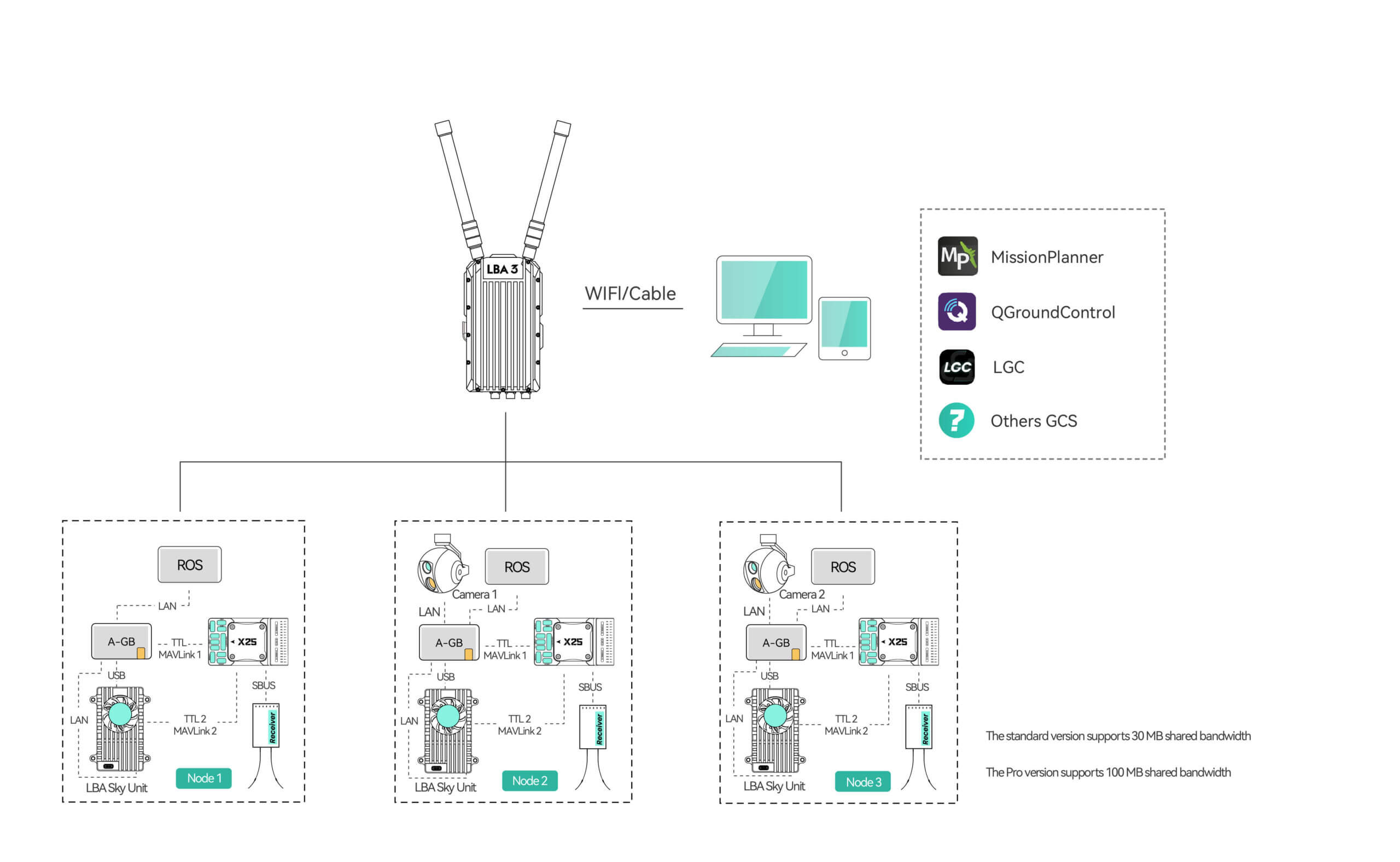

- Support formation flight

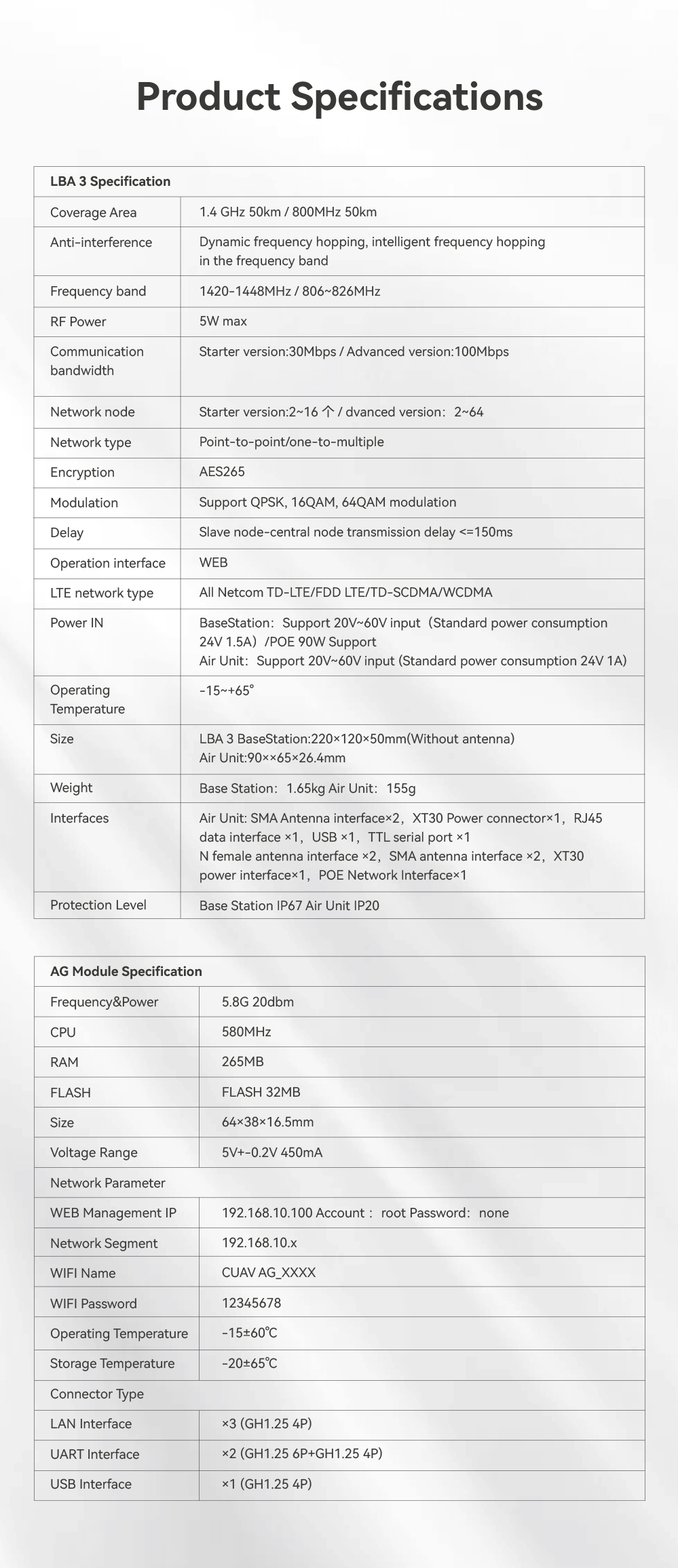

CUAV LBA 3 Communication Micro Base Station Specification:
Main Parameter | |
| Anti-interference | Dynamic frequency hopping, intelligent frequency hopping in the frequency band |
| Frequency band | 1420–1448MHz / 806–826MHz |
| Transmit power | 33dBm (Typical value) |
| Bandwidth | Default: 20Mbps(10MHz); 30Mbps(MAX,20MHz) |
| Encryption | AES265 |
| Modulation | Support QPSK, 16QAM, 64QAM modulation |
| Delay | Slave node-central node transmission delay ≤150ms |
| Operation interface | WEB |
| LTE network type | All Netcom TD-LTE/FDD LTE/TD-SCDMA/WCDMA |
| Power IN | BaseStation: Support 20V~60V input (Standard power consumption 24V 1.5A) /POE 90W SupportAir Unit: Support 20V~60V input (Standard power consumption 24V 1A) |
| Operating Temperature | -15~+65° |

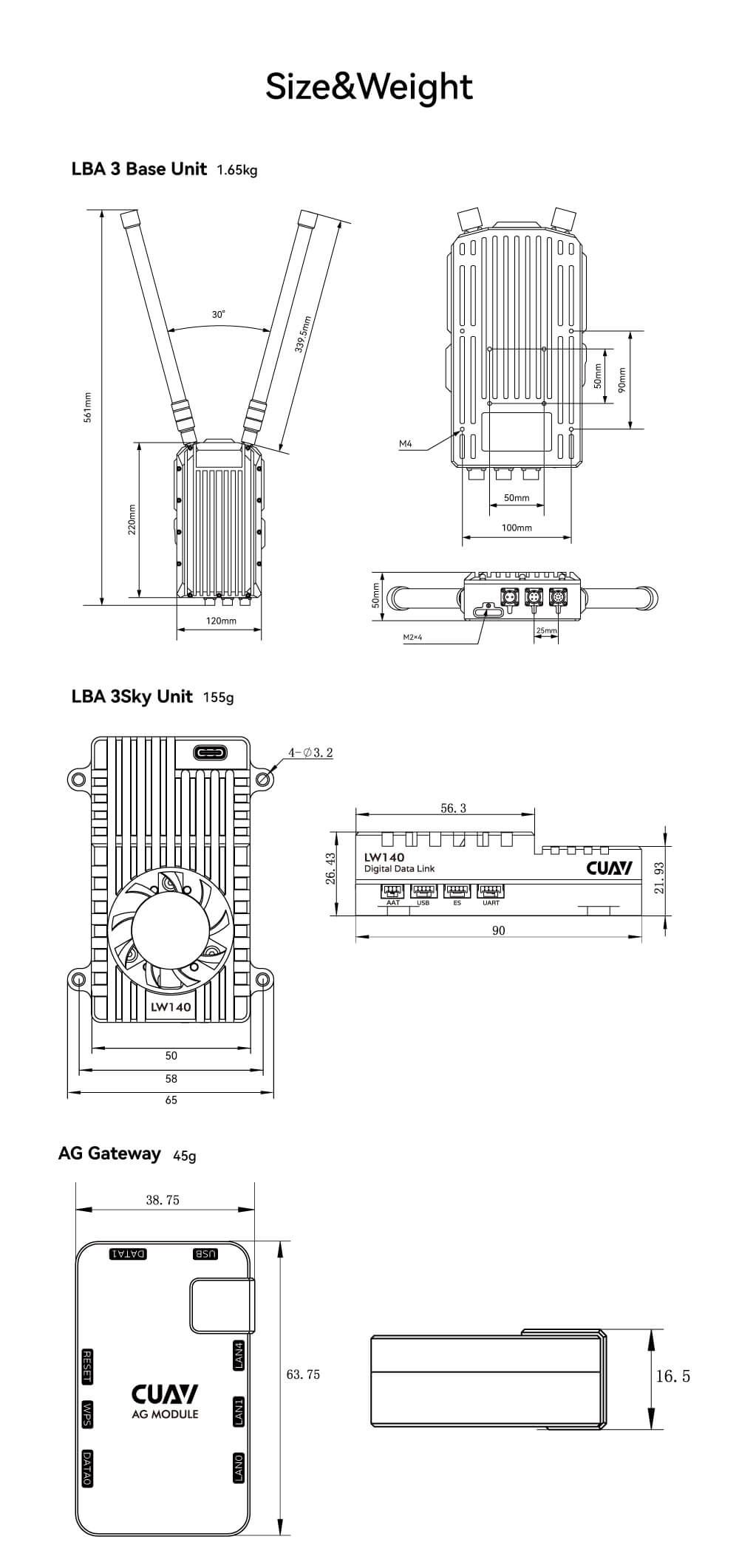

| Size | LBA 3 BaseStation:220×120×50mm(Without antenna) Air Unit:90×65×26.4mm |
| Weight | Base Station: 1.65kg Air Unit: 155g |
| Interfaces | Air Unit: SMA Antenna interface×2, XT30 Power connector×1, RJ45 data interface×1, USB ×1, TTL serial port ×1Base Station: N female antenna interface ×2, SMA antenna interface ×2, XT30 power interface×1, POE Network Interface×1, AAT interface ×1 |
| Protection Level | Base Station IP67Air Unit IP20 |
| AG Module Specification | |
| Frequency&Power | 5.8G 20dbm |
| CPU | 580MHz |
| RAM | 265MB |
| FLASH | FLASH 32MB |
| Size | 64×38×16.5mm |
| Voltage Range | 5V±0.2V 450mA |
| Network Segment | |
| WEB Management IP | 192.168.10.100 Account: root Password: none |
| Network Segment | 192.168.10.x |
| WIFI Name | CUAV AG_XXXX |
| WIFI Password | 12345678 |
| Operating Temperature | -15~60℃ |
| Storage Temperature | -20±65℃ |
| Connector Type | |
| LAN Interface | ×3 (GH1.25 4P) |
| UART Interface | ×2 (GH1.25 6P+GH1.25 4P) |
| USB Interface | ×1 (GH1.25 4P) |

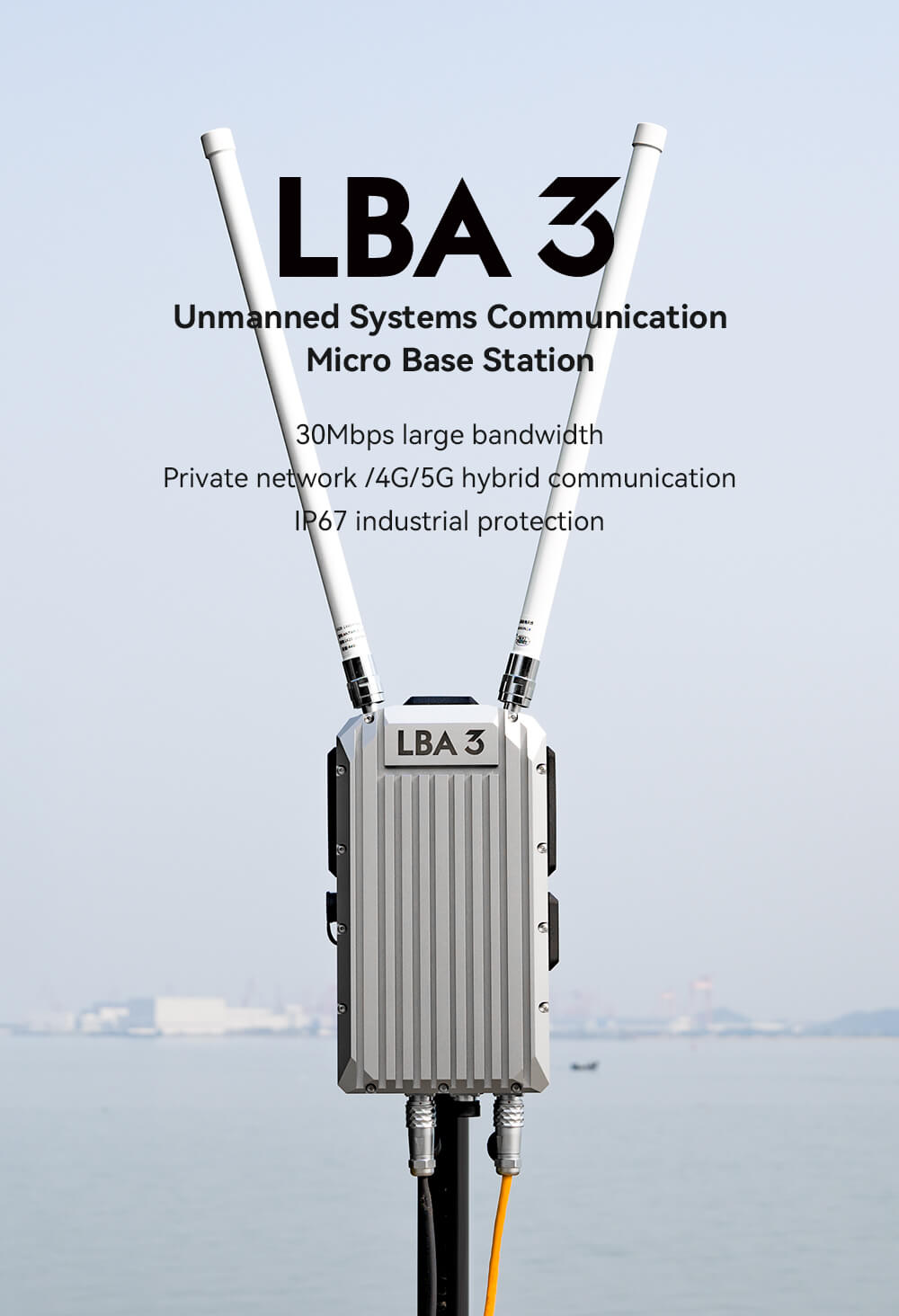

CUAV LBA 3 Communication Micro Base Station Description:

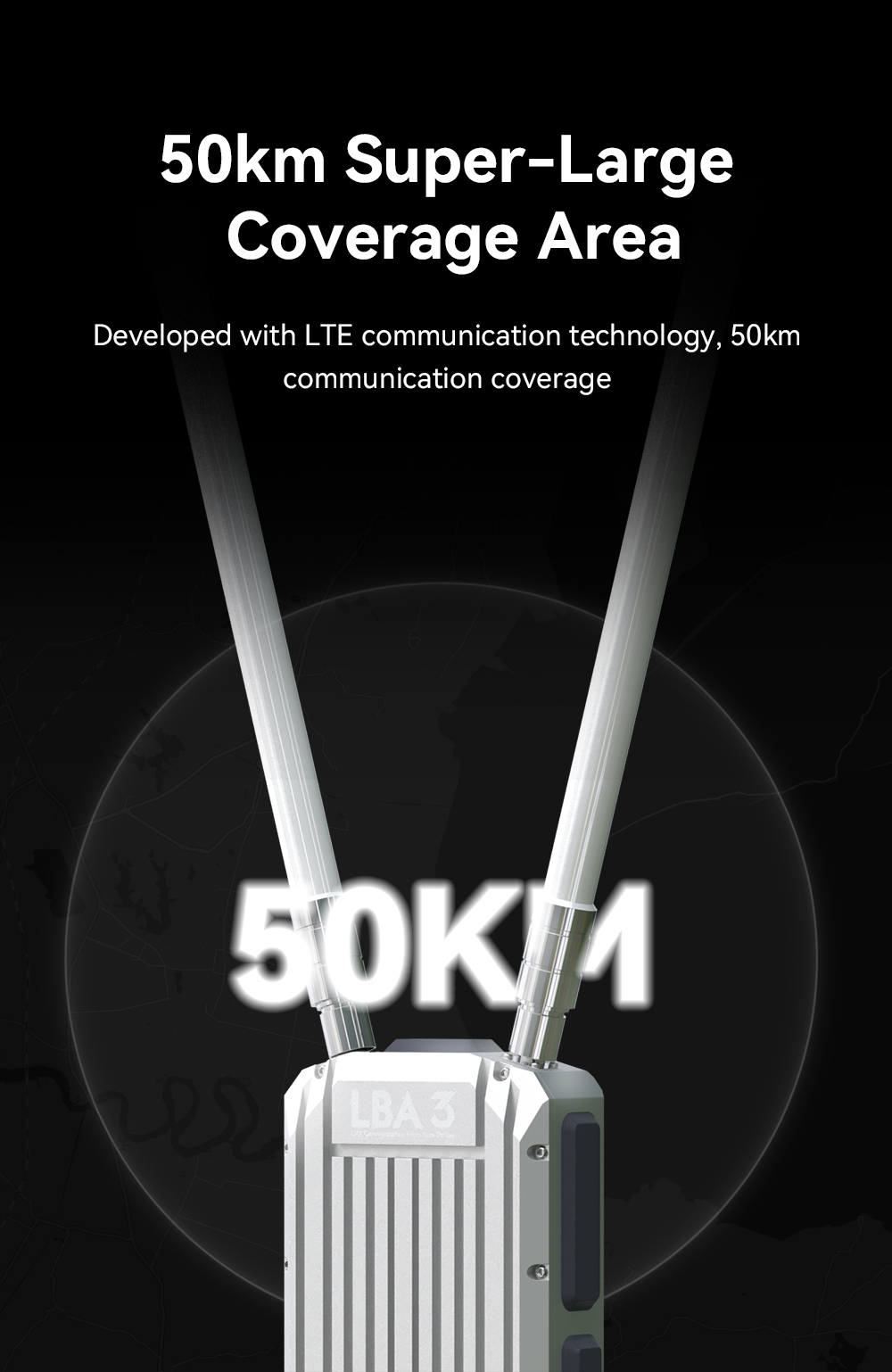

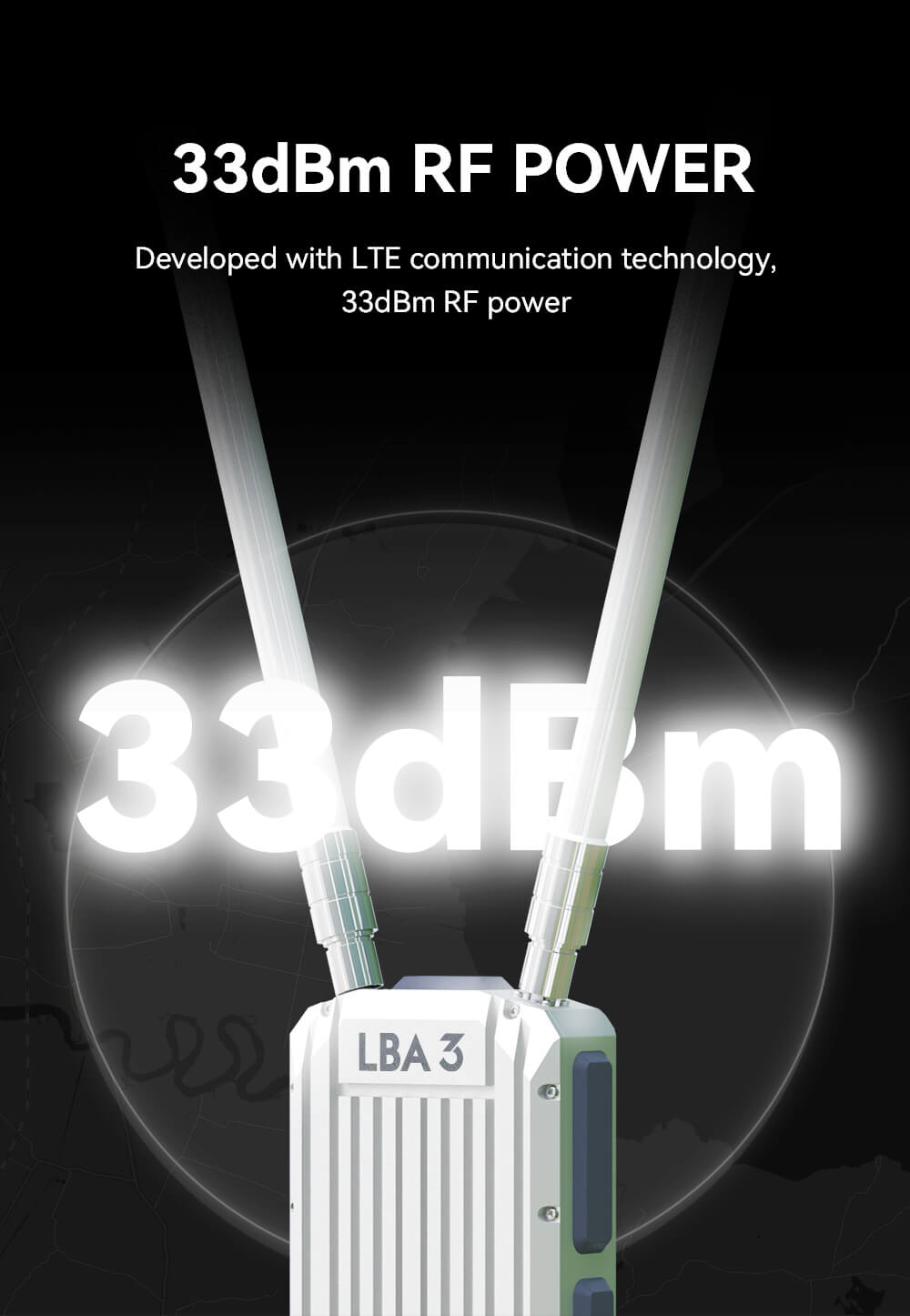

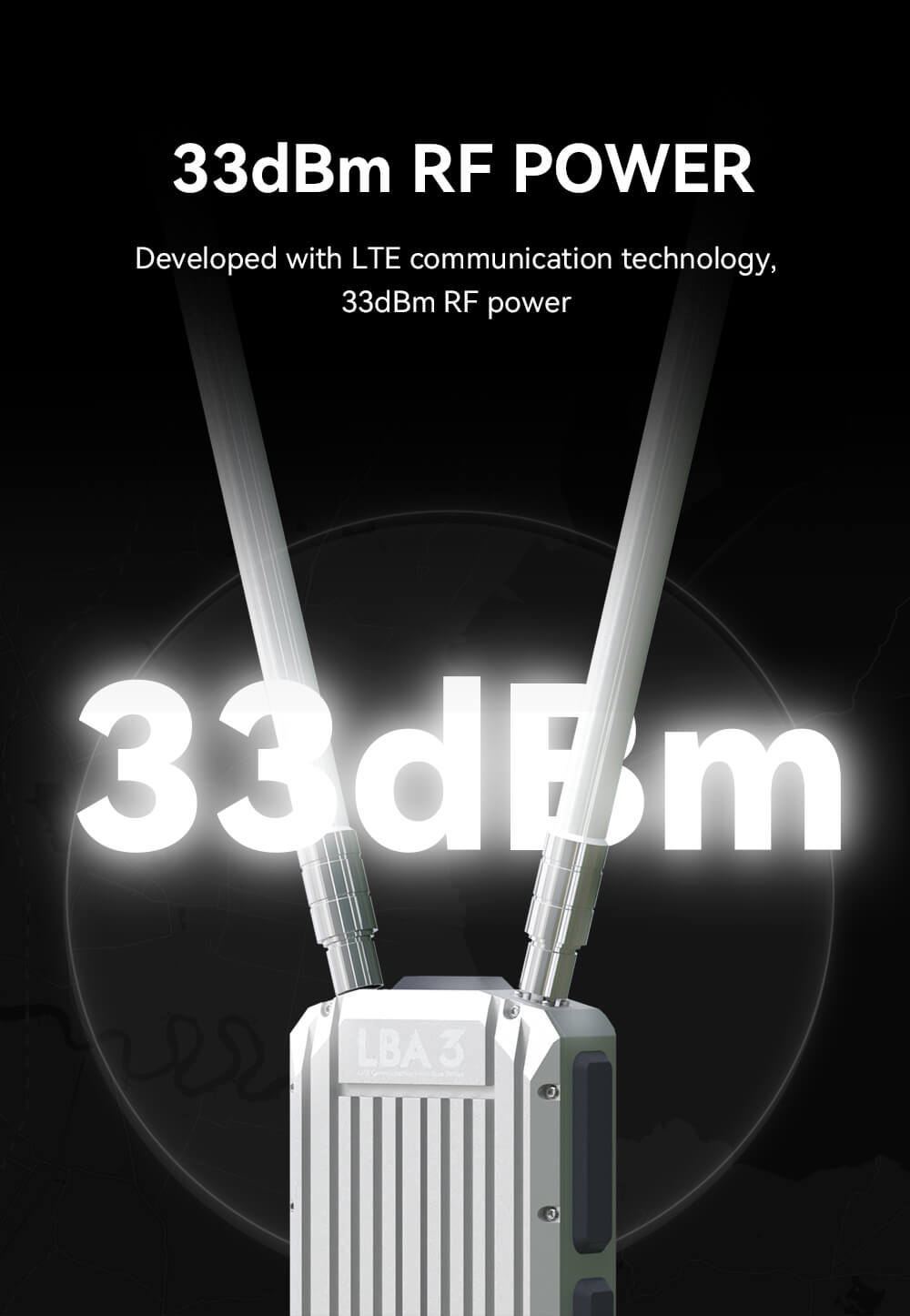

33dBM RE POWER
Developed with LTE communication technology, 33dBm RF power
Large Bandwidth, Support Star Networking AES Encryption Protection
- Realize the synchronous transmission of two-way data, improve the speed of data transmission while taking into account the stability. LBA 3 supports up to 30Mbps shared bandwidth, with faster access speed
- Using the AES encryption algorithm, it has a good ability to resist differential cryptanalysis and linear cryptanalysis, ensuring communication security

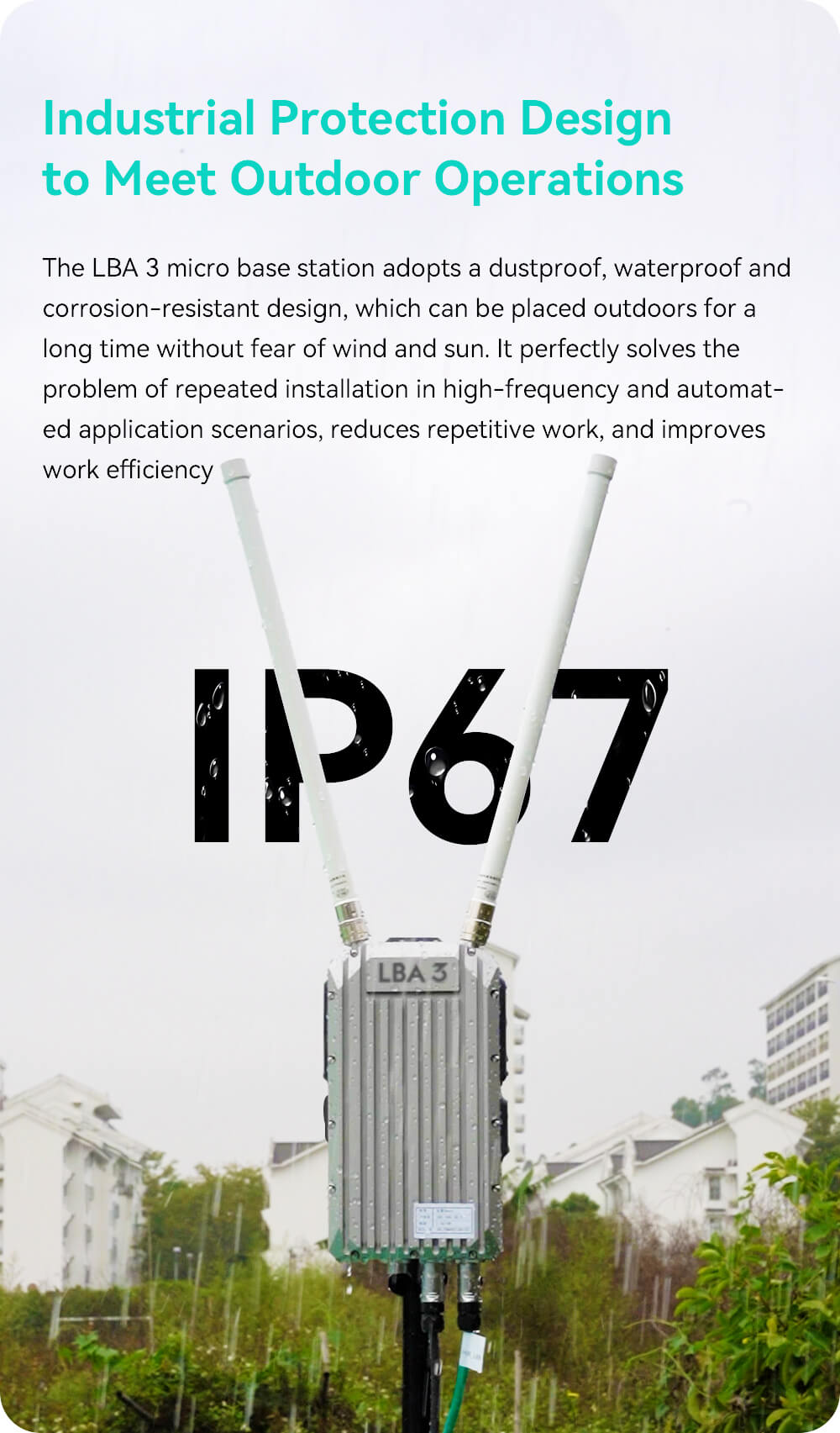

Industrial Protection Design to Meet Outdoor Operations
The LBA 3 micro base station adopts a dustproof, waterproof, and corrosion-resistant design, which can be placed outdoors for a long time without fear of wind and sun. It perfectly solves the problem of repeated installation in high-frequency and automated application scenarios, reduces repetitive work, and improves work efficiency.

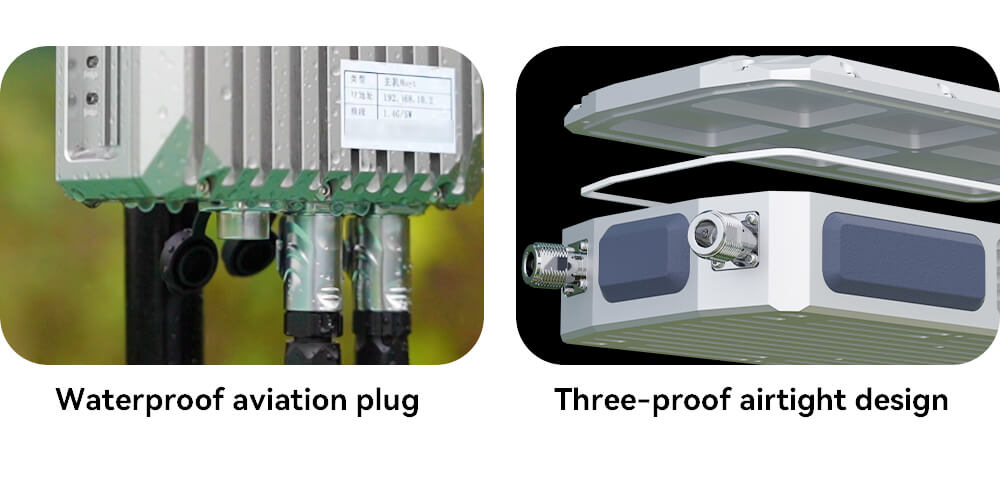

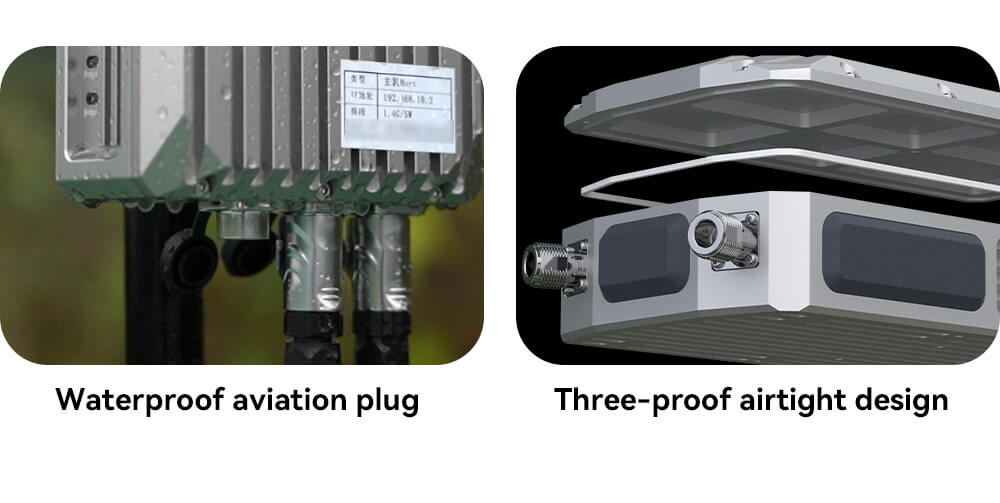

Waterproof aviation plug
Three-proof airtight design
Application
- Coastal Inspection
- Pipeline Inspection
- Aerial mapping
- Disaster Rescue
- Delivery Application
- Fire Application
