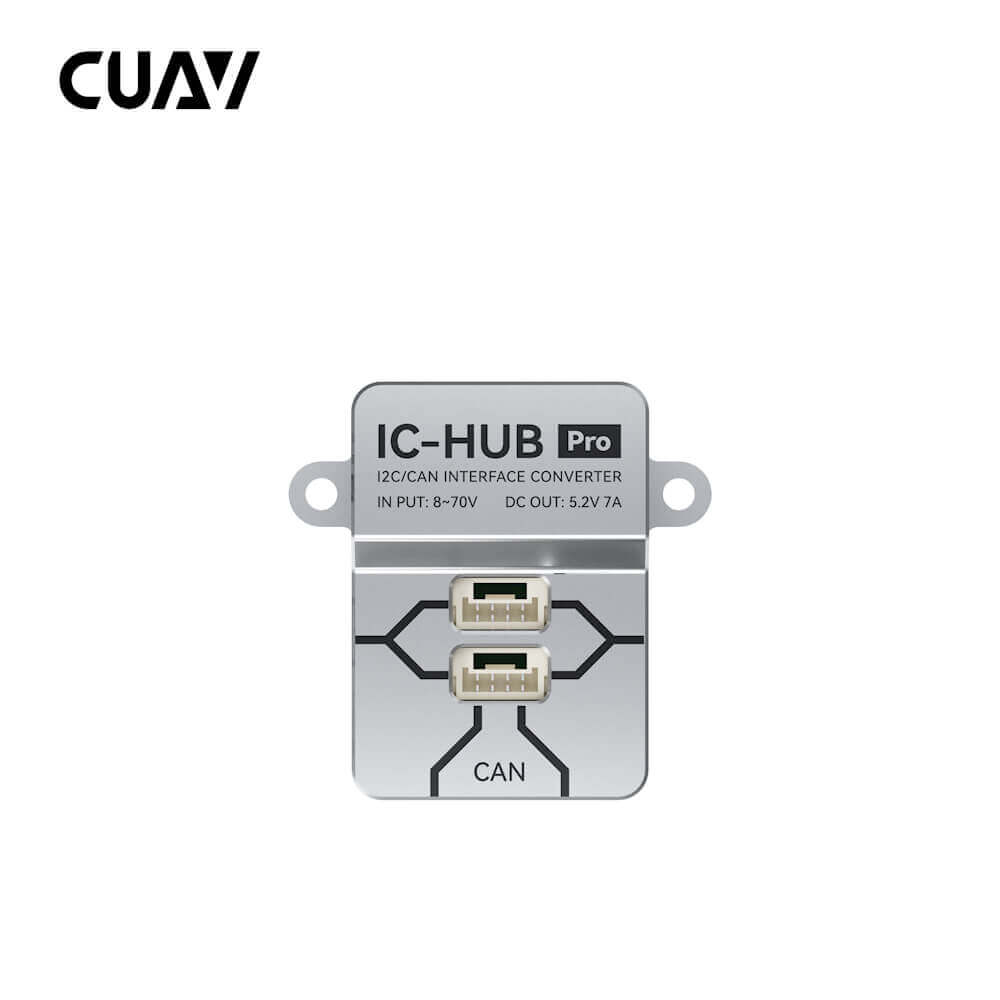

IC-HUB Pro Bus Expansion Module Brief:
IC-HUB Pro is compatible with I2C and CAN interface protocols, providing a one-stop solution to core pain points such as insufficient device interfaces, power supply, and multi-module stability. It provides industrial-grade stable scalability for I2C or CAN smart devices.
IC-HUB Pro Bus Expansion Module Feature:
- Wide Voltage and High Power Supply
- Support Multi-Device Collaboration
- Triple Intelligent Protection & Anti-Jamming
- I2C/CAN Bus Expansion
IC-HUB Pro Bus Expansion Module Specification:
| Basic Parameters | |
| Input Voltage | 8~70V(2~16S) |
| Input Port | 1 (GH1.25 4P) |
| Output Port | 8 (GH1.25 4P) |
| Port Protection | Single-Port Integrated 2 A Self-Resetting Fuse |
| Protocol Compatibility | I2C/CAN |
| Operating Temperature | -20~80°C |
| Weight | 16.5g |
| Size | 34.50 x 34.50 x 15.40 mm (With Screw Holes) |
| Shell Material | CNC Aluminum Alloy |
IC-HUB Pro Bus Expansion Module Description:
Wide Voltage and High Power Supply Widely Adaptable to Unmanned System Devices
The input voltage range is 8V~70V, compatible with mainstream lithium battery packs from 2S to 16S. A single module can power devices with 8 ports, effectively withstand voltage fluctuations during start-up and shutdown, and prevent critical equipment from going offline.
Dual-Protocol 8-Way Expansion Support Multi-Device Collaboration
It supports 12C and CAN dual-bus communication and reserves 8 independent expansion interfaces with 5V voltage regulation, effectively solving the problems of multiple peripheral devices and long-distance power supply voltage drop, and significantly improving the system’s operational stability.
Anti-Jamming and Triple Intelligent ProtectionCore Equipment Fully Guaranteed
Single-port integrated 2A self-resetting fuse, which cuts off the circuit in milliseconds during overcurrent and automatically recovers. It forms a triple safety protection system that can prevent overvoltage, overcurrent, and short circuits, effectively protecting core equipment.
Efficient Heat Dissipation Aviation Aluminum Alloy Shell
It adopts a standard JST 1.25 4P port. The shell is made of aviation-grade aluminum alloy, which dissipates heat effectively and quickly.
