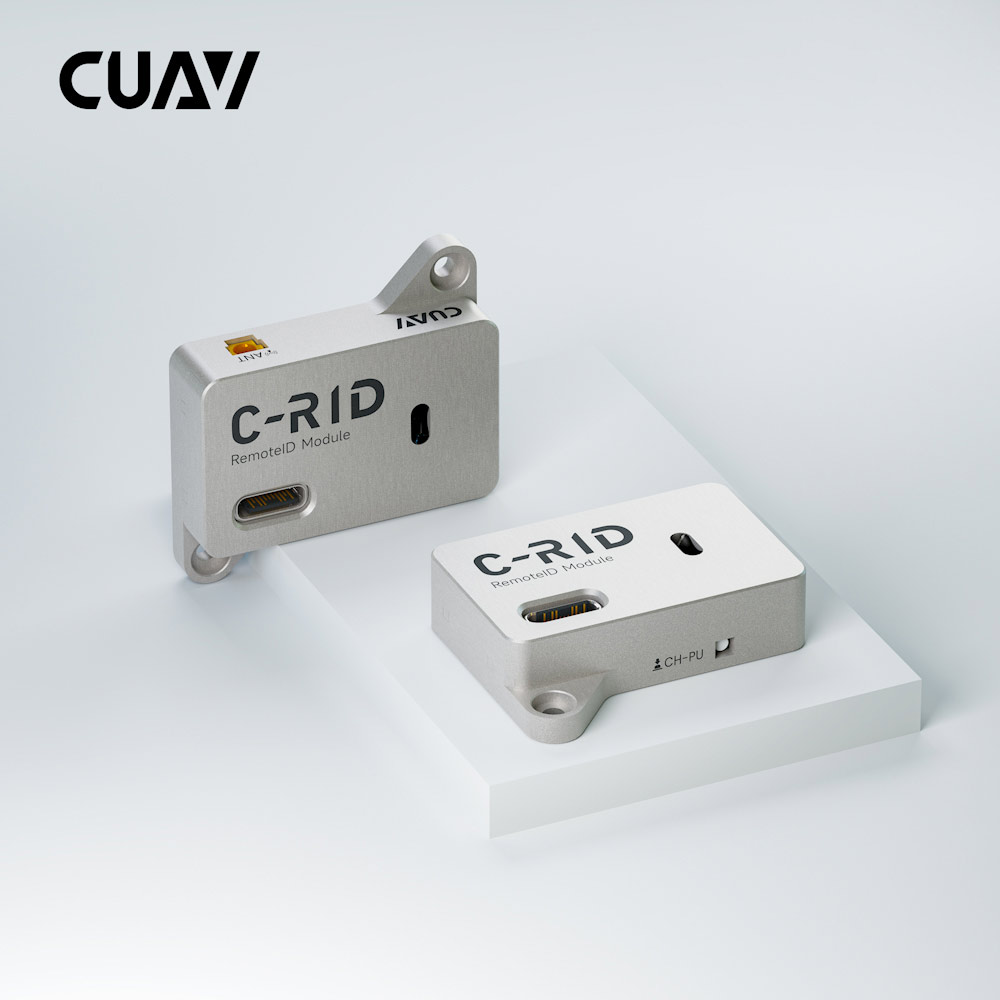

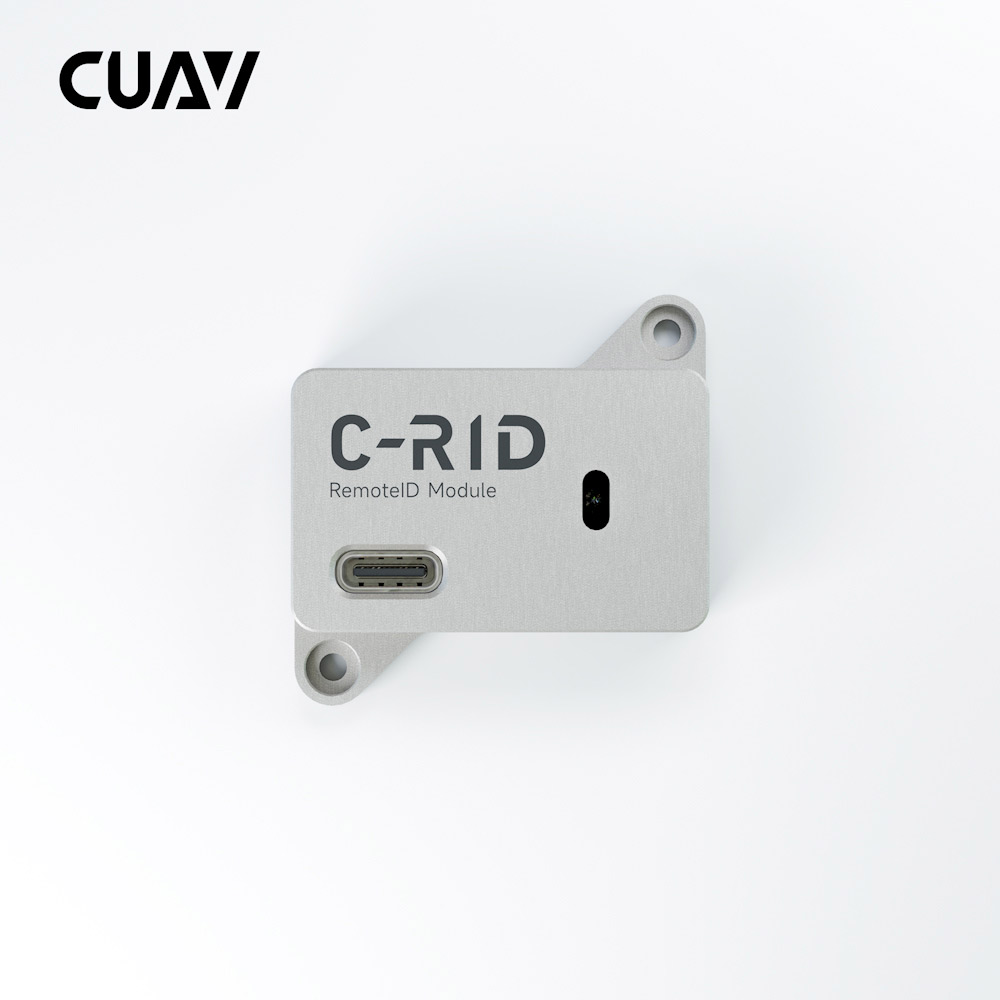

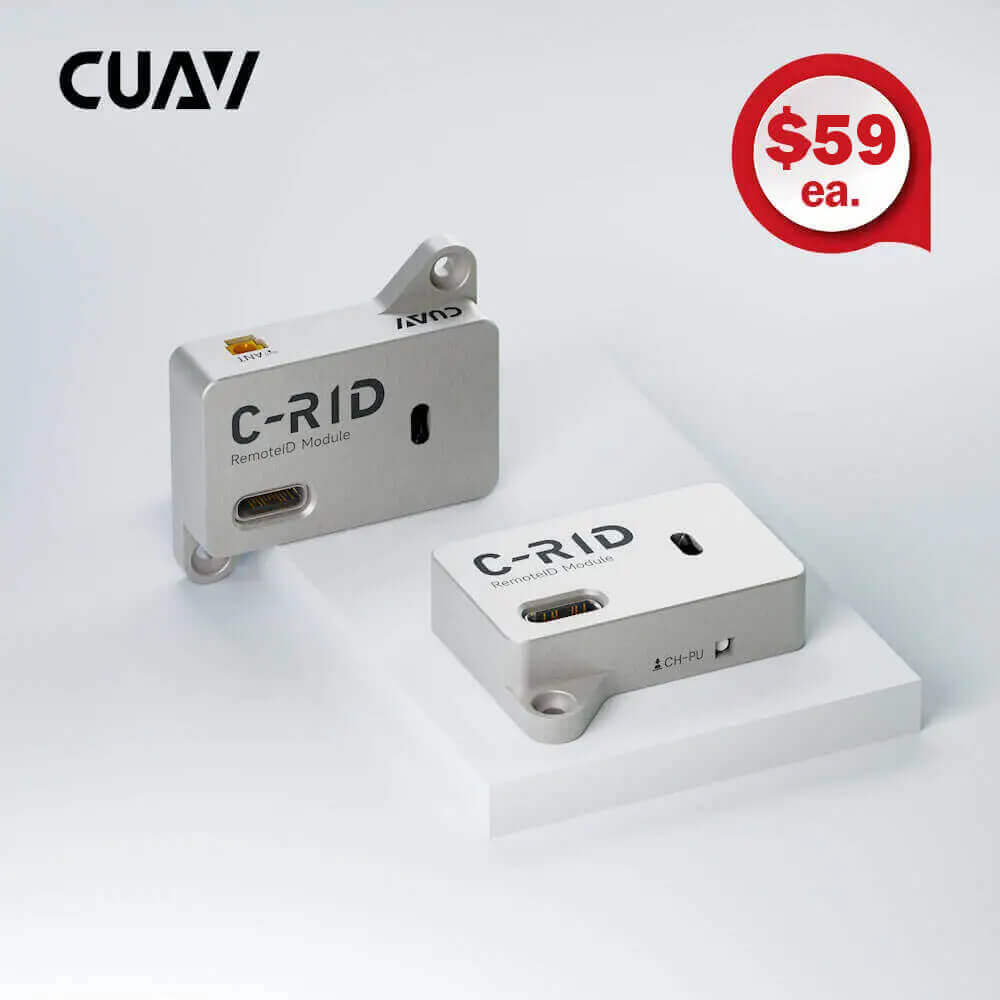

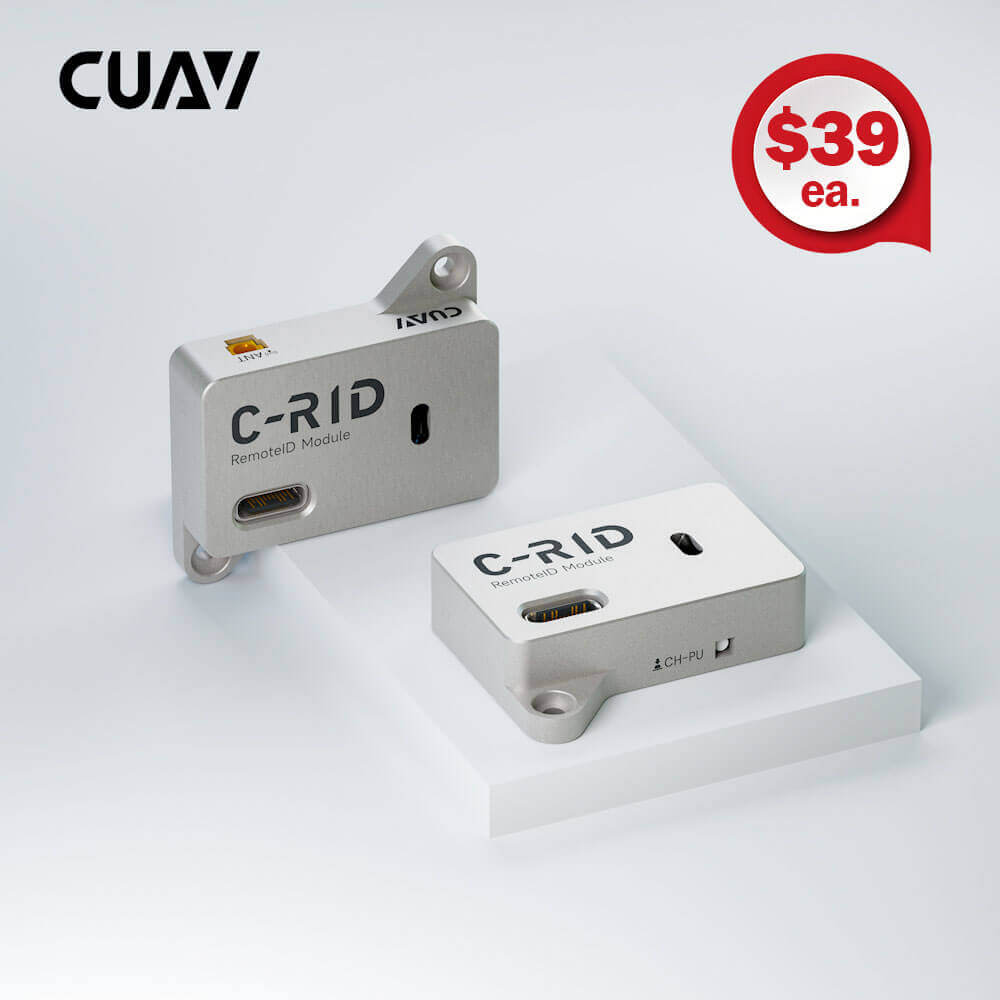

C-RID REMOTE ID MODULE
C-RID Remote ID Module Brief:
C-RID is a unique product identification code broadcasting module of drones, which can help drones comply with regulatory requirements of some countries / regions.
C-RID Product Feature
- Unique product identification code required for drone compliance
- Domestic dual-core MCU
- Long-range broadcast
- Lightweight design
- ArduRemoteID standard hardware
- Cooperate with LGC to set and analyze

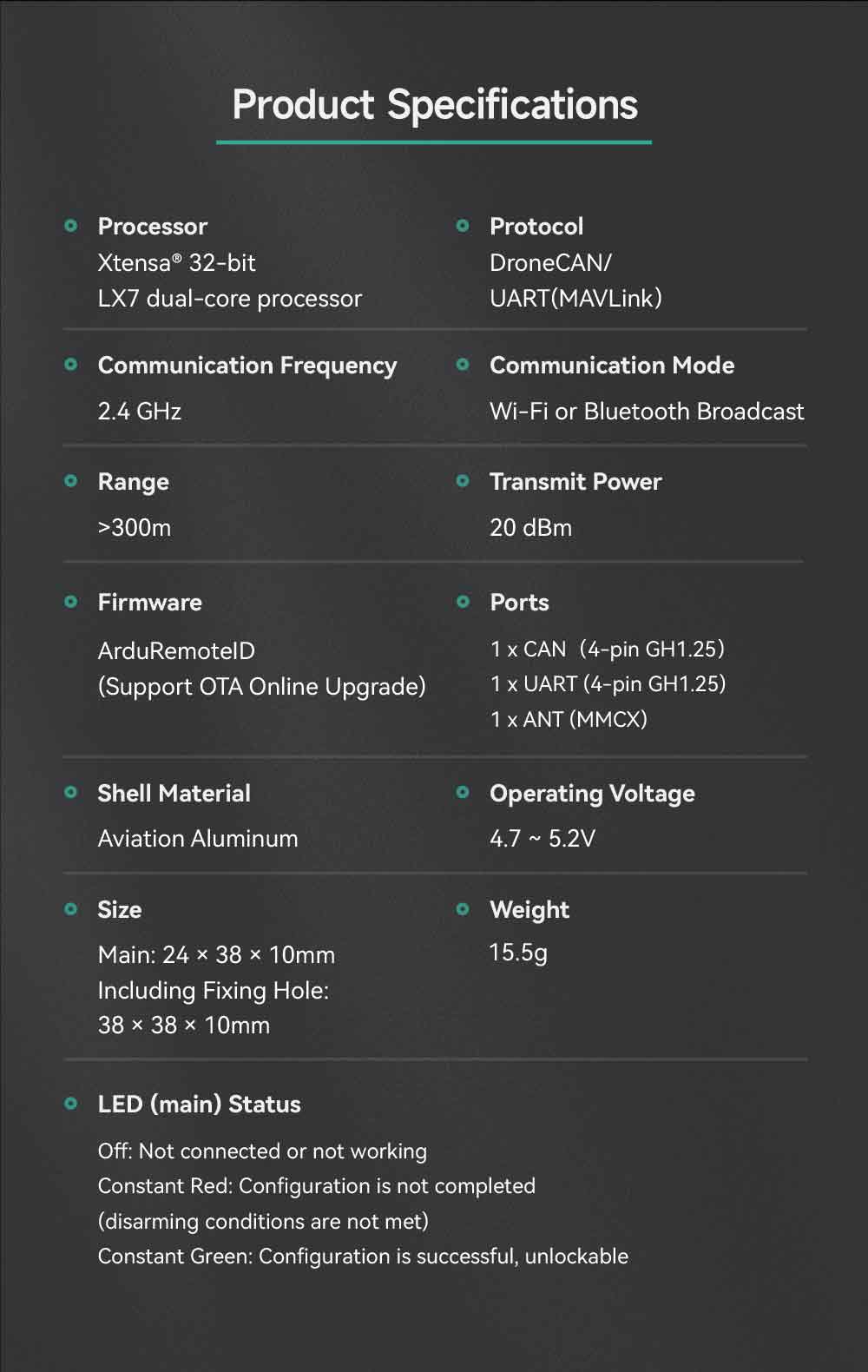

C-RID Product Parameter
Secification | |
| Processor | Xtensa° 32-bit LX7 dual-core processor |
| Protocol | DroneCAN/UART(MAVLink) |
| Communication Frequency | 2.4GHz |
| Communication Mode | Wi-Fi or Bluetooth Broadcast |
| Range | >300m |
| Transmit Power | 20dBm |
| Firmware | ArduRemotelD (Support OTA Online Upgrade) |

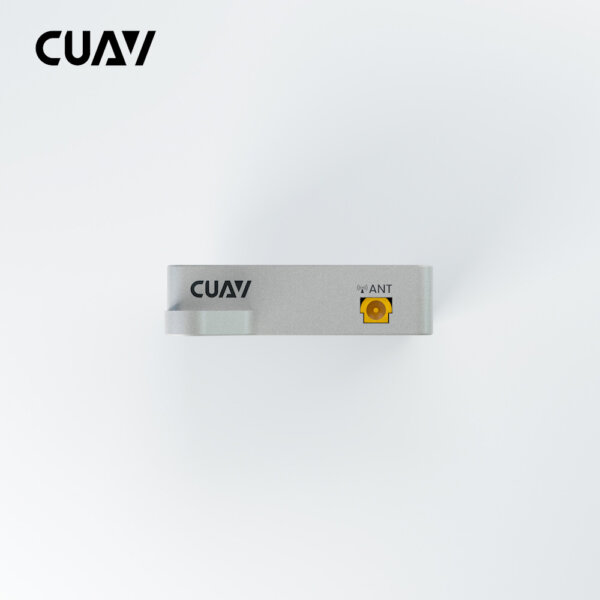

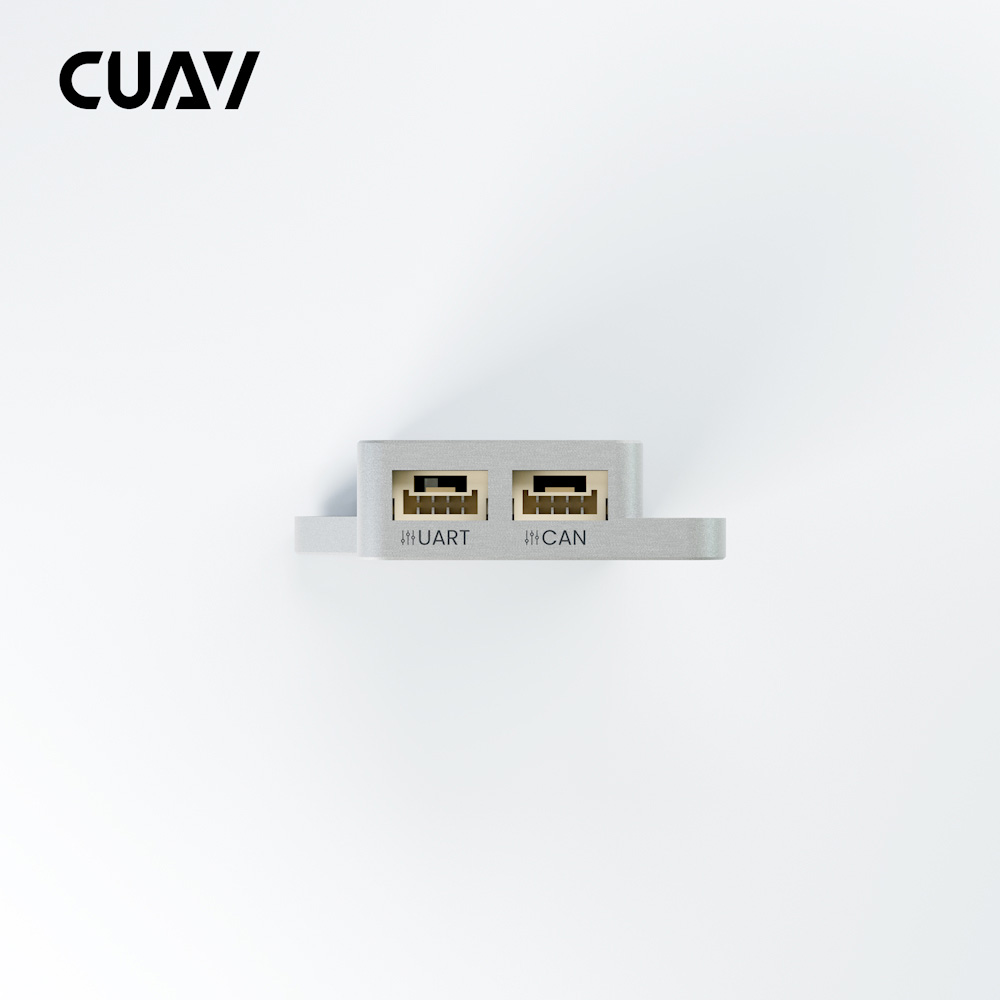

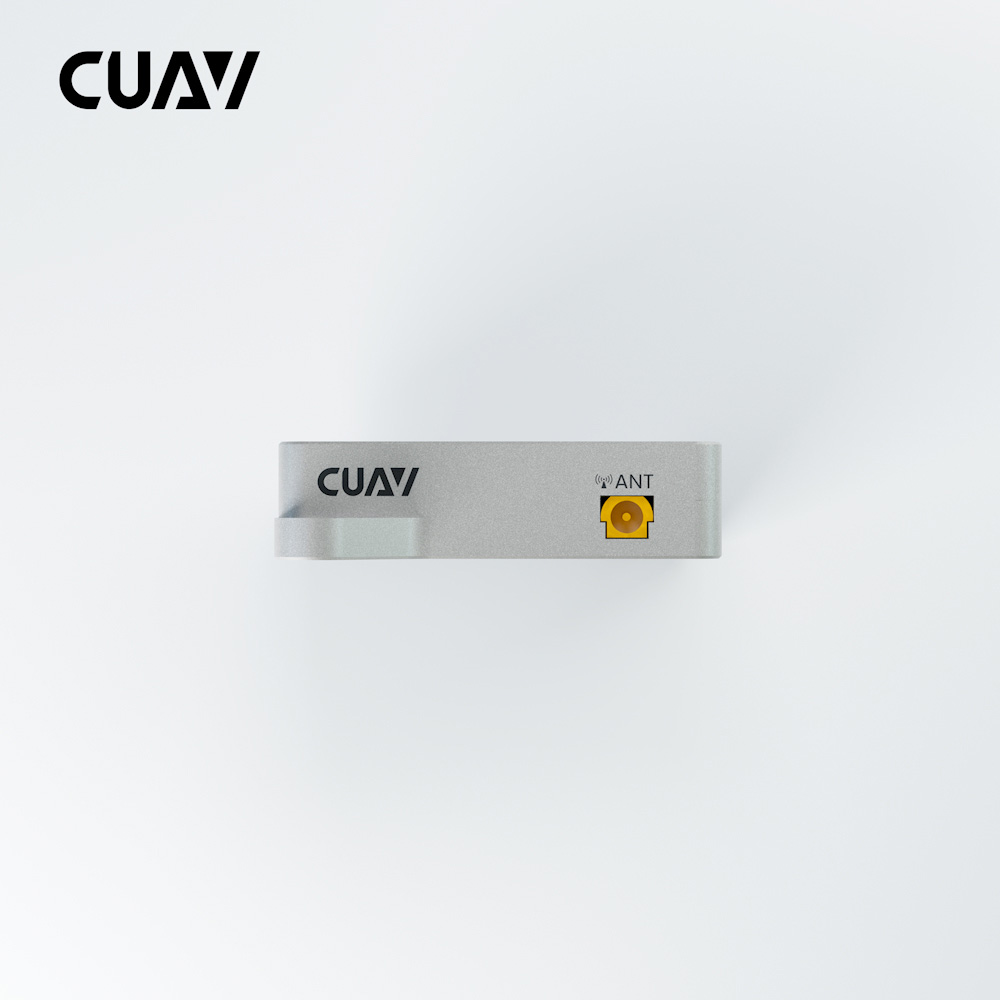

| Ports | 1 xCAN (4-pin GH1.25) 1 xUART (4-pin GH1.25) 1xANT(MMCX) |
| Shell Material | Aviation Aluminum |
| Operating Voltage | 4.7～5.2V |

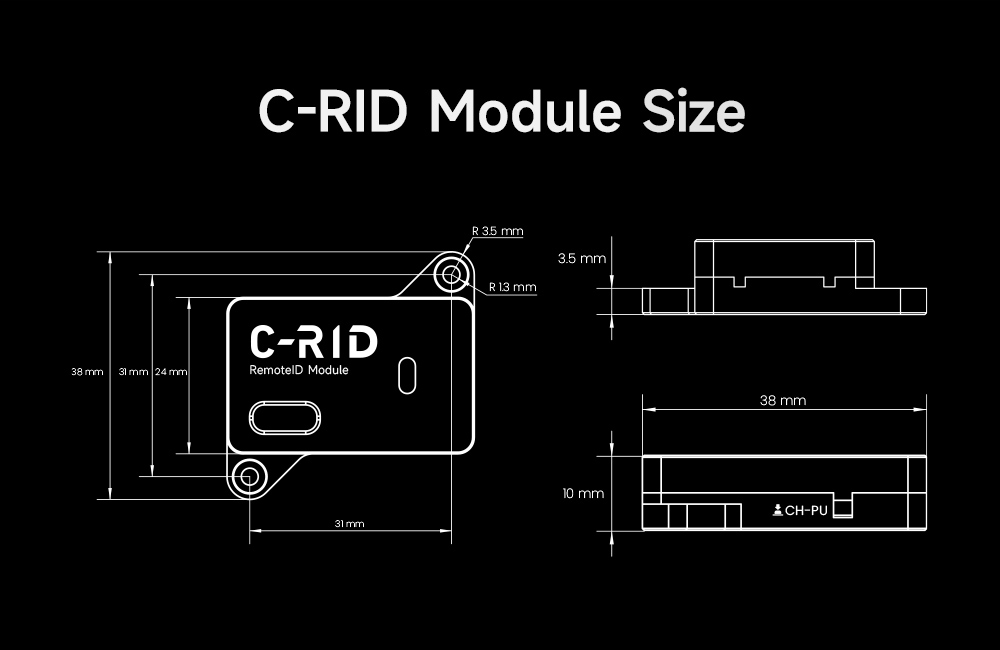

| Size | Main: 24×38x10mm Including Fixing Hole: 38x38x10mm |
| Weight | 15.5g |
| LED (main) Status | Off: Not connected or not working Constant Red: Configuration is not completed(disarming conditions are not met) Constant Green: Configuration is successful, unlockable |
Identification Code for Compliant Products of Drones
Drones equipped with Remote ID and capable of broadcasting have become a regulatory requirement in countries and regions such as China, the European Union, and the United States. C-RID is designed based on Chinese standards (GB/T 41300-2022, GB42590-2023, “Unique Product Identification Code for Civil Unmanned Aircraft”), EU standards (prEN 4709-002 standard), and ASTM F3411 − 22a standard, ensuring compatibility with remote ID regulations in multiple regions.

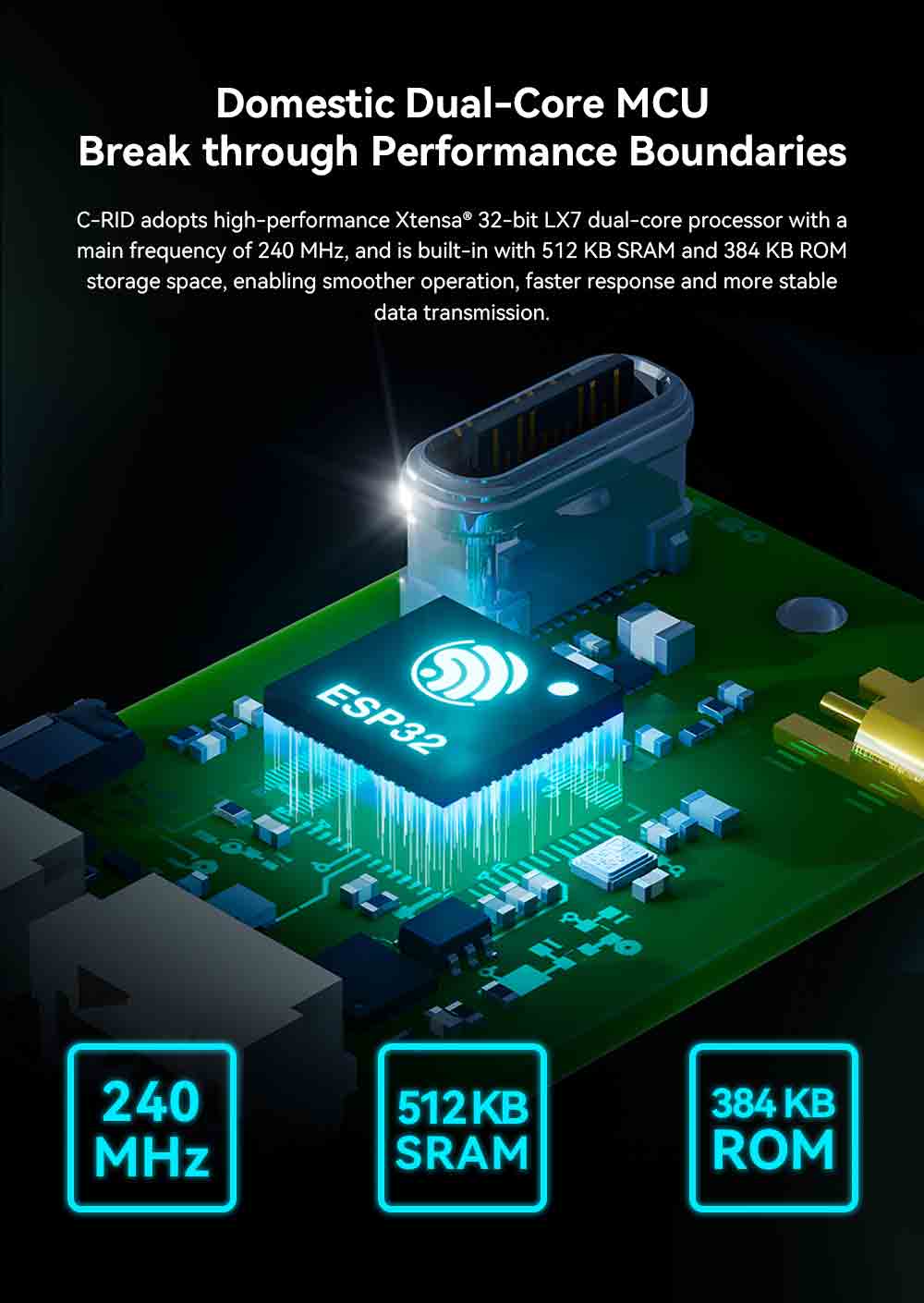

C-RID adopts a high-performance Xtensa® 32-bit LX7 dual-core processor with a main frequency of 240 MHz, and is built with 512 KB SRAM and 384 KB ROM storage space, enabling smoother operation, faster response, and more stable data transmission.

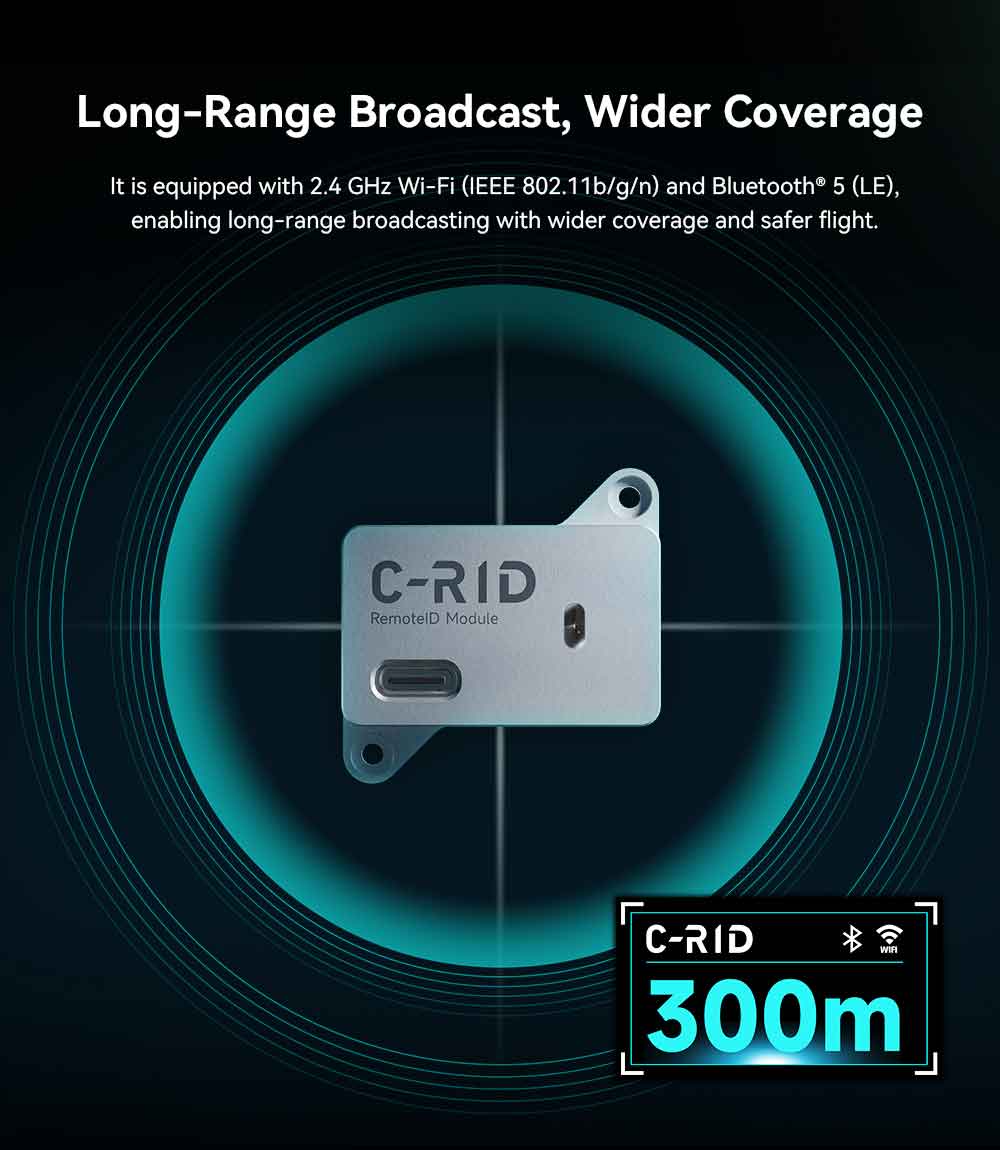

It is equipped with 2.4 GHz Wi-Fi (IEEE 802.11b/g/n) and Bluetooth® 5 (LE), enabling long-range broadcasting with wider coverage and safer flight.

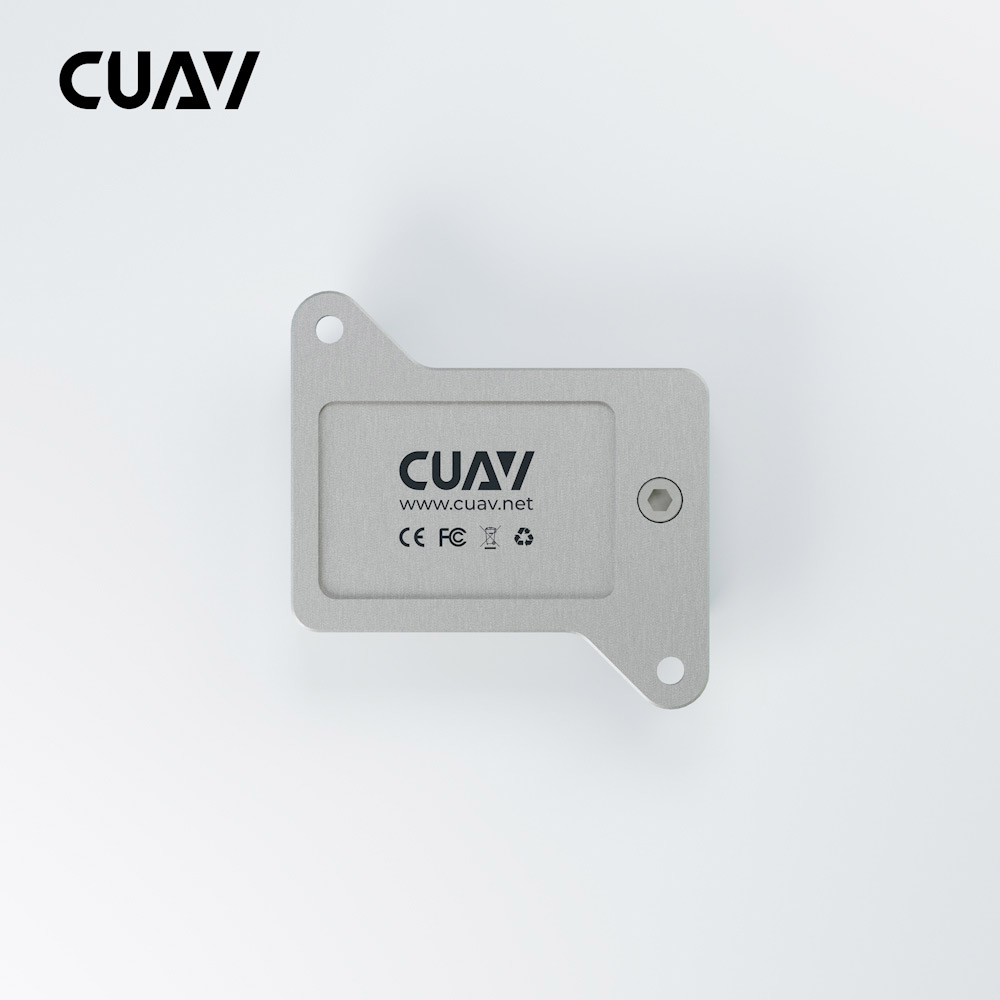

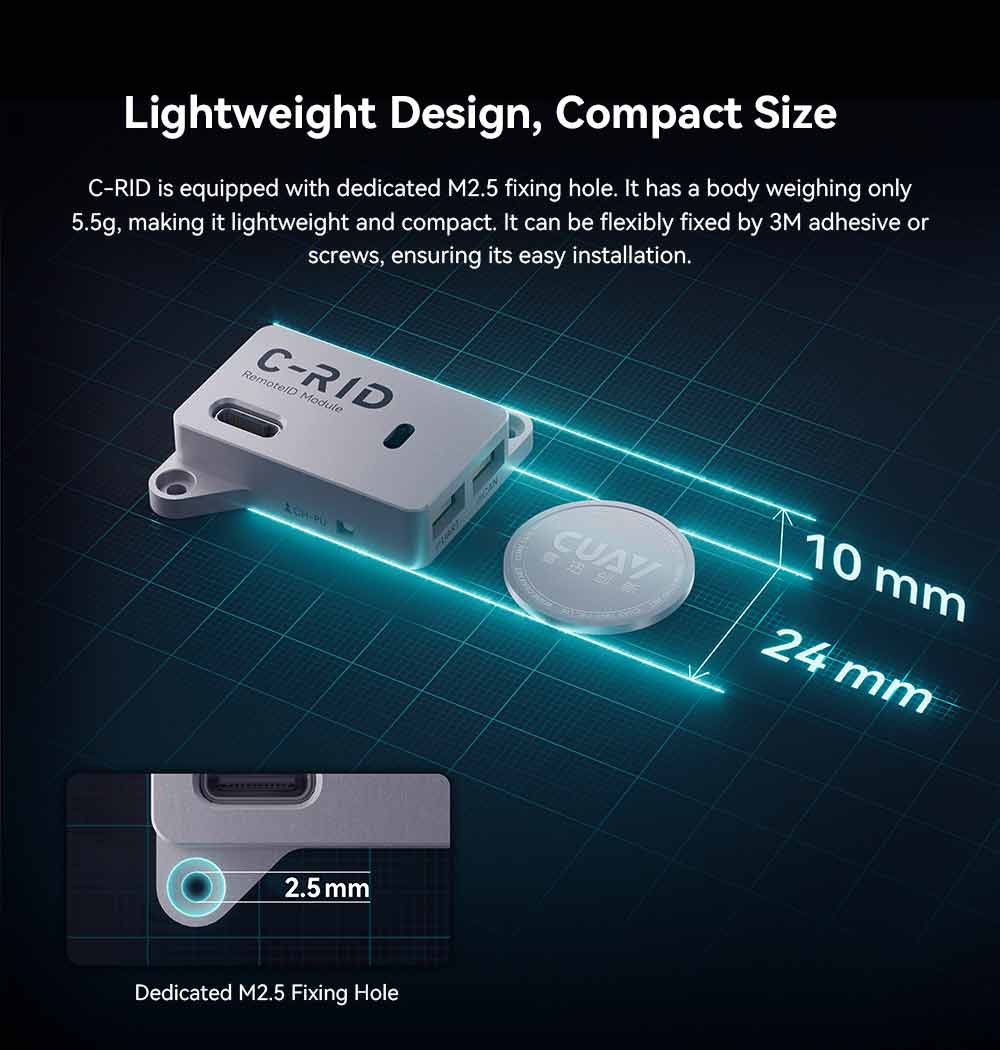

C-RID is equipped with a dedicated M2.5 fixing hole. It has a body weighing only 5.5g, making it lightweight and compact. It can be flexibly fixed by 3M adhesive or screws, ensuring its easy installation.

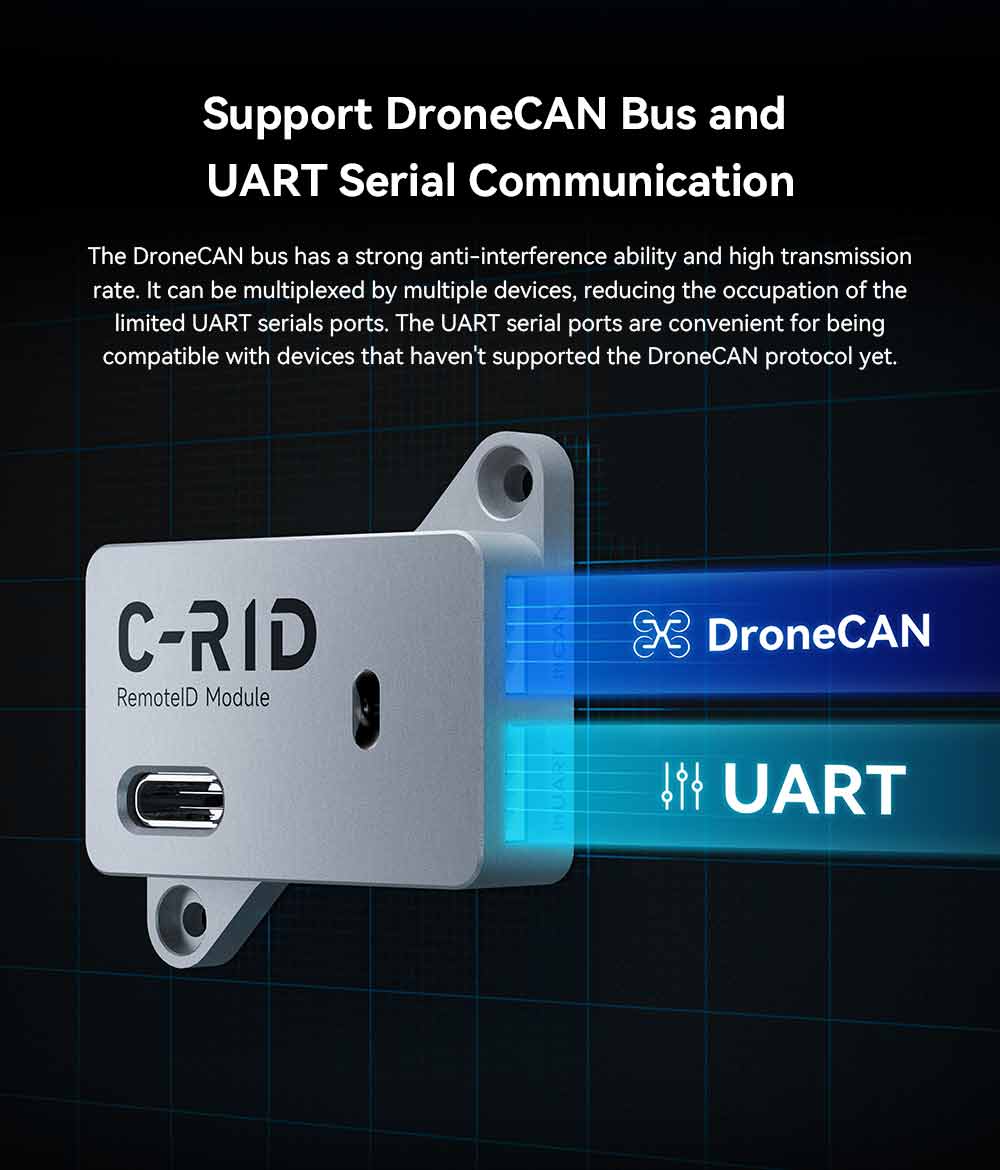

The DroneCAN bus has a strong anti-interference ability and a high transmission rate. It can be multiplexed by multiple devices, reducing the occupation of the limited UART serial ports. The UART serial ports are convenient because they are compatible with devices that haven’t supported the DroneCAN protocol yet.

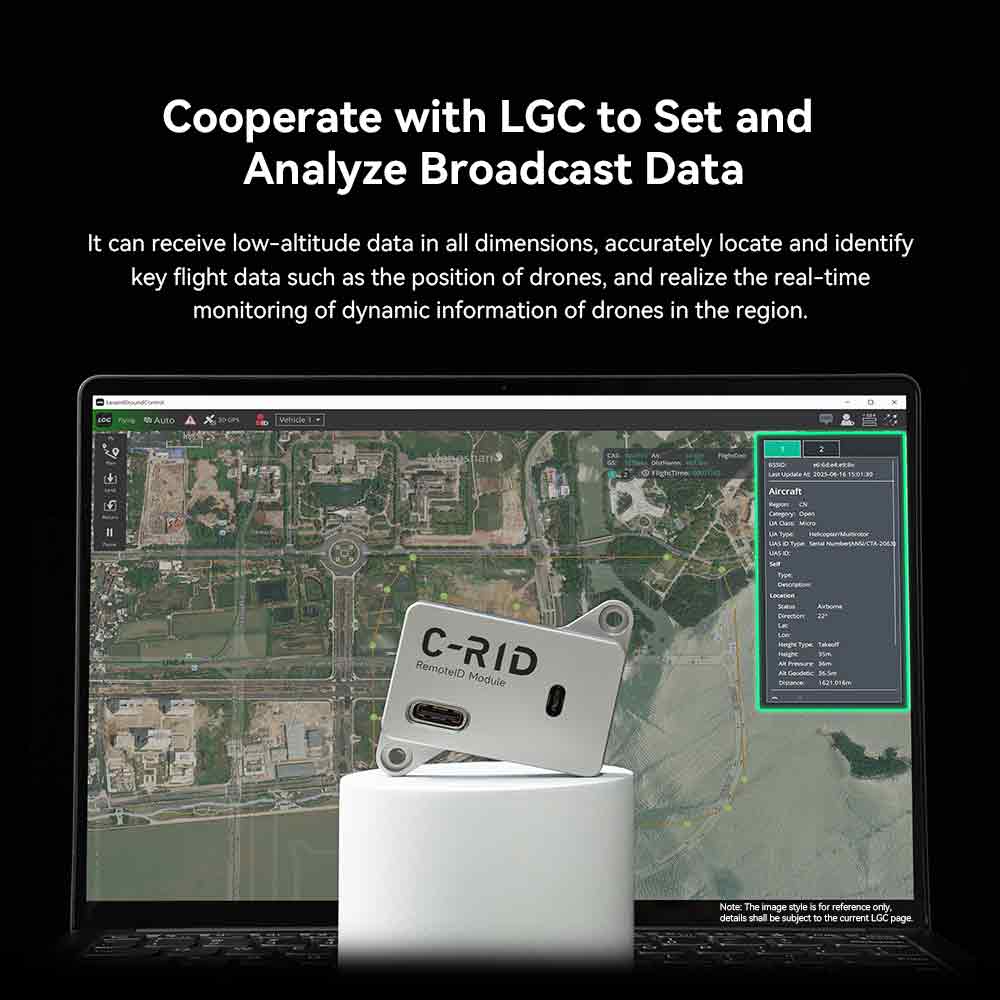

It can receive low-altitude data in all dimensions, accurately locate and identify key flight data such as the position of drones, and realize the real-time monitoring of dynamic information of drones in the region.

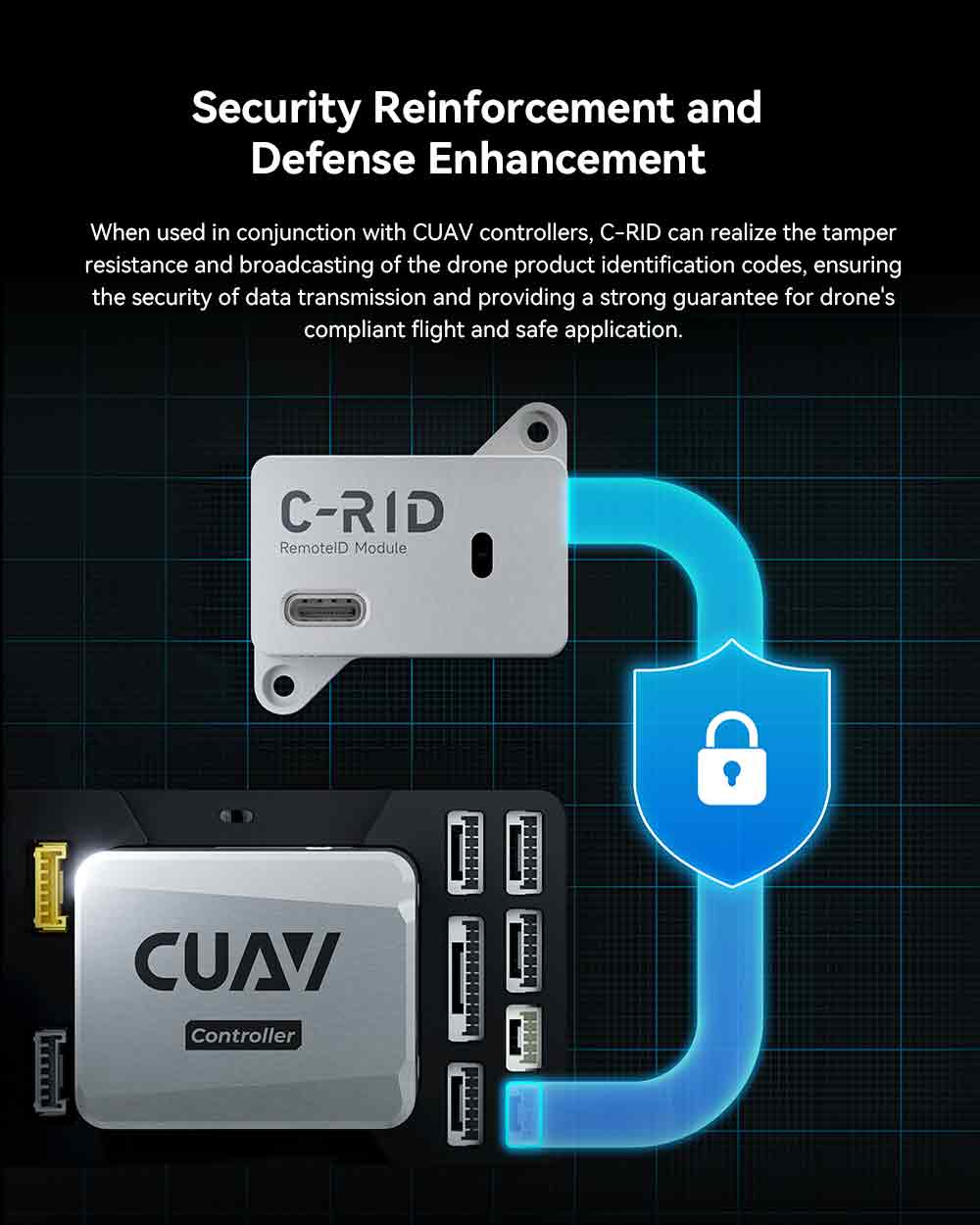

When used in conjunction with CUAV controllers, C-RID can realize the tamper resistance and broadcasting of the drone unique product identification codes, ensuring the security of data transmission and providing a strong guarantee for drone’s compliant flight and safe application.
As a cooperation partner of ArduPilot, ArduPilot has adopted C-RID as the technical verification platform to develop the ArduRemoteID technology solution to ensure the compatibility of hardware and software. The firmware code of C-RID is hosted in the ArduPilot codebase, enabling manufacturers worldwide to perform targeted secondary optimization and development. C-RID supports ArduPilot and PX4.
