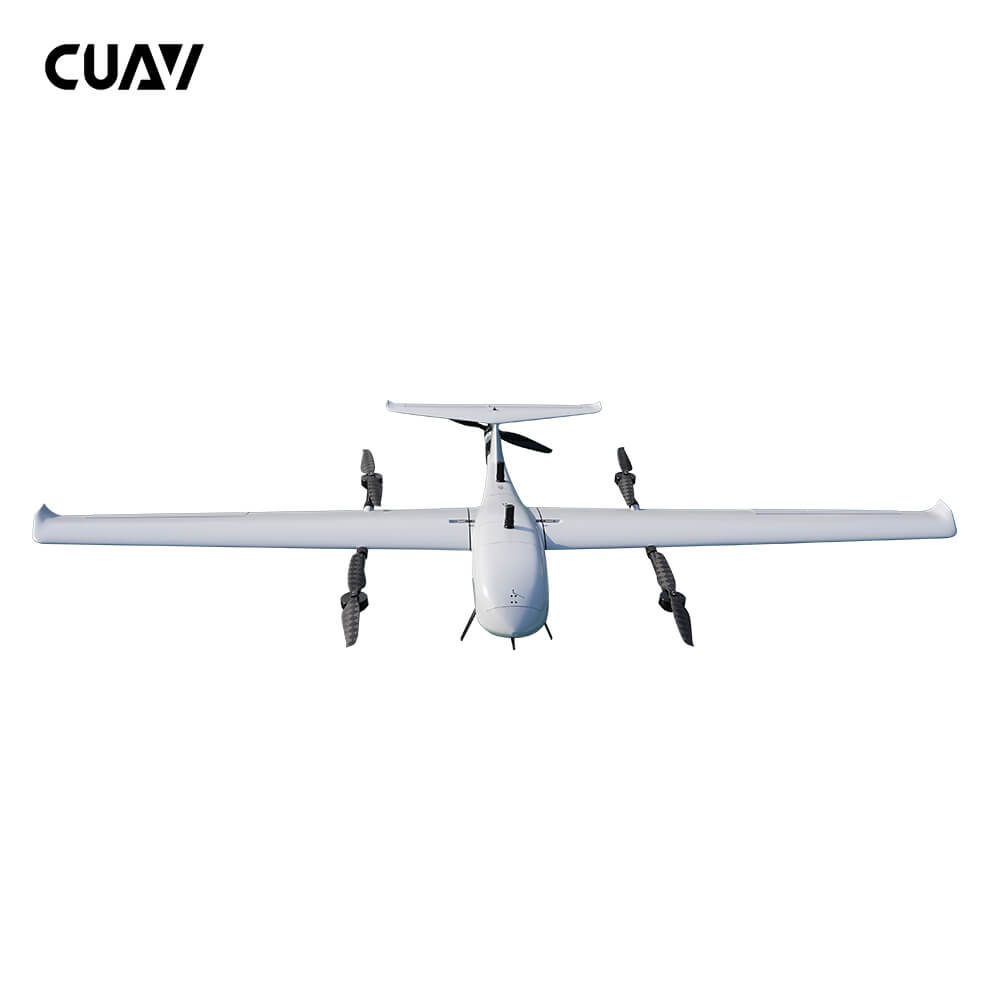

CUAV New VT290 VTOL for mapping surveying inspection
CUAV New VT290 VTOL for mapping surveying inspection - Image 2
CUAV New VT290 VTOL for mapping surveying inspection - Image 3
CUAV New VT290 VTOL for mapping surveying inspection - Image 4
CUAV New VT290 VTOL for mapping surveying inspection - Image 5
CUAV New VT290 VTOL for mapping surveying inspection - Image 6
CUAV New VT290 VTOL for mapping surveying inspection - Image 7

CUAV New VT290 VTOL for mapping surveying inspection

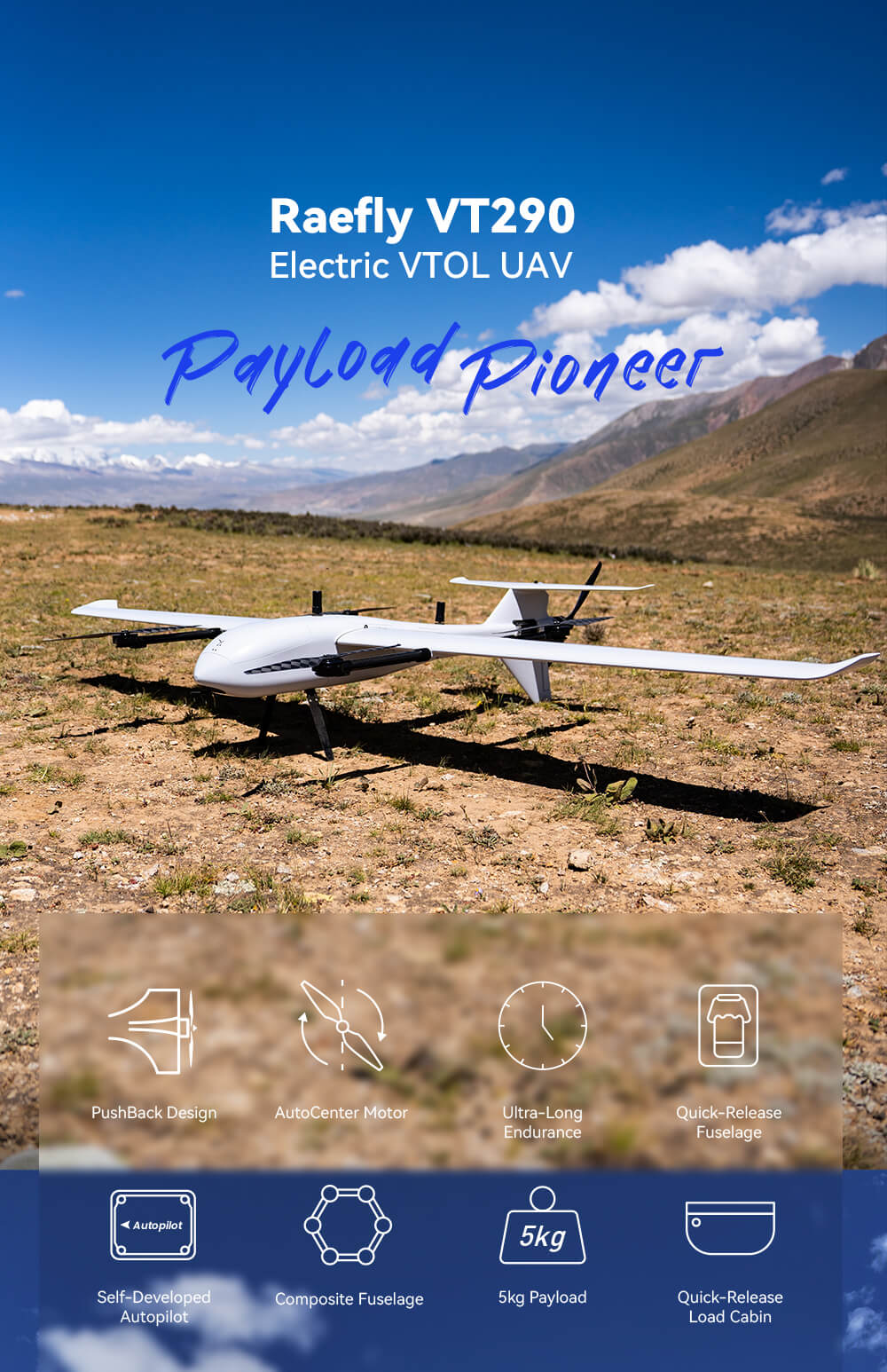

VT290 VTOL Feature:

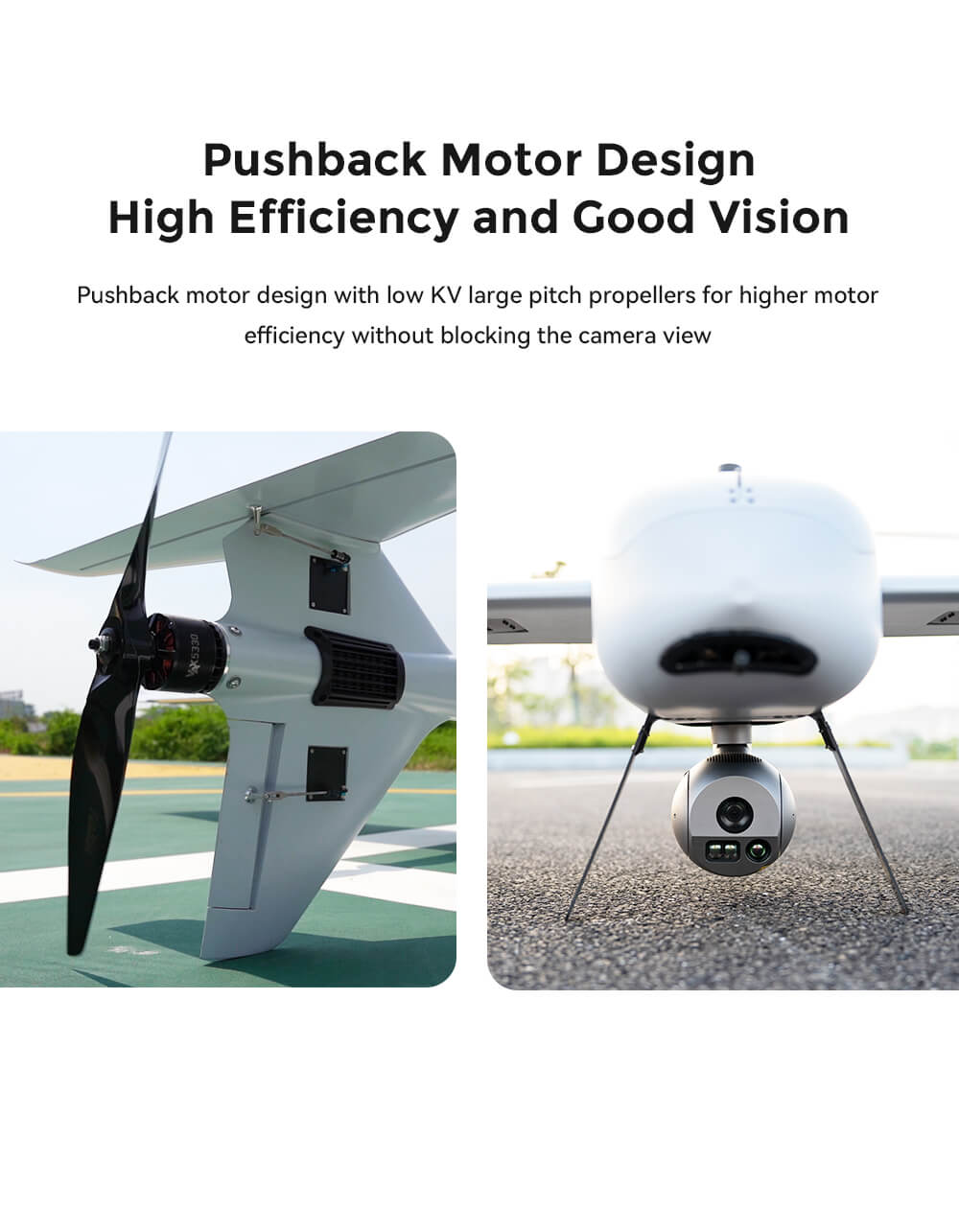

1– PushBack Design

2– Self-DevelopedAutopilot

3– AutoCenter Motor

4– Composite Fuselage

5– Ultra-Long Endurance

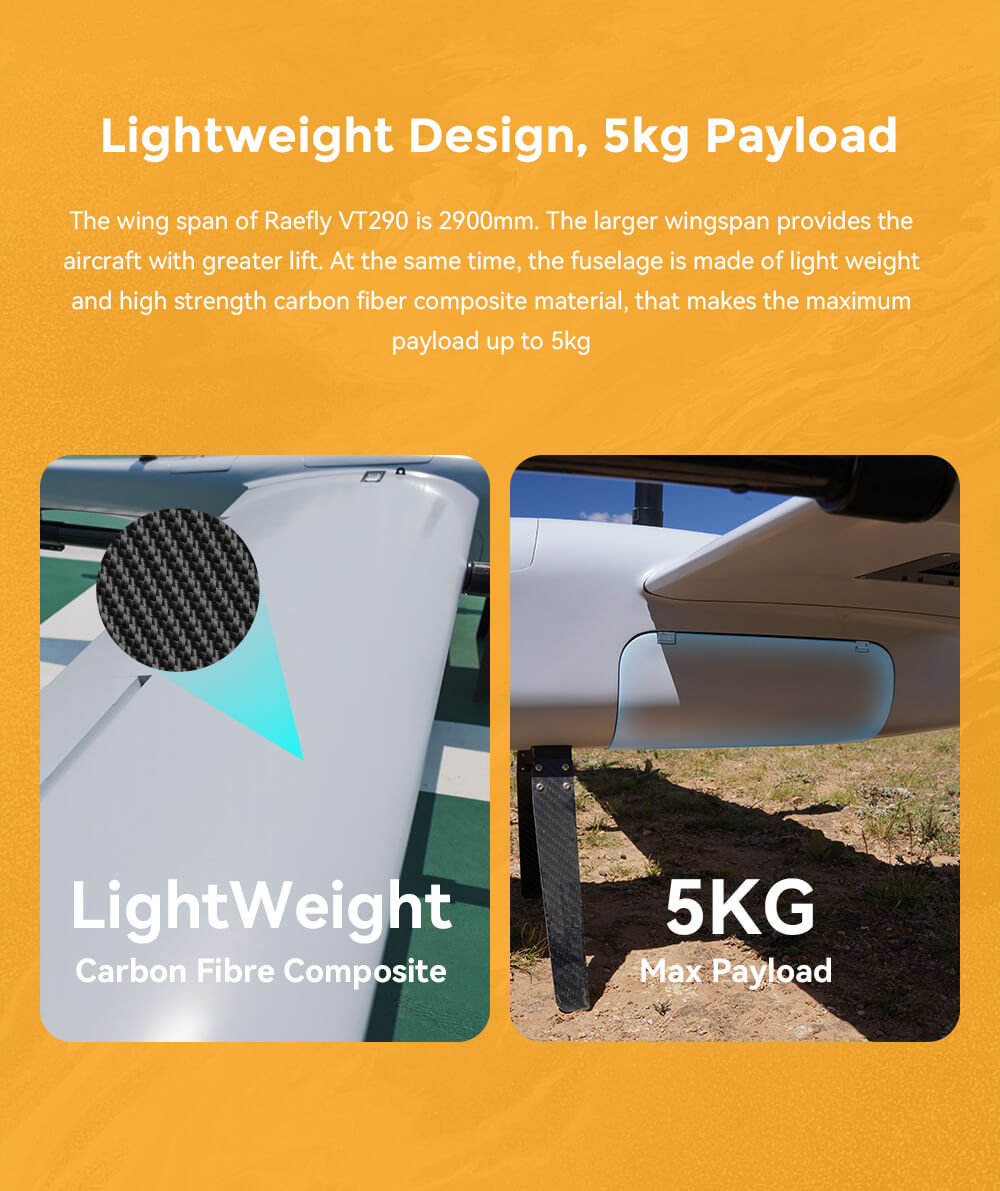

6– 5kg Payload

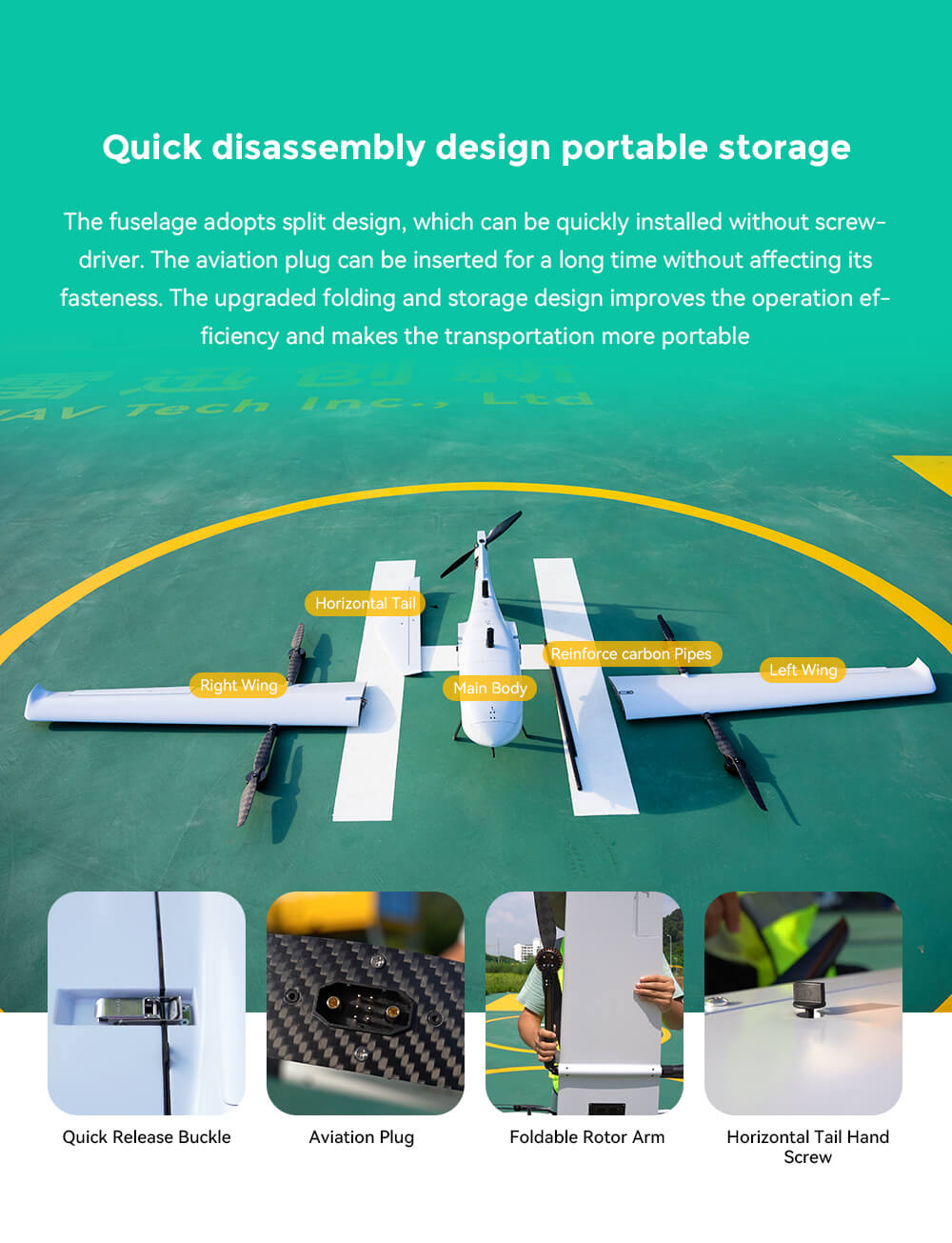

7– Quick-Release Fuselage

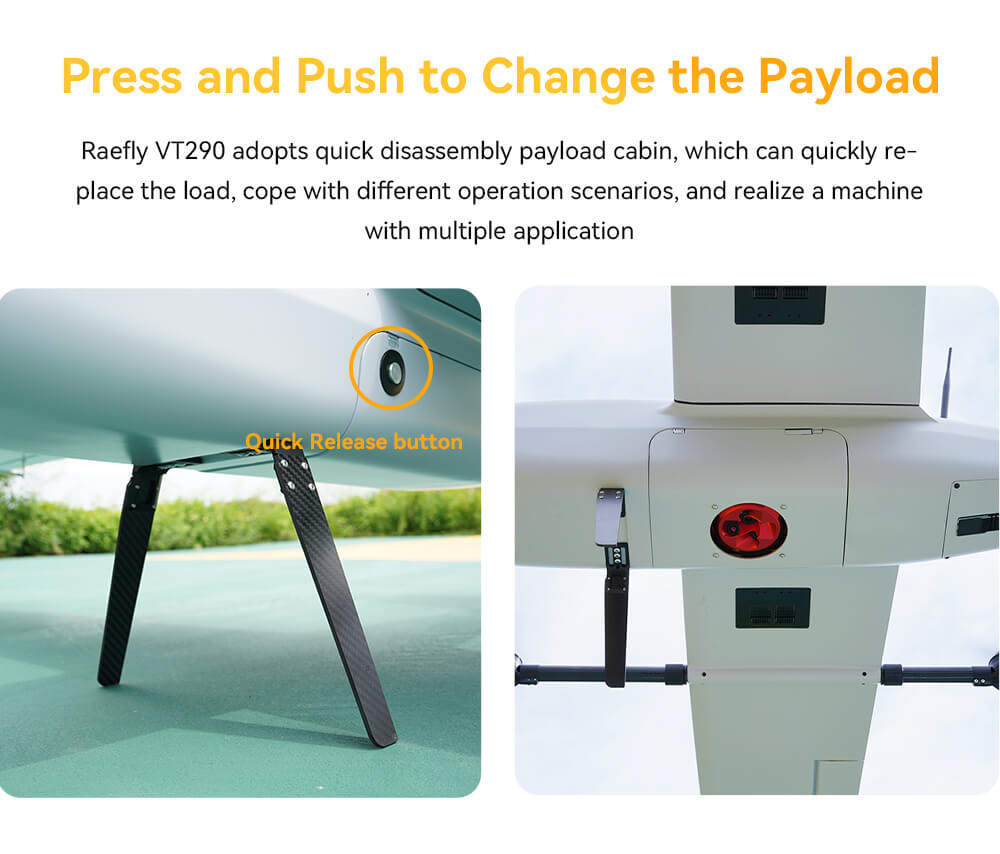

8– Quick-Release Load Cabin



Price range: $9,999.00 through $47,999.00

Payment Methods：

CUAV Raefly VT290  VTOL UAV

Notes: Showing price is NOT including shipping fee. For more information please contact us . Thanks so much.

Introduction:

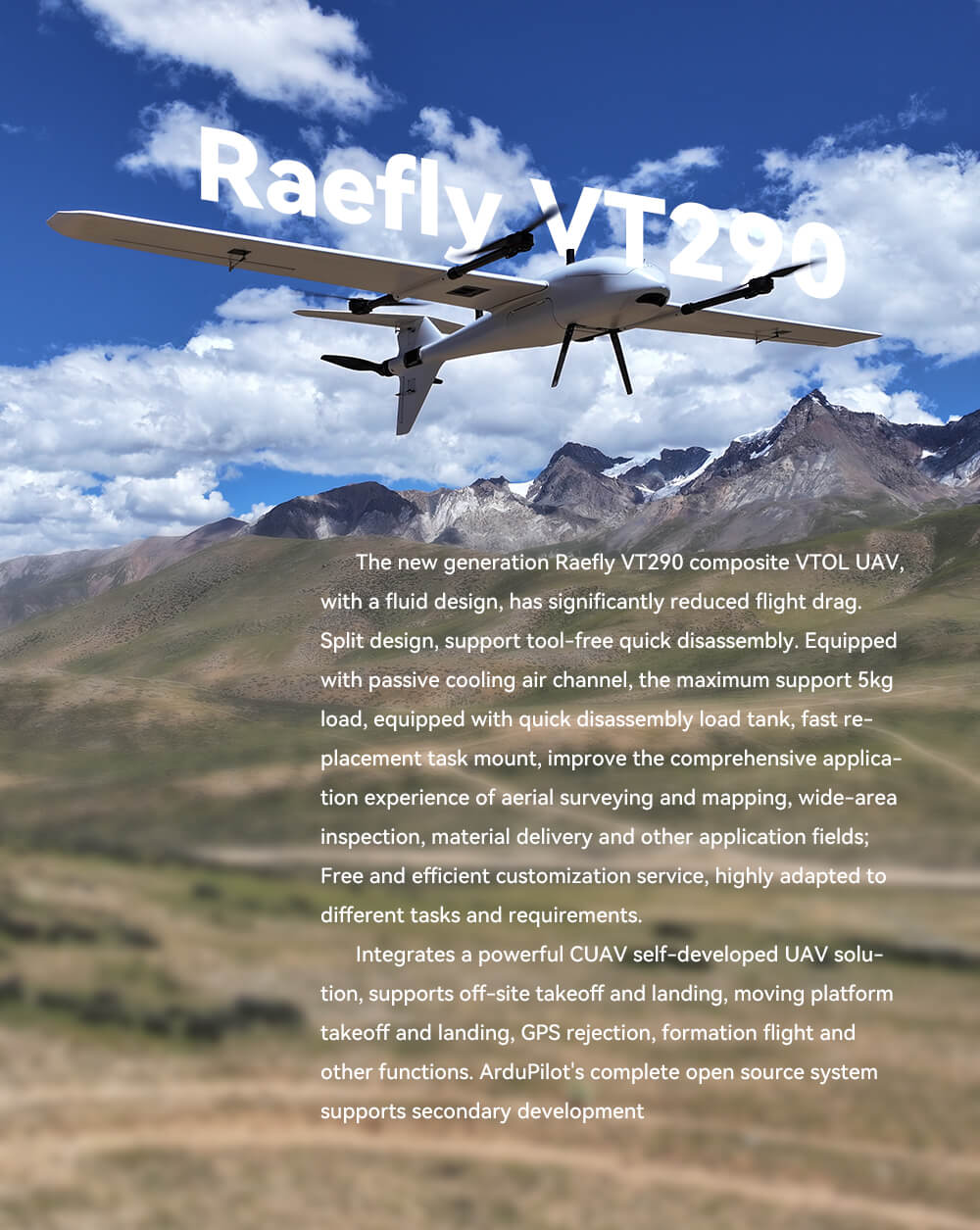

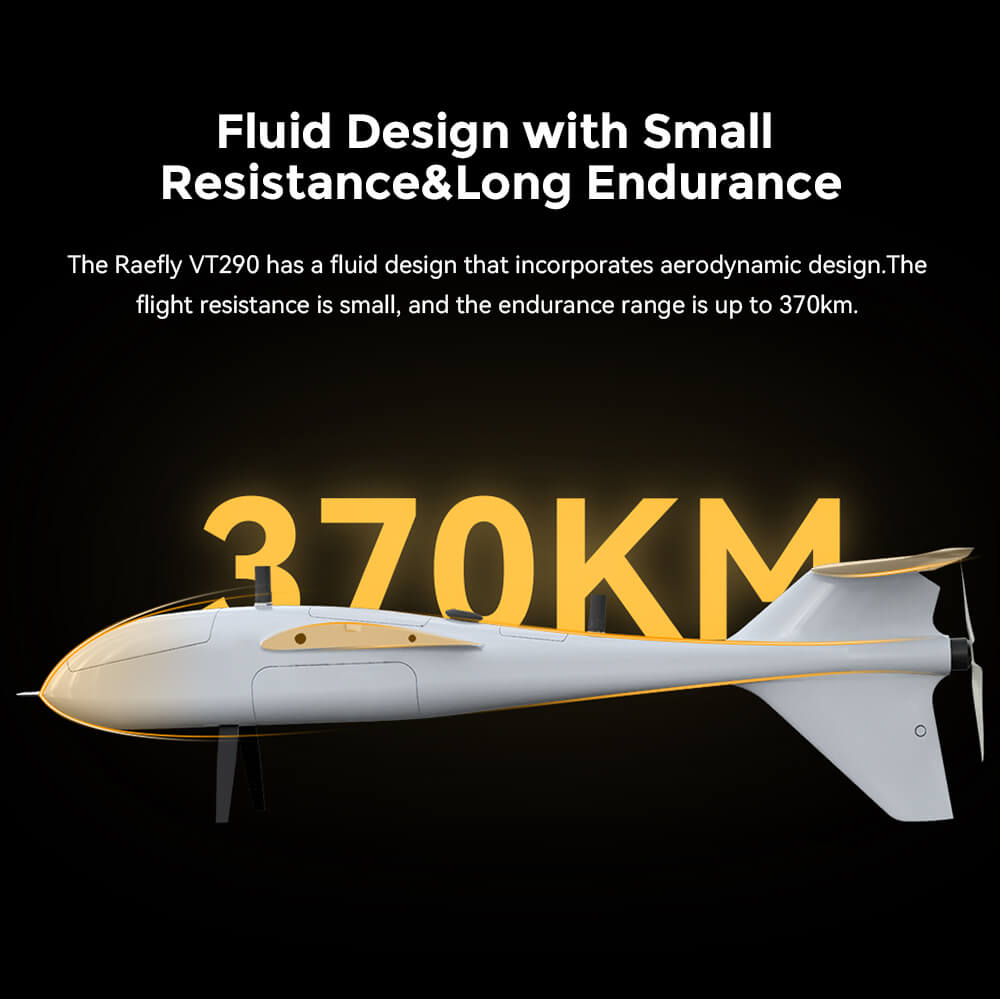

The new generation Raefly VT290 composite VTOL UAV, with a fluid design, has significantly reduced flight drag. Split design, support tool-free quick disassembly. Equipped with passive cooling air channel, the maximum support 5kg load, equipped with quick disassembly load tank, fast replacement task mount, improve the comprehensive application experience of aerial surveying and mapping, wide-area inspection, material delivery and other application fields.
Raefly VT290 Specifications
Body materialCarbon fiber+Kevlar composite material
Wingspan2900mm
Max flying speed35m/s
Economical cruising speed20m/s
Stall speed16m/s
EnduranceNo load: 5h
5kg load: 3h
Maximum range370km
Max payload5kg
Empty weight13.5kg
Max takeoff weight19kg
Wind resistanceLevel 6
Takeoff and landing modeVertical takeoff and landing
Power energyBattery
Positioning accuracySingle point positioning: 1.5M
RTK: 1CM+1PPM
ControllerCUAV series Controller
Communication distanceBased on link data
Customized/ OptionalController, GNSS, remote controller, mission payload, body coating, waterproof design, remote ID, etc
Ground stationQGoundcontrol Missionplanner/LGC
Application scenarioMapping, inspection, logistics, monitoring, public security, delivery, etc
Wing installation angle2°
Wing area72dm2
Wing load264g/dm2 @19kg

Platform Compliance and End-User Commitment Statement

To jointly comply with international trade regulations and Chinese law, as a user purchasing products on this platform, you must understand and agree to abide by the following provisions:

Purchase and Use commitment

You commit that all products purchased through this platform will be used for legal and compliant civilian purposes. You shall not use the products for any military purposes, prohibited scenarios, or any activities related to weaponny or weapons of mass destruction.

Export and Resale Restrictions

1.Do not directly or indirectly export or transship products to any country/region subject to sanctions under Chinese law orinternational regulations.
2.Do not provide products to any entity or individual included in the restricted lists by international or domestic regulatory authorities.
3. lf you resell products to downstream customers, you are obligated to ensure that they make compliance commitments consistent with the core terms of this statement.

Liability and Consequences of Breach

You fully understand that if you breach the aforementioned commitments(including false information, illegal use, illegal export, etc.), which results inany investigation, penalty,or loss (including financial compensation, damage to goodwill, etc.) to this platform, you shall bearfull compensation liability.
Meanwhile, the platform reserves the right to immediately suspend or terminate the provision of services to you and pursue your liability for breach of contractin accordance with the law.
The validity of this statement is independent and shall not become invalid by the completion of any transaction between you and the platform.

Procurement / Purchasing Communication

Laura

E-mail:Laura@cuav.net

WhatsApp:(+86)18078814327

Tina

E-mail:Tina@cuav.net

WhatsApp:(+86)18122367332

Weight 13.5 kg
Dimensions 160 × 75 × 60 cm
VT290 VTOL

starter version, Inspection version, Wide area patrol, Surveying Mapping, Platform take-off and landing

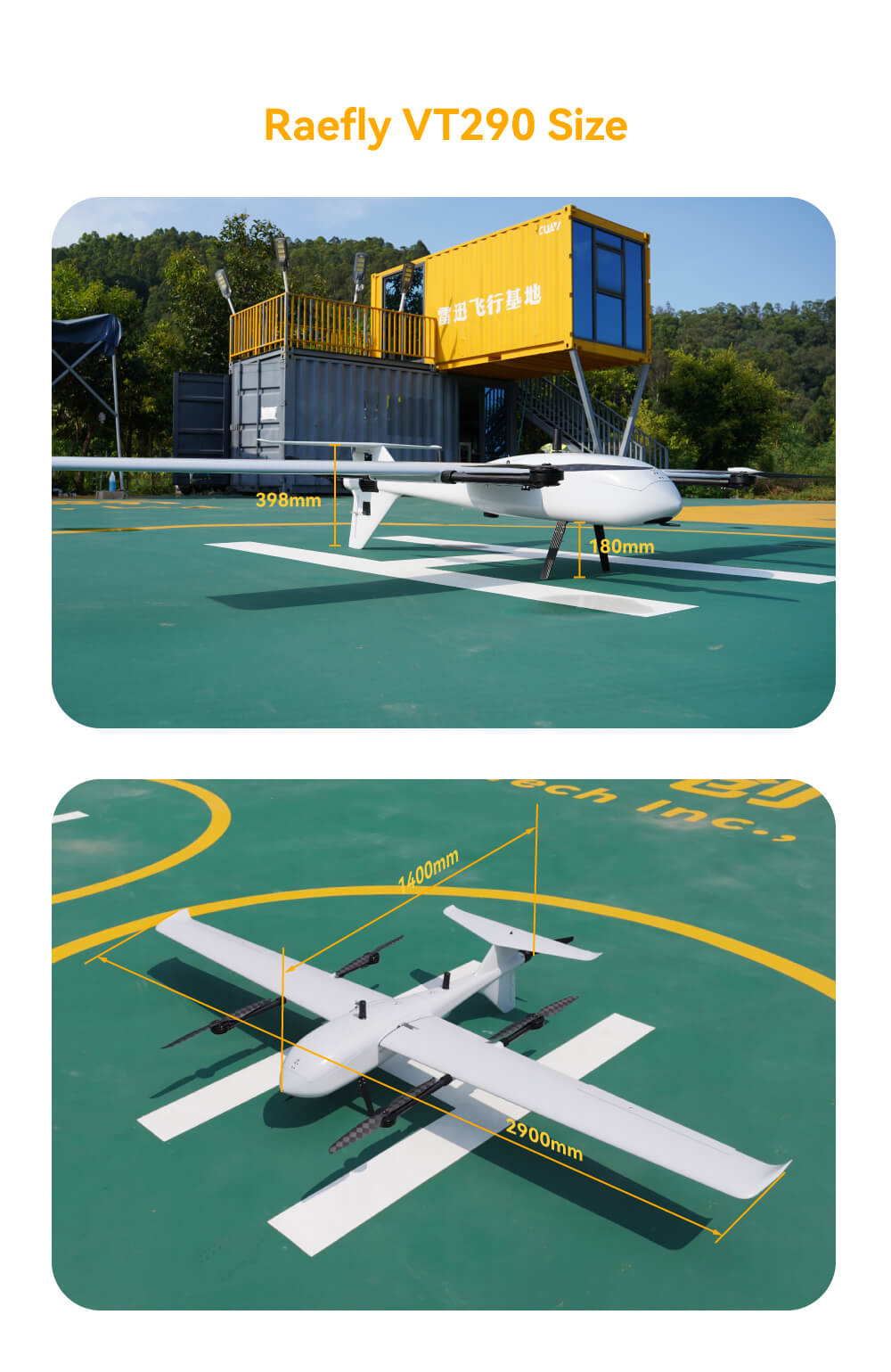

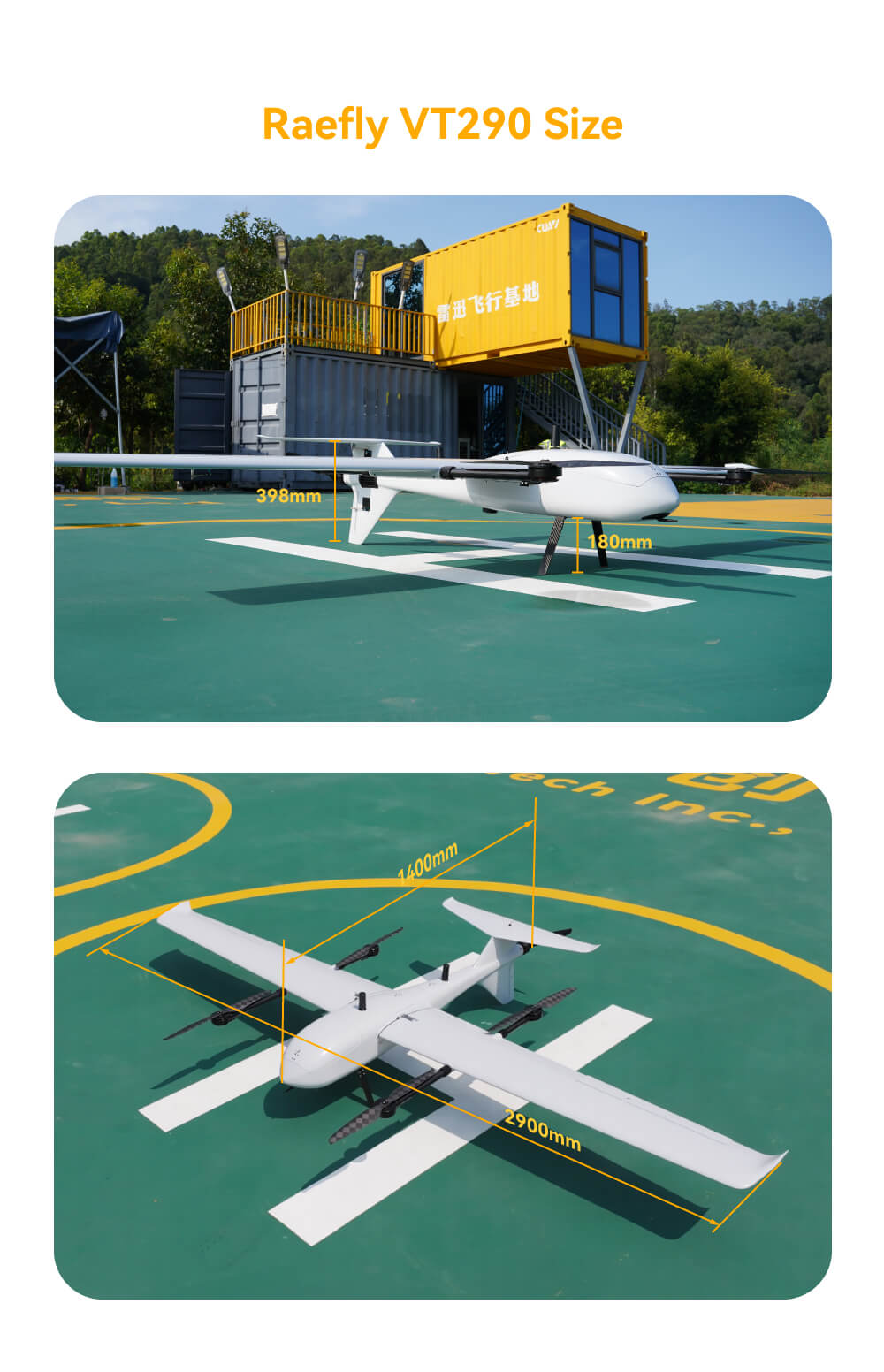

Size

2900*1400*398mm
Max flying speed

35m/s
Economic cruising speed

20m/s
Stall speed

16m/s
Max payload

5kg
Body material

Carbon fiber+ composite material
Empty weight

13.5kg
Maximum takeoff weight

19kg
Wind resistance

Level 6
